CHAPTER 2:

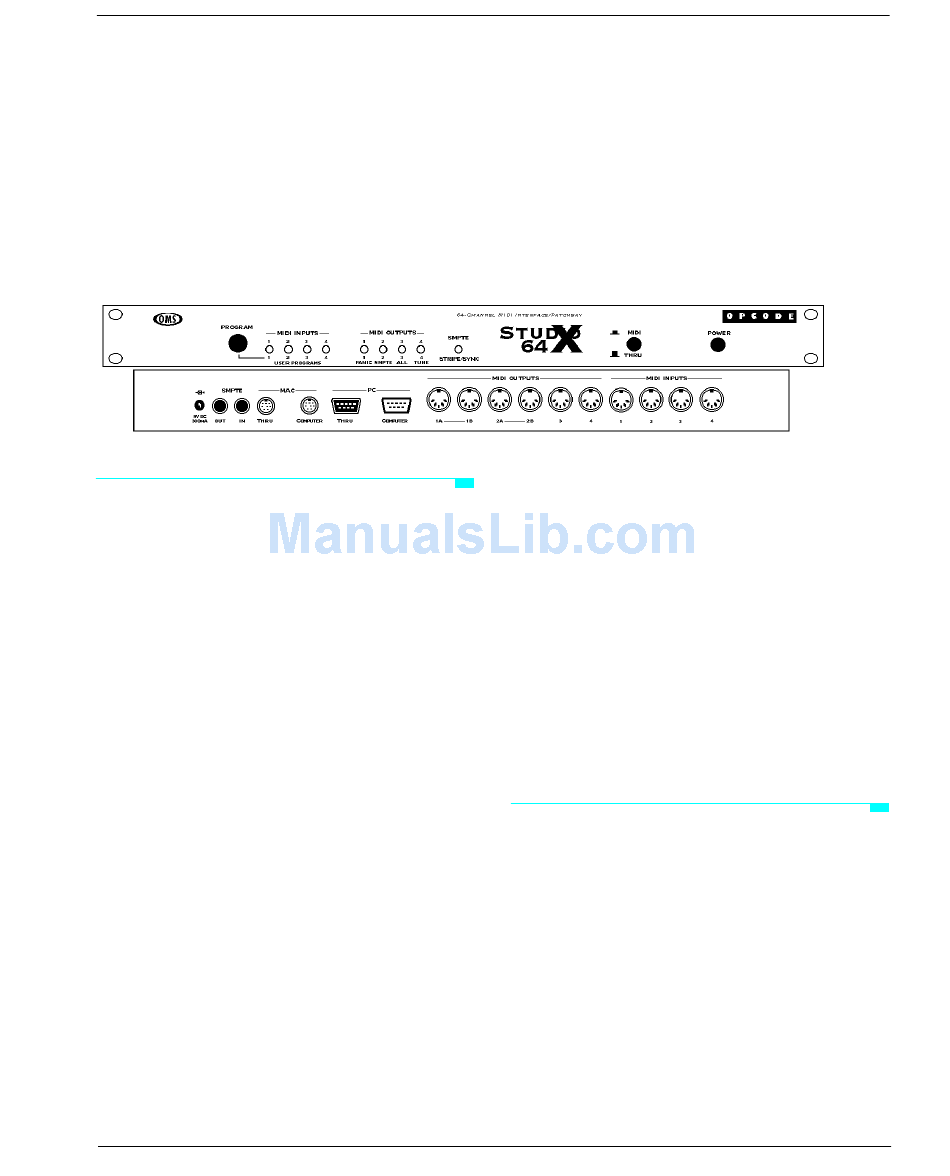

STUDIO 64X FRONT PANEL

Program Button
The PROGRAM button selects the current
program. Press the button once and an LED
flashes rapidly to indicate the currently
selected program. Press the PROGRAM
button repeatedly to advance to and select a
particular program.
LEDs
• The red MIDI input LEDs flash when
data is received. The red LEDs also indi-
cate when a user program is selected.
• The green MIDI output LEDs flash when
data is sent. The green LEDs also indi-
cate when a preset program is selected.
• The yellow SMPTE LED serves three
purposes. It blinks slowly when the
Studio 64X is generating SMPTE; it
flashes rapidly when receiving SMPTE;
and when it glows steadily, it indicates
the Studio 64X is turned on.
Getting Started with the Studio 64X
Front/Rear Panels
MIDI/Thru Switch
The MIDI/Thru switch specifies whether
your computer is communicating with the
Studio 64X or its "serial thru device." The
switch must be set to MIDI for computer use.
Power ON/OFF Switch
The POWER switch turns on/off the
Studio 64X. When powering up, all LEDs
flash simultaneously four times. Make sure
power is off before making any connections.

STUDIO 64X REAR PANEL

9V DC 300MA
The provided power adapter supplies power
to the Studio 64X via this jack. The provided
adapter has the following specifications:
•
•
U.S. and Canada: 7.5vDC - 9vDC,
300mA, 5.5mm x 2.1mm center positive
barrel plug.
Europe: 7.5vDC, 300mA, 5.5mm x
2.1mm center positive barrel plug.
3
