CHAPTER 5: Studio 64X Programs

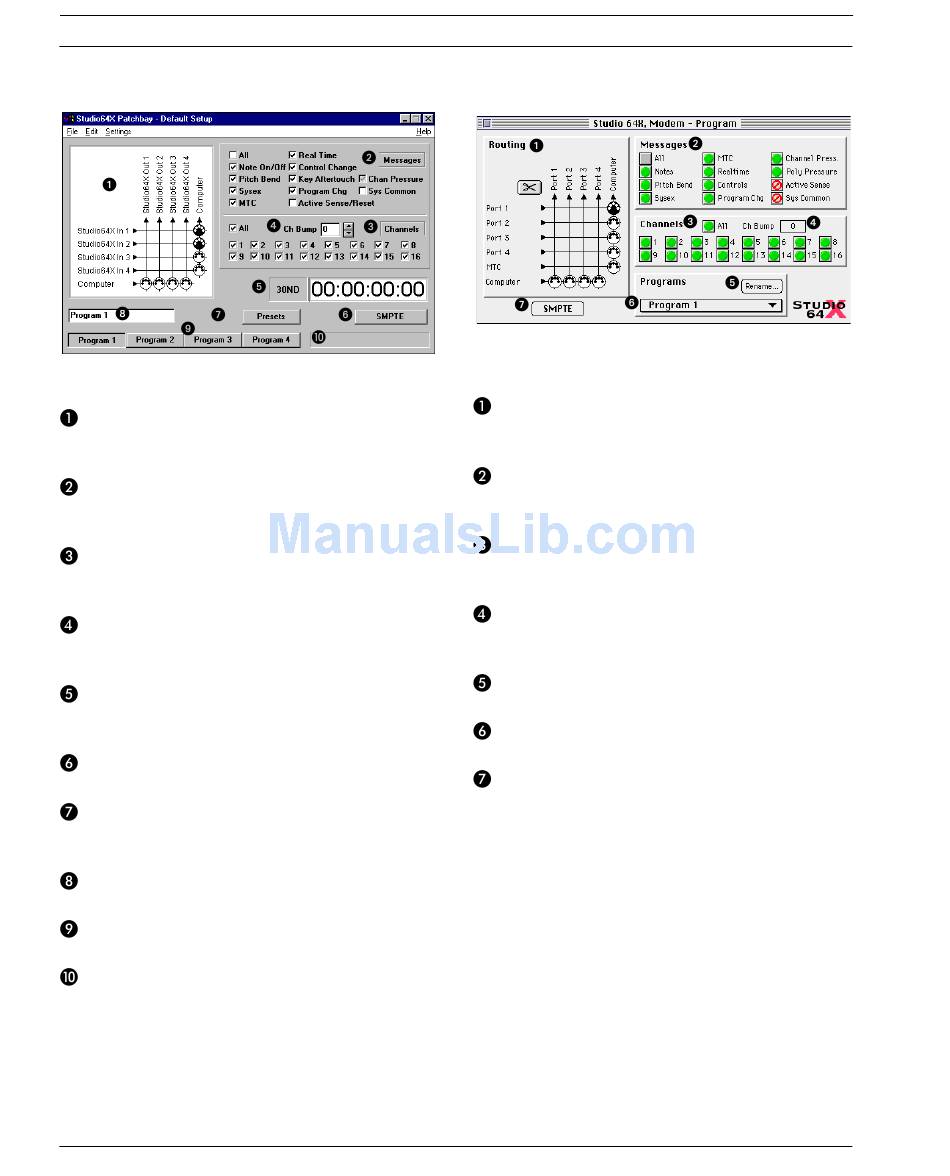

Figure 5.1: Patchbay Window for PC
Connection Grid, defines connections
between inputs (on left) and outputs (on
top).
Message Filtering, specifies which MIDI
messages are routed for the selected
connection(s).
Channel Filtering, specifies which chan-
nels are routed for the selected
connection(s).
Channel Bump, shifts channel assign-
ment for MIDI messages for the selected
connection(s).
SMPTE Monitor, displays scrolling
SMPTE frames when receiving/generat-
ing timecode.
SMPTE button, opens the SMPTE
Window.
Preset/User Programs Button, specifies
whether the preset or user programs are
displayed.
Program Name field, renames the cur-
rent program.
Program Button, specifies the current
program.
Status Field, displays communication
status between the Studio 64X and PC.
10
Figure 5.2: Program Edit Window for Macintosh
Connection Grid, defines connections
between inputs (on left) and outputs (on
top).
Message Filtering, specifies which MIDI
messages are routed for the selected
connection(s).
Channel Filtering, specifies which chan-
nels are routed for the selected
connection(s).
Channel Bump, shifts channel assign-
ment for MIDI messages for the selected
connection(s).
Rename Button, renames the current
user program.
Program Pop-up, specifies the current
program.
SMPTE Button, opens the SMPTE
Window.
For more detailed information on creating
and editing Studio 64X user programs
(including settings in the SMPTE Window),
please consult your online help file.
