SANDER INSTRUCTION MANUAL
101 mm (4 in.)–127 mm (5 in.)
12,000 RPM
Please read, understand and follow all safety information contained in these instructions prior to the use of this tool.
Retain these instructions for future reference.
This pneumatic tool is intended for use in industrial locations, and used only by skilled, trained professionals in accordance with the instructions in this manual. This
pneumatic tool is designed to be used with disc pads, and appropriate abrasive for sanding metals, wood, stone, plastics and other materials. It should only be used
for such sanding applications and within its marked capacity and ratings. Only accessories specifically recommended by 3M should be used with this tool. Use in any
other manner or with other accessories could lead to unsafe operating conditions.
Do not operate tool in water or in an excessively wet application.
Do not use disc pads that have a Max RPM less than the tool Max RPM rating.
Tools shall be inspected periodically to verify that ratings, markings, and labels are legible. Contact 3M Company to obtain replacement labels.
Prolonged vibration may cause injury
90 PSIG / 6.2 BAR MAX
Use accessories rated at tool speed or higher
W WARNING:
Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury and/or property damage.
W CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.
Read the Safety
Data Sheets (SDS)
before using any materials.
SDS
Contact the suppliers of the
workpiece materials and abrasive
materials for copies of the SDS if
one is not readily available.
FSSS
HDS

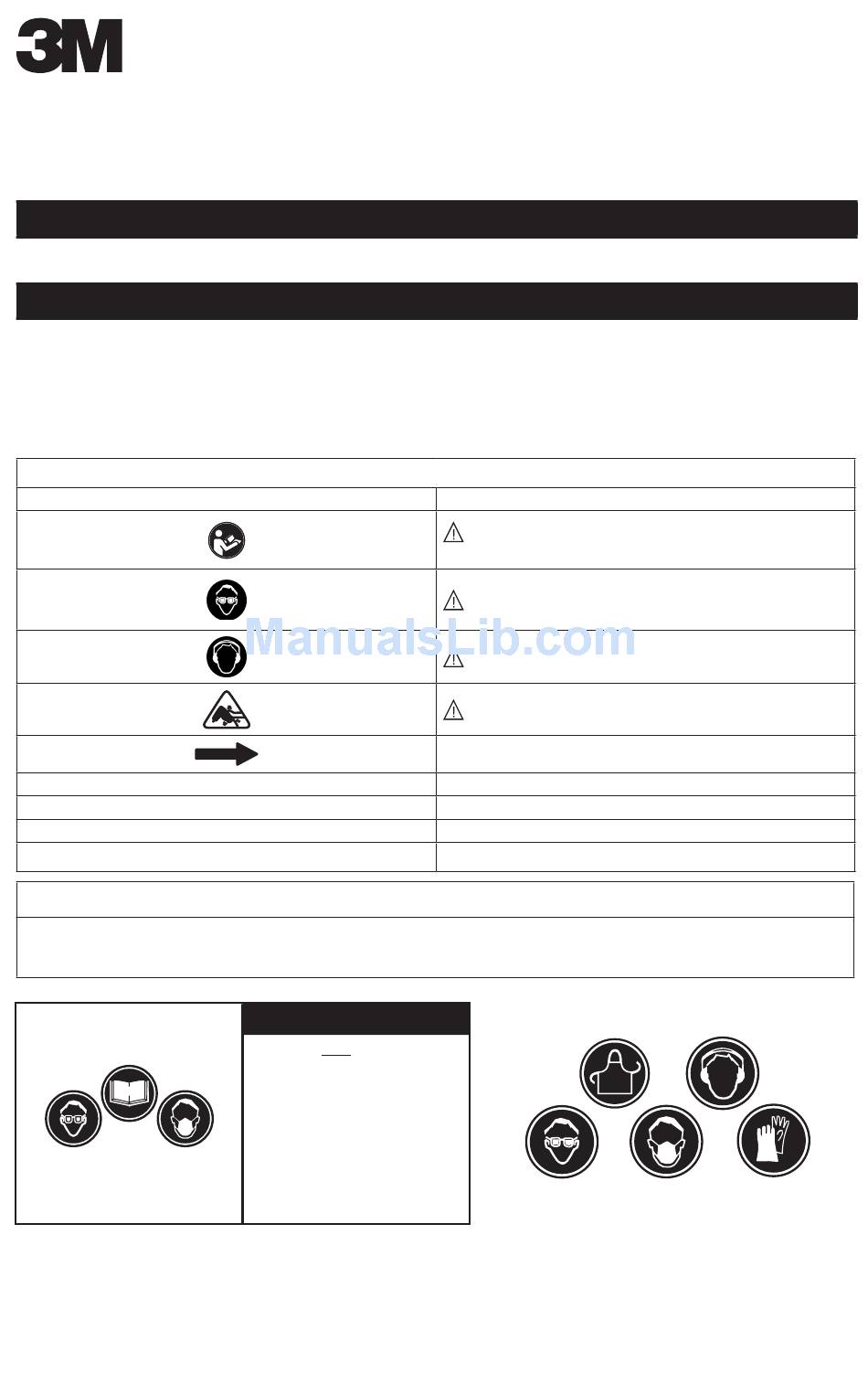

Important Safety Information
Summary of device labels containing safety information
Marking
12,000 r/min
Explanation of Signal Word Consequences
W WARNING!
Exposure to DUST generated from
workpiece and/or abrasive materials
can result in lung damage and/or
other physical injury.
Use dust capture or local exhaust as
stated in the SDS. Wear government-
approved respiratory protection and
eye and skin protection.
Failure to follow this warning can
result in serious lung damage and/or
physical injury.
Intended Use
WARNING: READ AND UNDERSTAND INSTRUCTION MANUAL BEFORE
OPERATING TOOL.
WARNING: ALWAYS WEAR APPROVED EYE PROTECTION
WARNING: ALWAYS WEAR APPROVED HEARING PROTECTION
WARNING: AVOID PROLONGED EXPOSURE TO VIBRATION
Direction of Rotation
Vibration Safety Note
Maximum Rotational Speed
Maximum Air Pressure
Accessories Speed Warning Note
1
Description
Original Instructions
