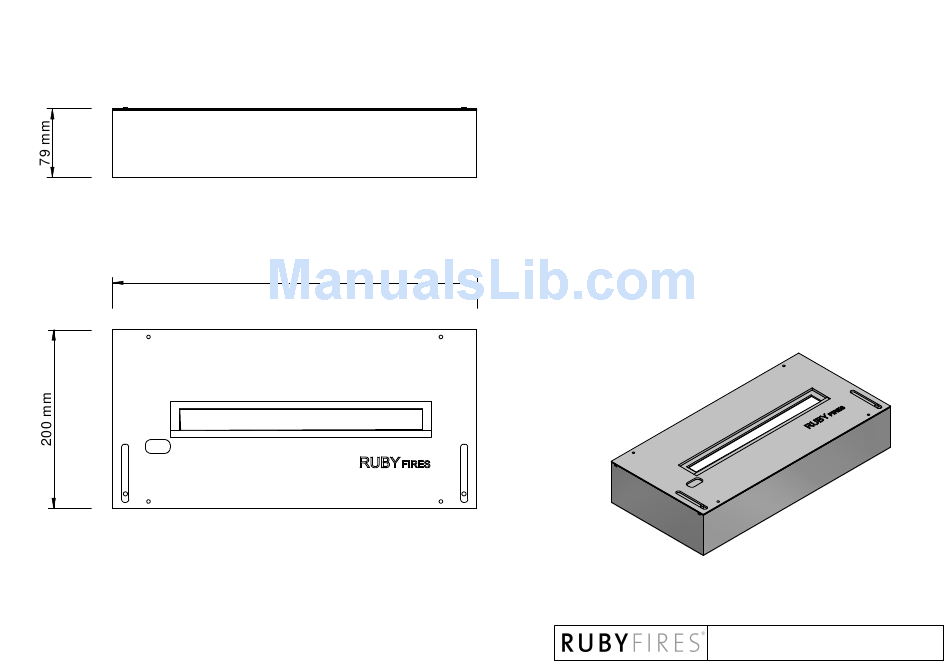

- Page 1 406 mm Title BIOBURNER 4120...
- Page 2 User’s manual and safety instructions of the unique, patented Ruby Fires Ceramic Burner a product by Ruby Decor B.V., The Netherlands Keep this user’s manual carefully for the life of this product. This product is only to be sold in combination with this user’s manual.
- Page 3 Filling the ceramic burner with Ruby Fires bio ethanol 98% LEF, use only LEF to fill the ceramic burner. • It is of great importance that the liquid never flows outside the filling opening. • Make sure to fill the ceramic burner carefully and slowly, so it cannot be overfilled. • In case liquid is spilled, use a soft, absorbing cloth to clean. • For an optimal fire the burner has to be filled not higher than 1 cm below the surface of the ceramic element. When the ceramic burner is filled with LEF for the first time, the ceramic element on the inside will be saturated completely. The liquid will always remain partly absorbed by the brick. Therefore it is necessary to use more bio ethanol the first time the burner is filled than the following times. First filling Refill Ceramic burner Mini (4114) ± 1 liter ± 0.8 liter Ceramic burner Small (4120 + Silo) ± 1.5 liter ± 1 liter Ceramic burner Big (5820) ± 2 liter...
-
Page 4: Possible Problems And Solutions
Opening and closing the latch: The latch can be opened using the enclosed handles. Maintenance • When the ceramic burner has been used very often, discolorations on the top can occur. This is normal and does no harm to the quality of the product. • Do not use an abrasive product for cleaning the insert. Clean the surfaces with a moist piece of cloth or a non-abrasive stainless steel cleanser. • Glass screens can be cleaned with a ceramic cook top cleaner. Possible problems and solutions: Problem Possible cause Solution Existence of soot Wrong fuel Use ONLY Ruby Fires bio ethanol 98% Existence of soot Fire-opening is covered with decoration material Make sure the fi re-opening is free of decoration material Duration of fi re too short Wrong fuel (e.g. gel) Use ONLY Ruby Fires bio ethanol 98% Duration of fi re too short Burner has not been fi lled completely Extinguish the burner. Let it cool down for at least 30 minutes and then re-fi ll. -
Page 5: Ventilation Of The Room
• Be careful with inflammable clothes or hair. • Do not blow into the fire. • Never leave the fire unattended. • Do not place inflammable material e.g. paper, cardboard, fabric (clothes) etc. on the burner or surround. • Keep the latch closed when the burner is not in use. • The use of the ceramic burner for burning any other material besides the Ruby Fires bio ethanol is not permitted • Warning! In case the flames hit the back of the insert extinguish the fire immediately and contact your supplier. • Keep a fire-extinguisher or extinguishing blanket within reach. Ventilation of the room: When the ceramic burner is used in closed spaces, adequate ventilation has to be provided! In addition to carbon dioxide (CO2) an adequate supply of fresh air (150 cm² opening) should be ensured. Insufficient ventilation can cause poisoning by the odourless carbon monoxide. There are requirements for the supply of fresh air quantity per fire: The room must be a minimum area of 25 m² and has to be ventilated at least 1/hr. Type burner Content Measurem. Heat room consumpt. Burning time (liters) (cm) (kW) (ltr p. hr.) (hours) 4114 1 41x14x8 ca. 2 min 25...
