Dwyer Instruments UHH Specifications-Installation And Operating Instructions

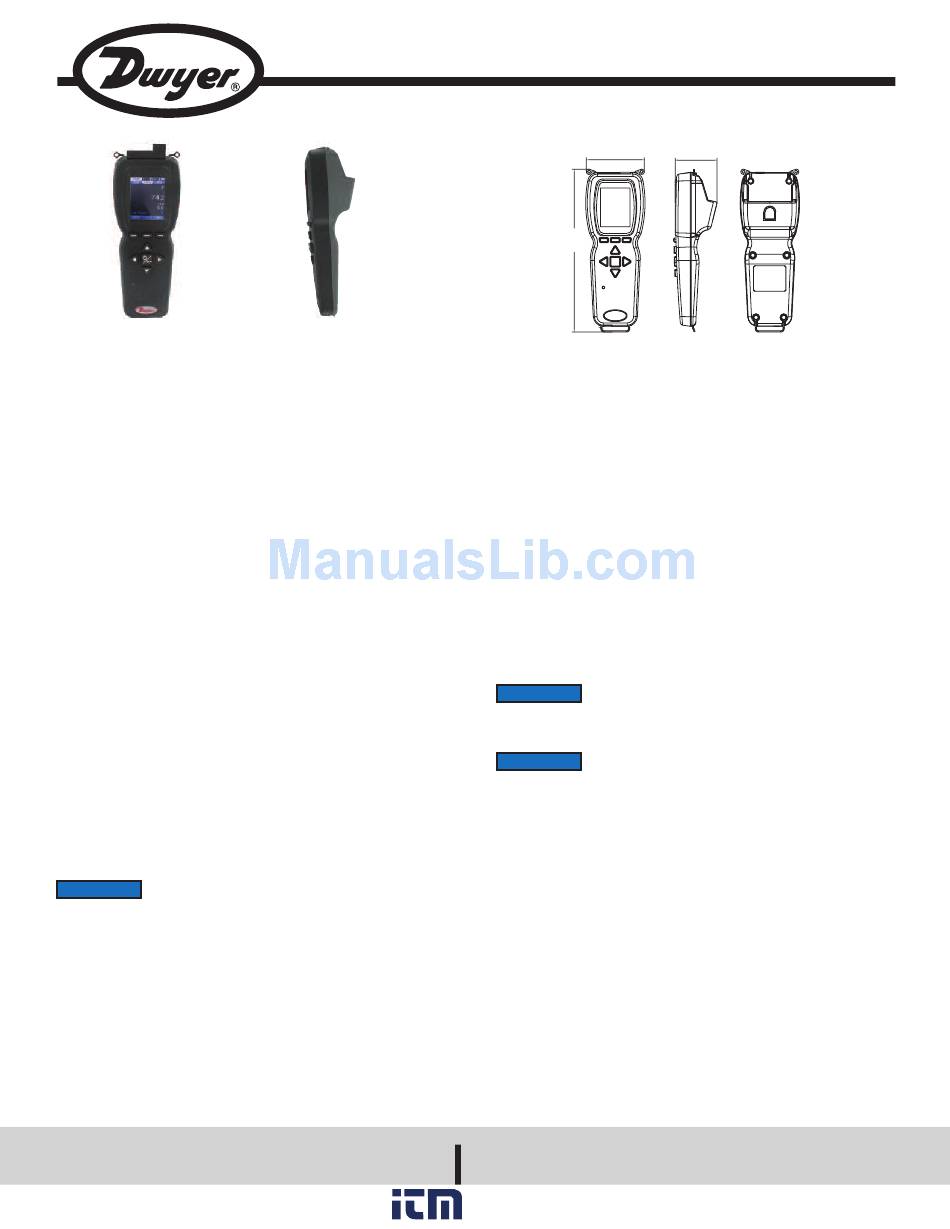

Front View
The Model UHH Universal Handheld Test Instrument is a highly versatile
instrument that offers the utmost flexibility and ease of user operation by having
the capacity to work with a variety of Dwyer Instruments, Inc. compatible sensing
modules and probes. Additional wired and wireless probes or modules are
instantly recognized by the UHH without any user reprogramming or alteration,
allowing seemless sensor addition, upgrade or replacement. See the AQTI Series
in the Dwyer Instruments, Inc. catalog or website www.dwyer-inst.com for
available packages and sensors.
The Universal Handheld offers numerous features that enable a technician to
quickly set up and intuitively navigate through their daily activities. Data is stored
via the internal memory or a separate SD card in various auto or manual logging
operations. Logged files can be quickly transferred to a PC or laptop through a
USB cable or by a portable SD card. The display can operate in standard
numerical meter mode, gage mode with an analog needle, gage mode with
additional pass/fail operation zones, and strip chart mode which enables a
simplified visual tracking of the process. The four directional buttons, combined
with the three soft key buttons that are aligned to corresponding screen functions,
allow for quick navigation through the four main operation menus.
The rugged plastic case, with protective thermo-plastic over-mold and the dust-
shielding rubber caps, permit the unit to handle abuse and properly withstand
dusty environments. The base UHH includes an integral molded compartment that
securely holds wireless modules. The storage compartment offers convenient
transportation of a module with the base instrument during testing. A flexible hand
strap, included with every UHH, allows the base handheld to be safely connected
to a belt, pipe, ladder or similar structure freeing the user's hands to focus on the
sampling test. A 6-pin connector enables one wired probe at a time to be plugged
in to the base instrument without worry of becoming disconnected during sampling.
Additional wireless units can be paired to the base handheld allowing users to
quickly switch between multiple parameters that need to be measured.
The rechargeable battery via the included USB cable provides long term operation
to last through several days of work. At just under 10 oz, the compact UHH base
is lightweight. Included with the UHH is a soft carrying case, universal office / car
charger, and USB cable.
NOTICE This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Cet appareil est conforme à des règlements d'Industrie Canada exempts de licence
standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes:
(1) Ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant entraîner un
fonctionnement indésirable.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du
Canada.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
1.800.561.8187
Model UHH - Universal Handheld Test Instrument
Specifications - Installation and Operating Instructions
Side View
Phone: 219/879-8000
Fax: 219/872-9057
www. .com
3.038
[77.17 mm] [55.09 mm]
8.508
[216.11 mm]
UHH SPECIFICATIONS
Languages: English, German, Italian, Portuguese, Spanish.
Display: OLED, color 240 x 320.
Temperature Limits: 5 to 125°F (-15 to 51°C).
Note: When using wireless function: 20 to 125°F (-6 to 51°C).
Battery Charging Limits: 32 to 113°F (0 to 45°C).
Resolution: 1 FPM, 0.1 MPS, 0.1 CFM & M
Units Air Velocity: FPM, MPH, KN, M/H, M/S K/H, FPS.
3 3
Units Flow: CFM, M /HR, M /S, GPM, GPH, GPD, LPS, LPM, LPH.
Units Temperature: °F, °C.
Handle Enclosure: Thermoplastic elastomer over polycarbonate.
Maximum Wireless Distance: 50' (15 m) typical.
Power Requirements: 3 V BR1225 lithium metal battery, installed functional,
non-replaceable and 3.7 V lithium ion battery, installed functional, non-
replaceable. (Note: Intended to be operated with power cables less than 3 m in
length).
Memory: 4 MB internal (~50,000 readings).
Weight: 10 oz (283 g).
Supplied With:
AQTI: Soft case; USB cable/charger; Hand strap;
AQTIP: Soft case; Hard case; USB cable/charger; Hand strap, 2GB SD card.
Agency Approvals: CE (not while charging), FCC compliant.
NOTICE
In some instances, it might be necessary to update the firmware
of the UHH base unit. Dwyer Instruments, Inc. will provide
information and files necessary to complete this upgrade in the field or the units can
be returned to the factory to complete any future firmware updates.
NOTICE While UHH is connected to a pc, the unit will act as a storage
device for retrieving log files. During this time, the unit cannot be
used to take measurements.
information@itm.com
Bulletin TE-UHH
2.169
3
/HR; 0.1°F & °C; RH 0.1%.
