The Model UHH2 Universal Handheld Test Instrument provides the functionality
and versatility of the Mobile Meter
Software App on a rugged IP68 Android
®
handheld. Wireless anemometer, hygrometer, and pressure probes communicate to
the handheld using Bluetooth SIG, Inc. wireless technology and can all be displayed
simultaneously. Each UHH2 includes a UHH2 handheld base unit, UHH-BTG
wireless mobile gateway, two USB charging cables, charging block, mini-screwdriver,
user manual, and headphones.
FEATURES/BENEFITS
• Rugged weatherproof housing withstands 1.5 meter drop test
• Wireless measurement of pressure, air velocity, air flow, temperature, and humidity
• Share logged data directly from handheld over Wi-Fi, GSM or CDMA networks
APPLICATIONS
• Building commissioning
• Building balancing
• Testing HVAC equipment performance
FEATURE OUTLINE
Volume
buttons
Power/sleep
button
DWYER INSTRUMENTS, INC.
Model UHH2 Universal Handheld Test Instrument
Specifications - Installation and Operating Instructions
based
®
Headphone
connection with
Speaker
integral protective
rubber cap
USB connection for
Backlit
data transfer or
touchscreen
recharging with
LCD
integral protective
rubber cap
Reset
button
Home
button
[20.64]
3-1/16 [77.79]
5-13/16
[147.64]
Display: 4.3˝ QHD Gorrilla glass touch screen, 960x540.
Wireless Distance: 50´ (15 m) or greater.
Response Time: 1 s.
Temperature Limits: Operating: -4 to 140°F (-20 to 60°C); Storage: -40 to 176°F
(-40 to 80°C).
Humidity Limits: 5 to 95% RH.
Power Requirements: 2000 mAh lithium ion battery, installed functional, non-
replaceable.
Memory: RAM 1G & ROM 4G.
Operating System: Android 4.2.2.
CPU: MTK6589W Quad Core 1.2 GHz.
Enclosure Rating: IP68.
Weight: 15.9 oz (450 g).
Agency Approvals: CE, FCC compliant.
Camera
Speaker
SIM card
access
Hand strap
clip

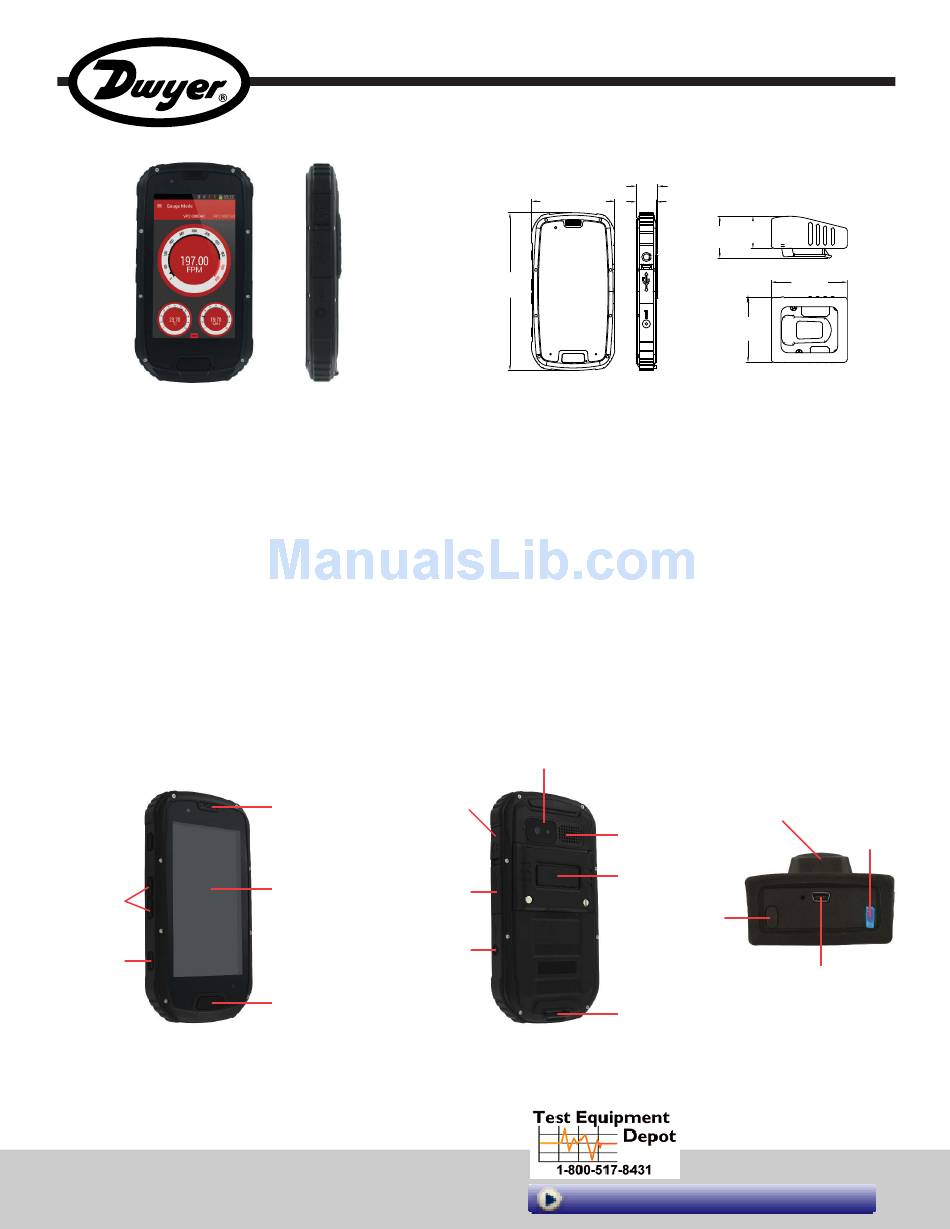

Figure 1
Visit us at www.TestEquipmentDepot.com
Bulletin TE-UHH2
13/16
3/4
[19.05]
1-3/16
1-35/64
[30.16]
[39.29]
2-13/16
[71.44]
2-13/32
[61.12]
Belt clip
Power
button
USB charger
connector
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Bi-color
LED
