LC-13B2E

Operation Manual

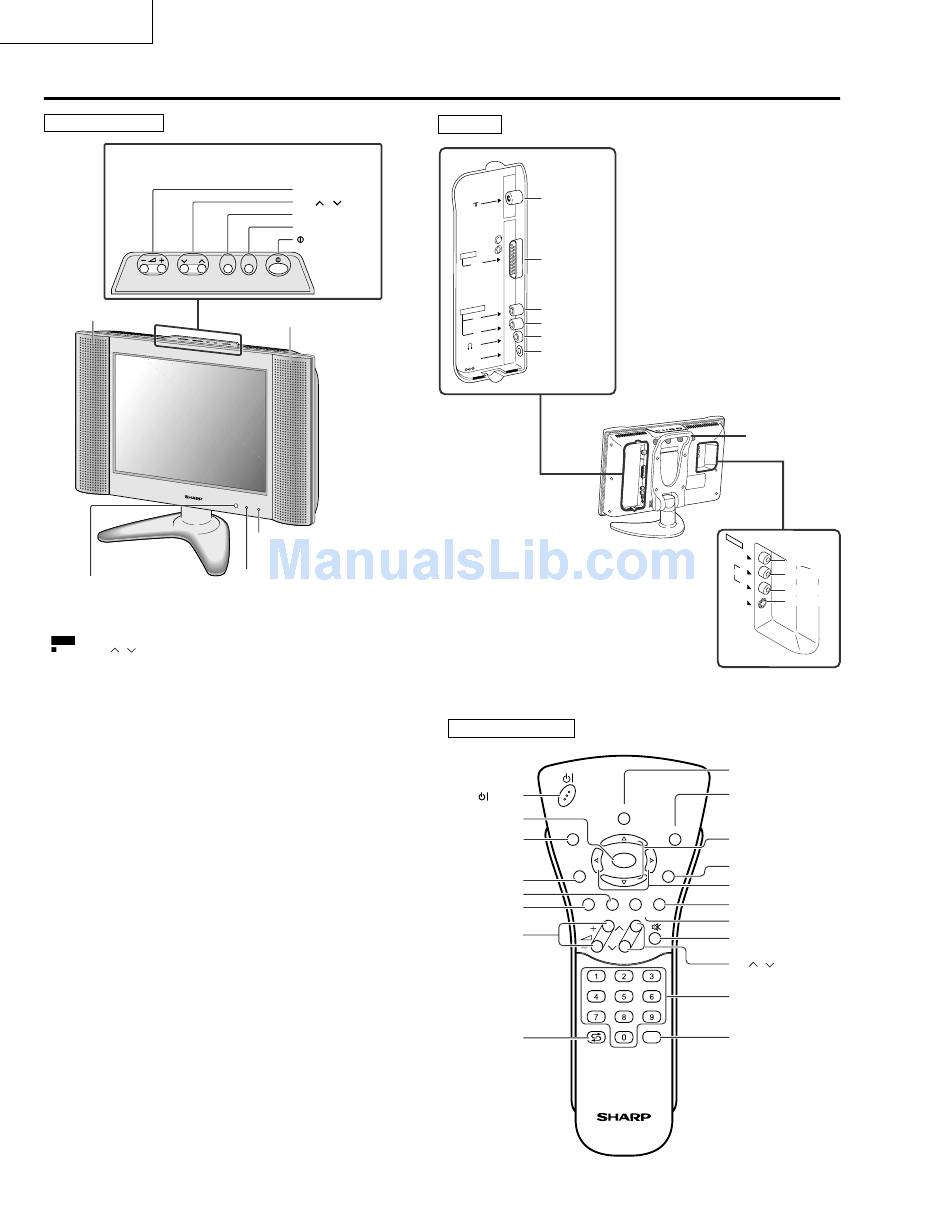

Main unit (front view)
Upper control panel
CH
Speaker
Remote sensor window
(The actual location is not visible.)
Note:
TV/VIDEO, CH( )/( ), and Volume (+)/(–) on the main unit have the same functions as the same buttons on
the remote control. Fundamentally, this operation manual provides a description based on operation using the
remote control.
Volume (+)/(–)
CH ( )/( )
MENU
TV/VIDEO
(MAIN POWER)
MENU TV/VIDEO
Speaker
To change the vertical
angle of the LCD TV set,
tilt the screen up to 10
degrees forward or 20
degrees backward. The
TV set can also be
rotated 90 degrees
horizontally. Please adjust
the angle so that the TV
set can be watched most
comfortably.
Remote sensor indicator
A red indicator blinks when the TV set
receives the remote control signal.
POWER/STANDBY indicator
A green indicator lights when the power is
on and a red indicator lights when in the
standby mode (the indicator will not light
when the main power is off).
Terminals
Antenna
AV -IN 1
AV-IN 1
R G B
(21-pin Euro-
SCART)
AUDIO OUT (L)
O U T
AU D IO
L
AUDIO OUT (R)
R
HEADPHONES
POWER INPUT
PO W ER
DC 12 V
IN PU T
D C 12 V
Remote control
(Power)
OK, Programme Table
INFO
INFO i
Turns on the menu
information when
the menu is displayed. TEXT
T
TEXT
GREEN, Sound Menu
RED, Picture Menu
(RED) (GREEN) (YELLOW) (CYAN)
Volume (+)/(–)
CH
Flashback
Returns to the
previous channel.
4
Rear view
Carrying handle
A V
- I N
2
V I
D E
O
VIDEO
L
A U
D I
AUDIO (L)
O
R
AUDIO (R)
S -
V I
D E
O
S-VIDEO
SOUND
Switches the sound mode.
END, Status Display
Turns on the status display
SOUND
when the menu is not
displayed.
END
Upward / Downward
E
Selection
OK
MENU
MENU
M
Right / Left Selection
CYAN, Teletext Subtitle
YELLOW, Standard Value
Mute
CH ( )/( )
Channel Select
TV/VIDEO
TV/VIDEO
