Panasonic

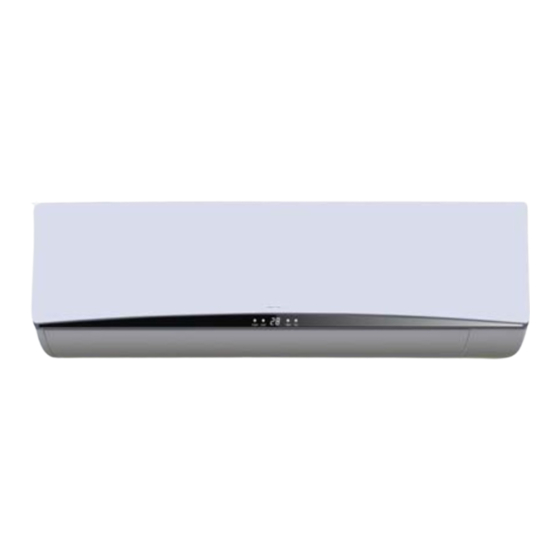

Spilt Wall-mounted Type
SERVICE MANUAL
Models
CS-UV5RKP/CU-UV5RKP
CS-UV9RKP/CU-UV9RKP
CONTENTS
3. OPERATION DETAILS
7. Disassemblymethod
No.TE15030901
1
····························
2
························
··········· 4
...........8
······12
·············14
.............18
Advertisement
Related Manuals for Panasonic CU-UV5RKP
Summary of Contents for Panasonic CU-UV5RKP
-
Page 1: Table Of Contents
Panasonic Spilt Wall-mounted Type SERVICE MANUAL No.TE15030901 Models CS-UV5RKP/CU-UV5RKP CS-UV9RKP/CU-UV9RKP CONTENTS 1. IMPORTANT NOTICE ···························· 2. SPECIFICATION ························ 3. OPERATION DETAILS ··········· 4 4. WIRING DIAGRAM ...8 5. EXPLOSION VIEW ······12 6. PARTS LIST ·············14 7. Disassemblymethod .....18... -
Page 2: Important Notice
Air Conditioner Service Manual IMPORTANT NOTICE This service manual is intended for use by individuals possessing adequate backgrounds of electrical, electronic and mechanical experience. Any attempt to repair the appliance may result in personal injury and property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use. -
Page 3: Specification
Air Conditioner Service Manual SPECIFICATION Indoor CS-UV5RKP CS-UV9RKP Model Outdoor CU-UV5RKP CU-UV9RKP Performance Test Condition Phase.Hz Power supply 1.52 2.49 Capacity BTU/h 5200 8500 KJ/h 5512 9010 Running Current Input Power 3.75 3.00 Btu/h/W 12.80 10.24 Power Factor Indoor Noice(H/L) - Page 4 Air Conditioner Service Manual Indoor CS-UV5RKP CS-UV9RKP Model Outdoor CU-UV5RKP CU-UV9RKP Rotary Rotary Control Device Refrigeration Refrigerant Oil cm³ Cycle Refrigerant Type g(oz) R410A R410A Height(I/D / O/D) mm(Inch) 718/600 770/600 Dimension Width(I/D / O/D) mm(Inch) 240/232 240/232 Depth(I/D / O/D)
- Page 5 Air Conditioner Service Manual REMOTE CONTROL INSTRUCTION Note: Each mode and relevant function will be further specified in following pages. Remote Control The remote controller is not presetted as Cooling Only Air Conditioner or Heat Pump by manufacturer.Each time after the remote controller replace batteries or is energized, the arrowhead will flashes on the front of Heator Coolon LCD of the remote controller.User can preset the remote controller type depending on the air conditioner type you have purchased as follows:Press any button when the arrowhead flashes on the front of Cool , Cooling Only is set.Press any button...
- Page 6 Air Conditioner Service Manual Electronic controller NOTES: RT-------Room Temperature. IPT------Indoor Pipe Temperature. ST------indoor Setting Temperature. OPT---Outdoor Pipe Temperature. CRT---Compensated Room Temperature 1. Automatic mode 1) The initial RT determines A/C working mode and setting temperature (ST), the mode is determined effective only once unless A/C shut-down then re-started. If from other modes switches to automatic mode (including mode conversion after shutdown), it should be that the compress stop more than 3 min then temperature judgment and automatic mode are conducted (it can conduct immediately from fan mode switched to automatic, the indoor fan stops, three minutes...
- Page 7 Air Conditioner Service Manual 3. Dry mode While select to this mode, the air conditioner operates for 3 minutes according to cooling mode firstly (ST set at 7℃) , and then takes the detected backflow air temperature minus 2℃ as a new set temperature (the minimum value of 5℃) and runs according to cooling mode, indoor fan operates at low-speed, at this moment the setting operation of Fan speed is invalid but Swing is adjustable.
- Page 8 Air Conditioner Service Manual original running state automatically. 2) To press the emergency button and power on the unit, and hold on for 10 seconds, The buzzer will ring three times, after this operation, the auto restart function is activated 3) To close auto restart function while it is activated, repeat process as above 2), the buzzer will ring four times.
-
Page 9: Wiring Diagram
Air Conditioner Service Manual WIRING DIAGRAM CS-UV5RKP CS-UV9RKP INDOOR UNIT： CU-UV5RKP CU-UV9RKP OUTDOOR UNIT：... - Page 10 Air Conditioner Service Manual PCB layout...
- Page 11 Air Conditioner Service Manual Cabinet Carton Cover Forming、Base Carton、Base Foaming Indoor Carton Left Foaming、Right Foaming...
-
Page 12: Explosion View
Air Conditioner Service Manual EXPLOSION VIEW INDOOR UNIT： CS-UV5RKP、CS-UV9RKP... - Page 13 Air Conditioner Service Manual OUTDOOR UNIT： CU-UV5RKP、CU-UV9RKP 1 8 1 9...
-
Page 14: Parts List
Air Conditioner Service Manual Part List INDOOR UNIT：CS-UV5RKP Part No. Part Name Q’ty Remark CWC80030003 Installation Plate CWC10250103A Base CWC70020017A Cross Fan CWC70100010 Bearing Mount CWC1205976 Evaporator CWC70251833A Water Drainage Assembly CWC70321035A Vertical Vane Assembly CWC70251841A Face Frame CWC70321022A Screw Cover CWC70250106 Air Filter CWC0705326A... -
Page 15: Part List
Air Conditioner Service Manual Part List OUTDOOR UNIT：CU-UV5RKP Part No. Part Name Q’ty Remark Optional CWC71990038 Grille CWC81990014 Top Cover CWC1200048 Condenser CWC81990018A Outdoor Motor Supporter CWC70040062 Outdoor Motor CWC70030006A Propeller Fan CWC81990011 Left Grille Supporter CWC81990016 Front Plate CWC70251929... - Page 16 Air Conditioner Service Manual Part List INDOOR UNIT：CS-UV9RKP Part No. Part Name Q’ty Remark CWC80030008 Installation Plate CWC10320107B Base CWC70020026A Cross Fan CWC70100010 Bearing Mount CWC1205979 Evaporator CWC70321032A Water Drainage Assembly CWC70321035A Vertical Vane Assembly CWC70321030A Face Frame CWC70321022A Screw Cover CWC70320109 Air Filter CWC0705327B...
- Page 17 Air Conditioner Service Manual Part List OUTDOOR UNIT：CU-UV9RKP Part No. Part Name Q’ty Remark Optional CWC71990038 Grille CWC81990014 Top Cover CWC1200850 Condenser CWC70040062 Outdoor Motor Supporter CWC81990018A Outdoor Motor CWC70030006A Propeller Fan CWC81990011 Left Grille Supporter CWC81990016 Front Plate CWC70251929 Fan Guard CWC1201477 Capillary Assembly...
- Page 18 Air Conditioner Service Manual 7 . DISASSEMBL Y PROCEDURE If, in carrying out repairs and modifications, the work requires the use of arc- and flame-producing apparatus, such as welding, brazing and soldering equipment, this work shall only be started after the rooms have been thoroughly ventilated.
- Page 19 Air Conditioner Service Manual Take out the vane from the water drainage assembly. Take out the screw cover and remove screws fixing on the frame. Unfasten the front panel and pull forward it slightly. (2 circled positions hooked.) Take the display PCB cover off.
- Page 20 Air Conditioner Service Manual Take out the face frame. Remove 2 screws and take out the electronic box cover.
- Page 21 Air Conditioner Service Manual Remove the screws, 3 connectors and take out the control box. Take water drainage assemble.
- Page 22 Air Conditioner Service Manual Remove 4 screws and the In and Out Pipe Fixer. Take out the evaporator Loosen the screw of cross flow fan and separate the cross flow fan and fan motor Remark: When assembling, insert the cross flow fan to the ring position. Ring...
- Page 23 Air Conditioner Service Manual [2] OUTDOOR UNIT Content Picture Remove the fixed screw and control box cover. Take out the 2 screws on the right side of top plate. Take out screws on the left side of top plate. The screws on the left side of grille removed...
- Page 24 Air Conditioner Service Manual screws front panel removed. The screws on the left and back side of grille supporter removed. The screws on the right side of right plate removed. Unscrew screws on the back side of right plate and removed the right plate.
- Page 25 Air Conditioner Service Manual Remove the 3 screws fixed on the control box. Remove the flange nut and take out the outdoor fan.
- Page 26 Air Conditioner Service Manual Cooling characteristic ...
- Page 27 Air Conditioner Service Manual Cooling characteristic ...
- Page 28 TCL PG电机分体控制板原理图 (NEC7021,兼容压力保护,线控器功能) NEC9189 20-64 TL32GGFT7021-KZ(HB)-YL D101-D104 IC102 7805 TRANS1 +12V 1N4007X4 R100 R114 5.1K Vout 51/1W C104 C105 C102 RV101 C101 C103 C100 C128 C106 C107 C121 14D681K 1000uF/25V 10uF/16V MKP61-104±20% 100uF/25V R113 5.1K 100uF/25V 100uF/25V FUSE R112 5.1K ACL 1 5K/3470 D106 1N4007...
