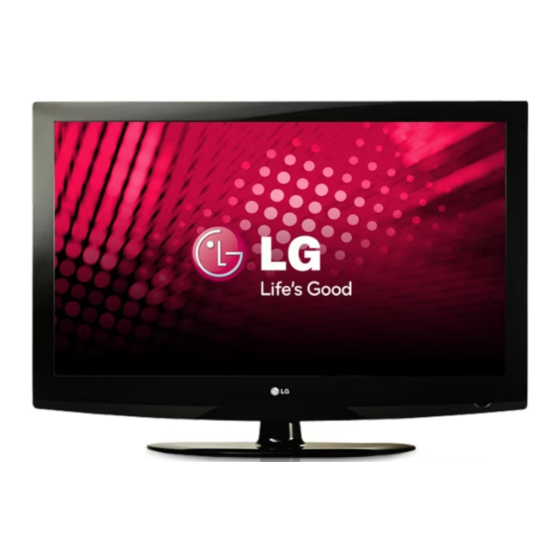

LG 22LG30R Owner's Manual

Hide thumbs Also See for 22LG30R:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
LCD TV
OWNER'S MANUAL
22LG30R
Please read this manual carefully before operating
your set and retain it for future reference.
Write the model number and serial number from the
label on the back cabinet on the front or back of
this manual.
P/NO : MFL41469212 (0808-REV03)
Printed in Korea
www.lge.com

Advertisement

Table of Contents
loading

Related Manuals for LG 22LG30R

Summary of Contents for LG 22LG30R

  • Page 1 LCD TV OWNER’S MANUAL 22LG30R Please read this manual carefully before operating your set and retain it for future reference. Write the model number and serial number from the label on the back cabinet on the front or back of this manual.

  • Page 3: Warning / Caution

    WARNING / CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Protect the power cord from being walked on or pinched particularly at plugs, convenience Keep these instructions. receptacles, and the point where they exit from Heed all warnings. the apparatus. Follow all instructions. Do not use this apparatus near water.
  • Page 5 Never touch this apparatus or antenna during a WARNING - To reduce the risk of fire or electrical thunder or lighting storm. shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands.
  • Page 6 Cleaning When cleaning, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemi- cals such as alcohol, thinners or benzene. Moving Make sure the product is turned off, unplugged and all cables have been removed.

  • Page 7: Table Of Contents

    CONTENTS WARNING / CAUTION ......PICTURE CONTROL SAFETY INSTRUCTIONS ......Picture Size (Aspect Ratio) Control .
  • Page 8 If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

  • Page 9: Preparation

    PREPARATION ACCESSORIES Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV. The accessories included may differ from the images below. 1.5V 1.5V Owner’s Manual Power Cord Remote Control, Batteries Cable Management Clip...

  • Page 10: Front Panel Information

    PREPARATION FRONT PANEL INFORMATION Image shown may differ from your TV. NOTE: If your TV has a protection tape attached, remove the tape. And then wipe the TV with a cloth (If a polishing cloth is included with your product, use it). INPUT MENU VOLUME...

  • Page 11: Back Panel Information

    BACK PANEL INFORMATION Image shown may differ from your TV. AUDIO RGB(PC) IN (RGB/DVI) IN HDMI/DVI IN ANTENNA IN AV IN S-VIDEO VIDEO AUDIO RS-232C IN MONO (CONTROL & SERVICE) VIDEO AUDIO COMPONENT IN HDMI/DVI IN ANTENNA IN Digital Connection. Connect over-the air signals to this jack.

  • Page 12: Stand Installation

    PREPARATION STAND INSTALLATION Image shown may differ from your TV Carefully place the TV screen side down on a cushioned surface to protect the screen from damage. Assemble the parts of the S S T T A A N N D D B B O O D D Y Y with C C O O V V E E R R B B A A S S E E of the TV.

  • Page 13: Cable Management

    CABLE MANAGEMENT Image shown may differ from your TV Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section. Install the CABLE MANAGEMENT CLIP as shown. CABLE MANAGEMENT CLIP Fit the CABLE MANAGEMENT CLIP as shown. How to remove the CABLE MANAGEMENT CLIP Hold the CABLE MANAGE-...

  • Page 14: Desktop Pedestal Installation

    Do not mount near or above any type of heat source. WALL MOUNT: HORIZONTAL INSTALLATION For adequate ventilation allow a clearance of 4” (10cm) all around the TV. We recommend that you use an LG brand wall mount when mounting the TV to a wall. 4 inches 4 inches...

  • Page 15: Protection Cover

    PROTECTION COVER Image shown may differ from your TV. Loose the bolts from TV. Bend the H H I I N N G G E E B B O O D D Y Y and pull it backward. H H I I N N G G E E B B O O D D Y Y Insert the P P R R O O T T E E C C T T I I O O N N C C O O V V E E R R into the TV.

  • Page 16: Positioning Your Display

    PREPARATION POSITIONING YOUR DISPLAY Here shown may be somewhat different from your TV. Adjust the position of the panel in various ways for maximum comfort. • Tilt range KENSINGTON SECURITY SYSTEM - The TV is equipped with a Kensington Security System connector on the back panel.

  • Page 17: Antenna Or Cable Connection

    To prevent damage do not connect to the power outlet until all connections are made between the devices. Image shown may differ from your TV. ANTENNA OR CABLE CONNECTION 1. Antenna (Analog or Digital) Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.

  • Page 18: External Equipment Setup

    EXTERNAL EQUIPMENT SETUP To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment. HD RECEIVER SETUP This TV can receive Digital Over-the-air/Cable signals with an external digital set-top box. If you do receive dig- ital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
  • Page 19 HDMI Connection 1. How to connect AUDIO RGB(PC) IN (RGB/DVI) HDMI/DVI IN Connect the digital set-top box to H H D D M M I I / / D D V V I I I I N N jack on the TV. AV IN VIDEO AUDIO...
  • Page 20 EXTERNAL EQUIPMENT SETUP DVI to HDMI Connection AUDIO RGB(PC) IN 1. How to connect (RGB/DVI) IN HDMI/DVI IN Connect the DVI output of the digital set-top box to the AV IN S-VIDE H H D D M M I I / / D D V V I I I I N N jack on the TV. VIDEO AUDIO Connect the audio output of the digital set-top box to...

  • Page 21: Dvd Setup

    DVD SETUP Component Connection 1. How to connect Connect the video outputs ( Y, P ) of the DVD to the C C O O M M P P O O N N E E N N T T I I N N V V I I D D E E O O jacks on the TV. Match the jack colors ( Y = green, P = red ) .
  • Page 22 EXTERNAL EQUIPMENT SETUP S-Video Connection AUDIO RGB(PC) IN (RGB/DVI) IN ANTENNA I 1. How to connect AV IN S-VIDEO VIDEO AUDIO Connect the S-VIDEO output of the DVD to the S S - - V V I I D D E E O O input on the TV. MONO VICE) Connect the audio outputs of the DVD to the A A U U D D I I O O...

  • Page 23: Vcr Setup

    VCR SETUP To avoid picture noise ( interference ) , leave an adequate distance between the VCR and TV. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. This phenomenon is common to all TVs and is not covered by warranty.
  • Page 24 EXTERNAL EQUIPMENT SETUP Composite (RCA) Connection AUDIO RGB(PC) IN (RGB/DVI) IN HDMI/DVI IN ANTENNA IN ANTEN 1. How to connect AV IN S-VIDEO AUDIO VIDEO Connect the A A U U D D I I O O /V V I I D D E E O O jacks between TV and RS-232C IN MONO (CONTROL &...

  • Page 25: Pc Setup

    PC SETUP This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. VGA (D-Sub 15 pin) Connection AUDIO RGB(PC) IN (RGB/DVI) IN HDMI/DVI IN ANTE AV IN 1. How to connect S-VIDEO VIDEO AUDIO RS-232C IN Connect the VGA output of the PC to the R R G G B B ( ( P P C C ) )
  • Page 26 EXTERNAL EQUIPMENT SETUP NOTES until the picture is clear. If the refresh rate of the To get the the best picture quality, adjust the PC PC graphic card can not be changed, change the graphics card to1680x1050. PC graphic card or consult the manufacturer of To enjoy vivid picture and sound, connect the PC the PC graphic card.

  • Page 27: Screen Setup For Pc Mode

    SCREEN SETUP FOR PC MODE Auto Configure (RGB PC mode only) Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not cor- rect, your TV is functioning properly but needs further adjustment. A A u u t t o o c c o o n n f f i i g g u u r r e e This function is for the automatic adjustment of the screen position, clock, and phase.
  • Page 28 EXTERNAL EQUIPMENT SETUP Manual Configure - Adjustment for screen Phase, Clock, Position (RGB PC mode only) If the picture isn’t clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually. It’s not available to use Phase, Clock function in COMPONENT(480i/480p/576i/576p/720p/1080i/1080p), HDMI (480p/576p/720p/1080i/1080p).
  • Page 29 Initializing (Reset to original factory settings) This function operates in current mode. To initialize the adjusted value. Picture Picture Mode Press the M M E E N N U U button and then use button Color Temperature to select the P P i i c c t t u u r r e e menu. Advanced Aspect Ratio Picture Reset...

  • Page 30: Watching Tv / Channel Control

    WATCHING TV / CHANNEL CONTROL REMOTE CONTROL FUNCTIONS When using the remote control, aim it at the remote control sensor on the TV. POWER Selects the MTS sound: Mono, Stereo, or SAP. p p . . 5 5 5 5 INPUT A.PROG Searches for available channels.

  • Page 31: Installing Batteries

    POWER Turns your TV or any other programmed equipment on or off, depending on the mode. In AV, Component, RGB PC and HDMI/DVI input sources, screen returns to the last TV channel. INPUT Select the desired input source: TV, AV, Component, RGB PC and HDMI/DVI. NUMBER button MUTE Switch the sound on or off.

  • Page 32: Turning On Tv

    WATCHING TV /CHANNEL CONTROL TURNING ON TV Firstly, connect the power cord correctly. At this stage, the TV switches to standby mode. , I I N N P P U U T T , C C H H ( ( In standby mode to turn TV on, press the button on the TV or press the P P O O W W E E R R , I I N N P P U U T T , C C H H ( ( ) ) ,...

  • Page 33: On-Screen Menus Selection

    ON-SCREEN MENUS SELECTION In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help the TV operation. Press the M M E E N N U U button and then use button to select the each menu.

  • Page 34: Channel Search

    WATCHING TV /CHANNEL CONTROL CHANNEL SEARCH Auto Tuning: Program Search Auto Tuning should be used to memorize all the active channels in your area before you are able to use the TV. There are two ways of storing channels in the TV's memory. You can use either.

  • Page 35: Manual Tuning (Additing/Deleting Channels)

    Manual Tuning: Adding/Deleting Channels You can add or delete channels from the channel scan manually. Use the C C H H or NUMBER buttons to select the channel number D D E E you want to add or delete. Press the M M E E M M O O R R Y Y / / E E R R A A S S E E button. Press the M M E E M M O O R R Y Y / / E E R R A A S S E E button to select M M e e m m o o r r y y or E E r r a a s s e e .

  • Page 36: Fine Tuning Adjustment

    WATCHING TV /CHANNEL CONTROL FINE TUNING ADJUSTMENT Normally fine tuning is only necessary if reception is poor. Setup Auto Tuning Press the M M E E N N U U button and then use button to Manual Tuning select the S S e e t t u u p p menu. Favorite Channel Press the button and then...

  • Page 37: Booster

    BOOSTER If reception is poor select B B o o o o s s t t e e r r to On. When the signal is strong, select “OFF”. Setup Auto Tuning Press the M M E E N N U U button and then button to Manual Tuning to select the S S e e t t u u p p menu.

  • Page 38: Favorite Channels Setup

    WATCHING TV /CHANNEL CONTROL FAVORITE CHANNELS SETUP This function lets you select your favorite channels directly. Repeatedly press the FAV button to select stored favorite channels. Setup Auto Tuning Press the M M E E N N U U button and then use button Manual Tuning to select the S S e e t t u u p p menu.

  • Page 39: Key Lock

    KEY LOCK The TV can be set so that the remote control is needed to control it. This feature can be used to prevent unauthorized viewing. This TV is programmed to remember which option it was last set to even if you turn the TV off. Option Language Press the M M E E N N U U button and then use...

  • Page 40: Picture Control

    PICTURE CONTROL PICTURE SIZE (ASPECT RATIO) CONTROL This feature allows an analog picture with a 4:3 aspect ratio is displayed on your TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed. PC input source use 4:3 or 16:9 aspect ratio.

  • Page 41: Preset Picture Settings

    PRESET PICTURE SETTINGS Picture Mode - Preset Picture Mode adjusts the TV for the best picture appear- ance. Select the preset value in the P P i i c c t t u u r r e e M M o o d d e e menu based on the program category.

  • Page 42: Auto Color Tone Control

    PICTURE CONTROL Auto Color Tone Control (Cool/Medium/Warm) To initialize values (reset to default settings), select the Cool option. Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.

  • Page 43: Manual Picture Adjustment

    MANUAL PICTURE ADJUSTMENT Picture Mode-User Mode B B a a c c k k l l i i g g h h t t To control the brightness of the screen, adjust the bright- ness of LCD panel. C C o o n n t t r r a a s s t t Adjusts the difference between light and dark.

  • Page 44: Color Tone - User Mode

    PICTURE CONTROL Color Tone - User Mode To adjust red, green, blue to any color temperature you prefer. When selecting Picture Mode (User1 or User2), you can operate this function. Picture Picture Mode Press the M M E E N N U U button and then button to select Color Temperature the P P i i c c t t u u r r e e menu.

  • Page 45: Xd - Picture Improvement Technology

    XD - PICTURE IMPROVEMENT TECHNOLOGY XD is LG electronic's unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm. It is not possible to use this function in RGB PC mode. Picture Press the M M E E N N U U button and then...

  • Page 46: Advanced - Gamma

    PICTURE CONTROL ADVANCED - GAMMA High gamma values display whitish images and low gamma values display high contrast images. It is not possible to use this function in RGB PC mode. Picture Picture Mode Color Temperature Press the M M E E N N U U button and then button to select the P P i i c c t t u u r r e e menu.

  • Page 47: Advanced - Film Mode

    ADVANCED - FILM MODE To set the TV up for the best picture quality for viewing films. This feature operates only in Analog TV, AV, and Component 480i/576i mode. Picture Picture Mode Press the M M E E N N U U button and then button to select Color Temperature the P P i i c c t t u u r r e e menu.

  • Page 48: Advanced - Black (Darkness) Level

    PICTURE CONTROL ADVANCED - BLACK (DARKNESS) LEVEL When you view a film this function adjust the TV to best picture quality. Adjusting the contrast and the brightness of the screen using the black level of the screen. Picture Picture Mode Color Temperature Press the M M E E N N U U button and then button to select...

  • Page 49: Picture Reset

    PICTURE RESET Returns to the default factory setting for Picture Mode, Color Temperature, XD, Advanced, Aspect Ratio. Picture Picture Mode Press the M M E E N N U U button and then button to select Color Temperature the P P i i c c t t u u r r e e menu. Advanced Aspect Ratio Picture Reset...

  • Page 50: Factory Reset

    PICTURE CONTROL FACTORY RESET Use to quickly reset all the menu options to their original factory preset values. This function deletes all TV programs. Option Language Press the M M E E N N U U button and then button to Key Lock Caption/Text select the O O p p t t i i o o n n menu.

  • Page 51: Sound & Language Control

    SOUND & LANGUAGE CONTROL AUTO VOLUME LEVELER (AUTO VOLUME) Auto Volume automatically remains on the same level of volume if you change programs. Audio Sound Mode Press the M M E E N N U U button and then button to select Auto Volume the A A u u d d i i o o menu.

  • Page 52: Preset Sound Settings (Sound Mode)

    SOUND & LANGUAGE CONTROL PRESET SOUND SETTINGS - SOUND MODE Sound Mode lets you enjoy the best sound without any Special adjustment as the TV sets the appropriate sound options based on the channel content. S S t t a a n n d d a a r r d d , M M u u s s i i c c , C C i i n n e e m m a a , S S p p o o r r t t and G G a a m m e e are preset for optimum sound qual- ity at the factory and are not adjustable.

  • Page 53: Sound Setting Adjustment -User Mode

    SOUND SETTING ADJUSTMENT -USER MODE Adjusting the audio equalizer. Audio Sound Mode Press the M M E E N N U U button and then button to select Auto Volume the A A u u d d i i o o menu. Balance Press the button and then...

  • Page 54: Balance

    SOUND & LANGUAGE CONTROL BALANCE You can adjust the sound balance of the speakers to the preferred levels. Audio Sound Mode Press the M M E E N N U U button and then button to select Auto Volume the A A u u d d i i o o menu. Balance Press the button and then...

  • Page 55: On-Screen Menus Language Selection

    ON-SCREEN MENUS LANGUAGE SELECTION The menus can be shown on the screen in the selected language. First select your language. Press the M M E E N N U U button and then use button to select the O O p p t t i i o o n n menu. Press the button and then use button to select L L a a n n g g u u a a g g e e .

  • Page 56: Closed Captions

    SOUND & LANGUAGE CONTROL CLOSED CAPTIONS 1. Poor reception conditions are encountered: Closed captioning is a process which converts the audio portion of a television program into written words which • I I G G N N I I T T I I O O N N : : then appear as subtitles on the television screen.

  • Page 57: Stereo/Sap Broadcasts Setup

    STEREO/SAP BROADCASTS SETUP The TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program; if the broadcaster transmits one additional sound signal in addition to the original one. Mono: The primary language is heard from left and right speakers. Signal mode is mono.

  • Page 58: Time Setting

    TIME SETTING CLOCK SETUP You must set the time correctly before using on/off timer function. If current time setting is erased by a power failure or the TV is unplugged, reset the clock. Time Clock Press the M M E E N N U U button and then button to select Off Time the T T i i m m e e menu.

  • Page 59: Auto On/Off Time Setting

    AUTO ON/OFF TIME SETTING The Off time function automatically switches the TV to standby at a preset time. Two hours after the TV is switched on by the on time function it will auto- matically switch back to standby mode unless a button has been pressed. Once the on time/off time is set, these functions operate daily at the preset time.

  • Page 60: Sleep Timer Setting

    TIME SETTING SLEEP TIMER SETTING The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off. Press the S S L L E E E E P P button repeatedly to select the number of minutes.

  • Page 61: Auto Shut-Off Setting

    AUTO SHUT-OFF SETTING If the TV set is switched on and there is no input signal, it will switch off automatically after 10 minutes. Time Clock Press the M M E E N N U U button and then button to select Off Time On Time the T T i i m m e e menu.

  • Page 62: Appendix

    APPENDIX TROUBLESHOOTING T T h h e e o o p p e e r r a a t t i i o o n n d d o o e e s s n n o o t t w w o o r r k k n n o o r r m m a a l l l l y y . . Check to see if there is any object between the product and the remote control causing obstruction.
  • Page 63 T T h h e e a a u u d d i i o o f f u u n n c c t t i i o o n n d d o o e e s s n n o o t t w w o o r r k k . . Press the VOL or VOLUME button.

  • Page 64: Maintenance

    APPENDIX MAINTENANCE Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning the Screen Here’s a great way to keep the dust off your screen for a while.

  • Page 65: Product Specifications

    PRODUCT SPECIFICATIONS 22LG30R MODELS (22LG30R-MA) 522.2 x 431.5 x 189.2 mm Including stand 20.5 x 16.9 x 7 .4 inches Dimensions 522.2 x 384.2 x 69.0 mm (Width x Height x Depth) Excluding stand 20.5 x 15.1 x 3.3 inches 5.60 kg / 12.3 lbs...

  • Page 66: External Control Through Rs-232C

    APPENDIX EXTERNAL CONTROL THROUGH RS-232C Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the TV’s functions externally. Connect the serial port of the control device to the RS-232C jack on the TV back panel.RS-232C con- nection cables are not supplied with the TV.

  • Page 67: Communication Parameters

    RS-232C Configurations 7-Wire Configurations ( Standard RS-232C cable ) 3-Wire Configurations ( Not standard ) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID Option Language Use this function to specify a set ID number. Key Lock Refer to ‘Real Data Mapping’1. p p .

  • Page 68: Command Reference List

    APPENDIX Command Reference List DATA DATA C C O O M M M M A A N N D D 1 1 C C O O M M M M A A N N D D 2 2 C C O O M M M M A A N N D D 1 1 C C O O M M M M A A N N D D 2 2 (Hexadecimal) (Hexadecimal) 01.
  • Page 69 0 0 1 1 . . P P o o w w e e r r ( ( C C o o m m m m a a n n d d : : k k a a ) ) 0 0 5 5 .
  • Page 70 APPENDIX 1 1 5 5 . . R R e e d d A A d d j j u u s s t t m m e e n n t t ( ( C C o o m m m m a a n n d d : : k k v v ) ) 1 1 0 0 .
  • Page 71 1 1 9 9 . . A A u u t t o o C C o o n n f f i i g g u u r r e e ( ( C C o o m m m m a a n n d d : : j j u u ) ) To adjust picture position and minimize image shaking automatically.
  • Page 72 APPENDIX Example) 2 2 1 1 . . T T u u n n e e C C o o m m m m a a n n d d ( ( C C o o m m m m a a n n d d : : m m a a ) ) 1.
  • Page 73 2 2 2 2 . . K K e e y y C C o o d d e e ( ( C C o o m m m m a a n n d d : : m m c c ) ) To send IR remote key code.

This manual is also suitable for:

22lg30r-ma

Table of Contents
