Page 1: User Manual
PROPOINT PLUS ASPIRATING SMOKE DETECTION SYSTEM USER MANUAL Protec Fire Detection plc, Protec House, Churchill Way, Nelson, Lancashire, BB9 6RT, ENGLAND +44 (0) 1282 717171 www.protec.co.uk sales@protec.co.uk... - Page 2 Document Revision Details Issue Modification Detail Author Date Document Creation 15/11/2015 N 93-602-00 Issue 1 Page 2 of 10 © Protec Fire Detection PLC 2015...
-
Page 3: Table Of Contents
The policy of Protec Fire Detection plc is one of continuous improvement. As such we reserve the right to make changes to product specifications at any time and without prior notice. Errors and omissions excepted. -
Page 4: Scope Of Document
This document details the user information for the Protec ProPointPlus Aspirating Smoke Detector with specific attention to the basic system operations of the product. The Protec ProPointPlus Aspirating Smoke Detector has been designed and manufactured in the United Kingdom and complies fully with current standard dictating aspirating smoke detector design practice (EN54 parts 20). -
Page 5: Propointplus - General Overview

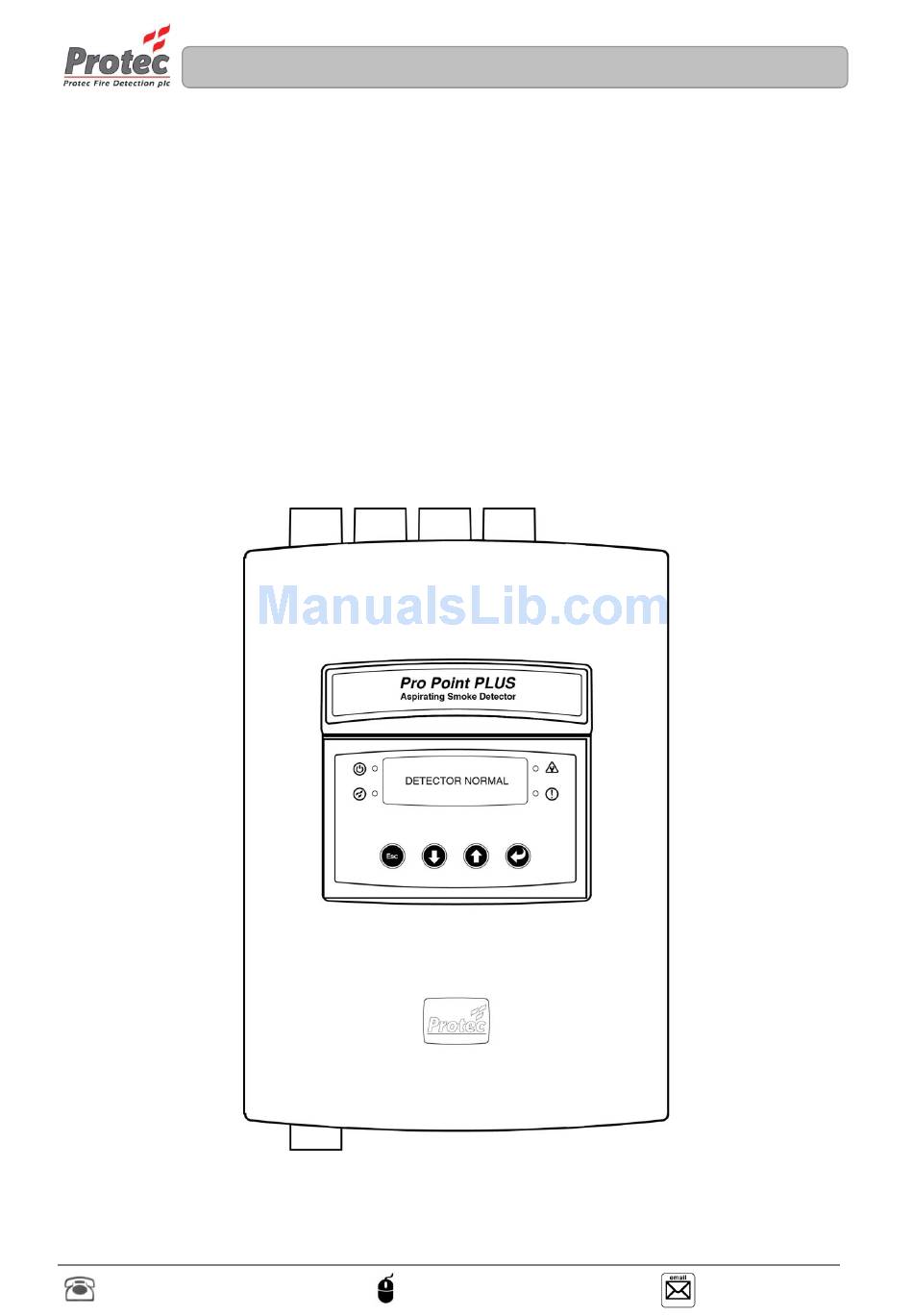

Power LED (Green) Fault LED (Amber) Fire LED (Red) Pre Alarm LED (Amber) Escape / Back Enter / Accept Decrement Increment Figure 4.1 ProPointPlus display detector normal N 93-602-00 Issue 1 Page 5 of 10 © Protec Fire Detection PLC 2015... -
Page 6: Fault
Figure 4.2 ProPointPlus displaying a fault condition Refer to section 4.1 which lists all fault including a description and action. Muting the buzzer The buzzer can be muted by pressing any button. N 93-602-00 Issue 1 Page 6 of 10 © Protec Fire Detection PLC 2015... -
Page 7: Pre-Alarm
4 pipes; where Pipe 1 and Pipe 2 are in Pre-Alarm condition: ‘Warning’, Pipe 3 and Pipe 4 are in ‘Normal’ condition. The Pre-Alarm LED is illuminated, any commissioned outputs will activate and the fire condition is reported to the Protec Fire panel. Figure 4.3 ProPointPlus displaying Pre-Alarm condition The appointed ‘Responsible Person’... -
Page 8: Fire
4 pipes; where Pipe 2 are in Fire condition, Pipe 1, Pipe 3 and Pipe 4 are in ‘Normal’ condition. The Fire LED is illuminated, any commissioned outputs will activate and the fire condition is reported to the Protec Fire panel. Figure 4.4 ProPointPlus displaying Fire Alarm condition The building fire plan must be executed immediately. -
Page 9: Faults
Protec operative or a Protec from the unit. distributor. Device A new device has been added to the unit but the Contact a Protec operative or a Added device has not been commissioned. Protec distributor. Check sampling pipe installation The airflow measurement has moved outside the... -
Page 10: Technical Specifications
600mA maximum at 24V (blower set to 100%, 4 Pipe Detector) Consumption Protec Algo-tec™ 6000 Loop Protocol Loop Isolator On board consult Protec DEL2110 for details Loop Quiescent Current 0.7mA Consumption Fault Contact Rated at 30 V DC 1 A...
