Next 808953 Assembly Instructions Manual

Barlow small sideboard

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
PRODUCT INFORMATION
• Made from particleboard,MDF with a wood effect finish.
• Made in Indonesia.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching
or damage.
• Ensure the mats and coasters used do not have an abrasive surface underneath.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly
and periodically check all fixings and tighten if necessary.
808953

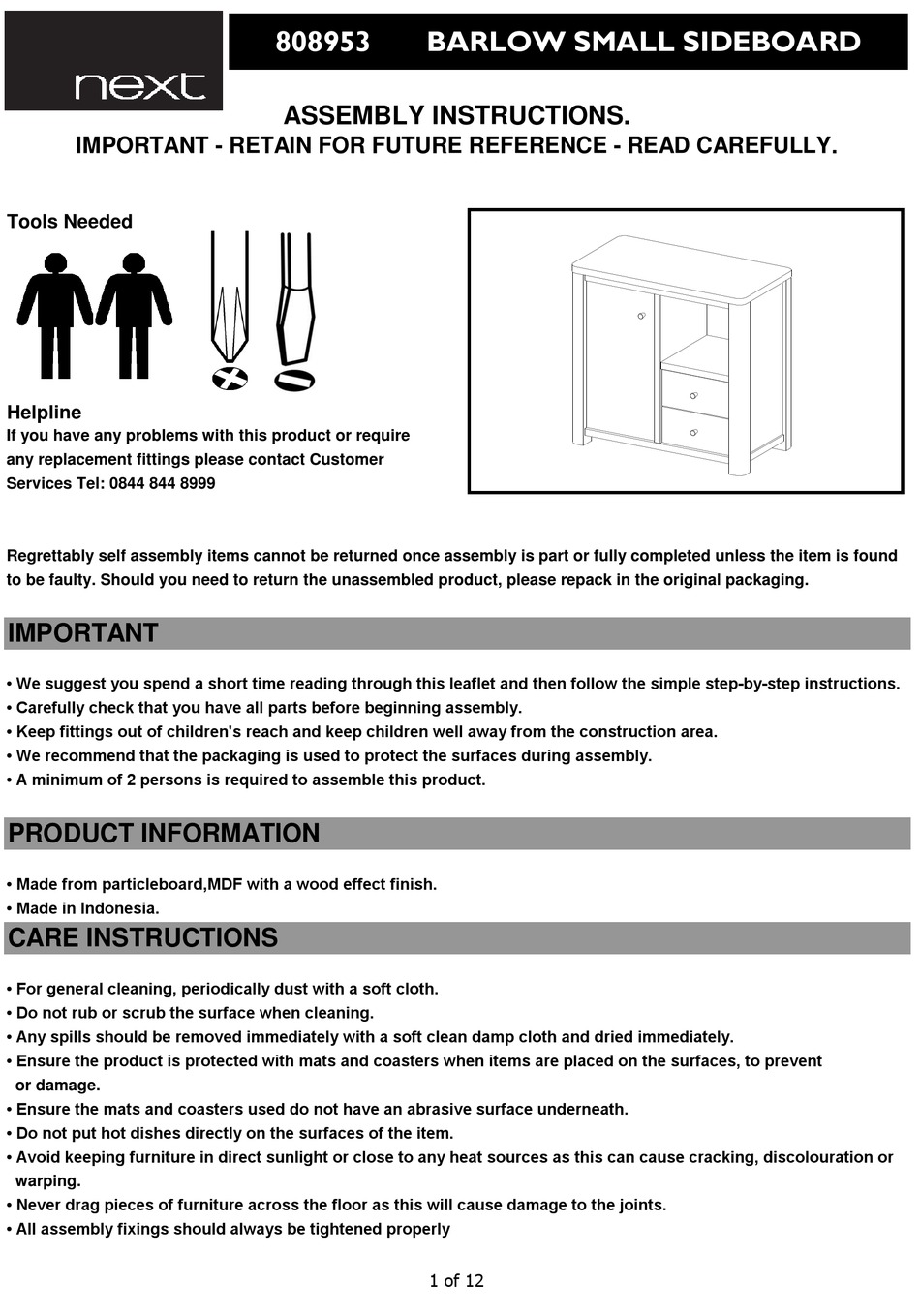

BARLOW SMALL SIDEBOARD
ASSEMBLY INSTRUCTIONS.
1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the 808953 and is the answer not in the manual?

Questions and answers

Summary of Contents for Next 808953

  • Page 1 808953 BARLOW SMALL SIDEBOARD ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS 15x12 mm. 7.5X32 mm. 20x9 mm. 8x32 mm. T26 Curve. 18x3 mm. 6x40 mm. Ax22 Bx22 Dx33 Gx12 4x19 mm. F6x13 mm. F6x31 mm. F10x70 mm. 25x30 mm. P4x15 mm. 150 mm. Hx14 Ix20 P6x30 mm. 350 mm. 350 mm. 15.3x25 mm.
  • Page 3 STEP ONE - Insert 6x cambolts (B) into the holes of panel 1 and tighten with a cross blade screwdriver. STEP TWO - Attach 4x camlocks (A) into the holes of panel 2 and ensure that arrow indicator is pointing towards the panel edge.
  • Page 4 STEP FOUR - Attach 2x camlocks (A) into the holes of panel 3L and ensure that arrow indicator is pointing towards the panel edge. - Insert 2x cambolts (B) and 2x wooden dowels (D) into the holes of panel 3L. STEP FIVE - Attach 2x camlocks (A) into the holes of panel 5 and ensure that arrow indicator is pointing towards the panel...
  • Page 5 STEP SEVEN - Attach 2x hinges (E) to the holes of panel 10 and secure by tightening 4x screws ( I ) clockwise with a cross blade screwdriver. - Attach 1x handle (L) to the holes of panel 10 and secure by tightening 1x screw (M) clockwise with a cross blade screwdriver.
  • Page 6 STEP TEN - Attach panel 7 to the assembled unit by tightening 2x camlocks (A) clockwise with a flat-blade screwdriver. STEP ELEVEN - Attach panel 3R to the assembled unit by tightening 4x camlocks (A) clockwise with a flat-blade screwdriver. STEP TWELVE - Attach panel 3L to the assembled unit by tightening 2x camlocks (A) clockwise with a flat-blade screwdriver.
  • Page 7 STEP THIRTEEN - Carefully lift the unit upright.This should be lifted by 2 people. - Insert panel 4 (x2) to the recessed grooves of panel 3L,3R and 2. - Attach panel 1 to the assembled unit and tightening 6 x camlocks (A) clockwise with a flat-blade screwdriver. STEP FOURTEEN - Attach 12x back board fasteners (G) to the backboard grooves and secure by tightening 12x screws (H) clockwise...
  • Page 8 STEP SIXTEEN - Insert 4x shelf supports (Q) into the holes of panel 3L and 5 and put panel 8 to the assembled unit. STEP SEVENTEEN - Insert 1x door stopper (C) into the hole of panel 6. - Attach panel 10 to assembled unit and tighten 8 x screws ( I ) clockwise with a cross-blade screwdriver until tight.
  • Page 9 STEP EIGHTEEN - Insert 4x cambolts (B) into the holes of panel 11(x2). - Attach 2x handles (L) to the holes of panel 11(x2) and tighten using 2x screw (M) clockwise with a screwdriver. - Insert 4 x camlocks(A) to the hole of panel 13L (x2) and 13R (x2) and 8 x wooden dowels(D).
  • Page 10 STEP TWENTY - Attach 1x male runner (PR) to the assembled unit by tightening 2x screws ( I ) clockwise with a cross-blade screwdriver. - Attach 1x male runner (PL) to the assembled unit by tightening 2x screws ( I ) clockwise with a cross-blade screwdriver.
  • Page 11 NB : Wall fixing are not included. Please source suitable fixing for your wall type. If in doubt please consult a qualified trades person. Next Retail Ltd, Desford Road, Leicester, LE19 4AT 11 of 12...
  • Page 12 Note : Whilst position foil stickers to cover the holes. Ensure that you arrange them on the centre of the holes before sticking. And ensure the grain direction of foil sticker have to be in the same direction as current surface area. Next Retail Ltd, Desford Road, Leicester, LE19 4AT 12 of 12...
