inSTrUCTion ManUal

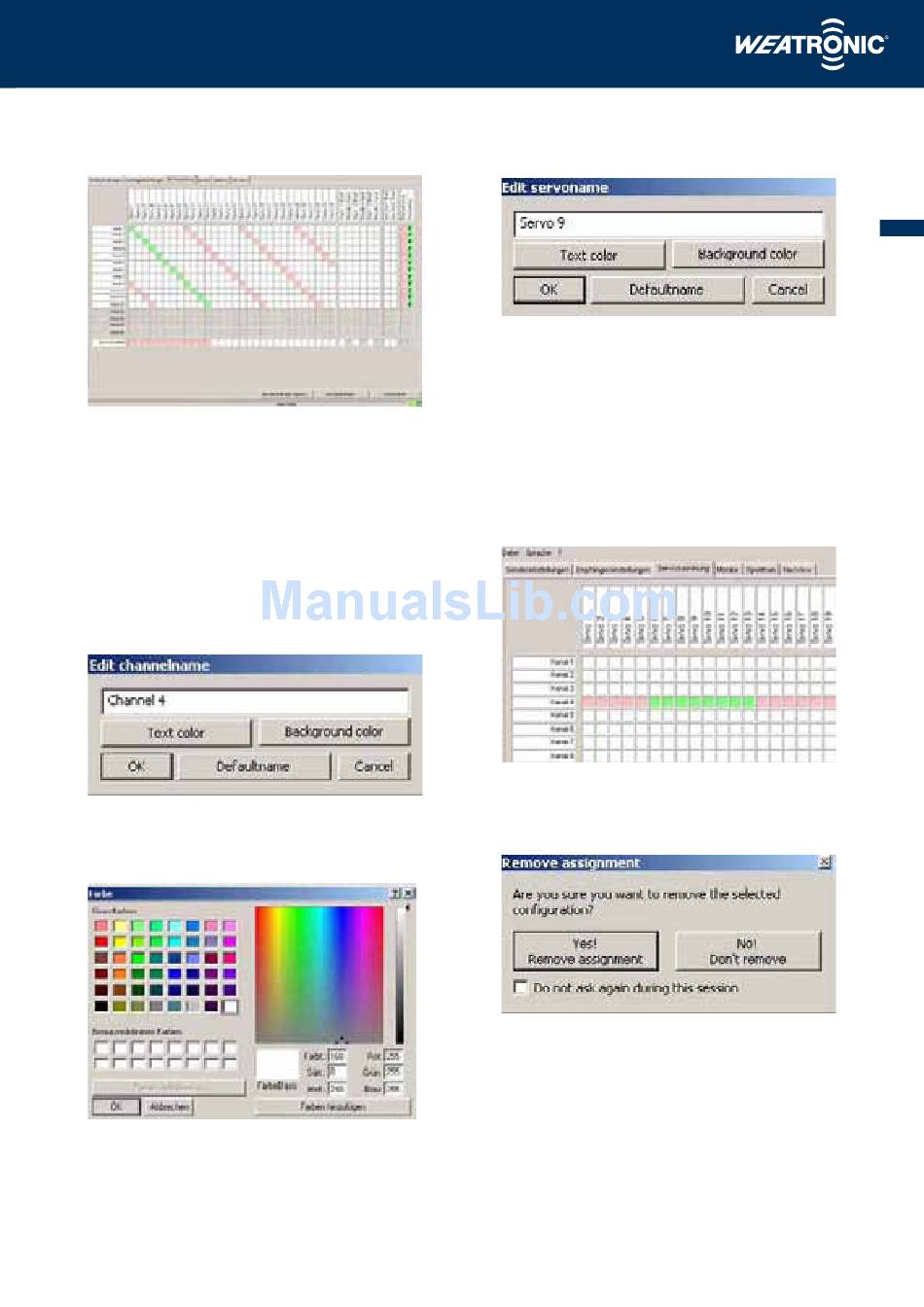

Standard setting for a 2.4 Dual FHSS 12-30 R Gyro III + GPS
receiver
The pink coloured fields cannot be selected. This is because with
the 2.4 Dual FHSS 12-22 R series receivers several servos can be
linked to the same function and to optimise the current draw, each
servo must be driven from a different circuit.
In order for you to be able to easily identify which function is lin-
ked to which output we have incorporated the facility to enter
a name and to change the background colour of both the input
and the output fields. To carry this out, click on the relevant field,
for example Channel 1, and the following window will open:
Type in the name of the function, for example Elevator, and then
select a colour for both the text and the background as this will
assist you identifying the function.
The receiver output fields can be changed in the same way to
match the transmitter function driving it
Receiver output field coloured for easier identification
You can link up to a maximum of 8 receiver outputs to each trans-
mitter channel or function which will allow you to drive up to 8
servos or other devices simultaneously, almost as if you had an 8
way 'V' cable connected to the receiver output but with the excep-
tion that each servo can be programmed independently. To assign
an output to a function, simply click onto the relevant field with the
left mouse button which will turn the field green. In this example
transmitter channel 4 has been linked to receiver outputs 6 to 13.
To delete an allocation simply click onto the green field and after
acknowledging the following warning message the selection will
be cleared.
