Transmitter Module For Multiplex Profi 4000/3030/3010 Transmitters - Weatronic 12 channel TX module Instruction Manual

5.1.9 Transmitter module for Multiplex Profi 4000/3030/3010 transmitters

Unscrew the original 35 MHz antenna and replace it by screwing the adapter stalk into its place. Open the casing and remove the original 35 MHz
module from its housing. Remove the plastic window from the rear of the transmitter to enable you to feed the connecting cable through.
12

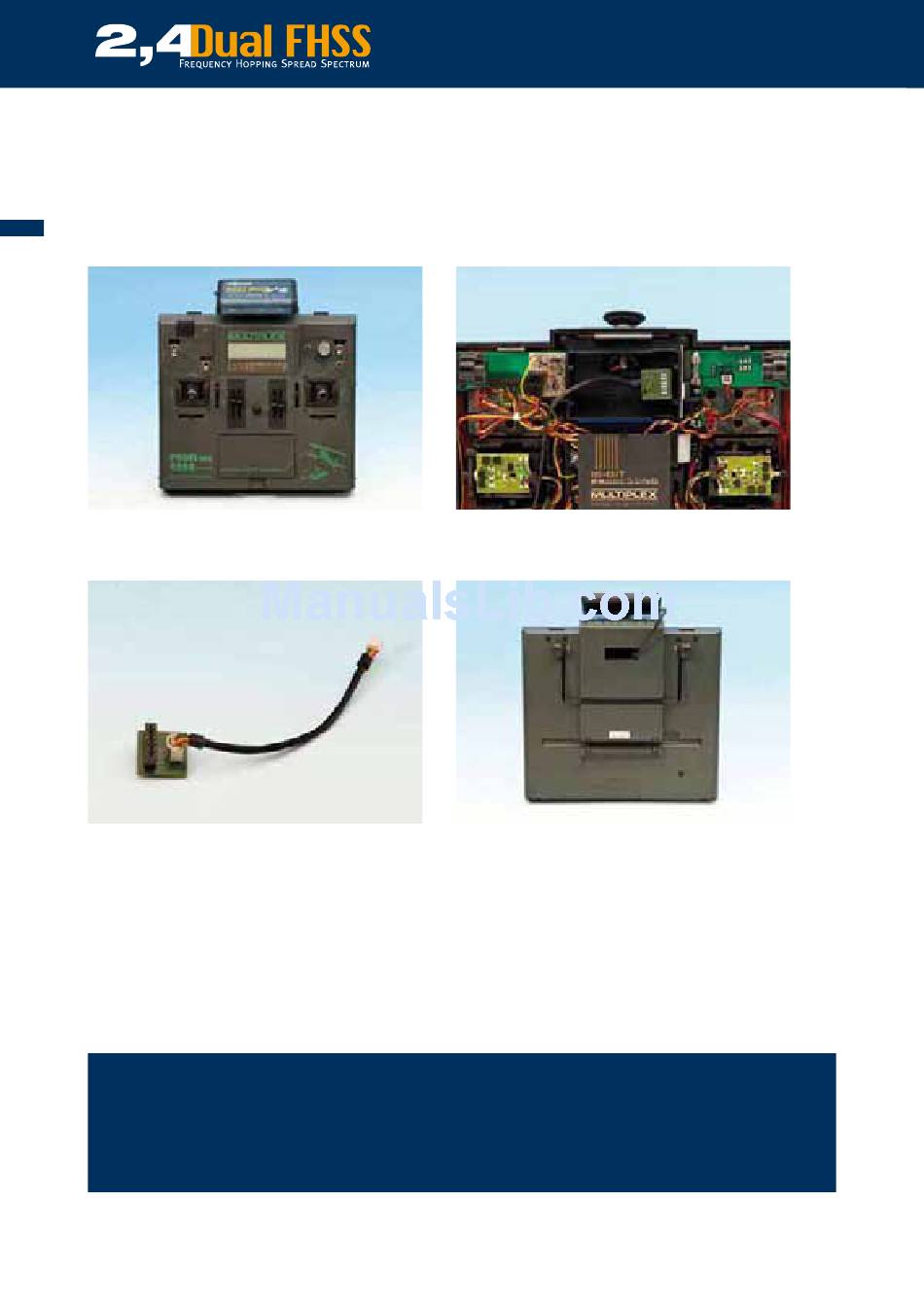

Weatronic 2.4 Dual FHSS transmitter module fitted to a Multiplex
Profi MC 4000 transmitter
Adapter module and connecting cable for Multiplex Profi MC 3030
/4000-Series and EVO Royal/Royal Pro 7/9/12 transmitters
Plug the connecting cable into the weatronic transmitter module ensuring that it is correctly seated and fit the transmitter module to the adapter stalk
with the LEDs upwards so that they can be viewed from the front. Feed the cable through the hole in the casing which you made by removing the
window, or, alternatively the cable may be fed through a vacant external switch hole. The cable should now be plugged into the Weatronic adapter
module as shown above ensuring that it is correctly seated which is then plugged into the original HF module housing (shown above). Replace the
cover to complete the conversion.
www.weatronic.com
Opened Multiplex Profi MC 4000 transmitter showing the adapter
module fitted
Connecting cable fed out through the visibility window hole on a
Multiplex Profi MC 4000 transmitter
