DISC
MOTO DRIVER
OPTICAL PICKUP
5888
SF-CP2
CDMP3 SOC
S5L8035Ui

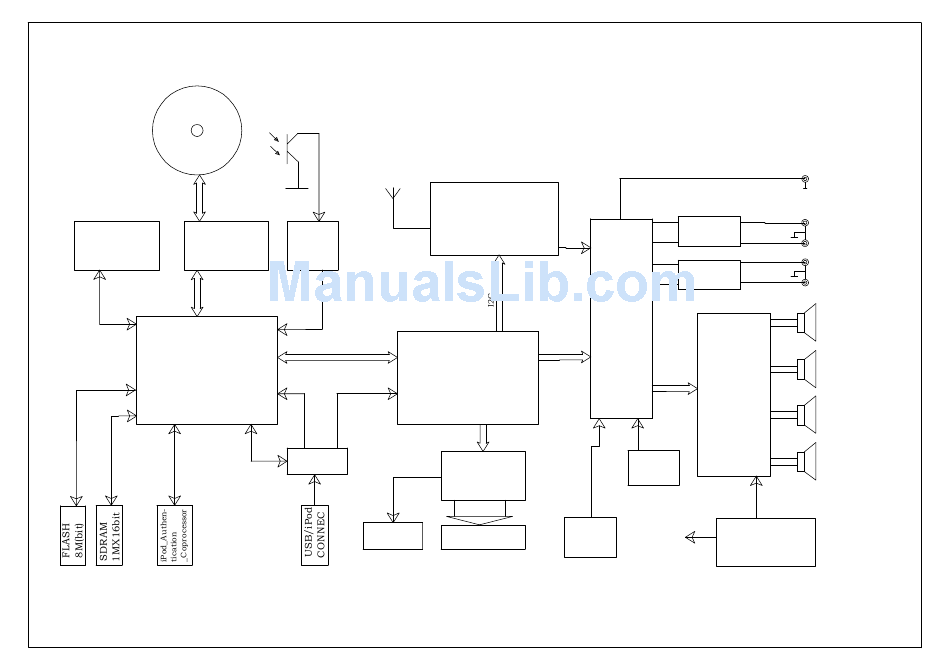

BLOCK DIAGRAM
CEM3100 BLOCK DIAGRAM
ANT
AM/FM/RDS TUNER
TDA7703/R
DISC IN/
OUT DET
SPI
CEM3100
MCU
USB
DET
LCD DRIVER
PT16580
AD KEY
LCD DISPLAY
/RC
FONNT-LINEOUT
4558
REAR-LINEOUT
4558
VOL/EQ
I2C
TDA7419
POWER
LV47002
MP3-
LINK IN
(FRONT)
MP3-
POWER SUPPLY
LINK IN
(REAR)
+5V
SUB- WOOFER
OUT
FL-OUT
FR-OUT
LINE OUT
RL-OUT
RR-OUT
FL
FR
RL
RR
+14.4V
8284
