- Page 1 CUPID SERIES · Manual For PCB revision 0.7 or Pre-Release for HW 1.1 or later...
-
Page 2: Important Hints
CUPID SERIES · Manual Important hints Thank you very much for purchasing a Garz & Fricke product. Our produc ts are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with s uch products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 3: Table Of Contents
· Manual CUPID SERIES Content Important hints Introduction Type plate and device information Related documents and online support Product description Boxed design Open frame design Technical data (options are greyed out) ... -
Page 4: Introduction
This document is valid for hardware revisions 1.1 or later of the CUPID SERIES and thereon based customized variants: Order Codes Article Number CUPID Product Name Starter Kit Product Rev. 1.1 Rev. 1.2 CUPID core 10156 900-2041R CUPID 5.7 basic CUPID 5.7 open frame 10132 10130 900-1952R 900-2050R CUPID 5.7 boxed... -
Page 5: Product Description

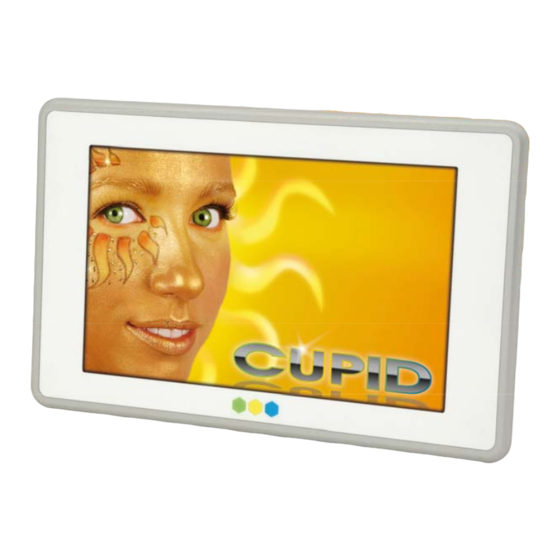

CUPID SERIES · Manual Product description CUPID is an Embedded System used as human machine interface (HMI) in various applications. Please refer Annex B: Application notes for further information. The system is equipped with a large number of industrial interfaces. A wide variety of options is available as well. Boxed design The following illustration shows the boxed version with 7”... -
Page 6: Open Frame Design
CUPID SERIES · Manual Open frame design The following illustration shows the open frame version with 7” display and is meant for your orientation. For drawings, please refer to chapter 5 Product geometry. Installation frame Display with resistive touch Reset switch SD-card slot Power LED Connectors and interfaces... -
Page 7: Technical Data (Options Are Greyed Out)
CUPID SERIES · Manual Technical data (options are greyed out) Type Freescale ARM1136JF-S i.MX35 Clock/Frequency 532 MHz Specifications 32 bit with MMU 16 KB L1 I-Cache and D-Cache 128 KB L2 Cache Memory 256 MB NAND-Flash 128 MB DDR-SDRAM / 512 KB SRAM Storage Card Slot 4 bit MMC/SDIO/SD/SDHC up to 4 GB Graphics... -
Page 8: Mechanical Properties
CUPID SERIES · Manual Mechanical properties Housing Metal parts 1.4016 high quality steel Thickness 0.75 mm Surface treatment Polished Front (boxed versions only) Frame Material 4 mm AlMg Surface treatment Natural anodized, E6/EV1 Décor cover Material Polyester film with antiglare coating 4C silk screen printing from behind Structured front coating Thickness... -
Page 9: Internal Battery
CUPID SERIES · Manual Internal battery The internal baseboard is equipped with a Lithium battery (CMOS battery, type CR2032), which has a typical lifetime longer than 10 years. Danger of explosion when replaced with wrong type of battery. Replace the battery only with a Lithium battery that has the same or equivalent type recommended by Garz &... -
Page 10: Pcb Design And Connectors
CUPID SERIES · Manual PCB design and connectors 3.7.1 Standard assembly Pos. Description Pos. Description Ethernet/PoE (X24) USB-Host (X34) Power (X1) USB-OTG (X20/X32) Digital I/O (X14) SD card reader (X31) CAN/RS-485 (X39) Reset Speaker (X9/X10) Clear all Keypad/SPI/I²C (X21) Power LED RS-232/MDB (X13) Internal Audio (X8) 3.7.2... -
Page 11: Pin Assignment And Description
CUPID SERIES · Manual Pin assignment and description Ethernet/PoE (X24) Name Description Level SPARE1 Power Supply (PoE) SPARE1 Power Supply (PoE) SPARE2 Power Supply (PoE) SPARE2 Power Supply (PoE) Header: RJ45 Power (X1) Pin Name Description Level Ground Vcc_In Input voltage 12/24V Header: Molex_43045-0200 Micro-Fit 2p Plug:... -
Page 12: Rs-232/Mdb (X13)
CUPID SERIES · Manual RS-232/MDB (X13) 4.6.1 Standard: RS-232/RS-232 Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Ground RS232_TXD2 Port#2: Transmit data (Output) RS232_RXD2 Port#2: Receive data (Input) RS232_RTS2 Port#2: Request-to-send (Output) RS232_CTS2... -
Page 13: Can/Rs-485 Interface (X39)
CUPID SERIES · Manual CAN/RS-485 Interface (X39) 4.7.1 Standard: CAN/RS-485 Name Description Level GND_CAN_RS485 Ground for CAN and RS485 group CAN1_TERM To enable CAN1-Termination, bridge with CAN1_H CAN1_H CAN bus 1 high CAN1_L CAN bus 1 low CAN1_TERM To enable CAN1-Termination, bridge with CAN1_L RS485_TERM To enable RS485-Termination: bridge with... -
Page 14: Digital I/O (X14)
CUPID SERIES · Manual Digital I/O (X14) Name Description Level DIG_IN1 Input 1 DIG_IN2 Input 2 3-36V High GND_DIO Ground for digital IO group Common ground, can be bridged with GND_DIO, when galvanic isolation is not required DIG_OUT1 Output 1 DIG_OUT2 Output 2 Vcc_DIO High... -
Page 15: Keypad/Spi (X21)
CUPID SERIES · Manual Keypad/SPI (X21) 4.9.1 Keypad/SPI/I²C (standard assembly) Description Name Level Standard mode Multiplexed mode 1 Ground Ground Ground Ground KP_ROW0 Keypad row 0 Keypad row 0 KP_COL0 Keypad column 0 Keypad column 0 KP_ROW1 Keypad row 1 Keypad row 1 KP_COL1 Keypad column 1... -
Page 16: Internal Audio (X8)
CUPID SERIES · Manual 4.10 Internal Audio (X8) Name Description Level MICP Microphone signal MICGND Microphone ground LINE_IN_L Line in, left channel Ground shielding LINE_IN_R Line in, right channel Ground shielding LINE_OUT_L Line out, left channel Ground shielding LINE_OUT_R Line out, right channel Ground shielding Header: Molex 53398-1071, top entry, RM = 1.25 Plug:... -
Page 17: 4.11 Suppliers And Sources
CUPID SERIES · Manual 4.11 Suppliers and sources Models and types of connectors respectively plugs related to CUPID are listed in 3.7 PCB design and connectors. For purchasing these parts, we recommend the following suppliers: http://de.farnell.com http://de.digikey.com... -
Page 18: Product Geometry
CUPID SERIES · Manual Product geometry The drawings on the following pages are non-binding and shall provide a first impression of the original size and construction of the products. For all products we provide 3D CAD models on our website as well as per email upon request. -
Page 19: Cupid 7.0 Open Frame
CUPID SERIES · Manual CUPID 7.0 open frame Scale 1:1 Front view... -
Page 20: Cupid 5.7 Boxed
CUPID SERIES · Manual CUPID 5.7 boxed Scale 1:1 Rear view... -
Page 21: Cupid 7.0 Boxed
CUPID SERIES · Manual CUPID 7.0 boxed Scale 1:1 Rear view... -
Page 22: Annex A: Warranty Hints
CUPID SERIES · Manual Annex A: Warranty hints Garz & Fricke embedded systems are subject to manufacturer’s guarantee as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the guaranteed period. -
Page 23: Annex B: Application Notes
CUPID SERIES · Manual Annex B: Application notes The products covered by this doc ument are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) or (III) we highly recommend a personal contact with our consultants and/or technical sales team. -
Page 24: Annex C: Safety Instructions
CUPID SERIES · Manual Annex C: Safety instructions Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observ e the warnings and instruc tions on the device and in the manual. Garz & Fricke embedded system have be en built and tested by us and left the company in a perfectly safe condition. -
Page 25: Annex D: Emc - Declaration Of Electromagnetic Conformity
CUPID SERIES · Manual Annex D: EMC – Declaration of electromagnetic conformity Copies of the relevant declarations will be copied herein. Currently, the EMC tests for the four standard devices in HW Rev. 1.2 with resistive touch screen are in preparation: CUPID Product Name Article Number CUPID 5.7 open frame... -
Page 26: Annex E: Trademarks And Service Marks
CUPID SERIES · Manual Annex E: Trademarks and service marks There are a number of proprietary logos, service marks, trademarks, slogans and product designations ("Marks") used in this document. By making the Marks available in this document, Garz & Fricke GmbH is not granting you a license to use them in any fashion. -
Page 27: Annex F: Document Revision History
CUPID SERIES · Manual Annex F: Document revision history The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. Release/Date Title Description... - Page 28 CUPID SERIES · Manual...
