Summary of Contents for Garz & Fricke NESO LT core

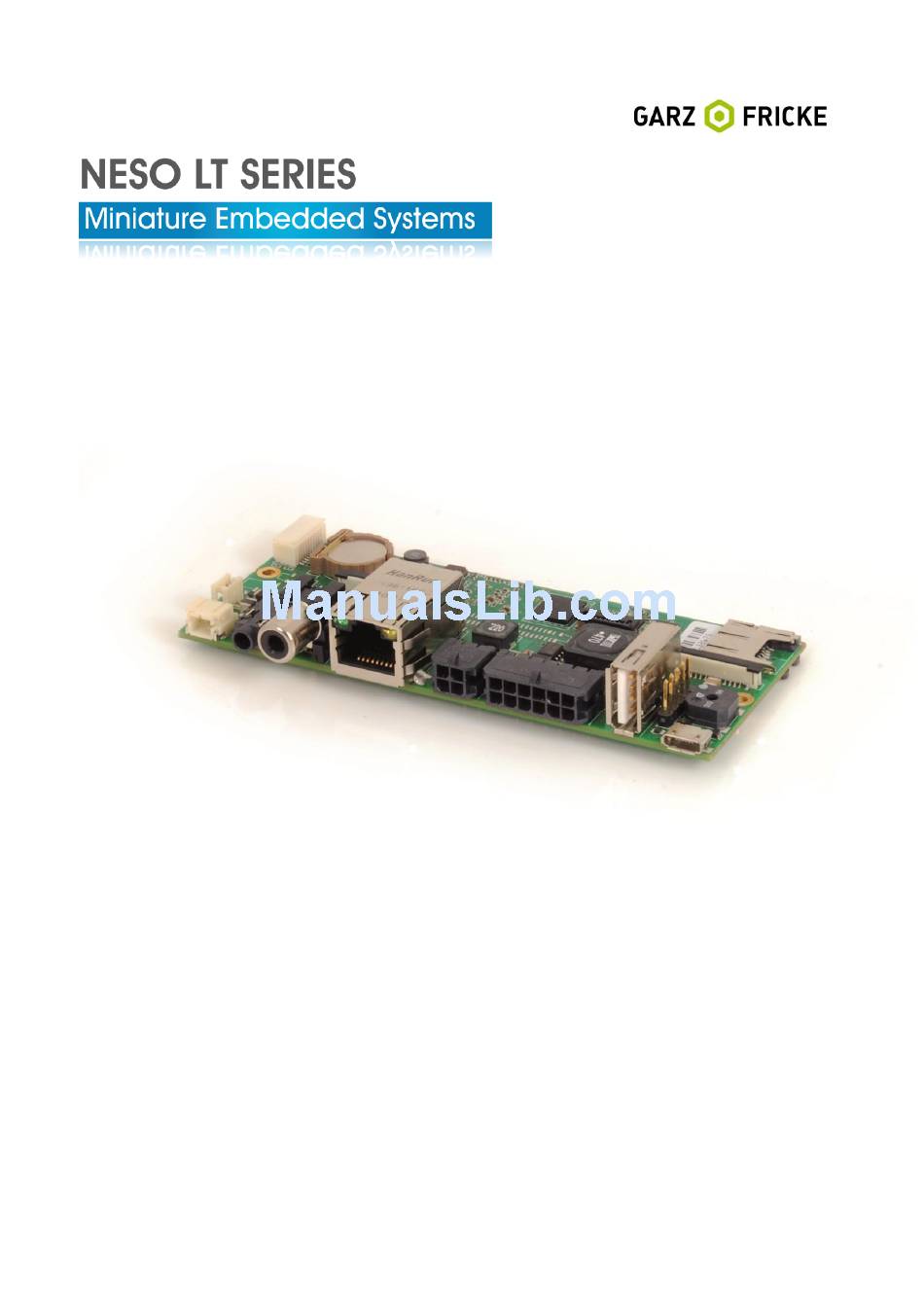

- Page 1 NESO LT core Manual For PCB revision 0.7 or for HW 1.1 or later...
-
Page 2: Table Of Contents
RGB Display Interface (X10/X11) 6.16 C (X17) Document revision history Technical support Annex A: Assembly options and accessory NESO LT Core Version M Annex B: Hardware revision information Annex C: Battery Battery Specifications Replacement of the internal battery Annex D:... -
Page 3: Introduction
NESO LT core Manual 1 Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 4: Safety Hints
NESO LT core Manual 2 Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition. -
Page 5: Product Introduction
NESO LT core Manual 3 Product Introduction This document is applicable for hardware revisions 1.0 or later of the NESO LT SERIES. Please find the hardware version grid in Annex B: Product introduction NESO LT is an Embedded System to be used as human machine interface (HMI) in various applications. -
Page 6: Related Documents And Online Support
NESO LT core Manual Related documents and online support This document contains product specific information. The following additional documentations are available: Description Title Link to Garz & Fricke Website RedBoot User Manual Contains relevant information about GF_RedBoot_User_Manual_V.0.7.pdf BIOS, boot logo, display settings, etc. -
Page 7: Technical Data
NESO LT core Manual 4 Technical data Class ARM9R ARM926EJ-S™ i.MX257 Type/Clock 400 MHz Depending on ambient temperature Standard time´s deviation: +/- 30 ppm at 25°C Memory NAND Flash 256 MByte NAND Flash Standard 128 MByte DDR-SDRAM Option 256 MByte DDR-SDRAM... - Page 8 NESO LT core Manual Environment Humidity [%] 5 ~ 90 Operating Temperature[°C] 0 ~ +60 Storage Temperature [°C] -20 ~ +70 Max. Operating Altitude [m] 3,000 Max. Storage/Transit 10,000 Altitude [m] Noise Level [db(A)] @ 1m <<40 (fanless design) Lifetime ≥...
-
Page 9: Block Diagram
NESO LT core Manual Block diagram... -
Page 10: Pcb Design And Pin Assembly
NESO LT core Manual PCB design and Pin assembly As this manual describes a core version, the internal and external interfaces will be mentioned in the following chapter. Pos. Description Pos. Description Ethernet (X8) Power LED Power/Digital out (X1) SD card reader... -
Page 11: Installation And Start Up
NESO LT core Manual 5 Installation and start up The content of this document is limited to explain the device connectors and how to access NESO LT via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software support, please refer to chapter 3.3 Related documents and online support... -
Page 12: Internal And External Interfaces And Schematics
NESO LT core Manual 6 Internal and external interfaces and Schematics Ethernet (X8) Name Description Level SPARE1 SPARE2 Header: RJ45 Power/Digital out (X1) Name Description Level Ground Ground Vcc_In Input voltage 9-16V DIO_OUT Digital Out Vcc_In Header: Molex_43045-0400 Micro-Fit 4p... -
Page 13: Rs-232/Rs-485/Can (X9)
NESO LT core Manual RS-232/RS-485/CAN (X9) 6.3.1 Option: RS-232/RS-485 Name Description Level Ground RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Vref Vref out Ground RS485_Y RS485_Z RS485_A To enable Half-Duplex: bridge with RS485_Y... -
Page 14: Usb - Host (X12)
NESO LT core Manual USB - Host (X12) Name Description Level Power supply 5 V /500mA Data minus Data plus Ground Header: USB Type A External USB - OTG (X14) Name Description Level Power supply 5 V /500mA Data minus... -
Page 15: Line Out (X20)
NESO LT core Manual Line out (X20) Name Description Level Ground shielding LINE_OUT_L Line out, left channel Max 1V RMS LINE_OUT_R Line out, right channel S/PDIF (X7) Name Description Level Ground shielding TXOUT Signal out Max 1Vpp, R = 75Ohm... -
Page 16: Keypad/Spi (X16)
NESO LT core Manual Keypad/SPI (X16) 6.9.1 Standard: Keypad/SPI Description Name Level Standard mode Multiplexed mode 1 Ground Ground Ground Ground KP_COL7_SS2 Keypad column 7 SPI 3 Slave Select 2 3,3V KP_ROW7_SLK Keypad row 7 SPI 3 Serial Clock 3,3V... -
Page 17: Extension (X18)
NESO LT core Manual Extension (X18) 6.10 Name Description Level Power supply 5.0V Power supply 5.0V 3P3_IO Power supply 3.3V 3P3_IO Power supply 3.3V 1-WIRE 1-Wire 3.3V SD_DATA2 SD Card Data 2 3.3V SD_DATA3 SD Card Data 3 3.3V SD_CMD SD Card Command 3.3V... -
Page 18: Internal Usb - Host (X13)
NESO LT core Manual Internal USB - Host (X13) 6.11 Name Description Level Power supply 5 V /500mA Data minus Data plus Ground Ground Header: STL 1x5p SMD 180 RM = 2.54 Internal audio (X4) 6.12 Name Description Level MIC_IN... -
Page 19: Pct Controller (X19)
NESO LT core Manual PCT Controller (X19) 6.13 Name Description Level Ground X matrix drive line X matrix drive line X matrix drive line X matrix drive line Ground Y matrix drive line Y matrix drive line Y matrix drive line... -
Page 20: Battery-Holder (X2)
NESO LT core Manual Battery-Holder (X2) 6.14 Name Description Level Supply Ground Header: Keystone 1056 Battery: CR1220... -
Page 21: Rgb Display Interface (X10/X11)
NESO LT core Manual RGB Display Interface (X10/X11) 6.15 Name Description Level LED N Typ. 42.5 mA LED P Depending on assembly VDD LCD 3.3 V DCLK DISP HSYNC VSYNC Data Enable Depending on assembly AVDD Depending on assembly Depending on assembly... -
Page 22: I 2 C (X17)
NESO LT core Manual C (X17) 6.16 Name Description Level Depending on 3.3V, 5V assembly I²C SDA (1kOhm Pullup internal) I²C SCL (1kOhm Pullup internal) Reset Int# Header: FFC-ZIF Plug: FFC Cable 1mm Pitch... -
Page 23: Document Revision History
NESO LT core Manual 7 Document revision history The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. - Page 24 NESO LT core Manual Technical Appendix For PCB revision 0.7 or for HW 1.1 or later...
-
Page 25: Annex A: Assembly Options And Accessory
NESO LT core Manual Annex A: Assembly options and accessory A-1 NESO LT Core Version M Pos. Description Pos. Description Ethernet (X8) Reset Power/Digital out (X1) Clear all (Bootmode-Select) RS-232/RS-485/CAN (X9) Power LED USB - Host (X12) SD card reader... -
Page 26: Annex B: Hardware Revision Information
NESO LT core Manual Annex B: Hardware revision information This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments. Article Number... -
Page 27: Annex C: Battery
NESO LT core Manual Annex C: Battery C-1 Battery Specifications The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years. Type Garz & Fricke Article Number Battery type CR 1220... -
Page 28: Replacement Of The Internal Battery
NESO LT core Manual C-2 Replacement of the internal battery The internal battery is placed as per figure below. For replacement, the SD-card and the back cover have to be removed. The device shall be opened by authorized and skilled personnel only. -
Page 29: Annex D: Guidelines And Standards
NESO LT core Manual Annex D: Guidelines and Standards D-1 RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic... -
Page 30: Annex E: Common Documentation
NESO LT core Manual Annex E: Common documentation E-1 Warranty hints Garz & Fricke embedded systems are subject to manufacturer’s guarantee as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the guaranteed period. -
Page 31: Application Notes
NESO LT core Manual E-2 Application notes The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) or (III) we highly recommend a personal contact with our consultants and/or technical sales team.
