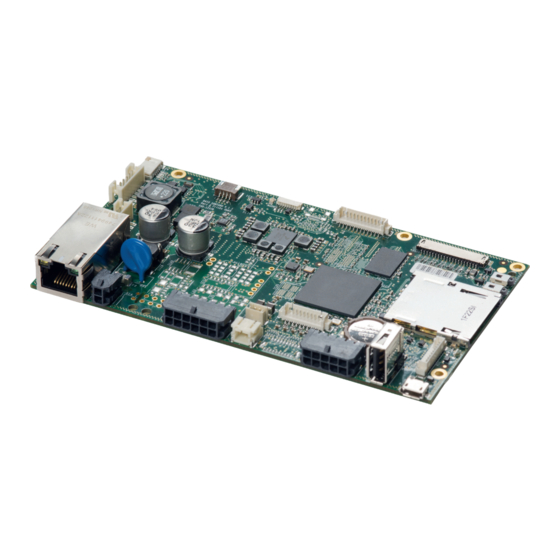

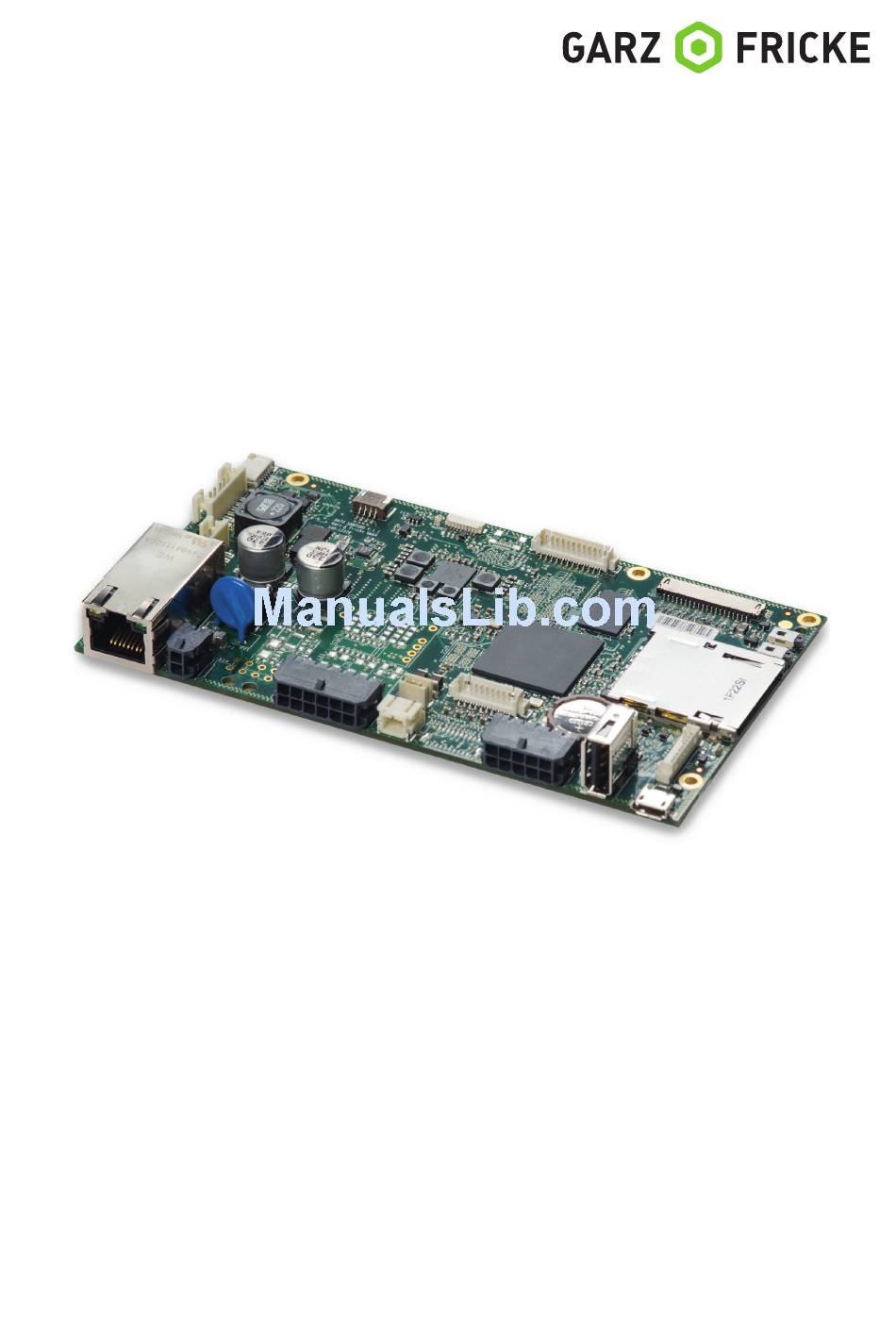

- Page 1 SOLUTIONS THAT COMPLETE! SANTARO core ARM Cortex A9 Single Board Computer The Garz & Fricke business class: Flexible, powerful all-rounder for any demanding applications. Product Manual...
-
Page 2: Document Revision History
PRODUCT MANUAL SANTARO core Document Revision History The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. Revision... -
Page 3: Table Of Contents
PRODUCT MANUAL SANTARO core Table of Contents Introduction ..................4 Safety Hints..................5 Product Introduction ................. 6 Type Plate and Device Information ............6 Related Documents and Online Support ..........7 Technical Data ..................8 Block Diagram SBC .................9 Technical Drawing ...................10 Conectors ....................11... -
Page 4: Introduction
PRODUCT MANUAL SANTARO core Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 5: Safety Hints
PRODUCT MANUAL SANTARO core Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition.In order to maintain this condition... -
Page 6: Product Introduction
PRODUCT MANUAL SANTARO core Product Introduction This document is applicable for hardware revisions 1.0 or later of the SANTARO series. „Annex A: Hardware Revision Information“: Please find the hardware version grid in SANTARO is an Embedded System to be used as human machine interface (HMI) in various applications. Please refer to Annex „D-2 Field of Application“... -
Page 7: Related Documents And Online Support
PRODUCT MANUAL SANTARO core Related Documents and Online Support This document contains operating system specific information. The following additional documentations are available: OPERATING SYSTEMS Contains information about Windows Embedded CE 7, the tool chain, the Windows CE 7 development environment Visual Studio, Garz & Fricke tools, etc. -
Page 8: Technical Data
PRODUCT MANUAL SANTARO core Technical Data CPU Type i.MX6Solo i.MX6Dual i.MX6Quad Core Class ARM Cortex - A9 Core Clock 800 MHz 1 GHz NEON for SIMD media acceleration and VFP operations; Multi-format HD 1080p video decoder and HD 720p video encoder hardware engine; L1 cache, 32 KB for instruction, 32 KB for data... -
Page 9: Block Diagram Sbc
PRODUCT MANUAL SANTARO core Block Diagram SBC Block Diagram SANTARO i.MX6 24 V Step Down 2-pole Molex Converter 2x Display LVDS LVDS0 Power PMIC 20-pole Hirose LVDS1 12V Supply 5V Supply Battery CR1220 GPIO Backlight Battery PWM1_OUT 12-pole Molex RC 1 Res.Touch... -
Page 10: Technical Drawing
PRODUCT MANUAL SANTARO core SANTARO core Technical Drawing 95,5 13,4 Missing dimensions according to 3D CAD files... -
Page 11: Conectors
PRODUCT MANUAL SANTARO core Conectors As this manual describes a core version, the internal and external interfaces will be mentioned in the following chapter. (Exemplary Illustration front side. The illustration shows the fully equipped SANTARO Quadcore light. It shows no heatsink to provide a better overview.) Pos. - Page 12 PRODUCT MANUAL SANTARO core X109 X102 X16|X103 (Exemplary Illustration back side) Pos. Description Capacitive Touch (X16 / X102)
-
Page 13: Installation And Start Up
PRODUCT MANUAL SANTARO core Installation and Start Up The content of this document is limited to explain the device connectors and how to access SANTARO via FTP over your local area network (LAN) within a few seconds. For advanced hardware specifications and software „3.2 Related Documents and Online Support“... -
Page 14: Internal And External Interfaces
PRODUCT MANUAL SANTARO core Internal and External Interfaces Ethernet (X24) Name Description Information Rx/Tx might be swapped (Auto-MDIX) SPARE 1 Power Supply (PoE)1 +/- might be swapped (Autom. polarity correction) PoE might also be injected via Rx/Tx lines SPARE 2... -
Page 15: Power (X1)
PRODUCT MANUAL SANTARO core Power (X1) Name Description Level DC Ground Vcc_In DC Input voltage Nom. 9 to 32 V DC Header: Molex 43045-0200 Micro-Fit 2p Plug: Molex 43025-0200 Micro-Fit 2p, crimp contact Molex 43030-0007 Shielding with 6,3 mm male spade terminal connector. -
Page 16: Digital I/O (X14)
PRODUCT MANUAL SANTARO core Digital I/O (X14) Name Description Level DIG_IN1 Input 1 Typ. 8,3 mA / 24 V 3-36 V High DIG_IN2 Input 2 Typ. 8,3 mA / 24 V 3-36 V High GND_DIO Ground for digital IO group... -
Page 17: Can/Rs-485 Interface (X39)
PRODUCT MANUAL SANTARO core CAN/RS-485 Interface (X39) Name Description Level GND_CAN_RS485 Ground for CAN and RS485 group CAN1_TERM To enable CAN1-Termination, bridge with CAN1_H CAN1_H CAN bus 1 high +24 V CAN1_L CAN bus 1 low +24 V CAN1_TERM To enable CAN1-Termination, bridge with CAN1_L... -
Page 18: Speaker (X9)
PRODUCT MANUAL SANTARO core Speaker (X9) Name Description Level Speaker + Parallel to X10 1.5W RMS 8 Ohm Speaker - Header: JST S2B-PH-SM3-TB Plug: ST PHR-2 with crimp contacts SPH-002GW-P0.5L-ND... -
Page 19: Keypad/Spi (X21)
PRODUCT MANUAL SANTARO core Keypad/SPI (X21) Keypad/SPI/I²C, multiplexed Description Description Name Level Default Mode Mode 1 Ground Ground Ground Ground KP_ROW0 Keypad row 0 Keypad row 0 KP_COL0 Keypad column 0 Keypad column 0 KP_ROW1 Keypad row 1 Keypad row 1... - Page 20 PRODUCT MANUAL SANTARO core Keypad/SPI/I²C, multiplexed 1* Description Description Name Level Mode 2 Mode 3 1-10 Identical to standard Identical to standard KP_ROW4 Keypad row 4 Keypad row 4 KP_COL4 Keypad column 4 Keypad column 4 KP_ROW5_DMA Keypad row 5...
-
Page 21: Rs-232/Rs-232 (X13)
PRODUCT MANUAL SANTARO core RS-232/RS-232 (X13) Name Description Level Ground Signal RS232_TXD1 Port#1: Transmit data (Output) RS232_RXD1 Port#1: Receive data (Input) RS232_RTS1 Port#1: Request-to-send (Output) RS232_CTS1 Port#1: Clear-to-send (Input) Ground Signal RS232_TXD2 Port#2: Transmit data (Output) RS232_RXD2 Port#2: Receive data (Input) -
Page 22: Usb Host (X34)
PRODUCT MANUAL SANTARO core USB Host (X34) Name Description Level USB_H1_VBUS Power supply +5 V DC max 500mA USB_H1_DN Data minus (D-) USB_H1_DP Data plus (D+) Ground Header: USB Type A USB OTG (X20) Name Description Level USB_OTG_VBUS Power supply... -
Page 23: Reset Switch (Sw1)
PRODUCT MANUAL SANTARO core 6.11 Reset Switch (SW1) Push for a power on reset. 6.12 Bootselect Switch (SW2) Push during a power on sequence to boot into the Flash-N-Go. 6.13 Power LED (D30) Should be green when the device is powered up. -
Page 24: Hdmi (X111)
PRODUCT MANUAL SANTARO core 6.14 HDMI (X111) Name Description Level HOT_PLUG_DETECT Hot - Plug - Detect Utility TMDS Data2+ TMDS Data2 shield TMDS Data2 - TMDS Data1+ TMDS Data1 shield TMDS Data1- TMDS Data0+ TMDS Data0 shield D0 - TMDS Data0-... -
Page 25: Usb Intern (X11)
PRODUCT MANUAL SANTARO core 6.15 USB intern (X11) Name Description Level Power Supply 5V max 500 mA Data minus Data plus Ground Ground UART4_TX Transmit data (Output) UART4_RX Receive data (Input) UART4_RTS Request-to-send (Output) UART4_CTS Clear-to-send (Input) Ground Header: Molex 53398-1019... -
Page 26: Battery-Holder (X2)
PRODUCT MANUAL SANTARO core 6.16 Battery-Holder (X2) * Name Description Level Supply CR1220 Ground Header: Keystone 1056 Battery: CR1220 * Default for singlecore and dualcore Battery Connector (X112) * Name Description Level Supply Ground Header: Molex 53398_0271 Plug: Molex 51021_0200... -
Page 27: Speaker Internal (X10)
PRODUCT MANUAL SANTARO core Audio (X8) 1 Name Description Level Microphone input Ground Line In L Line In Typ 0.75 Vrms; Impedance Min: 10kOhm Ground Line In R Line In Typ 0.75 Vrms; Impedance Min: 10kOhm Ground Line Out R Line Out Typ 0.6Vrms... -
Page 28: Power Over Ethernet (X17 / X18)
PRODUCT MANUAL SANTARO core 6.18 Power over Ethernet (X17 / X18)* Output 12V (+-2.5%)/2A To work, PoE must be equipped with an add-on board Type Garz & Fricke Article Number Add-on board 900-2583R The add-on bord must be connected to X17 and X18... -
Page 29: Display Lvds (X105, X109)
PRODUCT MANUAL SANTARO core 6.19 Display LVDS (X105, X109) X105 Name Description Level 3.3 V +- 3% max. 1.500 mA 3.3 V +- 3% LVDS0_TX0_N Differential Output See table LVDS LVDS0_TX0_P LVDS0_TX1_N Differential Output See table LVDS LVDS0_TX1_P LVDS0_TX2_N Differential Output... -
Page 30: Backlight (X108)
PRODUCT MANUAL SANTARO core 6.20 Backlight (X108) Name Description Level 12 V Supply for 12V backlight supply 12 V the nominal DC Power (X1) should 12V +-2% max 3 A be 13 to 32 V 12 V Supply 5V +-3% max 3 A... -
Page 31: Resistive 4 - Wire Touch (X4 / X7)
PRODUCT MANUAL SANTARO core 6.22 Resistive 4 - wire Touch (X4 / X7) Compatible with 4-wire resistive touch screens. For further information see ST Microelectronic's datasheet STMPE610 Name Description Level Header: Molex 52207-0433 or 52207-0485 Cable: FFC/FPC Name Description Level... -
Page 32: Capacitive Touch (X16)
PRODUCT MANUAL SANTARO core 6.23 Capacitive Touch (X16) Name Description Level Supply 5V max 300mA I²C SDA 3.3 V, 1kOhm Pullup intern I²C SCL 3.3 V, 1kOhm Pullup intern Ground Reset# Digital Output 3.3 V, 1kOhm Pullup intern Int# Digital Input 3.3 V, 1kOhm Pullup intern... -
Page 33: Battery
PRODUCT MANUAL SANTARO core Battery Battery Specifications X1 / X2 The internal baseboard is equipped with a Primary Lithium battery (type CR1220), which has a typical lifetime of 8 years. Type Garz & Fricke Article Number Battery type CR1220 010-0059R... -
Page 34: Replacement Of The Internal Battery
PRODUCT MANUAL SANTARO core Replacement of the Internal Battery The internal battery is placed as per figure below. For replacement, the SD-card and the back cover have to be removed. The device shall be opened by authorized and skilled personnel only. -
Page 35: Annex A: Hardware Revision Information
This document is applicable for all products listed below. Please note that customized variants might possibly not support all features listed herein. Additional features are documented in specific attachments. Platform Article Number Marking on PCB SANTARO core x1 900-3040R 0473 SANTARO V1.2 SANTARO core x2 900-3045R 0473 SANTARO V1.2... -
Page 36: Annex B: Assembly Options
PRODUCT MANUAL SANTARO core Annex B: Assembly Options Wi-Fi / Bluetooth Some appliances require a wireless network connection. To be more flexible with regard to future Wi-Fi standards and regulations, we decided not to assemble this functionality directly onto the single-board-computer. -
Page 37: Annex C: Guidelines And Standards
PRODUCT MANUAL SANTARO core Annex C: Guidelines and Standards RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8th June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 38: Garz & Fricke Conformity Statement
PRODUCT MANUAL SANTARO core Garz & Fricke Conformity Statement Garz & Fricke GmbH develops and distributes reliable, ARM-based embedded solutions. We offer various solutions from computer-on-modules (COM) to single-board computers (SBC) and fully- assembled human machine interface (HMI) with pre-installed operating system, display and housing. -
Page 39: Annex D: Common Documentation
PRODUCT MANUAL SANTARO core Annex D: Common Documentation Warranty Hints Garz & Fricke embedded systems are subject to manufacturer’s warranty as long as the products are handled with adequate care and caution and in accordance to this manual. The period of guarantee starts from the date of shipment The products are warranted against defects in material, quality and functionality within the warranty period. -
Page 40: Field Of Application
PRODUCT MANUAL SANTARO core Field of Application The products covered by this document are designed and manufactured for the following applications (I). If you intend to use these products in applications as quoted in (II) we highly recommend a personal contact with our consultants and/or technical sales team. -
Page 41: Annex E: Technical Support
PRODUCT MANUAL SANTARO core Annex E: Technical Support Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or any other documentation provided by Garz & Fricke or the related websites. -
Page 42: Annex F: General Information
PRODUCT MANUAL SANTARO core Annex F: General Information Trademarks and service marks Names and logos in this document may be trademarks of their respective companies. In some cases descriptions for copyrighted products are not explicitly indicated as such. The absence of the ™...
