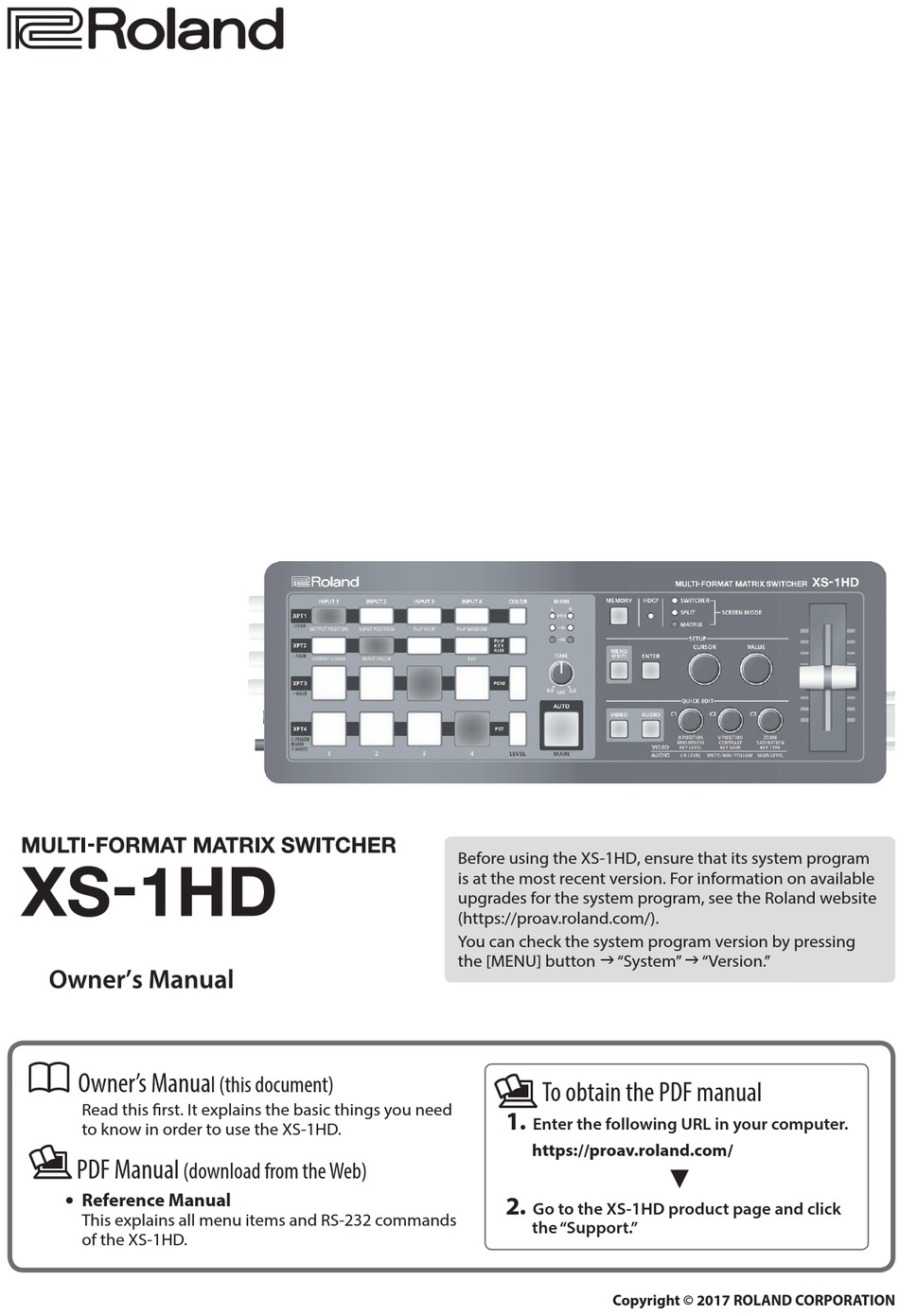

Roland XS-1HD Owner's Manual

Multi-format matrix switcher
Hide thumbs Also See for XS-1HD:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
Owner's Manua
l (this document)
Read this first. It explains the basic things you need
to know in order to use the XS-1HD.
PDF Manual
(download from the Web)
5 Reference Manual
This explains all menu items and RS-232 commands
of the XS-1HD.
Before using the XS-1HD, ensure that its system program
is at the most recent version. For information on available
upgrades for the system program, see the Roland website
(https://proav.roland.com/).
You can check the system program version by pressing
the [MENU] button g "System" g "Version. "
To obtain the PDF manual
1.
Enter the following URL in your computer.
https://proav.roland.com/
2.
Go to the XS-1HD product page and click
the "Support."
Copyright © 2017 ROLAND CORPORATION
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS-1HD and is the answer not in the manual?

Questions and answers

Related Manuals for Roland XS-1HD

Summary of Contents for Roland XS-1HD

  • Page 1 Before using the XS-1HD, ensure that its system program is at the most recent version. For information on available upgrades for the system program, see the Roland website (https://proav.roland.com/). You can check the system program version by pressing the [MENU] button g “System” g “Version. ”...

  • Page 2: Table Of Contents

    Saving or Recalling Settings (Memory) Saving the XS-1HD’s Settings Video Operations ......12 .

  • Page 3: Using The Unit Safely

    Refer all servicing to your retailer, the nearest any other device. Roland Service Center, or an authorized Roland distributor, as listed on the “Information. ” Do not bend the power cord or place...
  • Page 4 Immediately turn the unit off, remove the AC breakdown occurs. adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Route all power cords and cables in such a way as to prevent Center, or an authorized Roland distributor, as them from getting entangled listed on the “Information”...

  • Page 5: Important Notes

    • The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a • Roland assumes no liability concerning the restoration cause for concern. of any stored content that has been lost.

  • Page 6: Panel Descriptions

    Panel Descriptions Top Panel/Front Panel p. 18 MAIN level meter [COLOR] buttons This indicates the volume level of the audio output. These buttons operate as follows according to the screen mode. Matrix mode / Switcher mode (p. 17) The button applies a fade to the output video, outputting a single-color (background color) image.
  • Page 7 When the screen mode is “switcher mode, ” this button Do not block the cooling vent. If the cooling vent is automatically switches between the final output video blocked, the interior of the XS-1HD might overheat, and the preset video (the video to output next). causing it to malfunction.

  • Page 8: Rear Panel/Side Panel

    * The input format is automatically recognized. format it using the XS-1HD * In the Input menu, the "Input Status" shows the video format that (p. 23). is being input to each channel, and the presence or absence of an HDCP signal.
  • Page 9 Connect them to an audio this jack. This is a stereo that supports RS-232) can be connected here recorder, amp, or speakers. mini-type jack. to remotely control the XS-1HD. These are RCA phono-type jacks. Audio input jacks RS-232 connector [PHONES] knob This knob adjusts the volume of the headphones.

  • Page 10: Basic Operation

    Here’s how to display the menu, and make settings * Before turning the unit on/off, always be sure to turn for the XS-1HD itself and for video and audio. the volume down. Even with the volume turned down, you might hear some sound when switching the unit * The menu is shown only on the monitor that’s connected...

  • Page 11: List Of Compatible Video Formats

    List of Compatible Video Formats Input Video Formats Output Video Formats Frame Rate Frame Rate When set to “59.94 Hz” When set to “50 Hz” When set to “59.94 Hz” When set to “50 Hz” 480/59.94i 576/50i 720/59.94p 720/50p 480/59.94p 576/50p 1080/59.94i 1080/50i...

  • Page 12: Video Operations

    Split mode (p. 14) * For the output formats supported by the XS-1HD, refer to “Output Video Formats” on the previous page. Up to four screens of the video selected by the cross- If the message “Keep output format?” appears, point buttons can be layer-composited and output.

  • Page 13: Switching In Matrix Mode

    Video Operations Switching in Matrix Mode Use the cross-point buttons to switch the combination of four inputs and four outputs, and output the video. The internal frame synchronizer allows seamless video switching. Operating procedure As described in “Switching the screen mode” Press a cross-point button.

  • Page 14: Switching In Split Mode

    Video Operations Switching in Split Mode Up to four screens of the video selected by the cross-point buttons can be layer-composited and output. The video of XPT 1 can also be key-composited. Operating procedure Hiding the layers Press the [COLOR] button of the layer whose As described in “Switching the screen mode”...

  • Page 15: Switching In Switcher Mode

    Video Operations Switching in Switcher Mode The video of the PGM side (XPT3 row) is always output. The PST side (XPT4 row) selects the preset video (the video that will be output next). Use the [AUTO] button or operate the video fader to switch the video. Operating procedure Compositing with PinP or key Here’s how to composite videos using PinP.

  • Page 16: Outputting A Loaded Still Image

    Loading a still image Here’s how to load a still image from a USB flash drive into the XS-1HD. NOTE 5 The XS-1HD temporarily stores only one captured still The Input 1–Input 4 screen appears. image. Select “Input Source” and specify “Still Image.”...

  • Page 17: Fading The Output Video

    Video Operations Fading the Output Video Inputting Copy-Protected (HDCP) Video Here’s how to apply a fade to the output video, so that a single color (background color) video is output. If you want to input HDCP-protected video from a BD player or other device, you can enable HDCP input.

  • Page 18: Audio Operations

    Audio Operations You can adjust the volume (Level) of audio that is input or output, and change the state (State) of each channel. Press the [MENU] button g select “Audio” to Specifying the State of Each Channel (State) access the Audio menu. Page 1/2 Muting the Audio (Mute) Here’s how to temporarily mute the input audio or...

  • Page 19: Other Functions

    Other Functions Using Quick Edit to Adjust Video or Audio Quick edit is a function that lets you adjust the video or audio from the operation panel without having to display the menu. Using the Video Quick Edit You can adjust the input or output video’s quality, scaling, and the PinP inset screen’s position and size. The buttons are shortcuts for the following menu items.

  • Page 20: Using The Audio Quick Edit

    Other Functions Using the Audio Quick Edit You can adjust the volume (Level) of audio that is input or output, and change the state (State) of each channel. Each button is lit in one of three colors according to the value of the “Level”...

  • Page 21: Saving Or Recalling Settings (Memory)

    Saving or Recalling Settings (Memory) The current settings for video and audio, together with the state of the operating panel, can be saved in memory as a set and recalled when necessary. The XS-1HD provides 16 memories. Memory 1 functions as “last memory.”...

  • Page 22: Saving The Xs-1Hd's Settings

    Saving the XS-1HD’s Settings as a File on a USB Flash Drive The XS-1HD’s memories (1–16) can be saved together as a single file on a USB flash drive connected to the USB MEMORY port. A saved file can be loaded into the XS-1HD from the USB flash drive when necessary.

  • Page 23: Formatting A Usb Flash Drive

    Here’s how you can return the settings of the XS-1HD NOTE to their factory-set state. If following the procedures 5 A USB flash drive that was not formatted by the XS-1HD described in this manual does not cause the result will not be recognized.

  • Page 24: Appendices

    Appendices Block Diagram Video Section Matrix mode HDMI SCALER HDMI SCALER INPUT 1 INPUT 1 FRAME SYNCHRONIZER FRAME SYNCHRONIZER STILL IMAGE STILL IMAGE HDMI SCALER HDMI SCALER INPUT 2 INPUT 2 FRAME SYNCHRONIZER FRAME SYNCHRONIZER STILL IMAGE STILL IMAGE HDMI SCALER MIXER HDMI...
  • Page 25 Appendices OUTPUT 1 SCALER HDMI COLOR CORRECTOR OUTPUT 1 SCALER COLOR CORRECTOR HDMI OUTPUT 2 SCALER COLOR CORRECTOR HDMI OUTPUT 2 SCALER COLOR CORRECTOR HDMI OUTPUT 3 SCALER COLOR CORRECTOR HDMI OUTPUT 3 SCALER COLOR CORRECTOR HDMI OUTPUT 4 SCALER COLOR CORRECTOR HDMI OUTPUT 4...

  • Page 26: Audio Section

    STILL IMAGE STILL IMAGE HDMI SCALER INPUT 4 BACKGROUND FRAME SYNCHRONIZER STILL IMAGE Appendices BACKGROUND Switcher mode HDMI SCALER INPUT 1 FRAME SYNCHRONIZER STILL IMAGE HDMI SCALER INPUT 2 HDMI SCALER INPUT 1 FRAME SYNCHRONIZER FRAME SYNCHRONIZER STILL IMAGE STILL IMAGE CROSSPOINT HDMI SCALER...
  • Page 27 OUTPUT 4 COLOR CORRECTOR HDMI OUTPUT 3 COLOR CORRECTOR HDMI MENU OUTPUT 4 COLOR CORRECTOR HDMI Appendices MENU OUTPUT 1 HDMI COLOR CORRECTOR MIXER PinP PVW (*1) OUTPUT 2 HDMI COLOR CORRECTOR OUTPUT 1 HDMI COLOR CORRECTOR MIXER PVW (*1) PinP PGM (*1) OUTPUT 3...

  • Page 28: Troubleshooting

    Problem Check Action Page Problems with video Video of a format not supported by the XS-1HD is Could the cross-point buttons be unlit? being input. If valid video is being input, the cross- p. 11 point button is lit white.

  • Page 29: Main Specifications

    Appendices Main Specifications Roland XS-1HD: Multi-format Matrix Switcher  Video Processing 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits Input Connectors HDMI HDMI type A x 4 (HDMI INPUT 1–4) *HDCP Supported Output Connectors HDMI HDMI type A x 4 (HDMI OUTPUT 1–4) *HDCP Supported 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i,...

  • Page 30: Dimensions

    • This product contains eParts integrated software platform of eSOL Co.,Ltd. eParts is a trademark of eSOL Co., Ltd. in Japan. • Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries.

  • Page 31: Declaration Of Conformity

    DECLARATION OF CONFORMITY Compliance Information Statement Model Name : XS-1HD Type of Equipment : VIDEO SWITCHER Responsible Party : Roland Corporation U.S. Address : 5100 S. Eastern Avenue Los Angeles, CA 90040-2938 Telephone : (323) 890-3700 For the USA FEDERAL COMMUNICATIONS COMMISSION...
  • Page 32 For EU Countries For China...
