BEFORE USING

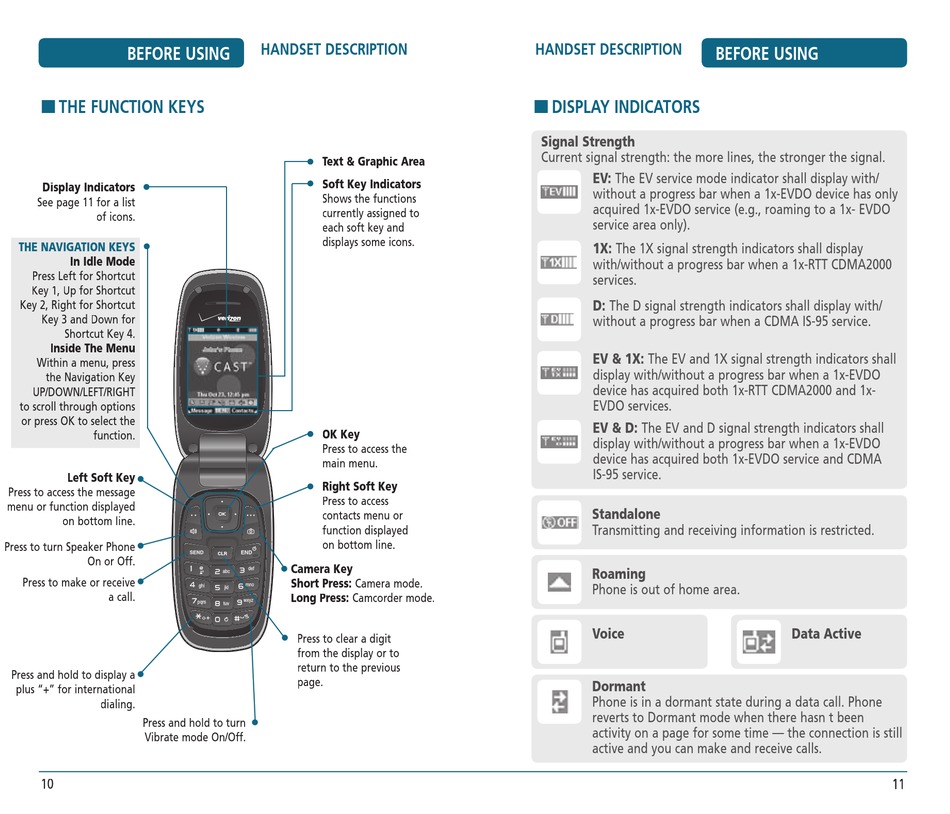

H THE FUNCTION KEYS

Display Indicators

See page 11 for a list
of icons.
THE NAVIGATION KEYS
In Idle Mode
Press Left for Shortcut
Key 1, Up for Shortcut
Key 2, Right for Shortcut
Key 3 and Down for
Shortcut Key 4.
Inside The Menu
Within a menu, press
the Navigation Key
UP/DOWN/LEFT/RIGHT
to scroll through options
or press OK to select the
function.
Left Soft Key
Press to access the message
menu or function displayed
on bottom line.
Press to turn Speaker Phone
On or Off.
Press to make or receive
a call.
Press and hold to display a
plus "+" for international
dialing.
Press and hold to turn
Vibrate mode On/Off.
10

HANDSET DESCRIPTION

Text & Graphic Area
Soft Key Indicators
Shows the functions
currently assigned to
each soft key and
displays some icons.
OK Key
Press to access the
main menu.
Right Soft Key
Press to access
contacts menu or
function displayed
on bottom line.
Camera Key
Short Press: Camera mode.
Long Press: Camcorder mode.
Press to clear a digit
from the display or to
return to the previous
page.
HANDSET DESCRIPTION
H DISPLAY INDICATORS
Signal Strength
Current signal strength: the more lines, the stronger the signal.
EV: The EV service mode indicator shall display with/
without a progress bar when a 1x-EVDO device has only
acquired 1x-EVDO service (e.g., roaming to a 1x- EVDO
service area only).
1X: The 1X signal strength indicators shall display
with/without a progress bar when a 1x-RTT CDMA2000
services.
D: The D signal strength indicators shall display with/
without a progress bar when a CDMA IS-95 service.
EV & 1X: The EV and 1X signal strength indicators shall
display with/without a progress bar when a 1x-EVDO
device has acquired both 1x-RTT CDMA2000 and 1x-
EVDO services.
EV & D: The EV and D signal strength indicators shall
display with/without a progress bar when a 1x-EVDO
device has acquired both 1x-EVDO service and CDMA
IS-95 service.
Standalone
Transmitting and receiving information is restricted.
Roaming
Phone is out of home area.
Voice
Dormant
Phone is in a dormant state during a data call. Phone
reverts to Dormant mode when there hasn t been
activity on a page for some time — the connection is still
active and you can make and receive calls.
BEFORE USING
Data Active
