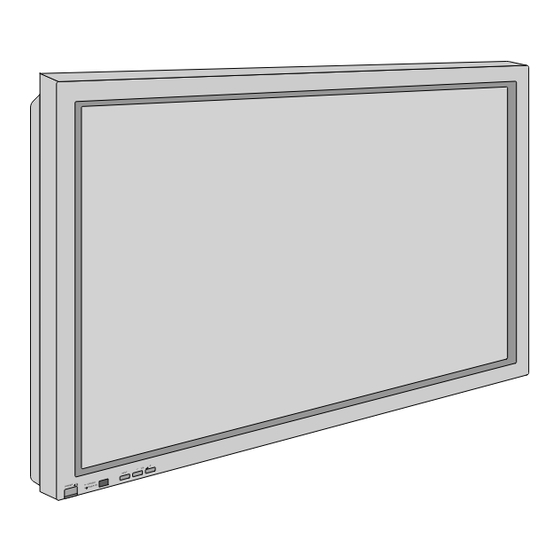

HIGH DEFINITION PLASMA MONITOR
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherant to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING:
IMPORTANT:
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact
the distributor's Service Division.
WARNING:
IMPORTANT:
1 0 0 8 1 8
PDM-1

SERVICE MANUAL

IMPORTANT NOTICE

Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that all service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
Static discharges can destroy expensive components. Discharge any static electricity your body may have accumu-
lated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.

Advertisement

   Related Manuals for Yamaha PDM-1

   Summary of Contents for Yamaha PDM-1

  • Page 1: Service Manual

    This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherant to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated.

  • Page 2: Table Of Contents

    PDM-1U / G / R / CONTENTS Page Page 1 YAMAHA PDM-1 Series Overall View 15.10. C3-Board 2 Specifications 15.11. C4-Board 3 Applicable signals 15.12. C5-Board 4 Safety Precautions 15.13. C6-Board 4.1. General Guidelines 15.14. C9-Board 5 Prevention of Electro Static Discharge (ESD) to 15.15.

  • Page 3

    PDM-1U / G / R / 16.32. C4-Board Schematic Diagram 16.43. SD-Board (1 of 2) Schematic Diagram 16.33. C5-Board Schematic Diagram 16.44. SD-Board (2 of 2) Schematic Diagram 16.34. C6-Board Schematic Diagram 16.45. SS-Board Block Diagram 16.35. C9-Board Schematic Diagram 16.46.

  • Page 4: Yamaha Pdm-1 Series Overall View

    PDM-1U / G / R /...

  • Page 5: Specifications

    PDM-1U / G / R / 2 Specifications Power Source Wall Mounting Unit PWK-150 120 V AC, 50/ 60 Hz ....U Plasma Display RTM-RCA1 ..G 220-240 V AC, 50/ 60 Hz ..G/R RCA Terminal Board Power Consumption Dimensions (W × H × D) Maximum (Normal use) 5.5 A (495 W)

  • Page 6: Applicable Signals

    PDM-1U / G / R / 3 Applicable signals...

  • Page 7: Safety Precautions

    PDM-1U / G / R / 4 Safety Precautions 4.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 8: Prevention Of Electro Static Discharge (esd) To Electrostatically Sensitive (es) Devices

    PDM-1U / G / R / 5 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 9: About Lead Free Solder (pbf)

    PDM-1U / G / R / 6 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

  • Page 10: Pcb Structure Sheet Of Gph5d2 Chassis

    PDM-1U / G / R / 7 PCB Structure sheet of GPH5D2 chassis Board Name Function Remarks Format Converter Plasma AI & Sub-Field Processor Audio out Sustain out Scan out Scan connection (Upper) Scan connection (Lower) Data Drive (Upper Left) Data Drive (Upper Center) Data Drive (Upper Right) Data Drive (Lower Right)

  • Page 11: Service Hint

    PDM-1U / G / R / 8 Service Hint...

  • Page 12: Location Of Lead Wiring

    PDM-1U / G / R / 9 Location of Lead Wiring...

  • Page 13: Adjustment Procedure

    PDM-1U / G / R / 10 Adjustment Procedure 10.1. +B Set-up 10.2. Driver Set-up 10.1.1. Item / Preparation 10.2.1. Item / Preparation 1. Input a Grey scale signal. 1. Input an APL 100 % white signal. 2. Set the picture controls: - 2.

  • Page 14: Initialization Pulse Adjust

    PDM-1U / G / R / 10.3. Initialization Pulse Adjust 1. Input a Cross hatch signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Adjust the indicated test point for the specified wave form. Test point Volume Level TPSC1 (SC)

  • Page 15: Printed Circuit Board) Exchange

    PDM-1U / G / R / 10.4. P.C.B. (Printed Circuit Board) exchange 10.4.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 10.4.2. Quick adjustment after P.C.B. exchange P.C.B. Item Volume Test point Level P board...

  • Page 16: Service Mode

    PDM-1U / G / R / 11 Service mode 11.1. CAT (computer Aided Test) mode To exit the CAT mode, access the ID mode and switch off the main power. 11.1.1. IIC mode Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode then press the Action button on the remote control.

  • Page 17

    PDM-1U / G / R / 11.1.2. CD mode Select the CD mode by Up/Down button on the remote control at the front page of CAT mode then press the Mute button on the remote control more than 5 sec. Micom software version (IC9354), this version can be upgrade by replace of new version IC Memory data change To exit the CD mode, press the R button on the remote control.

  • Page 18: Iic Mode Structure (the Following Data Is Only One Example.)

    PDM-1U / G / R / 11.2. IIC mode structure (The following data is only one example.)

  • Page 19: Alignment

    PDM-1U / G / R / 12 Alignment 12.1. Pedestal setting INPUT Equipment Setting Alignment menu Procedure ** Adjust at the dark room. 1 Component Picture: PANEL W/B (525i, 525p, 625i, Normal R cut off 1) Set R,G and B cut off to " 80 ". 720i or 1080i) White balance: G cut off...

  • Page 20: Ntsc Panel White Balance

    PDM-1U / G / R / 12.2. NTSC panel white balance INPUT Equipment Setting Alignment menu Procedure 1 NTSC Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m...

  • Page 21: Pal/secam Panel White Balance

    PDM-1U / G / R / 12.3. PAL/SECAM panel white balance INPUT Equipment Setting Alignment menu Procedure 1 PAL Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m...

  • Page 22

    PDM-1U / G / R / Equipment Setting Alignment menu Procedure Picture: 1) Write down each color temaparature of R,G,B drive and Normal Cut off data as follows. Aspect: 16:9 White White balance: Balance Cool Normal Warm Cool R Drive Normal G Drive B Drive...

  • Page 23: Pc/rgb Panel White Balance

    PDM-1U / G / R / 12.4. PC/RGB panel white balance INPUT Equipment Setting Alignment menu Procedure 1 PC Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m...

  • Page 24

    PDM-1U / G / R / INPUT Equipment Setting Alignment menu Procedure Picture: 1) Write down each color temaparature of R,G,B drive and Normal Cut off data as follows. Aspect: 16:9 White White balance: Balance Cool Normal Warm R Drive Cool Gray Scale G Drive...

  • Page 25: Hd/ 525i /525p Panel White Balance

    PDM-1U / G / R / 12.5. HD/ 525i /525p panel white balance INPUT Equipment Setting Alignment menu Procedure (720i or 1080i) Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor.

  • Page 26

    PDM-1U / G / R / INPUT Equipment Setting Alignment menu Procedure Picture: 1) Write down each color temaparature of R,G,B drive and Normal Cut off data as follows. Aspect: 16:9 White White balance: Balance Cool Normal Warm Cool R Drive Gray Scale Normal G Drive...

  • Page 27: 625i Panel Balance

    PDM-1U / G / R / 12.6. 625i panel balance INPUT Equipment Setting Alignment menu Procedure 1 625i Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m...

  • Page 28: Sub Brightness Setting

    PDM-1U / G / R / 12.7. Sub brightness setting INPUT Equipment Setting Alignment menu Procedure ** Adjust at the dark room. 1 NTSC Picture: PANEL W/B Gray Scale Normal All cut off 1) Set white balance to Cool . Pattern Aspect: 16:9...

  • Page 29

    PDM-1U / G / R / INPUT Equipment Setting Alignment menu Procedure ** Adjust at the dark room. 4 525i Picture: PANEL W/B Gray Scale Normal All cut off 1) Set white balance to Cool . Pattern Aspect: 16:9 2) Adjust All cut off to start some pixels emission at black 2% area and no emission at black 0% area.

  • Page 30: Trouble Shooting Guide

    PDM-1U / G / R / 13 Trouble shooting guide 13.1. Self Check 13.1.1. Display Indication 1. Self-check is used for automatic check of the bus line controlled circuit of the Plasma display. 2. To get into the Self-check mode, press the volume down button on the customer controls at the front of the set with pressing the OFF-TIMER button on the remote control at the same time, and the screen will show : -...

  • Page 31: No Power

    PDM-1U / G / R / 13.2. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. 3. Only red is lit. 1.

  • Page 32: No Picture

    PDM-1U / G / R / 13.3. No Picture 13.4. Local screen failure Plasma display may have local area failure on the screen. Fig-1 shows the relation of a possible defect P.C.B. area to a local board that drives it. Fig-1...

  • Page 33: Option Setting

    PDM-1U / G / R / 14 Option Setting How to access the Option menu Press this to display the Setup menu. Press these to select OSD Language. Press this down for more than 3 seconds to display the Option menu. Press these to select the desired item.

  • Page 34

    PDM-1U / G / R / Hidden Option Menu for GPH5D2 series GPH5D2 chassis series have special function and operation setting facility called Option Menu. This Option Menu is useful for special function required by customers. This should be set at the installation stage. The end user could not set or change these because of hidden On screen menu.

  • Page 35: Conductor Views

    PDM-1U / G / R / 15 Conductor Views 15.1. F-Board F-BOARD TXN/F10MHS PDM-1 PDM-1 F-BOARD TXN/F10MHS F-BOARD TXN/F10MHS...

  • Page 36: P1-board

    PDM-1U / G / R / 15.2. P1-Board P1-BOARD (FOIL SIDE) TXNP110MHS PDM-1 PDM-1 TXNP110MHS TXNP110MHS...

  • Page 37

    Q427 Q408 Q428 Q409 Q428 Q409 Q410 Q410 Q429 Q429 Q430 Q411 Q430 Q411 Q431 Q412 Q431 Q412 Q432 Q413 Q132 Q413 Q500 Q414 Q500 Q414 Q415 Q415 Q501 Q501 Q416 Q416 PDM-1 PDM-1 P1-BOARD PARTS LOCATION P1-BOARD PARTS LOCATION...

  • Page 38

    PDM-1U / G / R / P1-BOARD (COMPONENT SIDE) TXNP110MHS PDM-1 PDM-1 TXNP110MHS TXNP110MHS...

  • Page 39: P3, P5, P6, P7 And P8-board

    P5-BOARD (FOIL SIDE) P6-BOARD (FOIL SIDE) TNPA2567 TNPA2568 P7-BOARD (FOIL SIDE) P8-BOARD (FOIL SIDE) TNPA2569 TNPA2570 P3-BOARD (FOIL SIDE) TNPA2566 PDM-1 PDM-1 P3-BOARD TNPA2566 P5-BOARD TNPA2567 P6-BOARD TNPA2568 P3-BOARD TNPA2566 P5-BOARD TNPA2567 P6-BOARD TNPA2568 P7-BOARD TNPA2569 P8-BOARD TNPA2570 P7-BOARD TNPA2569...

  • Page 40

    P6-BOARD (COMPONENT SIDE) P5-BOARD (COMPONENT SIDE) TNPA2568 TNPA2567 P8-BOARD (COMPONENT SIDE) P7-BOARD (COMPONENT SIDE) TNPA2570 TNPA2569 P3-BOARD (COMPONENT SIDE) TNPA2566 PDM-1 PDM-1 P3-BOARD TNPA2566 P5-BOARD TNPA2567 P6-BOARD TNPA2568 P3-BOARD TNPA2566 P5-BOARD TNPA2567 P6-BOARD TNPA2568 P7-BOARD TNPA2569 P8-BOARD TNPA2570 P7-BOARD TNPA2569...

  • Page 41: Hx-board

    PDM-1U / G / R / 15.4. HX-Board HX-BOARD(FOIL SIDE) HX-BOARD(COMPONENT SIDE) TZTNP01PCSU TZTNP01PCSU Parts Location HX-BOARD TRANSISTOR IC3502 Q3507 IC3515 Q3508 Q3509 Q3513 Q3514 Q3515 Q3516 Q3531 Q3532 PDM-1 PDM-1 HX-BOARD TZTNP01PCSU HX-BOARD TZTNP01PCSU...

  • Page 42: Hz-board

    R365 Q3810 C356 Q3814 C355 C354 TP301 R358 C359 R359 Q3816 C353 R351 R356 R355 R353 R357 Q3817 TP310 R329 TP307 TP306 JK308 TP311 TP309 TP308 JK305 JK307 TP312 JK306 JK301 TP305 TP304 TP303 PDM-1 PDM-1 HZ-BOARD TXNHZ30JJS HZ-BOARD TXNHZ30JJS...

  • Page 43

    L301 C305 IC3806 Q3355 Q3815 Q303 R333 IC3809 Q3356 GAP2 GAP1 L302 GAP4 R318 Q3357 GAP5 GAP6 JK307 JK301 JK306 JK308 JK305 GAP3 L305 Q3358 TPHB1 Q3359 TPHH1 Q3501 TPHR1 Q3502 TPHV1 Q3503 TPHY1 PDM-1 PDM-1 HZ-BOARD TXNHZ30JJS HZ-BOARD TXNHZ30JJS...

  • Page 44: D1-board

    C9264 C9244 C3013 C3018 C3041 C9257 R9292 R9288 R9297 C3020 R3029 C9259 C9245 C3045 R3024 R3030 C3047 R3031 C9309 C3046 C9313 C9311 C9407 C9315 C9308 C9312 C9310 R9308 C9307 C9301 C9303 C9302 C9300 C9306 PDM-1 PDM-1 D1-BOARD TZTNP02PCSU D1-BOARD TZTNP02PCSU...

  • Page 45

    IC3001 R9271 IC9353 R9324 R9257 R9309 R9274 C9321 R9273 R9265 R9322 C9412 3 D 1 R9323 R9327 R9249 TNPA2426 R9268 R9306 R9266 ORDER NO. R9270 R9269 R9302 R9304 R9307 R9267 R9301 R9303 R9305 R9264 PDM-1 PDM-1 D1-BOARD TZTNP02PCSU D1-BOARD TZTNP02PCSU...

  • Page 46: D2-board

    C893 L809 R839 C888 R840 R910 L808 C807 R904 R845 R842 R9806 R859 R825 R846 R912 C606 C887 CR No.9 R906 R9869 C894 R787 R826 R899 R847 R843 C569 C815 R799 C895 C572 C814 PDM-1 PDM-1 D2-BOARD TNPA2427AB D2-BOARD TNPA2427AB...

  • Page 47

    IC9813 Q9908 IC9612 IC9822 IC9902 IC9651 IC9823 IC9907 IC9652 IC9824 IC9653 IC9825 IC9654 IC9826 IC9700 IC9827 IC9701 IC9828 IC9703 IC9829 IC9712 IC9830 IC9801 IC9831 IC9802 IC9832 IC9803 IC9900 IC9804 IC9904 IC9805 IC9905 PDM-1 PDM-1 D2-BOARD PARTS LOCATION D2-BOARD PARTS LOCATION...

  • Page 48

    C503 R894 R569 C612 C889 IC829 IC828 C608 R900 C650 R902 IC830 R903 R703 R705 R911 R841 R917 R915 L804 R914 LC852 IC832 C543 R786 IC602 IC827 R905 CR No.9 R892 L805 R893 C816 PDM-1 PDM-1 D2-BOARD TNPA2427AB D2-BOARD TNPA2427AB...

  • Page 49: C1-board

    R111 R105 R121 R127 R147 R153 R141 R135 R143 R149 R137 R131 ORDER NO. R107 R101 R113 R123 R110 R104 R116 R126 R146 R152 R140 R134 IC106 C108 C109 C110 C111 C124 C126 C125 PDM-1 PDM-1 C1-BOARD TNPA2510 C1-BOARD TNPA2510...

  • Page 50: C2-board

    R235 R243 C206 R247 R206 R207 R203 R220 R241 R233 C207 R244 R236 R208 CRNO.7 R221 TNPA2511 R242 R218 R212 C201 R239 R245 R209 ORDER NO. C204 C253 C203 C252 IC201 R251 C250 C251 PDM-1 PDM-1 C2-BOARD TNPA2511 C2-BOARD TNPA2511...

  • Page 51: C3-board

    R316 R304 R352 R337 R340 R343 R346 R331 R334 R349 CRNO.7 TNPA2512 C308 C371 C309 C310 C311 R355 C370 C304 C305 R356 C372 ORDER NO. C324 C325 C326 IC302 R357 R358 C302 C301 IC301 PDM-1 PDM-1 C3-BOARD TNPA2512 C3-BOARD TNPA2512...

  • Page 52: C4-board

    R441 R401 R411 CRNO.7 R405 R408 R453 R438 R450 R442 C4MM1 R402 R410 R404 R409 R439 R403 R454 R451 IC403 IC404 C432 C434 D401 R491 C431 L401 CB10 CB11 L402 D403 C427 C433 C420 PDM-1 PDM-1 C4-BOARD TNPA2513 C4-BOARD TNPA2513...

  • Page 53: C5-board

    R536 R544 R502 R517 R543 R534 R535 ORDER R501 C508 C535 C532 C539 C540 C536 C531 D503 L502 D505 D509 C533 L503 C541 L505 C537 D501 L501 L504 D507 L506 D511 C538 C534 C542 PDM-1 PDM-1 C5-BOARD TNPA2514 C5-BOARD TNPA2514...

  • Page 54: C6-board

    R612 R637 C677 C674 C608 R640 C675 C609 C673 C6MM1 CRNO.7 C671 R655 C670 C606 R658 C672 R657 R656 C607 C645 D615 C643 R691 L608 C605 C604 L607 C644 D613 C646 C602 C627 C601 PDM-1 PDM-1 C6-BOARD TNPA2515 C6-BOARD TNPA2515...

  • Page 55: C9-board

    C159 R186 ORDER NO. R184 D156 R160 C150 C161 C155 R175 D161 R177 IC150 D160 C165 R178 IC151 R174 D168 D152 C9MM1 D150 R172 C164 R188 C153 R164 C167 C157 D154 R163 R190 C151 PDM-1 PDM-1 C9-BOARD TNPA2608 C9-BOARD TNPA2608...

  • Page 56: Sc-board

    D629 D628 D627 TP77 C457 R600 Q491 Q492 C455 L601 Q626 Q625 Q624 Q623 Q622 Q621 TP21 TP20 TP10 TP26 D583 TP22 TP24 TP31 C610 TP11 TP12 TP30 TP14 TP15 TP18 TP23 TP25 TP28 PDM-1 PDM-1 SC-BOARD TNPA2434AB SC-BOARD TNPA2434AB...

  • Page 57

    Q6533 TP74 Q6607 TPVSET TP26 Q6534 TP75 Q6608 TP27 Q6534 TP76 Q6609 TP28 Q6535 TP77 Q6610 TP29 Q6536 TP80 Q6611 TP30 Q6537 TP81 Q6612 TP31 Q6538 TP83 Q6613 TP40 Q6539 TP84 Q6614 PDM-1 PDM-1 SC-BOARD PARTS LOCATION SC-BOARD PARTS LOCATION...

  • Page 58

    D642 R638 D585 R636 Q629 C610 R692 R603 R637 R698 R604 Q628 R586 D584 D643 C609 R585 D586 SC21 SC20 R640 R695 D644 C635 C636 C637 C638 D583 IC612 Q627 IC602 R642 R641 Q630 PDM-1 PDM-1 SC-BOARD TNPA2434AB SC-BOARD TNPA2434AB...

  • Page 59: Su-board

    SEE REVERSE FOR ORDERNO. SU-BOARD (COMPONENT SIDE) TNPA2517 IC6404 D6408 D6404 C6415 C6403 R6412 R6403 C6416 R6405 R6407 R6402 D6405 C6404 R6406 D6403 D6401 C6414 D6407 C6406 D6406 C6405 R6408 R6410 C6402 TNPA2517 ORDER NO. PDM-1 PDM-1 SU-BOARD TNPA2517 SU-BOARD TNPA2517...

  • Page 60: Sd-board

    TNPA2518 TNPA2518 SEE REVERSE FOR ORDERNO. SD-BOARD (COMPONENT SIDE) TNPA2518 R6431 C6431 C6435 C6434 IC6416 R6424 C6424 D6415 R6425 R6429 C6425 C6423 R6422 R6423 D6411 TNPA2518 C6421 D6413 C6422 R6427 C6420 R6428 ORDER NO. PDM-1 PDM-1 SD-BOARD TNPA2518 SD-BOARD TNPA2518...

  • Page 61: Ss-board

    TP20 TP19 TP18 TP17 TP16 TP15 TP13 D723 D724 D725 D728 L716 SS34 TP24 L717 Q731 C721 Q711 Q712 Q713 Q714 Q715 Q716 Q717 Q718 Q719 Q720 TP33 TP31 Q738 R760 Q739 R759 TP29 PDM-1 PDM-1 SS-BOARD TXNSS10MHS SS-BOARD TXNSS10MHS...

  • Page 62

    Q6744 Q6723 TP12 Q6722 TP32 Q6745 Q6724 TP13 Q6723 TP33 Q6725 TP14 Q6724 Q6726 TP15 Q6725 TP15V Q6731 TP16 Q6726 TPSS1 Q6738 TP17 Q6727 TPVDA Q6739 TP18 Q6728 TPVe Q6729 Q6730 Q6731 PDM-1 PDM-1 SS-BOARD PARTS LOCATION SS-BOARD PARTS LOCATION...

  • Page 63

    Q717 Q716 Q715 Q714 C731 Q713 Q712 Q711 R727 C747 IC701 C748 C721 R790 C733 R769 R768 R767 R789 R764 R760 C716 C715 R759 Q738 Q739 R822 D752 SS11 SS12 SS13 SS14 SS15 SS16 PDM-1 PDM-1 SS-BOARD TXNSS10MHS SS-BOARD TXNSS10MHS...

  • Page 64: Ss2 And Ss3-board

    1 2 3 SS31 SS32 SS33 SS34 TNPA2520 SS35 SS36 SS37 SEE REVERSE FOR ORDERNO. SS3-BOARD (COMPONENT SIDE) TNPA2520 SS34 SS33 SS32 SS31 TNPA2520 1 SS3 SS37 SS36 SS35 ORDER NO. PDM-1 PDM-1 SS2-BOARD TNPA2519 SS2-BOARD TNPA2519 SS3-BOARD TNPA2520 SS3-BOARD TNPA2520...

  • Page 65: Z-board

    IC2401 C2316 C2474 C2312 D2306 C2457 Q2305 C2438 C2313 D2314 C2427 C2430 D2305 R2306 C2459 R2450 R2445 R2439 R2440 TNPA2445 L2305 R2442 C2423 R2480 R2483 ORDER NO. JS2301 IC2304 C2441 C2419 Q2406 Q2408 Q2410 PDM-1 PDM-1 Z-BOARD TNPA2445 Z-BOARD TNPA2445...

  • Page 66: H3, S1 And V1-board

    PDM-1U / G / R / 15.21. H3, S1 and V1-Board H3-BOARD S1-BOARD(FOIL SIDE) S1-BOARD(COMPONENT SIDE) TNPA2249 TNPA2283AC TNPA2283AC V1 H3 S1 V1-BOARD(FOIL SIDE) TNPA2282AC V1-BOARD(COMPONENT SIDE) TNPA2282AC PDM-1 PDM-1 H3-BOARD TNPA2249 H3-BOARD TNPA2249 S1-BOARD TNPA2283AC S1-BOARD TNPA2283AC V1-BOARD TNPA2282AC V1-BOARD TNPA2282AC...

  • Page 67: Block And Schematic Diagrams

    ) is found, connection is easily found from the direction of arrow 9. Indicates the major signal flow. : Video Audio 10. This schematic diagram is the latest at the time of printing and subject to change without notice. PDM-1 PDM-1 Schematic Diagram Notes Schematic Diagram Notes...

  • Page 68: Main Block Diagram

    PDM-1U / G / R / 16.2. Main Block Diagram PDM-1 Main Block Diagram PDM-1 Main Block Diagram...

  • Page 69: Power Block Diagram

    PDM-1U / G / R / 16.3. Power Block Diagram PDM-1 Power Block Diagram PDM-1 Power Block Diagram...

  • Page 70: P1-board Schematic Diagram

    PDM-1U / G / R / 16.4. P1-Board Schematic Diagram PDM-1 PDM-1 P1-Board Schematic Diagram P1-Board Schematic Diagram...

  • Page 71: F, P3, P5, P6, P7 And P8-board Schematic Diagram

    PDM-1U / G / R / 16.5. F, P3, P5, P6, P7 and P8-Board Schematic Diagram PDM-1 F,P3,P5,P6,P7 and P8 Schematic Diagram PDM-1 F,P3,P5,P6,P7 and P8 Schematic Diagram...

  • Page 72: Hx-board Block Diagram

    PDM-1U / G / R / 16.6. HX-Board Block Diagram PDM-1 HX-Board Block Diagram PDM-1 HX-Board Block Diagram...

  • Page 73: Hx-board Schematic Diagram

    PDM-1U / G / R / 16.7. HX-Board Schematic Diagram TZTNP01PCSU PDM-1 PDM-1 XH-Board Schematic Diagram XH-Board Schematic Diagram...

  • Page 74: Hz-board Block Diagram

    PDM-1U / G / R / 16.8. HZ-Board Block Diagram PDM-1 HZ-Board Block Diagram PDM-1 HZ-Board Block Diagram...

  • Page 75: Hz-board (1 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.9. HZ-Board (1 of 2) Schematic Diagram PDM-1 HZ-Board (1 of 2) Schematic Diagram PDM-1 HZ-Board (1 of 2) Schematic Diagram...

  • Page 76: Hz-board (2 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.10. HZ-Board (2 of 2) Schematic Diagram PDM-1 HZ-Board (2 of 2) Schematic Diagram PDM-1 HZ-Board (2 of 2) Schematic Diagram...

  • Page 77: D1-board Block Diagram

    PDM-1U / G / R / 16.11. D1-Board Block Diagram PDM-1 D1-Board Block Diagram PDM-1 D1-Board Block Diagram...

  • Page 78: D1-board (1 Of 6) Schematic Diagram

    PDM-1U / G / R / 16.12. D1-Board (1 of 6) Schematic Diagram TZTNP02PCSU PDM-1 D1-Board (1of 6) Schematic Diagram PDM-1 D1-Board (1 of 6) Schematic Diagram...

  • Page 79: D1-board (2 Of 6) Schematic Diagram

    PDM-1U / G / R / 16.13. D1-Board (2 of 6) Schematic Diagram TZTNP02PCSU PDM-1 D1-Board (2 of 6) Schematic Diagram PDM-1 D1-Board (2 of 6) Schematic Diagram...

  • Page 80: D1-board (3 Of 6) Schematic Diagram

    PDM-1U / G / R / 16.14. D1-Board (3 of 6) Schematic Diagram TZTNP02PCSU PDM-1 D1-Board (3 of 6) Schematic Diagram PDM-1 D1-Board (3 of 6) Schematic Diagram...

  • Page 81: D1-board (4 Of 6) Schematic Diagram

    PDM-1U / G / R / 16.15. D1-Board (4 of 6) Schematic Diagram TZTNP02PCSU PDM-1 D1-Board (4 of 6) Schematic Diagram PDM-1 D1-Board (4 of 6) Schematic Diagram...

  • Page 82: D1-board (5 Of 6) Schematic Diagram

    PDM-1U / G / R / 16.16. D1-Board (5 of 6) Schematic Diagram TZTNP02PCSU PDM-1 D1-Board (5 of 6) Schematic Diagram PDM-1 D1-Board (5 of 6) Schematic Diagram...

  • Page 83: D1-board (6 Of 6) Schematic Diagram

    PDM-1U / G / R / 16.17. D1-Board (6 of 6) Schematic Diagram TZTNP02PCSU PDM-1 D1-Board (6 of 6) Schematic Diagram PDM-1 D1-Board (6 of 6) Schematic Diagram...

  • Page 84: D2-board Block Diagram

    PDM-1U / G / R / 16.18. D2-Board Block Diagram PDM-1 D2-Board Block Diagram PDM-1 D2-Board Block Diagram...

  • Page 85: D2-board (1 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.19. D2-Board (1 of 8) Schematic Diagram PDM-1 D2-Board (1 of 8) Schematic Diagram PDM-1 D2-Board (1 of 8) Schematic Diagram...

  • Page 86: D2-board (2 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.20. D2-Board (2 of 8) Schematic Diagram PDM-1 D2-Board (2 of 8) Schematic Diagram PDM-1 D2-Board (2 of 8) Schematic Diagram...

  • Page 87: D2-board (3 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.21. D2-Board (3 of 8) Schematic Diagram PDM-1 D2-Board (3 of 8) Schematic Diagram PDM-1 D2-Board (3 of 8) Schematic Diagram...

  • Page 88: D2-board (4 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.22. D2-Board (4 of 8) Schematic Diagram PDM-1 D2-Board (4 of 8) Schematic Diagram PDM-1 D2-Board (4 of 8) Schematic Diagram...

  • Page 89: D2-board (5 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.23. D2-Board (5 of 8) Schematic Diagram PDM-1 D2-Board (5 of 8) Schematic Diagram PDM-1 D2-Board (5 of 8) Schematic Diagram...

  • Page 90: D2-board (6 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.24. D2-Board (6 of 8) Schematic Diagram PDM-1 D2-Board (6 of 8) Schematic Diagram PDM-1 D2-Board (6 of 8) Schematic Diagram...

  • Page 91: D2-board (7 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.25. D2-Board (7 of 8) Schematic Diagram D2-Board (7 of 8) Schematic Diagram PDM-1 D2-Board (7 of 8) Schematic Diagram...

  • Page 92: D2-board (8 Of 8) Schematic Diagram

    PDM-1U / G / R / 16.26. D2-Board (8 of 8) Schematic Diagram PDM-1 D2-Board (8 of 8) Schematic Diagram PDM-1 D2-Board (8 of 8) Schematic Diagram...

  • Page 93: C1, C2, C3, C4, C5, C6 And C9-board (1 Of 2) Block Diagram

    PDM-1U / G / R / 16.27. C1, C2, C3, C4, C5, C6 and C9-Board (1 of 2) Block Diagram PDM-1 C1,C2,C3,C4,C5,C6 and C9-Board (1 of 2) Block Diagram PDM-1 C1,C2,C3,C4,C5,C6 and C9-Board (1 of 2) Block Diagram...

  • Page 94: C1, C2, C3, C4, C5, C6 And C9-board (2 Of 2) Block Diagram

    PDM-1U / G / R / 16.28. C1, C2, C3, C4, C5, C6 and C9-Board (2 of 2) Block Diagram PDM-1 C1,C2,C3,C4,C5,C6 and C9-Board (2 of 2) Block Diagram PDM-1 C1,C2,C3,C4,C5,C6 and C9-Board (2 of 2) Block Diagram...

  • Page 95: C1-board Schematic Diagram

    PDM-1U / G / R / 16.29. C1-Board Schematic Diagram PDM-1 C1-Board Schematic Diagram PDM-1 C1-Board Schematic Diagram...

  • Page 96: C2-board Schematic Diagram

    PDM-1U / G / R / 16.30. C2-Board Schematic Diagram PDM-1 C2-Board Schematic Diagram PDM-1 C2-Board Schematic Diagram...

  • Page 97: C3-board Schematic Diagram

    PDM-1U / G / R / 16.31. C3-Board Schematic Diagram PDM-1 C3-Board Schematic Diagram PDM-1 C3-Board Schematic Diagram...

  • Page 98: C4-board Schematic Diagram

    PDM-1U / G / R / 16.32. C4-Board Schematic Diagram PDM-1 C4-Board Schematic Diagram PDM-1 C4-Board Schematic Diagram...

  • Page 99: C5-board Schematic Diagram

    PDM-1U / G / R / 16.33. C5-Board Schematic Diagram PDM-1 C5-Board Schematic Diagram PDM-1 C5-Board Schematic Diagram...

  • Page 100: C6-board Schematic Diagram

    PDM-1U / G / R / 16.34. C6-Board Schematic Diagram PDM-1 C6-Board Schematic Diagram PDM-1 C6-Board Schematic Diagram...

  • Page 101: C9-board Schematic Diagram

    PDM-1U / G / R / 16.35. C9-Board Schematic Diagram PDM-1 C9-Board Schematic Diagram PDM-1 C9-Board Schematic Diagram...

  • Page 102: Sc-board Block Diagram

    PDM-1U / G / R / 16.36. SC-Board Block Diagram PDM-1 SC-Board Block Diagram PDM-1 SC-Board Block Diagram...

  • Page 103: Sc-board (1 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.37. SC-Board (1 of 2) Schematic Diagram PDM-1 SC-Board (1 of 2) Schematic Diagram PDM-1 SC-Board (1 of 2) Schematic Diagram...

  • Page 104: Sc-board (2 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.38. SC-Board (2 of 2) Schematic Diagram PDM-1 SC-Board (2 of 2) Schematic Diagram PDM-1 SC-Board (2 of 2) Schematic Diagram...

  • Page 105: Su-board Block Diagram

    PDM-1U / G / R / 16.39. SU-Board Block Diagram PDM-1 SU-Board Block Diagram PDM-1 SU-Board Block Diagram...

  • Page 106: Su-board (1 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.40. SU-Board (1 of 2) Schematic Diagram PDM-1 SU-Board (1 of 2) Schematic Diagram PDM-1 SU-Board (1 of 2) Schematic Diagram...

  • Page 107: Su-board (2 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.41. SU-Board (2 of 2) Schematic Diagram PDM-1 SU-Board (2 of 2) Schematic Diagram PDM-1 SU-Board (2 of 2) Schematic Diagram...

  • Page 108: Sd-board Block Diagram

    PDM-1U / G / R / 16.42. SD-Board Block Diagram PDM-1 SD-Board Block Diagram PDM-1 SD-Board Block Diagram...

  • Page 109: Sd-board (1 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.43. SD-Board (1 of 2) Schematic Diagram PDM-1 SD-Board (1 of 2) Schematic Diagram PDM-1 SD-Board (1 of 2) Schematic Diagram...

  • Page 110: Sd-board (2 Of 2) Schematic Diagram

    PDM-1U / G / R / 16.44. SD-Board (2 of 2) Schematic Diagram PDM-1 SC-Board (2 of 2) Schematic Diagram PDM-1 SC-Board (2 of 2) Schematic Diagram...

  • Page 111: Ss-board Block Diagram

    PDM-1U / G / R / 16.45. SS-Board Block Diagram PDM-1 SS-Board Block Diagram PDM-1 SS-Board Block Diagram...

  • Page 112: Ss, Ss2, Ss3 And S1-board Schematic Diagram

    PDM-1U / G / R / 16.46. SS, SS2, SS3 and S1-Board Schematic Diagram PDM-1 SS,SS2,SS3 and S1-Board Schematic Diagram PDM-1 SS,SS2,SS3 and S1-Board Schematic Diagram...

  • Page 113: Z-board Block Diagram

    PDM-1U / G / R / 16.47. Z-Board Block Diagram PDM-1 Z-Board Block Diagram PDM-1 Z-Board Block Diagram...

  • Page 114: H3 And Z-board Schematic Diagram

    PDM-1U / G / R / 16.48. H3 and Z-Board Schematic Diagram PDM-1 H3 and Z-Board Schematic Diagram PDM-1 H3 and Z-Board Schematic Diagram...

  • Page 115: Parts Location

    PDM-1U / G / R / 17 Parts Location 17.1. Parts Location1...

  • Page 116: Parts Location2

    PDM-1U / G / R / 17.2. Parts Location2...

  • Page 117: Parts Location3

    PDM-1U / G / R / 17.3. Parts Location3...

  • Page 118: Replacement Parts List

    PDM-1U / G / R / 18 Replacement Parts List PART NO. Description Remarks Markets Rank T400 AAX40630 SWITCHING TRANSFORMER G4D4A0000035 T401 AAX40640 SWITCHING TRANSFORMER G4D5A0000013 T402 AAX40610 SWITCHING TRANSFORMER ETS25AD1C3AG T404,05 AAX40600 SWITCHING TRANSFORMER H DRIVE ETH19K191AM T6451 AAX40620 SWITCHING TRANSFORMER G4D1A0000055 T6471...

  • Page 119

    PDM-1U / G / R / PART NO. Description Remarks Markets Rank AAX43890 SCREW (FOR HZ/HY/H) THEL023Z AAX43900 SCREW (FOR FAN) THTD007 AAX43910 SCREW (FOR ESC) XTB4+10A AAX43920 SCREW (FOR ESC) XTBT964 AAX62420 SCREW (FOR XYN3+F8 HX/HZ/HY/H/F) AAX43940 SCREW (FOR F) XYN4+E8 AAX43950 SCREW...

Comments to this Manuals

Symbols: 0
Latest comments:
