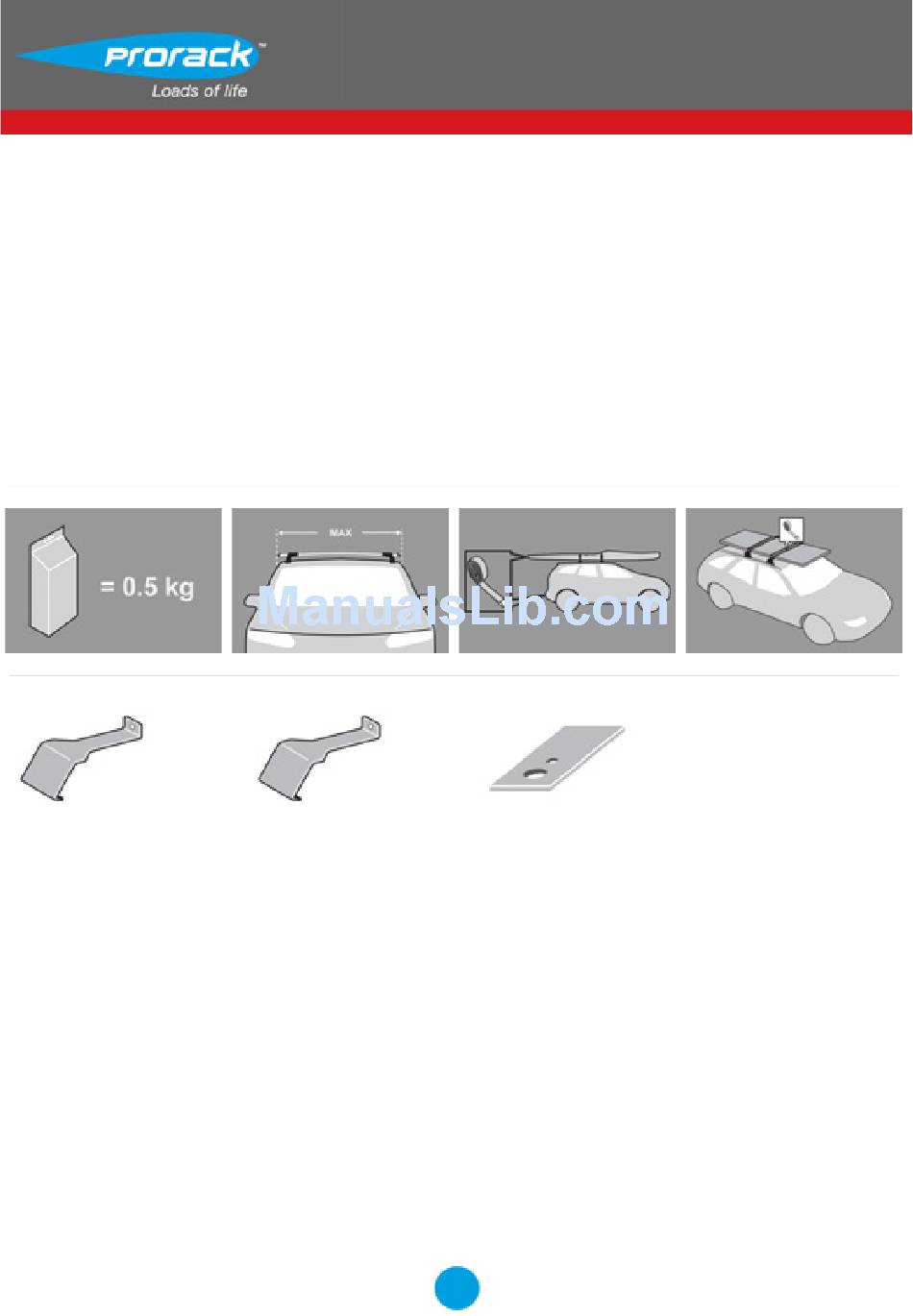

- Page 1 K365 Fitting Kit GB Fitting Instructions for Basic Carrier Revision No:...
-
Page 2: First Time Installation
Fitting Kit K365 First Time Installation Remove parts from packaging and check contents. Contact your Prorack dealer if parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 3 Fitting Kit K365 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted...
- Page 4 Fitting Kit K365 Remove locking screw. Apply protective strip as shown. Trim if required. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 483 B = 484...
- Page 5 Fitting Kit K365 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 6 Fitting Kit K365 Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (unless otherwise stated). Clamps directly to edge of roof under the doors, pin locates in hole on vehicle...
- Page 7 Fitting Kit K365 Tighten adjusting screw to 5 Nm. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 8 Fitting Kit K365 Use keys to fit and lock covers CAUTION: Regularly check screws are tight...
