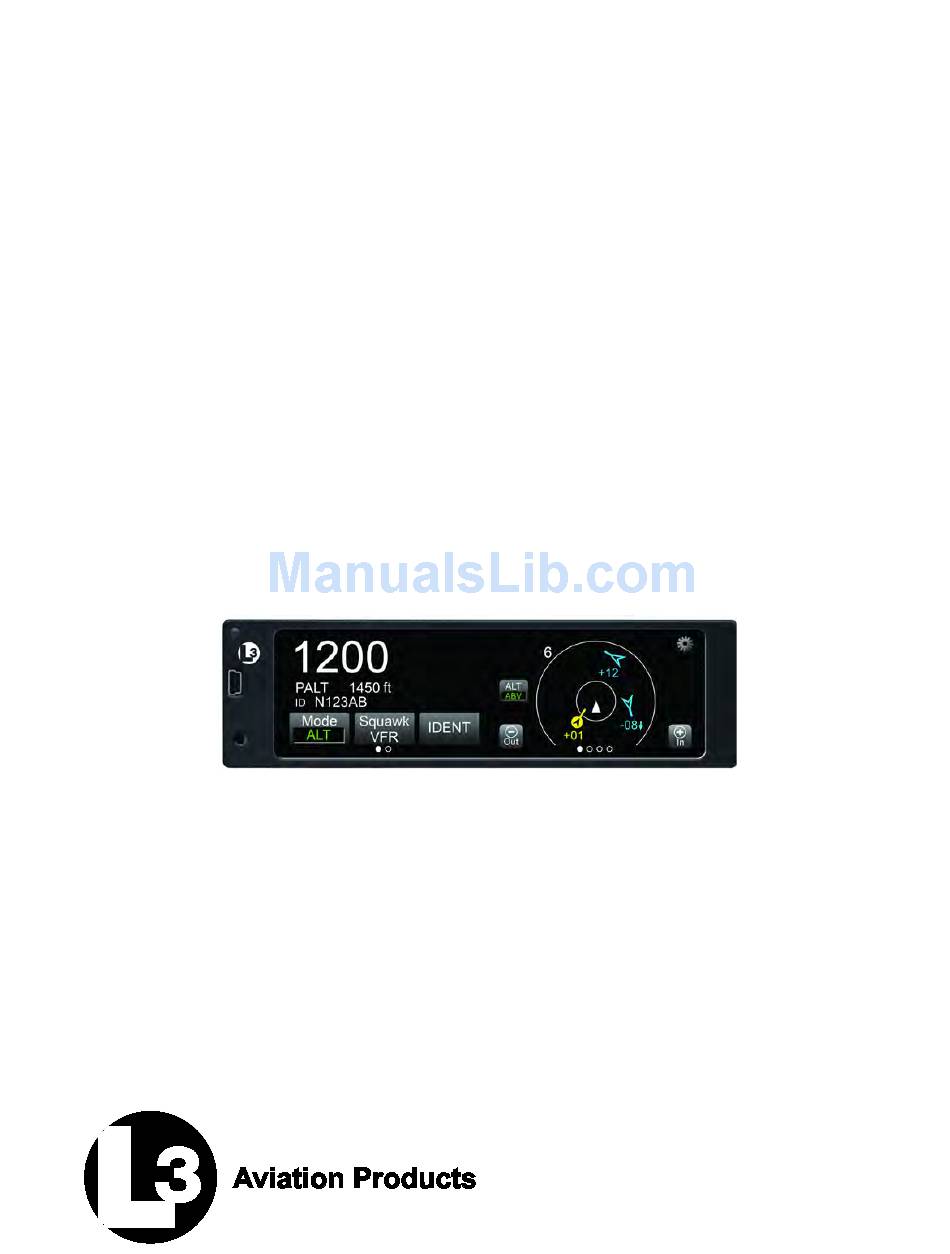

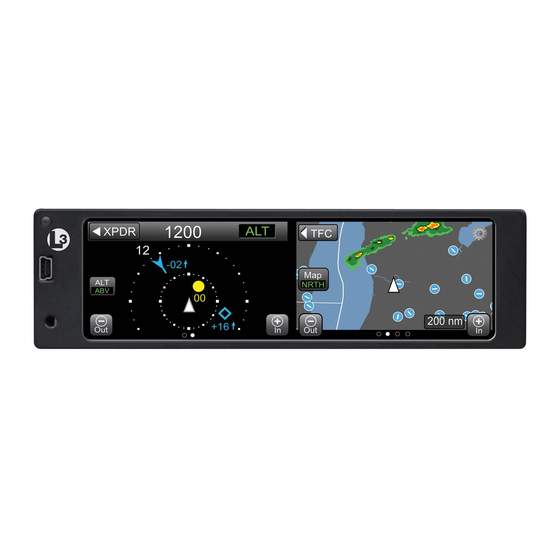

Page 1 Part Number: 9029000-( ) Installation Manual This manual contains installation instructions and recommended flightline maintenance information for the Lynx NGT-9000 MultLink Surveillance System, Configuration Module, and Directional Antenna. Guidelines for external equipment necessary for installation are included. This information is supplemented and kept current by revisions, service letters and service bulletins.
Page 2: Foreword
This manual assumes familiarity with the setup and operation of the aircraft systems that interface with the NGT-9000. If further information is required, please contact:...
Page 3: About This Manual
TSO approvals. SECTION 2 - INSTALLATION This section contains instructions to locate, assemble and install the Lynx NGT-9000s MultLink Surveillance System as well as information for unpacking equipment, and inspection procedure for in-shipment damage.
Page 4: Revision A Highlights
Lynx NGT-9000s Installation Manual List of Effective Pages Dates of original and changed pages are: Revision A ......January 15, 2015 Total number of pages in this publication consists of the following: Title page Page A i thru xvi 1-1 thru 1-40...
Page 5 Lynx NGT-9000s Installation Manual This page intentionally left blank. 0040-17001-01 Page iii Revision A January 15, 2015...
Page 6: Table Of Contents
Lynx NGT-9000s Installation Manual Table of Contents Paragraph Page Foreword ............................... A About This Manual ............................i References ..............................i List of Effective Pages ............................ ii Revision A Highlights ............................. ii Table of Contents ............................iv List of Illustrations ............................viii List of Tables ..............................
Page 7: Table Of Contents
Lynx NGT-9000s Installation Manual Table of Contents (continued) Paragraph Page 1.11 Equipment Interfaces ........................ 1-27 1.11.1 GPS Antenna ..........................1-27 1.11.2 L-Band Antenna ........................1-27 1.11.3 Directional Antenna ........................1-28 1.11.4 Traffic Displays ......................... 1-30 1.11.5 Weather Display ........................1-30 1.11.6 WIFI Accessory ........................
Page 8 View or Retrieve Data ....................... 4-18 4.5.4 Configuration Restore....................... 4-28 4.5.5 Service ............................4-29 Return to Service ........................4-30 4.6.1 Lynx NGT-9000s ........................4-30 4.6.2 Detachable Configuration Module .................... 4-31 4.6.3 Directional Antenna (NY156 and NY164)................. 4-32 4.6.4 L-Band (UAT/1090) Antenna ....................4-32 4.6.5...
Page 9 Installation Manual Table of Contents (continued) Paragraph Page Appendix Environmental Qualification Form Introduction ..........................B-1 NGT-9000 Environmental Qualification Form ................B-1 NY156 and NY164 Environmental Qualification Form ...............B-4 APPENDIX C CONFIGURATION AND CHECKOUT LOG 0040-17001-01 Page vii Revision A January 15, 2015...
Page 10: List Of Illustrations
3-8: Lynx MAT – Check Versions ......................3-8 3-9: Lynx MAT –Aircraft Specific Options ..................... 3-10 3-10: Lynx MAT – I/O Options – AHRS and Altitude ................3-13 3-11: Lynx MAT – I/O Options – Misc ....................3-14 3-12: Lynx MAT – Configuration - Backup .................... 3-16 3-13: Lynx MAT –...
Page 11 Page 4-1: Activate Maintenance Mode Window ....................4-2 4-2: Maintenance Mode Screens ......................4-2 4-3: Lynx MAT – Update Software ......................4-15 4-4: Lynx MAT – Update Database ....................... 4-16 4-5: Lynx MAT – Information ......................... 4-17 4-6: Lynx MAT – Version........................4-17 4-7: Lynx MAT –Configuration - Restore ....................
Page 12: List Of Tables
Table Page 1-1: System Components........................1-1 1-2: Built-in Interfaces ..........................1-7 1-3: Specifications for Lynx NGT-9000s ....................1-12 1-4: Specifications for Detachable configuration module ..............1-14 1-5: Applicable TSO’s ........................... 1-15 1-6: TSO Markings ..........................1-16 1-7: TSO Deviations ..........................1-17 1-8: Failure Classification ........................
Page 13: Abbreviations, Acronyms, And Symbols
Lynx NGT-9000s Installation Manual Abbreviations, Acronyms, and Symbols ITEM DEFINITION ° Degrees °C Degrees Celsius °F Degrees Fahrenheit 1090ES 1090 megahertz extended squitter Advisory Circular ACSS Aviation Communication and Surveillance Systems ADS-B Automatic Dependent Surveillance-Broadcast ADS-R Automatic Dependent Surveillance - Rebroadcast AHRS Attitude &...
Page 14 Lynx NGT-9000s Installation Manual Abbreviations, Acronyms, and Symbols ITEM DEFINITION feet Firmware Gravitational Acceleration Global Positioning System Hardware Hectopascal Hertz i.e. That is In Accordance With Identification in Hg Inches of Mercury Kilogram Kilohertz Knots L-3 AS L-3 Communications Avionics Systems...
Page 15 Lynx NGT-9000s Installation Manual Abbreviations, Acronyms, and Symbols ITEM DEFINITION RAIM Receiver Autonomous Integrity Monitoring Risk-Based Authentication Radio Frequency RTCA RTCA, Inc. Serial Number Software SBAS Satellite Based Augmentation systems Special Position Identification Supplemental Type Certification STIF Standard TCAS Intruder File...
Page 16 Lynx NGT-9000s Installation Manual This page intentionally blank Page xiv 0040-17001-01 January 15, 2015 Revision A...
Page 17: General Information
MultLink Surveillance System Lynx NGT-9000s family (Release 1) See Figure 1-1. Available models of the Lynx NGT-9000s are detailed in Table 1-1. Included at the end of this section is a list of compatible equipment and equipment required but not supplied with the system.
Page 18: Functional Description
Installation Manual FUNCTIONAL DESCRIPTION The Lynx MultiLink Surveillance System (also referred to in this manual as the Lynx NGT-9000s) is a Mode S Level 2 dens Class 1 Transponder with an integrated GPS receiver providing Automatic Dependent Surveillance-Broadcast (ADS-B) output using a 1090ES (Extended Squitter). The unit also receives ADS-B data via 1090ES and UAT (978 MHz Universal Access Transceiver).
Page 19: Ads-B System Overview
See Figure 1-2 for an example of own aircraft traffic (UAT, 1090ES, TIS-B, and TAS). • The Lynx NGT-9000 is equipped with a dual-link receiver. ADS-R service is unnecessary to provide a complete picture of traffic in the area. 1.2.3 ADS-R System Overview The Automatic Dependent Surveillance –...
Page 20: Fis-B System Overview
The Audio Mute switch is used to signal the unit to suppress all audio output. The discrete is set to GND/Open. The active position indicates Audio Muted. When grounded this input mutes all audio from the NGT-9000. This input is typically only used if the aircraft equipped with TAWS or other aircraft alerting systems.
Page 21 Lynx NGT-9000s Installation Manual Figure 1-2: Example of Own Aircraft UAT, 1090ES, and TAS Traffic 0040-17001-01 General Information Page 1-5 Revision A January 15, 2015...
Page 22: Equipment Descriptions
1.3.2 Detachable Configuration Module (DCM) The DCM part number 9230-17003-01 is part of the Lynx NGT-9000s and is used for the storage of configuration data. The DCM is permanently installed with the wire harness and interfaces to the unit via a 4 wire interface from the DCM.
Page 23: System Unlock Code
Unlock codes are required if installing and activating the TAS and Diversity options. The unlock codes are 10 digit codes that are entered during installation using the Lynx MAT to install either of these options. The unlock codes may be purchased and shipped with the unit. If the unlock code is not included, contact L-3 Avionics Systems Customer Service to obtain the code.
Page 24: Ads-B Out Fail
Lynx NGT-9000s Installation Manual Figure 1-3: System Block Diagram 1.4.1 ADS-B Out Fail The ADS-B Out Fail is a discrete output that provides an indication of when there is a loss of ADS-B Out. The discrete output is a ground/open type and is able to sink 250mA.
Page 25: Audio Out
Lynx NGT-9000s Installation Manual 1.4.4 Audio Out Two audio out discrete outputs are available that can output a 40 mW signal to equipment with a load of 600 Ohms. 1.4.5 RF Suppression Input/output The mutual suppression input/output is used to provide suppression of L-band equipment on the aircraft.
Page 26: Directional Antenna
The unit requires that the L-Band Antenna meet performance requirements specified in DO-181E and DO-282B Section 2.2.14. If the NGT-9000 is configured for Diversity, then two L-Band antennas are required. 1.4.13 Directional Antenna L-3 Avionics Systems has two models of Directional Antenna available: the NY156 (P/N 805-10003-001) and model NY164 (P/N 805-10890-001).The teardrop-shaped antenna is sealed against environmental...
Page 27: Installation Considerations
GPS Antenna L-Band (978/1030/1090 MHz) Antenna Altitude Source (ARINC 429, RS-232, or Gilham Code) • A Unit with TAS (model: NGT-9000+) also requires the following: Unlock code to unlock TAS option via the Lynx MAT Directional Antenna (NY156 or NY164) •...
Page 28: Specifications
ATC transponder functionality: 14 CFR 91.215, 91.217, 91.413 ADS-B Out functionality: 14 CFR 91.225, and 91.227 The Lynx NGT-9000s has been shown to meet the requirements in TSO-C166b and meets the requirements of 14 CFR 91.227 installed in accordance with these installation instructions.
Page 29 (Class A TAS). 125W minimum, 250 W maximum. SCHEDULED MAINTENANCE: The Lynx NGT-9000s is a transponder device and must be tested and inspected every 24 months subject to the requirements of FAA documents 14 CFR Part 43 Appendix F. SERVICE LIFE: The Lynx NGT-9000s has unlimited service life.
Page 30 See paragraph 1.7 for specific TSO information. Listed are current authorizations at time of publication, contact Field Service Engineering for latest certification information RTCA COMPLIANCE: The DCM is tested as part of the NGT-9000. WEIGHT: Negligible SIZE: Length: 6 inches (includes wires) POWER REQUIREMENTS: 3.3 Vdc (regulated via J1 connector)
Page 31: Tso Information
Lynx NGT-9000s Installation Manual TSO INFORMATION NOTE Unless otherwise specified Release 1 refers to Release 1.0 and any subsequent minor changes to Release 1.0. The NGT-9000D Release 1 and DCM Release 1 meet the requirements of the following TSO’s. Table 1-5: Applicable TSO’s TSO NO.
Page 32: Tso Markings
Lynx NGT-9000s Installation Manual 1.7.1 TSO Markings The following information summarizes the TSO application for the NGT-9000D Release 1 and DCM Release 1. Table 1-6: TSO Markings TSO No. TSO MARKING TSO TITLE C112d Level 2 dens Class 1 Air Traffic Control Radar Beacon System/Mode Select...
Page 33: Tso Deviations From Minimum Performance Standards
TSO-C166b, 4.a TSO-C195a, 4.a TSO-C112d, 3.d The Lynx NGT-9000s has an RF transmitter which is used to generate both the 1030MHz and 1090MHz waveforms for Mode S Transponder , ADS-B TSO-C166b, 3.d Out, and TAS functions. Due to the RF power requirement and inherent non- linearities in RF transmitters, the harmonics of the transmitter exceed the RF radiated emissions limit in DO-160G.
Page 34: Non-Tso Functions
TSO-C112d The NGT-9000 does not perform Comm-A (broadcast or addressed) or Comm-B Air-Initiated ADLP (Airborne Data Link Processor) link operations. The NGT-9000 meets the certification of Level 2 transponders except for the support of the above listed ADLP functions. TSO-147 The use of traffic symbology as defined in DO-317A is equivalent level of safety to the symbols define in TSO-C147.
Page 35: Modifications
Lynx NGT-9000s Installation Manual 1.7.4 Failure Classification Table 1-8 summarizes the potential hazards associated with the Lynx NGT-9000s functions and the associated failure condition severity classifications per AC 23.1309-1E. Table 1-8: Failure Classification Functional Hazard Classification Failure Condition Description TAS Traffic Advisory...
Page 36: Software Versions
Software and database versions can be viewed using the MPC via the Maintenance Application Tool. A list of current software revisions is identified below. Table 1-10: Software Revisions COMPATIBLE DESCRIPTION REVISION PART NUMBER LYNX MAT NGT-9000 Ops SW 9020010-001 8010-17002-0100 (includes flight & maint) Page 1-20 General Information 0040-17001-01 January 15, 2015...
Page 37: Equipment Required Not Supplied
Lynx NGT-9000s Installation Manual 1.10 EQUIPMENT REQUIRED NOT SUPPLIED Use Table 1-11 to identify equipment required for installation, calibration, and testing. NOTE Equivalent tools, equipment and hardware may be used. Table 1-11: Equipment List ITEM DESCRIPTION Cables and Wiring: The installer supplies all system wires and cables.
Page 38 Lynx NGT-9000s Installation Manual Table 1-11: Equipment List ITEM DESCRIPTION External Annunciators Type 313 Lamp. (Colored as described below) (Lamp): Lamps can be 12 or 28V dc with maximum current 300 mA. An isolation relay is required for ac operation.
Page 39 Required to test altitude inputs. Maintenance Computer (MPC) • The MPC is a laptop computer used to operate the Lynx MAT for system setup, post installation checkout and troubleshooting. The computer should be using Windows XP or 7 as the operating system, 1.3 GHz processor or greater and 512 MB or more of RAM.
Page 40: Installation Kits
Lynx NGT-9000s Installation Manual 1.10.1 Installation Kits Ordering Installation Kits is a customer option. Refer to the following for ordering information: Table 1-12: Installation Kit P/N 9060-17000-01 for Straight RF Connector DESCRIPTION PART NUMBER Cable Tie 4.1x0.098 NYL 6.6 Black Low Pro PBF 1040-10002-01 Screw F100 2-56 X 0.250 SS Pass W/ Vibra-Tite...
Page 41: Antenna Cables
Lynx NGT-9000s Installation Manual 1.10.2 Antenna Cables For L-Band and GPS antenna cables, Table 1-14 lists examples of the recommended antenna cable vendors and the type of cable to be used for specific lengths of cable. For Directional antenna cables, Table 1-15 identifies U. S. vendors who sell approved cables by the foot.
Page 42 Lynx NGT-9000s Installation Manual Table 1-15: Directional Antenna SIGMA and DELTA Port Cable Vendors Manufacturer: Electrical & Mechanical Technologies (EMTEQ) Part Number Attenuation Weight (lb) Maximum Minimum Bend Length (ft) Radius (in) (dB/100 ft 1.0 GHz) (per 100 ft) Polyethylene PFLX195-500 10.93...
Page 43 Lynx NGT-9000s Installation Manual Table 1-16: Cable to Connector Reference Electrical & Mechanical Technologies (EMTEQ) Cable Part TNC Straight TNC Right BNC Straight BNC Right Number Angle Angle Polyethylene PFLX195-500 TMS195-1 TMR195-1 BMS195-1 BMR195-1 PFLX240-500 TMS240-1 TMR240-1 BMS240-1 BMR240-1 PFLX240-501...
Page 44: Equipment Interfaces
Installation Manual 1.11 EQUIPMENT INTERFACES The equipment listed here is compatible with the Lynx NGT-9000s. Equipment interfaces not listed in this section can still be found to be compatible for installation, but must meet the requirements same requirements. When interfacing to compatible equipment there may be set-up steps for the equipment that need to be done before it can communicate with the unit.
Page 45: Directional Antenna
The antenna listed in Table 1-19 have been tested for compatibility. Antennas not listed below can still be approved for installation but must meet the specifications for Directional antenna that support TCAS or TAS operation and meet the specifications required by the Lynx NGT-9000+. NOTE The NY156 and NY164 Directional Antenna may not be used for non-TAS functions.
Page 46 Lynx NGT-9000s Installation Manual Table 1-20: Directional Antenna Installation Kit 817-10009-xxx KIT PART SUPPLIED PARTS * NUMBER PART NUMBER DESCRIPTION QUANTITY 817-10009-001 800-10066-001 Special Adapter Plate, 40 Inch (101.6 cm) Radius 817-10009-002 800-10066-002 Special Adapter Plate, 63 Inch (160.0 cm) Radius...
Page 47: Traffic Displays
The RS-422 interface for traffic is a future option. (2) Installation using the GTN 650 as an external traffic display should note that the NGT-9000 Pilot-Initiated Self Test, traffic test pattern is oriented to a heading of zero degrees. (I.e. if the aircraft is pointed a direction other than True North, the traffic in the test pattern may be rotated relative to the difference between true heading and 0 degrees.)
Page 48: Personal Electronic Device (Ped) Apps
Hilton Software LLC Wing X PRO 1.12 SOFTWARE UPDATES Software for the unit, Lynx MAT, databases (Navigation and Cultural Features) can be obtained by either downloading from the L-3 Technical Publications website or by receiving a compact disc. 1.12.1 Website Download Use the following procedure to gain access to the L-3 Technical Publications website.
Page 49 Lynx NGT-9000s Installation Manual Users with RBA site access: Go to https://www.avionicstechpubs.com. Using the Log In Using RBA, click on the red L-3 RBA link. Enter User ID and click the OK button. Answer security questions if requested. Click the Continue button.
Page 50 Installation Manual Using the technical publications web site: On the left side of the home page and select Search Documents. Enter “NGT-9000” in the basic search field. The search results provide a list of available publications and software for the unit.
Page 51: Compact Disc
2. System Software Label Readme, 3. Lynx Maintenance Application Tool, 8010-17002-0100 4. LynxMMS USB Drivers (versions for Windows 7 & Windows XP) • USB Driver, Windows 7, Lynx MSS, 8010-17004-0100 • USB Driver, Windows XP, Lynx MSS, 8010-17006-0100 0040-17001-01 General Information...
Page 52: Installation Procedure For Lynxmms Usb Driver
Lynx NGT-9000s Installation Manual 1.12.3 Installation Procedure for LynxMMS USB Driver Typically the MPC device manager pops up when the MSS Appliance is connected to the MPC. Follow the device manager instructions to install the driver. The procedure here is typical, but may differ per settings on the computer being used.
Page 53 Press the “Browse” button and navigate to the location of the LynxMSS Driver file. See Below. Select the LynxMSS Driver file and press the “Open” button. Press the “OK” button. A screen with “Lynx MSS” as the Model is shown. See Below. Press the “Next” button. The driver installation process begins. See Below.
Page 54 Lynx NGT-9000s Installation Manual 1.12.3.2 Windows 7 Installation After the MSS Appliance and MPC are connected, an “Installing device driver software” is shown on the tray. If the Driver Software Installation fails a dialog window is shown. Close out of that window.
Page 55 Lynx NGT-9000s Installation Manual Select the “Change Settings” button. See below. Select the “Update Driver” button. Select the “Browse my computer for driver software”. 10. Browse to the Windows 7 USB Driver folder and select “Open”. See below. 11. Select “Next”. The driver installation process begins.
Page 56: Installation Approval And Limitations
The Lynx NGT-9000s is not approved for installations with SATCOM-equipped airplanes. The Lynx NGT-9000 may be optionally configured to support the TAS function or the Diversity function, but both options may not be selected at the same time and is not supported by the FAA TSO Approval.
Page 57: Installation
Section 2 Installation 2.1 INTRODUCTION This section describes the installation of the Lynx Multilink Surveillance System (MSS). Installation must be made by qualified personnel, in conformance with applicable government regulations. The information furnished is for convenience only. Tolerances (unless otherwise indicated): ANGLES ARE ±...
Page 58: Installation Procedures
2.3 INSTALLATION PROCEDURES The installer must take the following into consideration prior to installation. Specific procedures for installation of the Lynx NGT-9000s, Data Configuration Module, Mounting Rack, and Directional Antenna (for TAS option) are detailed in their respective paragraphs below.
Page 59: Location
The unit should be located in an area where the touch screen control is within easy reach of the pilot and cannot be obstructed from continuous view (i.e. behind a control yoke). A Mounting Rack is required to install the panel mount NGT-9000. Two installation kits are available each with their own mounting rack. See details below: •...
Page 60 Lynx NGT-9000s Installation Manual Figure 2-1: Outline Dimensions for Panel Mount NGT-9000 Page 2-4 Installation 0040-17001-01 January 15, 2015 Revision A...
Page 61 Lynx NGT-9000s Installation Manual Figure 2-2: Outline Dimensions for Mounting Rack 0040-17001-01 Installation Page 2-5 Revision A January 15, 2015...
Page 62: Electrical Connections
Lynx NGT-9000s Installation Manual 2.3.2 Electrical Connections The installer must take the following into consideration before installation. • Use of any wire or cable not meeting specification voids all warranties. • The installer is responsible for supplying wires, cables and connectors.
Page 63 Use the following information for interfacing compatible equipment. Additional information may be found in the General Information section under Equipment Interfaces. • Installations using the GMX 200 connect the Lynx NGT-9000s (TX pins 52 & 53) only. 2.3.2.1 Shielded Cable Preparation •...
Page 64 Lynx NGT-9000s Installation Manual Score the jacket ¼ to 5/16 inch from the end of the braid: Remove the section of jacket carefully by pulling straight. This will flatten the braid strand ends: Inspect the cable to make sure that the braid strands are lying against the primary insulation.
Page 65 Lynx NGT-9000s Installation Manual Apply Heating on the Solder Sleeve Use Tyco Electronics approved heat source and reflector as shown below: Heat Gun / Setting Reflector HL1910E = 6 on dial PR-25 or PR-25D and HL2010E = 700°F on LCD HL1802E-ADAPT Allow hot air heaters to warm up before using.
Page 66 Lynx NGT-9000s Installation Manual Figure 2-3: Interconnect Wiring Diagram (Sheet 1 of 3) Page 2-10 Installation 0040-17001-01 January 15, 2015 Revision A...
Page 67 Lynx NGT-9000s Installation Manual Figure 2-3: Interconnect Wiring Diagram (Sheet 2 of 3) 0040-17001-01 Installation Page 2-11 Revision A January 15, 2015...
Page 68 Lynx NGT-9000s Installation Manual Figure 2-3: Interconnect Wiring Diagram (Sheet 3 of 3) Page 2-12 Installation 0040-17001-01 January 15, 2015 Revision A...
Page 69 Lynx NGT-9000s Installation Manual Figure 2-4: Mating Connector (P1) and Pin Assignments 0040-17001-01 Installation Page 2-13 Revision A January 15, 2015...
Page 70 Lynx NGT-9000s Installation Manual 2.3.2.2 P1 Mating Connector Assembly Installer must take into consideration the length of the wiring harness to insure an adequate service loop before installing the unit. Refer to Figure 2-5. Assemble Connector Pins P/N M39029/57-354 (item 11) to wires using Crimp Tool M22520/5-01 and Insert M22520/5-05.
Page 71 Lynx NGT-9000s Installation Manual Figure 2-6: Outline Dimensions for the Data Configuration Module (9230-17003-01) 0040-17001-01 Installation Page 2-15 Revision A January 15, 2015...
Page 72 RF cables. See Figure 2-7. All models of the Lynx NGT-9000s are required to have GPS and Omnidirectional (UAT) cable connections (A5 & A4). Models with TAS have three cables connecting to A1, A2, and A4. Models with Diversity have one cable connecting to A2.
Page 73 Fabricate the sum antenna cable with a TNC connector at each end. Affix a blue marking band on each connector. At the NGT-9000, the sum port (A4) is identified with blue marking. • Bit Probe Port The Bit Probe port (A1) is the center antenna connector.
Page 74 Lynx NGT-9000s Installation Manual 2.3.2.3.3 Straight Coax Contact Assembly Refer to Figure 2-9 for the following instructions. Slide Plug Crimp Contact (item 23 of install kit) over inner insulator. The copper shield must be over the Contact sleeve. Slide Crimp Contact to contact barrel end of Plug Crimp Contact.
Page 75: Panel Installation
Installation Manual 2.3.2.4 Coax Connector Assembly The number of antenna cables required for installation is based on the model of Lynx NGT-9000s. The basic model has a GPS and omnidirectional (bottom mounted L-Band) antenna connection. Models with Diversity only have a secondary top mounted L-Band antenna connection. Models with TAS have three directional antenna connections.
Page 76 Lynx NGT-9000s Installation Manual Secure Rear Plate (item 2) to Panel Rack P/N 9010-17022-01 (item 1) using 4 Screws P/N NAS514- P-440-5 (item 4). Place the assembled Panel Rack P/N 9010-17022-01 (item 1) in the location selected in paragraph 2.3.1.
Page 77: Installation
2.3.5 Antenna Installation Guidelines This information provides general installation guidance to ensure the installed antennas meet the requirements for the Lynx NGT-9000s. Installation approval for the GPS and L-band antennas is not provided by the instructions provided in this manual.
Page 78 Lynx NGT-9000s Installation Manual 2.3.5.1 GPS Antenna The GPS antenna performance is critical to the performance of the Lynx NGT-9000s. The antenna must meet the minimum performance requirements for the Lynx NGT-9000s. • The recommended antenna is a DO-301 compliant antenna meeting the requirements of TSO-C190.
Page 79 Figure 2-3. 2.3.5.2 L-Band Antenna The L-band antenna is used to must meet the minimum performance requirements for the Lynx NGT-9000s. Antennas meeting the minimum performance specifications needed by the Lynx NGT-9000s may already be installed in the aircraft and may be available for use. Use the antenna location information below to verify an existing antenna location is acceptable for use.
Page 80 Lynx NGT-9000s Installation Manual 2.3.5.3 L-Band Antenna Installation Refer to the aircraft manufacturer's data and the antenna manufacturer's installation instructions to mount the antenna(s). The installer may use other FAA approved data to gain a separate antenna installation approval. Electrical Bonding Requirements: •...
Page 81 Lynx NGT-9000s Installation Manual 2.3.5.4.1 Directional Antenna Location Location is an important factor for maximum antenna performance. Optimum location for a particular aircraft type is usually available from the aircraft manufacturer. See Figure 2-15 for Antenna Outline dimensions. In selecting a location, consider the following: •...
Page 82 Lynx NGT-9000s Installation Manual Figure 2-15: NY156 / NY164 Directional Antenna Outline Dimensions Page 2-26 Installation 0040-17001-01 January 15, 2015 Revision A...
Page 83 Lynx NGT-9000s Installation Manual 2.3.5.5 Installation 1. Use the following information to the extent necessary to install the directional antenna. • Standard installation practices prescribed in FAA Advisory Circular 43.13 must be followed. • The installer must ensure the immediate antenna installation area is clean and prepared so that the antenna is electrically bonded (metal-to-metal contact) to the aircraft.
Page 84 Lynx NGT-9000s Installation Manual Figure 2-16: Antenna Mounting Holes Figure 2-17: Directional Antenna Installation Page 2-28 Installation 0040-17001-01 January 15, 2015 Revision A...
Page 85: Remove And Replacement Procedures
Lynx NGT-9000s Installation Manual 2.3.6 Remove and Replacement Procedures If the unit or one of its system components requires removal after initial installation, replace it using the instructions given in the maintenance section of this manual. 0040-17001-01 Installation Page 2-29...
Page 86 Lynx NGT-9000s Installation Manual This page intentionally blank Page 2-30 Installation 0040-17001-01 January 15, 2015 Revision A...
Page 87: Installation Checkout
Installation Checkout INTRODUCTION This section contains instructions for the configuration and checkout of the Lynx NGT-9000s. Refer to the fault isolation information provided in the maintenance manual for help in correcting installation issues found during checkout. Refer to the General Information section - Equipment Required Not Supplied for details on equipment used in this section.
Page 88: Power On
Gear icon on the left application screen followed by the dimming button. 3.2.1 Power On Verify the circuit breaker for the Lynx NGT-9000s is closed. Connect aircraft to external power source to conserve aircraft battery power. Apply power to the unit and system component using applicable essential or emergency electrical buses.
Page 89: Maintenance Pc
• The operational status of the unit is shown on the Lynx MAT and is located at the top of the panel (next to the model ID) and on the status bar. The operational status is either “Flight” or “Maint”.
Page 90 Installation Manual Figure 3-2: Maintenance Application Tool – Main Page d. Communication is established when the Lynx MAT left view panel changes from grey to tan and the message “Connected” is shown in the lower communication bar. See Figure 3-3.
Page 91 Lynx NGT-9000 Installation Manual The unit can be restarted (power cycled) by using the Lynx MAT as follows: From the Lynx MAT panel select ServiceZRestart Unit. See Figure 3-4. From the Restart Unit screen select Maintenance (No WiFi) Click on the Restart Unit button at the bottom of the main screen.
Page 92: Maintenance Mode
Lynx NGT-9000 Installation Manual MAINTENANCE MODE The unit can enter Maintenance mode without the use of a MPC using the following procedure. NOTE If the unit has detected that it is in-air, then maintenance mode can only be entered in the first two minutes of operation.
Page 93: Configure Wifi Accessory
After the configuration is complete remove the serial cable and cycle power to the dongle. 10. Connect the accessory to the aircraft wiring harness connecting to the Lynx NGT-9000s. 11. Verify that the SSID name can be seen with a WI-FI device such as laptop or PED.
Page 94: Verify Software Version
Installation Manual VERIFY SOFTWARE VERSION The Maintenance PC (MPC) and Maintenance Application Tool (Lynx MAT) are used to interface with the unit to load software/firmware/databases, view factory / version data, and retrieve fault / event logs. These procedures assume the following: •...
Page 95: Select Configuration Options
Systems Customer Service to obtain the codes. • If the Lynx MAT is not connected or is disconnected the left side panel color changes to a light grey and the “Not Connected” message is displayed at the bottom of the tool screen. Re-connect by doing the following - from the Lynx MAT panel select ConnectZNGT9000ZUSB.
Page 96: Aircraft Specific Options
Lynx NGT-9000 Installation Manual 3.7.1 Aircraft Specific Options From the Lynx MAT select Setup… Configuration Z Modify Z Aircraft Specific. See Figure 3-9. Enter the information specific to the installation for the intended certification. Figure 3-9: Lynx MAT –Aircraft Specific Options Tail Number: Enter the tail number the aircraft that the unit is being installed in.
Page 97 Lynx NGT-9000 Installation Manual TAS Directional Antenna Type: • This feature requires “TAS Enable” to be enabled. • Select either NY164 (TAS) or NY156 (TCAS). Antenna Installation: This setting is dependent on both the TAS enabled and diversity enabled settings. The options available change depending on current Diversity enabled and TAS enabled settings.
Page 98 Lynx NGT-9000 Installation Manual Pilot Entry of Flight ID: Select Disabled or Enabled. • Selecting Enabled provides an entry box at start up. Aircraft length and Width Code: Click on the Select button to open a code selection window. •...
Page 99: I/O Options - Ahrs And Altitude
Installation Manual 3.7.2 I/O Options – AHRS and Altitude From the Lynx MAT select Setup Z Configuration Z Modify Z I/O Options Z AHRS and Altitude. See Figure 3-10. Enter the information specific to the installation for the intended certification.
Page 100: I/O Options - Misc
Installation Manual 3.7.3 I/O Options – Misc From the Lynx MAT select Setup…Configuration Z Modify Z I/O Options Z Misc. See Figure 3-11. Enter the information specific to the installation for the intended certification. Figure 3-11: Lynx MAT – I/O Options – Misc ARINC 429: Set up the ARINC Input and Output bus using the following: Input One: None.
Page 101 Lynx NGT-9000 Installation Manual In Air / On Ground The following options are setup based on the emitter category selected (aircraft type) and the In Air / On Ground selections. • A fixed wing aircraft with a ground discrete installed requires the following options: “Max Ground Speed”...
Page 102: Backup
3.7.4 Backup Use this feature to save configuration settings to a file to be used later or as a backup. The procedure to From the Lynx MAT select SetupZ ConfigurationZ Backup. • The MPC attempts to load DCM data, if it is not already loaded, when this screen is entered.
Page 103: Calibration Setup
From the Lynx MAT select SetupZCalibration. Press the Initiate button within the “touch Screen Calibration” box on the Lynx MAT and observe that the maintenance screen on the unit is showing the calibration screen. In the Calibration screen touch and release each target shown. (Four calibration targets and two verification targets).
Page 104: Tas Antenna Calibration
Lynx NGT-9000 Installation Manual 3.8.3 TAS Antenna Calibration This calibration is available only if the Lynx NGT-9000s with TAS option is installed and the TAS option is selected in the aircraft specific options. From the Lynx MAT select SetupZCalibration. Press the Initiate button within the TAS Antenna Calibration box to activate the TAS antenna cal at the next Operational Mode startup.
Page 105: Interface Check
After configuration options and calibration procedures where completed, power has been cycled to the unit. • The MPC and unit are communicating and the Lynx MAT has been restarted the unit in Maintenance (no WiFi). 3.9.1 Live Data - Discrete Inputs, Altitude, and Heading From the Lynx MAT select ServiceZLive DataZDiscrete Inputs, Altitude, and Heading.
Page 106: Live Data - Gps
Lynx NGT-9000 Installation Manual 3.9.2 Live Data - GPS From the Lynx MAT select ServiceZLive DataZGPS. An example of this page is shown in Figure 3-16. Observe that the GPS data is being received. If data is being received verify that the Day, Month, and Year data is correct.
Page 107: Live Data - Ads-B
Installation Manual 3.9.3 Live Data – ADS-B From the Lynx MAT select ServiceZLive DataZADS-B. An example of this page is shown in Figure 3-17. Observe that both data fields are showing a count tally of received messages (A zero is a valid number if the unit is not in range of a signal).
Page 108: Live Data - Simulate
Figure 3-18: Lynx MAT – Live Data - Simulate 3.9.5 Configuration Check Complete If needed, clear the fault log from the Lynx MAT by selecting Info Z Fault Log and selecting the Clear button. See Figure 3-14. Disconnect the MPC from the unit.
Page 109: Installation Checkout
• station or signal within range. 3.10.1 Functional Checks Use the following procedure to check that the Lynx NGT-9000s (the unit) and secondary equipment is operating properly. 3.10.1.1 WiFi Check This check required only if the WiFi option is installed and requires a WiFi accessory connected to the wiring harness.
Page 110 Lynx NGT-9000 Installation Manual Splash Screen System Status (Passed) and Versions System Status (Failed) System Status (Degraded) Figure 3-19: Examples of Start-up Screens The System Status is shown on the left side in less than 20 seconds • If System Status is “System Pass”, then the Versions screen is shown on the right of the display.
Page 111 The messages “No TIS-B / ADS-R Coverage” or” FIS-B No Signal” may be seen due to the unit being out of range of a ground station. This is normal and the checks may proceed. If the problem is persistent it may be necessary to connect the MPC and use the Lynx MAT to •...
Page 112 Lynx NGT-9000 Installation Manual 3.10.1.3 Options Screen Press the gear shaped “Options” button located at the top right of the traffic screen. See Figure 3-23. Press the Done button when the checks below are complete. Status Settings Brightness Figure 3-23: Options Screen…...
Page 113 (RS-422). The instructions provided in this manual are generic. Refer to the manufacturers display manual for operation and checkout procedures. • A functional check with the NGT-9000 is accomplished during the check of the ADS-B In, TIS-B, FIS-B and any other checks requiring the use of the alternate display. 0040-17001-01...
Page 114: Ground Checks
The MPC is connected to the unit via the USB interface • The MPC and unit are communicating. From the Lynx MAT panel select ConnectZNGT9000ZUSB. This is required each time power is cycled. From the Lynx MAT panel select ServiceZRestart Unit. See Figure 3-24.
Page 115 Lynx NGT-9000 Installation Manual If heading is not being input to the Lynx NGT-9000, then select Ground Test and enter a Simulated Own Direction (0 – 359 deg.). The own direction is the current true heading of the aircraft A unit with a heading input can ignore this step.
Page 116 Before performing this check ensure that the GPS position on the NGT-9000 is acquired, and that the NGT-9000 is in Ground Test mode (in air). If installed, the ADS-B Out Fail lamp is OFF. Perform the ADS-B In check using an IFR-6000 (or equivalent) Ramp Test Set using the latest ADS-B update.
Page 117: Electromagnetic Interference (E.m.i.) Check
Installation Manual 3.10.2.6 FIS-B Uplink Check Before performing this check ensure that the GPS position on the NGT-9000 is acquired, and that the NGT-9000 is in Ground Test mode (in air). If installed the ADS-B Out Fail lamp is OFF.
Page 118 Lynx NGT-9000 Installation Manual VHF Communications Set VHF communications radios to multiple frequencies and monitor effects of unit while transmitting and receiving. At a minimum, the frequencies listed below should be tested, in addition to locally available frequencies: Check the GPS signal status of the each satellite being received does not drop while transmitting each frequency for a period of 35 seconds.
Page 119: Display Check
Note – The data may be degraded until the GPS has acquired a position fix. • Flight Test It is recommended that a flight test be conducted after installation to verify proper operation of the Lynx NGT-9000s system per the AML STC.
Page 120 Lynx NGT-9000 Installation Manual This page intentionally blank Page 3-34 Installation Checkout 0040-17001-01 January 15, 2015 Revision A...
Page 121: Maintenance
4.2 CONTINUED AIRWORTHINESS Regular maintenance of the Lynx NGT-9000s is not required except as included in this section and is to be maintained on a “Condition Monitored” basis. Condition monitoring is based upon the following: •...
Page 122: Screen Calibration
Test in the installation checkout section. Note: If the screen is severely out of calibration, this procedure will not work and the screen calibration procedure in the Lynx MAT will need to be performed. Apply power to the unit using applicable essential or emergency electrical buses.
Page 123: Directional Antenna (Ny156 And Ny164)
MPC that would provide them with information on the unit (i.e. version, faults, and configuration). Create this file by going to the File menu of the Lynx MAT, selecting Save, and placing the file in a location that can be easily located for transfer to L 3 Field Service.
Page 124 If in maintenance mode the fan remains active. This is normal. Check System Status Messages. Check the Lynx MAT fault log. Contact L-3 Field Service before removal of unit. Message page contains The following internal tests do not create a fail message in messages that do not indicate a the system status page.
Page 125 This indication is shown where the Flight ID location on the TEST traffic screen. It is shown when the unit is connected to the MPC and the Lynx MAT is active with the ground test function started. Display indicator TRK (Track) Traffic Indicates that the traffic display orientation is true track.
Page 126 Cycle power to the unit. Check the GPS antenna for problems. Check System Status Messages. Check the Lynx MAT fault log. Contact L-3 Field Service before removal of unit. Traffic The aircraft is not in an ADS-B (UAT / 1090ES) coverage •...
Page 127 Mode A transponder are not part of the TISB data and will not be seen on the traffic display. Refer to the NGT-9000 Pilot guide for more information regarding what traffic can be displayed.
Page 128 Check System Status Messages. Check the Lynx MAT fault log. Observe the GPS Receiver Information using the Lynx MAT (Service – GPS) for correct signal strength. Verify that the signal bars are showing at least 40 -50% in the GPS Receiver Information Packet.
Page 129: System Status Messages
Attempt to clear fail or degraded messages by cycling power to the unit. View the message list and use the Lynx MAT to access the configuration and fault logs to isolate this issue. The Continue button is active whenever a failure or degraded window message is shown. It may be used to begin normal operation with degraded performance.
Page 130 Lynx NGT-9000s Installation Manual Table 4-2: System Status Messages SYMPTOM CAUSE/CORRECTIVE ACTIONS The message is seen if any of the following tests fail: ADS-B In – External Fail • GPS Antenna/Cable • Altimeter – Gilham Altitude Input • Altimeter – RS-232 Input •...
Page 131 Lynx NGT-9000s Installation Manual Table 4-2: System Status Messages SYMPTOM CAUSE/CORRECTIVE ACTIONS The message is seen if the follow test fails: ADS-B Out - Degrade • GPS Sensor Try clearing the failure performing a warm startup by tapping the Restart button.
Page 132 Lynx NGT-9000s Installation Manual Table 4-2: System Status Messages SYMPTOM CAUSE/CORRECTIVE ACTIONS The message is seen if the follow test fails: FIS-B – No Signal • UAT-In Try clearing the failure performing a warm startup by tapping the Restart button.
Page 133 Lynx NGT-9000s Installation Manual Table 4-2: System Status Messages SYMPTOM CAUSE/CORRECTIVE ACTIONS The message is seen during start up if any of the following System Degraded tests fail: • CRC Failure • Configuration Cycle power to the unit to clear the failure.
Page 134 Lynx NGT-9000s Installation Manual Table 4-2: System Status Messages SYMPTOM CAUSE/CORRECTIVE ACTIONS The message is seen if any of the following tests fail: TAS - Fail • 1090 ADS-B In Receiver • 1030 Transmission • 1030 Transponder Receiver • TAS 1030 Transmission •...
Page 135: Using The Maintenance Pc
Power is being supplied to the aircraft and unit and system components. • The correct Lynx MAT software is being used to load software. See the General Information section (Software Versions) for software details. Note - Each version of software for the MSS device requires a specific MAT software version that is compatible.
Page 136: Load Databases
Verify that the software was updated by going to the Versions page. From the Lynx MAT select InfoZVersions. Cycle power to the unit. (Note –The Lynx MAT and PC may be disconnected at this time if no other maintenance is required. If disconnected Skip step 8.
Page 137: View Or Retrieve Data
4.5.3 View or Retrieve Data Use the Lynx MAT to view versions and factory information and retrieve fault and event logs. See Figure 4-5. The versions data, event log, and factory log can be saved to a file for later viewing.
Page 138 Typically the fault log should not be cleared unless instructed by L-3 AS Field Service personnel. A saved fault log can be viewed by the Lynx MAT when the unit is not connected by using the Load function. Table 4-3: List of Fault Log Messages...
Page 139 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x00000021 Touch INIT Fault Reboot the unit and check if the fault persists. Contact L-3 Field Service before removal. 0x00000033 IODC INIT Fault Reboot the unit and check if the fault persists.
Page 140 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x00001002 Mutual Supp Bus Failed to Assert Reboot the unit and check if the fault persists. Contact L-3 Field Service before No failures of the box only log the removal.
Page 141 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x0000100D Map DB Flash CRC Failure Reboot the unit and check if the fault persists. May need to update or load map Map database failure database data.
Page 142 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x00001804 Clear DCM CRC Failure Log the fault. 0x00001806 Clear DCM Configuration Fail Log the fault. 0x00001807 Clear Over Temp on Ground Log the fault.
Page 143 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x00002008 FPGA TAS 1030 transmission failure Reboot the unit and check if the fault persists. Contact L-3 Field Service before TAS Internal failure removal.
Page 144 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x00003009 1030 Rcvr Top PIN Isolation Failure Reboot the unit and check if the fault persists. Contact L-3 Field Service before Transponder Internal failure removal.
Page 145 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x0000380E Clear XPDR 1090 XMIT Top Power Log the fault. Failure 0x00004001 GPS Sensor Fail Check Table 4-1 or Table 4-2...
Page 146 Lynx NGT-9000s Installation Manual Table 4-3: List of Fault Log Messages FAULT ID/ CODE FAULT DESCRIPTION CORRECTIVE ACTION (HEX) 0x00006009 Control Panel Input Fail Check Control Panel wiring. (future) Transponder External failure Reboot the unit and check if the fault persists.
Page 147: Configuration Restore
Click on the Load button to ‘Load a Pre-Existing Configuration File’ to load the configuration data into the Lynx MAT. After the file is loaded into the Lynx MAT click on any of the Apply buttons to save all the configuration options (see Note below). Note - A dialog window is shown asking if changes should be saved immediately.
Page 148: Service
Lynx NGT-9000s Installation Manual 4.5.5 Service This procedure is used to service and troubleshoot the Lynx NGT-9000s. See Figure 4-8. 4.5.5.1 Data Recording The information generated by the Data Recording page is not typically used unless requested by the factory during service.
Page 149: Return To Service
Installation Manual 4.6 RETURN TO SERVICE Use this section to validate the return to service of the Lynx NGT-9000s and system components. 4.6.1 Lynx NGT-9000s Use this procedure to remove and replace all models of the panel mount NGT-9000s. The instructions herein are generic in scope.
Page 150: Detachable Configuration Module
Insert panel in installation location and secure panel using 6 screws. Secure panel rack using 6 screws. On the Lynx NGT-9000s use 3/32 Allen Hex Socket Screw Driver to rotate the panel retainer counterclockwise to avoid interference with the bottom edge of the panel.
Page 151: Directional Antenna (Ny156 And Ny164)
4.6.3 Directional Antenna (NY156 and NY164) The TAS Antenna Calibration (installation checkout paragraph 3.10.2.8) must be performed anytime the Lynx NGT-9000s or Directional Antenna is removed from the aircraft. Specific details on the installation of the antenna can be found in the installation section.
Page 152: Disposition Of Failed Items
5353 52nd Street, S.E. Grand Rapids, MI USA 49512-9704 Refer to the manufactures data for external displays, controllers, and antennas interfaced to the Lynx NGT-9000s. If available, pack components in their original shipping container. If the original container is not...
Page 153: Interface Signal Name & Cable Characteristics
This appendix defines digital interface label information and electrical characteristics of all input and output signal names to the Lynx NGT-9000s Multilink Surveillance System (the unit). Sufficient data is included to use a bus reader for the purpose of identifying signal input and output characteristics and perform an electrical load analysis for the aircraft.
Page 154: Interface
Wi-Fi Device. The altitude data and Wi-Fi are optional depending on the installation. A.2.5.1 RS-232 WiFi Output The RS-232 WiFi interface is optional. An optional equipment interface wiring diagram is shown in Figure A-1. When configured the NGT-9000 outputs the following information to a WiFi connection: • FIS-B Weather Data •...
Page 155: Interface
Lynx NGT-9000s Installation Manual A.2.5.2 RS-232 Altitude Data The RS-232Altitude Data interface is optional. Only one altimeter input source (gray code, ARINC-429 or RS-232) should be connected. When the Trimble/Garmin/Icarus protocol option is used, the following characteristics are set: •...
Page 156: Arinc 429 Input
Lynx NGT-9000s Installation Manual A.2.7 ARINC 429 Input Four ARINC 429 Input receivers are available. The ARINC 429 input can be configured to receive data at low (12.0 to 14.5 kbps) or high (100 kbps). The ARINC Bus is dedicated to the functions listed below: •...
Page 157: Arinc 429 Output
A.2.8 ARINC 429 Output The unit has one ARINC 429 Output that transmits data at high (100 kbps). The Lynx NGT-9000s have the option of interfacing to the Traffic display over the ARINC 429 bus using the standard traffic display (STIF) format as defined in ARINC 735 and the Display Traffic Information File (DTIF) as described in ARINC 735B.
Page 158: Discrete Input
Lynx NGT-9000s Installation Manual A.2.9 Discrete Input The unit has 6 discrete inputs that are set to GND/Open. The GND position is typically (depending on configuration options) the active (ON) position. The discrete inputs provide 1.0 ± 0.25 ma of current when the input is grounded. The input is in the ground state when input voltage is less than or equal to 3.5Vdc, or there is less than 10 Ohms impedance...
Page 159: I C Serial Bus (Detachable Configuration Module
In Air /On Ground - Altitude Threshold A.2.12 Antenna Connections The unit has 5 TNC connections labeled A1 thru A5. All models of the Lynx NGT-9000s are required to have GPS and Omnidirectional (UAT) cable connections (A5 & A4). Models with TAS have three cables connecting to A1, A2, and A4.
Page 160: Pin Definition Summary
Lynx NGT-9000s Installation Manual A.3 PIN DEFINITION SUMMARY Table A-1: Connector (P1) Pin Assignments Function Name Type* Function Name Type* +14/28VDC POWER IN 1 ARINC 429 1 INPUT A (PRES. ALT.) +14/28VDC POWER IN 2 ARINC 429 1 INPUT B (PRES. ALT.)
Page 161: J1 Connector
Lynx NGT-9000s Installation Manual A.4 [J1 CONNECTOR] PIN 1 Signal Name: PWR_14_28VDC_IN Signal Function: + 14/28 VDC Power IN 1 Electrical Characteristics: 30.0 watts maximum average Connection: Aircraft 28V BUS. 22 AWG wire Comments: PIN 2 Signal Name: PWR_14_28VDC_IN Signal Function:...
Page 162 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 6 Signal Name: ALT_IN_A2 Signal Function: Gilham Altitude Encoder Electrical Characteristics: +30 V input max, < 1 mA sourced per line Frequency: 20 Hz, Source Z: > 10 kΩ per line Max Capacitance: < 20 pF per line Connection: See paragraph A.2.4...
Page 163 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 10 Signal Name: ALT_IN_B4 Signal Function: Gilham Altitude Encoder Electrical Characteristics: +30 V input max, < 1 mA sourced per line Frequency: 20 Hz, Source Z: > 10 kΩ per line Max Capacitance: < 20 pF per line Connection: See paragraph A.2.4...
Page 164 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 14 Signal Name: ALT_IN_D2 Signal Function: Gilham Altitude Encoder Electrical Characteristics: +30 V input max, < 1 mA sourced per line Frequency: 20 Hz, Source Z: > 10 kΩ per line Max Capacitance: < 20 pF per line...
Page 165 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 19 Signal Name: CM 3.3V Signal Function: SPWR Serial Power (3.3 Vdc Power), 50ma max Electrical Characteristics: See paragraph A.2.11 Connection: Detachable Configuration Module – red wire Comments: PIN 20 Signal Name:...
Page 166 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 24 Signal Name: DISC_OUT4 (Discrete Output No. 4) Signal Function: TIS-B Not in coverage Electrical Characteristics: GND/Open (GND active) Ground State < 3.0Vdc when sinking 250mA. Open State has an impedance of >100K ohms to ground for voltages applied to the output of 0.0 to 36.0Vdc.
Page 167 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 28 Signal Name: DISC_IN2 (Discrete Input No. 2) Signal Function: Audio Mute Electrical Characteristics: GND/Open (GND active) Ground State ≤ 3.5Vdc, Open State ≥ 18Vdc Connection: 24 AWG wire When active all traffic alerts are suppressed. Typically...
Page 168 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 33 Signal Name: SUPPR_BUS Signal Function: RF Suppression Output Electrical Characteristics: See paragraph A.2.2 Connection: Aircraft Suppression Bus 24 AWG twisted shielded wire Comments: PIN 34 Signal Name: Spare Signal Function: Spare pin...
Page 169 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 38 Signal Name: AUDIO OUT Signal Function: Audio Out 600 Ohm H Electrical Characteristics: 40 milli Watts (RMS) at 1000 Hz into a 600 Ohm audio distribution system. Connection: Audio Panel 24 AWG twisted shielded pair wire Comments: See paragraph A.2.3...
Page 170 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 43 Signal Name: RX2_429B (ARINC 429_2_IN B) Signal Function: AHRS Input ARINC 429 Electrical Characteristics: Configuration Option: Low Speed ARINC 429 (12.0 to 14.5 kbps) High Speed ARINC 429 (100 kbps) Combo Bus...
Page 171 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 48 Signal Name: TX_429A (ARINC 429_IN A) Signal Function: ARINC 429 Output for CDTI display Electrical Characteristics: High Speed ARINC 429 (100 kbps) L-3 Sky-497 STIF format Connection: 24 AWG twisted shielded pair wire Comments: See paragraph A.2.8...
Page 172 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 53 Signal Name: RS422_TX2B Signal Function: RS-422 FIS-B Output Electrical Characteristics: Data bits 8, Parity none, Stop bit 1, Start bit 1, Data format is ASCII, Flow control is none. Baud Rate: (configuration option) 38400, 57600, or 115200.
Page 173 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 58 Signal Name: Spare Signal Function: Spare pin Electrical Characteristics: Connection: No Connection Comments: PIN 59 Signal Name: Spare Signal Function: Spare pin Electrical Characteristics: Connection: No Connection Comments: PIN 60 Signal Name:...
Page 174 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 63 Signal Name: RS232_RX2 Signal Function: RS-232 PED/Wi-Fi Device Electrical Characteristics: Data bits 8, Parity none, Stop bit 1, Start bit 1, Data format is ASCII, Flow control is none. Baud Rate: 115200 bps.
Page 175 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 68 Signal Name: RESERVED Signal Function: RS-232 (Factory Only) Electrical Characteristics: Connection: No Connection Comments: PIN 69 Signal Name: Spare Signal Function: Spare pin Electrical Characteristics: Connection: No Connection Comments: PIN 70...
Page 176 Lynx NGT-9000s Installation Manual [J1 connector] (Continued) PIN 74 Signal Name: Spare Signal Function: Spare pin Electrical Characteristics: Connection: No Connection Comments: PIN 75 Signal Name: Spare Signal Function: Spare pin Electrical Characteristics: Connection: No Connection Comments: PIN 76 Signal Name:...
Page 177 Installation Manual Appendix B Environmental Qualification Form B.1 INTRODUCTION This appendix includes the environmental qualifications form required for the Lynx NGT-9000s Multilink Surveillance System, Detachable Configuration Module, NY156, and NY164 Directional Antenna. B.2 NGT-9000 ENVIRONMENTAL QUALIFICATION FORM PRODUCT DESCRIPTION: Multilink Surveillance System...
Page 178 Lynx NGT-9000s Installation Manual SECT. DESCRIPTION CAT. DESCRIPTION Operational Shocks 3 shocks of 6g for 11 mS. One 20g Impulse shock in both directions of each orthogonal axis for a total of 6 shocks. Sustained Aircraft Type 5 (Helicopter and All Fixed-...
Page 179 Lynx NGT-9000s Installation Manual SECT. DESCRIPTION CAT. DESCRIPTION Emission of RF Energy Interference free operation A3: Pin Injection Waveform Tests: Waveform 3 600 VOC/24 ISC Waveform 4 300 VOC/60 ISC J3: Cable Bundle Single Stroke: Waveform 3 600 VT/120IL Waveform 3 600 VT/120IL...
Page 180 Lynx NGT-9000s Installation Manual B.3 NY156 & NY164 ENVIRONMENTAL QUALIFICATION FORM MANUFACTURER: Sensor Systems, Inc. ADDRESS: 8929 Fullbright Ave., Chatsworth, CA 91311 USA (818) 341-5366 APPLICABLE SPEC. NO.: REVISION & CHANGE NUMBER OF DO-160: C PRODUCT DESCRIPTION: Antenna MODEL: NY156...
Page 181 Lynx NGT-9000s Installation Manual Appendix C Configuration and Checkout Log Date: ______________ By:__________________________________ Installation Information d Model NGT-9000+ P/N 9029000-20000 d Model NGT-9000D P/N 9029000-20000 Unit S/N: ________________________ Mod Level: _______________________ Aircraft Model: ___________________ Composite S/W: ___________________ Aircraft S/N: _____________________...
Page 182 Lynx NGT-9000 Installation Manual Configuration (continued) AHRS and Altitude AHRS Source: d None d ARINC 429 AHRS ARINC 429 Bus Speed: d Low d High Altitude Source: d ARINC 429 d RS-232 Altitude Encoder Port d Gilham Interface d RS-232 Control Panel Port...

This manual is also suitable for:

9029000

Lynx NGT-9000 Installation Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lynx NGT-9000

Summary of Contents for Lynx NGT-9000

This manual is also suitable for:

Table of Contents
