Summary of Contents for AEMC 1110

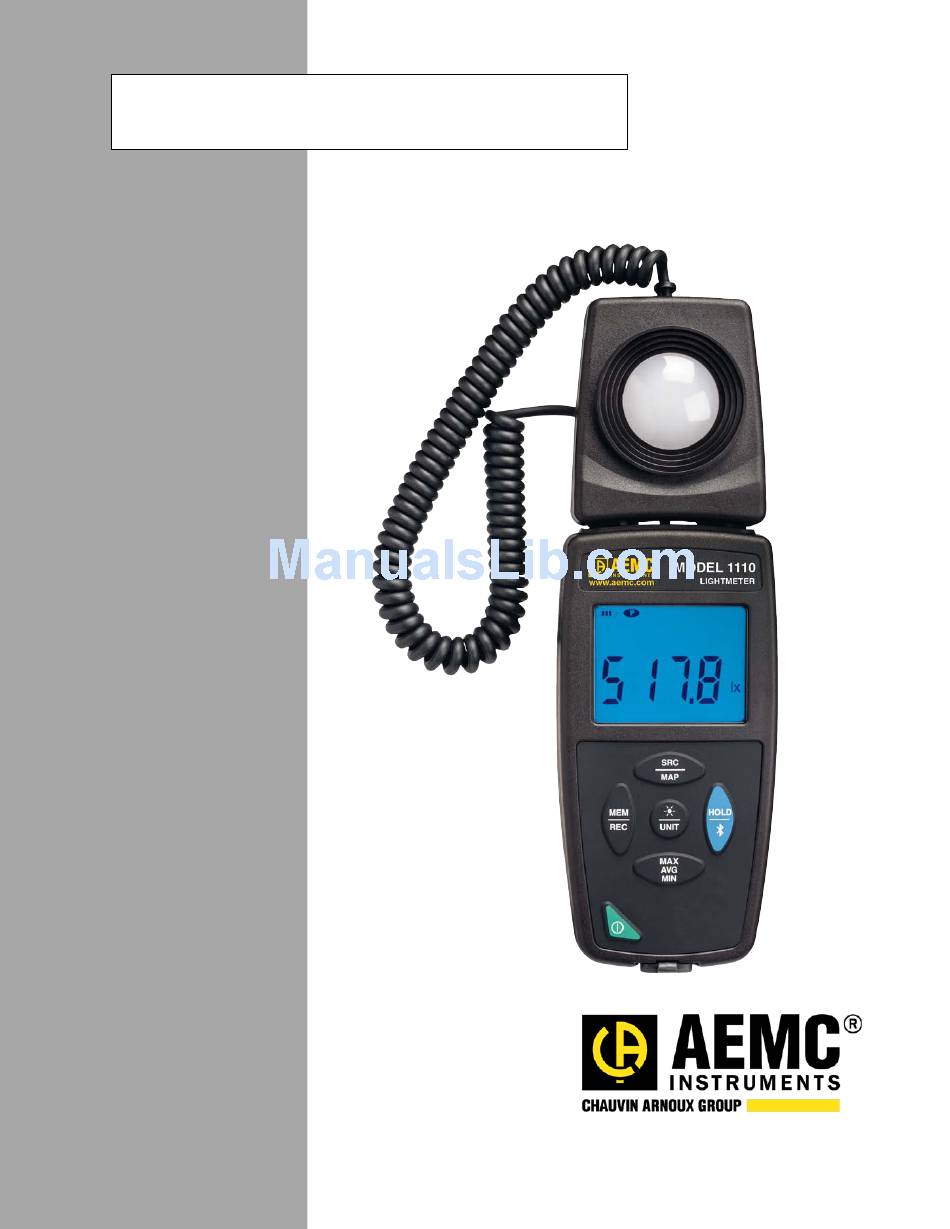

- Page 1 ■ 1110 LIGHTMETER DATA LOGGER ENGLISH User Manual...
- Page 2 Statement of Compliance ® ® Chauvin Arnoux , Inc. d.b.a. AEMC Instruments certifies that this instrument has been calibrated using standards and instruments traceable to international standards. We guarantee that at the time of shipping your instrument has met its published specifications.
-
Page 3: Table Of Contents
CONTENTS PRECAUTIONS ................................4 RECEIVING YOUR SHIPMENT ............................5 ORDERING INFORMATION ............................5 1. GETTING STARTED ..............................6 1.1. Battery Installation ............................6 1.2. Instrument Front Panel ............................7 1.3. Instrument Functions ............................7 1.4. Turning the Instrument ON/OFF ........................8 1.5. Function Buttons ..............................8 1.6. Display ................................9 2. -
Page 4: Precautions
Thank you for purchasing the Lightmeter Data Logger Model 1110. For best results from your instrument: read these operating instructions carefully, comply with the precautions for use. WARNING, risk of DANGER! The operator must refer to these instructions whenever this danger symbol appears. -
Page 5: Receiving Your Shipment
Save the damaged packing container to substantiate your claim. Ordering Information Lightmeter Data Logger Model 1110………………………………………………………………….… Cat. #2121.71 Includes soft carrying pouch, three AA alkaline batteries, 6 ft. USB cable, quick start guide, USB thumb-drive ®... -
Page 6: Getting Started
1. Press the tab of the battery compartment cover and lift it clear. 2. Remove the battery compartment cover. 3. Insert the new batteries, ensuring correct polarity. 4. Close the battery compartment cover; ensuring it is completely and correctly closed. Lightmeter Data Logger Model 1110... -
Page 7: Instrument Front Panel
8. Type B micro-USB connector 1.3. Instrument Functions The Model 1110 measures illumination from 0.1 to 200,000 lux. The instrument measures visible light only, and excludes non-visible wavelengths (infrared, ultraviolet, and so on). It measures illumination in accordance with the recommendations of the AFE (Association Française de l’Éclairage - French Association of Illumination). -
Page 8: Turning The Instrument On/Off
Fourth press displays minimum value. Fifth press returns to normal measurement operation. Long press exits MAX AVG MIN mode. In MAP mode, pressing displays in turn the maximum, average (mean), and minimum of the MAP measurements. Lightmeter Data Logger Model 1110... -
Page 9: Display
Recording, in MAX AVG MIN mode, in MAP mode, or in HOLD mode Connected via the USB cable either to an external power supply or for communication with a computer Communicating via Bluetooth Set to Auto OFF disabled (see §2.4) Lightmeter Data Logger Model 1110... -
Page 10: Setup
7. When the instrument is connected, its name appears in the Data Logger Network folder in the left side of the Control Panel. A green check mark appears next to the name indicating it is currently connected. Lightmeter Data Logger Model 1110... -
Page 11: Instrument Date/Time
You can also set this through the Data Logger Control Panel. 2.6. Light Source Type button cycles through the three available light source options (incandescent, fluorescent, or LED). You can also set this through the Data Logger Control Panel. Lightmeter Data Logger Model 1110... -
Page 12: Standalone Operation
Finally a fourth press restores the normal display. Subsequent presses of repeat this cycle. To exit MAX AVG MIN mode, long-press . Note that when MAX AVG MIN mode is active, the MAP function is deactivated. Lightmeter Data Logger Model 1110... -
Page 13: Map Function
Consult §4.4 in the standard NF EN 12464-1 for guidance when creating an illumination mapping chart. To create a map with the Model 1110: 1. Press the MAP button for >2 seconds to enter MAP mode. The counter on the LCD will be initially set to 00 (see below). -
Page 14: Recording Measurements
The firmware version is incompatible with the instrument. Reload the previous firmware version. Er.13 Recording scheduling error. Ensure that the instrument’s time and the time of the DataView Data Logger Control Panel are the same (see §2.3). Lightmeter Data Logger Model 1110... -
Page 15: Dataview
Download recorded data from the instrument to the computer. Generate reports from downloaded data. View instrument measurements in real time on the computer. For information about performing these tasks, consult the DataView Data Logger Control Panel Help. Lightmeter Data Logger Model 1110... -
Page 16: Technical Characteristics
5.2. Optical Specifications The Model 1110 is a class C lightmeter per standard NF C-42-710. Its sensor is a silicon (Si) photodiode in which the spectral response is corrected by an optical filter. The directional response is ensured by a diffusing lens. -
Page 17: Spectral Response Curve V(Λ)
The error on the spectral response of the sensor is equal to the area of the differences between the V(λ) curve and the curve of the sensor. 5.2.4. Variation According to the Type of Light Source The Model 1110 provides three measurement compensations: Incandescent (default) ... -
Page 18: Usb
Inrush protection: IP 50, with the USB connector closed and the protecting cap on the sensor, per IEC 60.529. Drop impact test: 3.2’ (1m) per IEC 61010-1. 5.9. Compliance with International Standards The instrument is compliant with standard IEC 61010-1. 5.10. Electromagnetic Compatibility (CEM) The instrument is compliant with standard IEC 61326-1. Lightmeter Data Logger Model 1110... -
Page 19: Maintenance
Do not treat spent batteries as ordinary household waste. Take them to an appropriate recycling facility. 6.4. Firmware Update AEMC may periodically update the instrument’s firmware. Updates are available for free download. To check for updates: 1. Connect the instrument to the Data Logger Control Panel. -
Page 20: Appendix
(defined as “illuminant A” by standard NF C-42-710) fluorescent tubes with three narrow bands, or F11 LEDs at 4000K A.1.1. Incandescent (Illuminant A) Illumination Spectral Distribution A.1.2. Fluorescent (F11) Illumination Spectral Distribution Lightmeter Data Logger Model 1110... -
Page 21: Led Illumination Spectral Distribution
Conference and meeting rooms, writing, reading 500lx Industrial drafting 750lx Operating room, precision mechanics 1000lx Electronics workshop, checks of colors 1500lx Operating table 10,000lx Outdoors, cloudy 5000 to 20,000lx Outdoors, clear sky 7000 to 24,000lx Outdoors, direct sunlight, summer 100,000lx Lightmeter Data Logger Model 1110... -
Page 22: Repair And Calibration
® ® Contact: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments Phone: (800) 945-2362 (Ext. 351) • (603) 749-6434 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com Lightmeter Data Logger Model 1110... -
Page 23: Limited Warranty
LIMITED WARRANTY Your AEMC instrument is warranted to the owner for a period of two years from the date of original purchase ® against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom it was purchased. - Page 24 01/18 99-MAN 100447 v1 ® ® Chauvin Arnoux , Inc. d.b.a. AEMC Instruments 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
