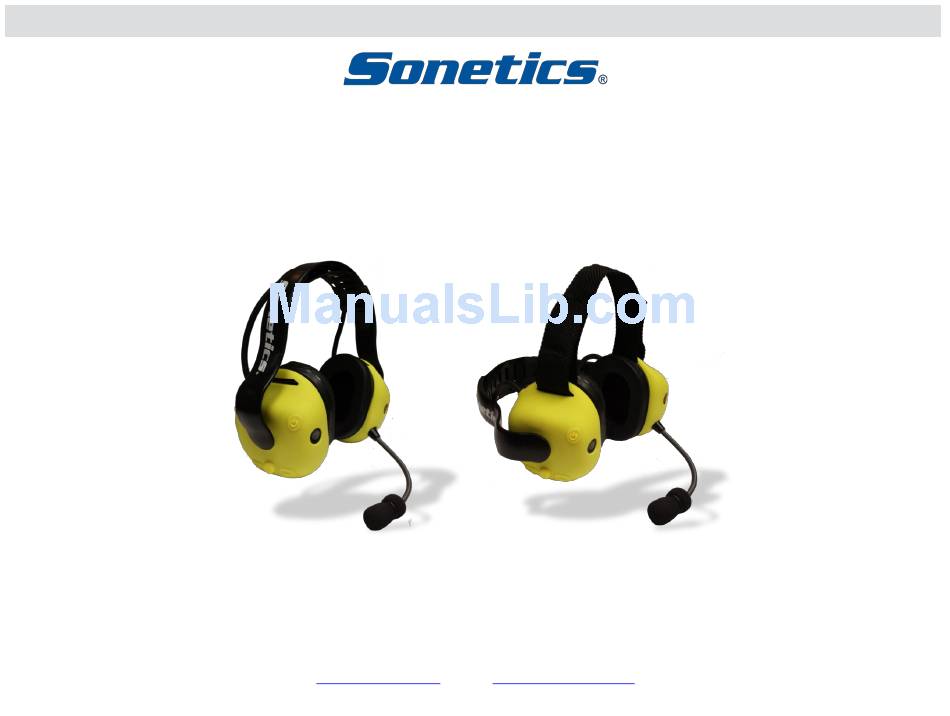

- Page 1 APX37x DECT7, Bluetooth, and Electronic Headsets Manual 7340 SW Durham Road, Portland, OR 97224 USA Phone: 800-833-4558, 503-684-7080, Fax 503-620-2943 www.soneticscorp.com • e-mail: service@soneticscorp.com...
-
Page 2: Table Of Contents
Advanced Menu Wireless Bluetooth® Wireless DECT7 DECT Signal Strength Quick Launch PC Programming Locating the USB Port Installation of Sonetics Configurator Software for Windows Care and Maintenance Mic Muff Replacement Ear Seal Replacement Troubleshooting Service Contact: General Connection Issues Wired Auxiliary... -
Page 3: Overview

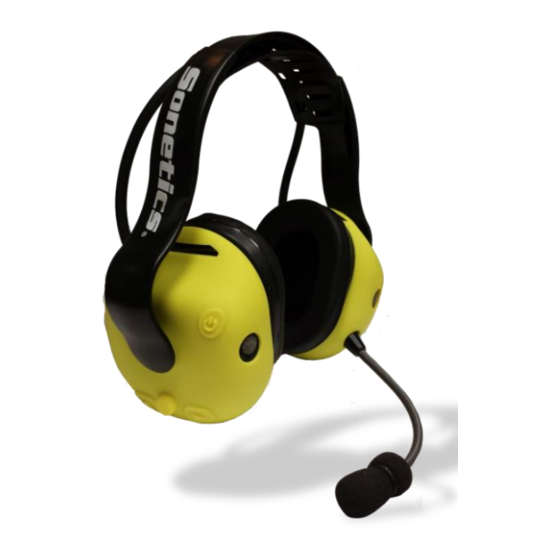

Overview Contents in Box The Sonetics APX37x Electronic Headset protects you from dangerous noise while keeping other audio at a comfortable listening level. It protects your hearing Headset without sacrificing your safety or situational awareness. You can hear alarms, music, 1 ea x Apex Headset or even have a face-to-face conversation while still being protected. -
Page 4: Features
Features Light Weight Common Features, All Models Through the use of the latest weight saving technologies, Sonetics is able to deliver a wireless headset that is lighter than many wired headsets. Adjustable Volume Control The Headset has a user adjustable volume control. For convenience, the Headset Listen Through Situational Awareness will remember the last setting each time it is turned on. -
Page 5: Common Features, Communication Headsets
The wired line-in is used to interface with cell phones and hand held radios. This Bluetooth-enabled computer to the headset. gives the user more flexibility in their communication needs. The wired connection features a mono input and mono PTT output. See your Sonetics dealer for accessories to match your equipment. Common Features, Communication Headsets Not available on the APX372 headset. -
Page 6: Wireless Dect7 Communications
Signal Strength Reporting communications to others on the same channel. The Headsets will connect to stand alone Sonetics Wireless Base Stations or Sonetics IP-DECT7 wireless systems. A The Headset may be placed into a field diagnostic mode to detect signal strength at The Headset. -
Page 7: Configuring The Headset
Configuring the Headset Headband Installation Tools Required: None The Sonetics Electronic Headset may be set up for use in overhead, under-helmet, Align the headband with the domes as shown. or hard hat (sold separately) configurations. Different headbands are attached through a secure snap joint on the side of the ear domes. It keeps the ear dome correctly oriented while providing full freedom of movement, allowing the dome to seat comfortably against the users head. -
Page 8: Behind Head Headstrap Installation
2. Affix the strap using the hook and loop. Cut the along the groove on the underside of the ruggedizer. Replace the ruggedizer. Open the Radio Cover and plug in the Sonetics PR Radio Adaptor. Replacing the Ruggedizer Remove the headband 2. -
Page 9: Fitting
Fitting Behind Head Fitment Proper fitment is required to achieve the rated hearing protection levels. Ensure no damage to the 1. Inspect Overhead Fitment earseals or the Headset Ensure no damage to 1. Inspect the earseals or the Headset 2. Expand 2. -
Page 10: Fitment Warnings
Fitment Warnings Microphone Placement To optimize speech, a noice cancelling microphone is used. This type of microphone Improper Placement and Adjustment is designed to enhance sounds from very close, while reducing sounds from afar. Ensure proper placement for best results. Obstructions Ensure headwear and hair does not cause gap in the earseal. -
Page 11: Charging
Charging The Sonetics Electronic Headsets use a barrel charging jack with the connections shown below. Vehicle Charging Wall Adapter Charging Connect the wire to +12VDC and the BLACK wire to battery chassis ground. Only charge the Headset using the supplied 12VDC regulated wall adapter. -
Page 12: Battery Replacement
Battery Replacement LED Indications Sonetics Electronic Headsets use a Lithium Ion battery. Sonetics batteries are the The Sonetics Electronic Headset uses a multicolor LED indicator to give additional only batteries that have been tested and verified to operate correctly with the information on the exterior of the Headset. -
Page 13: Settings & Operation
Settings & Operation Buttons Left Side Right Side Adjusting the Main Volume Turn On Press the plus or minus – buttons on the left-hand side of the Headset. Press and briefly hold the power button. You will hear the welcome message and the LED on the right hand side of the unit will begin to flash periodically. -
Page 14: Advanced Menu
Version Number ( Advanced Menu "Version 1" Indicates what firmware version your headset is running. The Advanced Menu is to set-up and configure the Headset for use. Caution must DECT Bandwidth ("DECT Wide") be taken with these adjustments, as they change the operational characteristics of the Headset. -
Page 15: Wireless Bluetooth
Quickly press and release the menu button. Wireless DECT7 DECT7 headsets have the ability to use the Sonetics DECT, DECT6, DECT7 and IP- DECT7 wireless bases for communication. Protected regional frequencies in each To exit, turn off the Headset. region ensure interference free operation. -
Page 16: Quick Launch
All Headsets have a USB port located inside the left dome. A Windows PC with the same row requires both buttons to be pressed. Sonetics Configurator software installed is required to adjust headset features. Refer to the software for additional information. -
Page 17: Care And Maintenance
Sonetics. To replace the ear seals: 1. Remove the old ear seal by pulling on the edge and peeling it over the lip WARNING: Do not store the Headset in high temperature environments or of the ear dome. -
Page 18: Troubleshooting
2. Check that you are in range of the DECT Wireless Base Station. 3. Verify the Wireless Base Station and the Headset are in pairing mode. 4. The Sonetics DECT7 Wireless Headset will only pair with other Sonetics DECT7 Wireless Base Stations. -
Page 19: Glossary
Glossary Wireless Base Station Wireless DECT7 base unit through which Wireless DECT7 Headsets pair and link for voice communications. Bluetooth Wireless standard in the 2.4GHz wireless range. A-Weighted SPL (Sound Pressure Level) unit of measure. DECT Digital Enhanced Cordless Telecommunications. A wireless standard in the 1.9GHz wireless range. -
Page 20: Specifications
Specifications Conducted Transients: 7637-2 Quality Management System Control: ISO 9001:2008 Headset MIL SPEC Weights Chemical Exposure: Intermittent Exposure MIL-STD 810 Method 504: Over Head: 15.8oz / 448g | 17.8oz / 504g with Ruggedizers Isopropyl alcohol, Formula 409®, WD-40®, Windex®, Behind Head: 16.2oz / 458g | 18.1oz / 514g with Ruggedizers Bleach/Water (1:1), Mineral oil, Synthetic Sweat, Jet A Fuel, Kerosene, Gasoline,... -
Page 21: Bluetooth® Specifications
Bluetooth® Specifications DECT Specifications Class: Class 3 Device Common DECT Specifications Frequency Bandwidth: 2400 MHz to 2485 MHz Maximum Output Power: 0.0 dBi (peak) Carrier Spacing: 1.724 MHz Range: Up to Bluetooth standard 33 feet (10 meters) Time Slots: 2 x 12 (up and down stream) Version: Bluetooth 3.0 with secure simple pairing Channel Allocation:... -
Page 22: Important Safety Information
Important Safety Information General Communication Privacy Notice Although this equipment may contain specific protocols that enhance security and CAUTION! Follow all warnings and instructions marked on the product or privacy of communication, privacy of communication may not be ensured when contained in the owner’s manual. -
Page 23: Fcc Part 15 Information (Apx375, Apx377 And Apx379)
This equipment contains a rechargeable Lithium-Ion (Li-Ion) battery (with protection circuit). This battery is not user-serviceable. Modifications not expressly approved by Sonetics Corporation could void the user’s Do not modify or attempt to open the battery cell. In case of exposure to the authority to operate the equipment. -
Page 24: Important Nrr Information
Important NRR Information Never attempt to physically modify/bend/overstress the headband which may The EPA requires Sonetics Corporation to provide the following information to the user: compromise NRR rating, proper fit and void product warranty. Test the fit as follows:... -
Page 25: Sonetics Standard Limited Warranty
6. This warranty does not apply: (a) to consumable parts such as batteries, ear seals, as determined by Sonetics in its sole discretion. If the product has been subjected intercom bags, cables, external power supplies, parts listed as accessories to a... - Page 26 SONETICS CORPORATION Copyright ©2015 Sonetics Corporation - All rights reserved. The information in this document is subject to change without notice. P/N: 600-3051-00 Rev. J...
