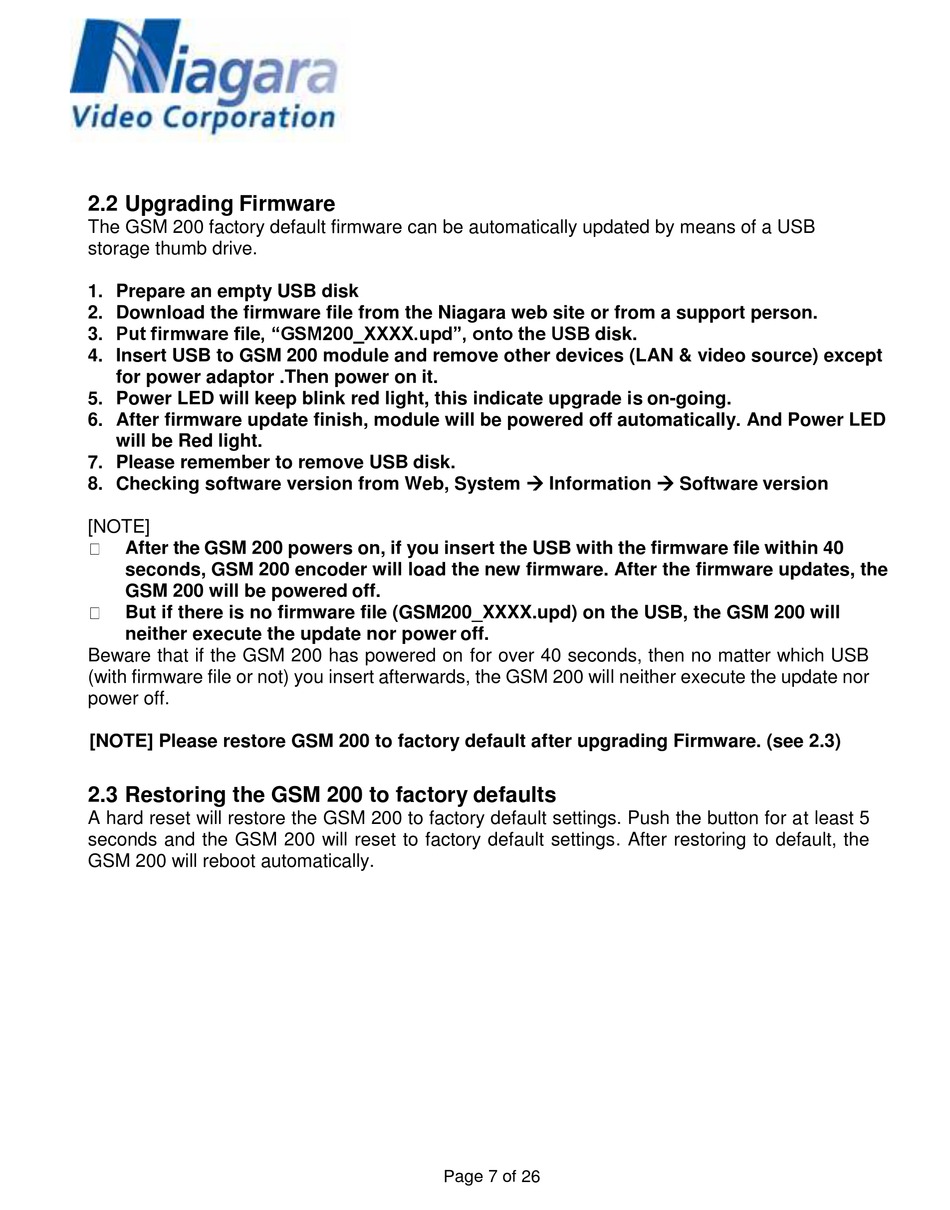

2.2 Upgrading Firmware

The GSM 200 factory default firmware can be automatically updated by means of a USB
storage thumb drive.
1. Prepare an empty USB disk
2. Download the firmware file from the Niagara web site or from a support person.
3. Put firmware file, "GSM200_XXXX.upd", onto the USB disk.
4. Insert USB to GSM 200 module and remove other devices (LAN & video source) except
for power adaptor .Then power on it.
5. Power LED will keep blink red light, this indicate upgrade is on-going.
6. After firmware update finish, module will be powered off automatically. And Power LED
will be Red light.
7. Please remember to remove USB disk.
8. Checking software version from Web, System  Information  Software version
[NOTE]
After the GSM 200 powers on, if you insert the USB with the firmware file within 40
seconds, GSM 200 encoder will load the new firmware. After the firmware updates, the
GSM 200 will be powered off. 
But if there is no firmware file (GSM200_XXXX.upd) on the USB, the GSM 200 will
neither execute the update nor power off. 
Beware that if the GSM 200 has powered on for over 40 seconds, then no matter which USB
(with firmware file or not) you insert afterwards, the GSM 200 will neither execute the update nor
power off.
[NOTE] Please restore GSM 200 to factory default after upgrading Firmware. (see 2.3)

2.3 Restoring the GSM 200 to factory defaults

A hard reset will restore the GSM 200 to factory default settings. Push the button for at least 5
seconds and the GSM 200 will reset to factory default settings. After restoring to default, the
GSM 200 will reboot automatically.
Page 7 of 26
