Video/Audio Stream - Niagara GoStream Mini 200 Manual

Full 3g hevc/h.264
Table of Contents

Advertisement

TS – IP
1.
The IP address is entered here. This can be a unicast address or a multicast address .
TS – Port
2.
The port is entered here .
RTMP – URL
3.
The URL for the server and application is entered here. For example; rtmp://192.168.10.10:1935/live
4.
RTMP - Key
The key, also called stream name is entered here.
5.
Video Settings (You can use the presets to save time or click on Customize)
 Encoding
Select H.265 (HEVC), H.264. For Profiles 2 and 3 they can be set to off as well.
 Resolution
Select the resolution of encoded output stream.
 Frame rate
Set the frame rate of the output stream.
 I-picture interval
Set the I-picture insertion interval in seconds.
 H264 Profile
Set the profile setting for H.264 to high, main or baseline if H.264 is selected.
 Bit rate compression mode
Select Constant Bit Rate (CBR), or Variable Bit Rate (VBR).
 Bit rate
When you set the codec to H.265/H.264 and set Bit rate compression mode to CBR, the target bit
rate of the output stream can be set.
 Image quality
When you set Image codec to H.265/H.264 and set Bit rate compression mode to VBR, the quality
of the output stream can be set. (1 being the lowest and 10 being the highest)

3.3 Video/Audio Stream

Use the Video/Audio page to set the video and audio details for the active stream.

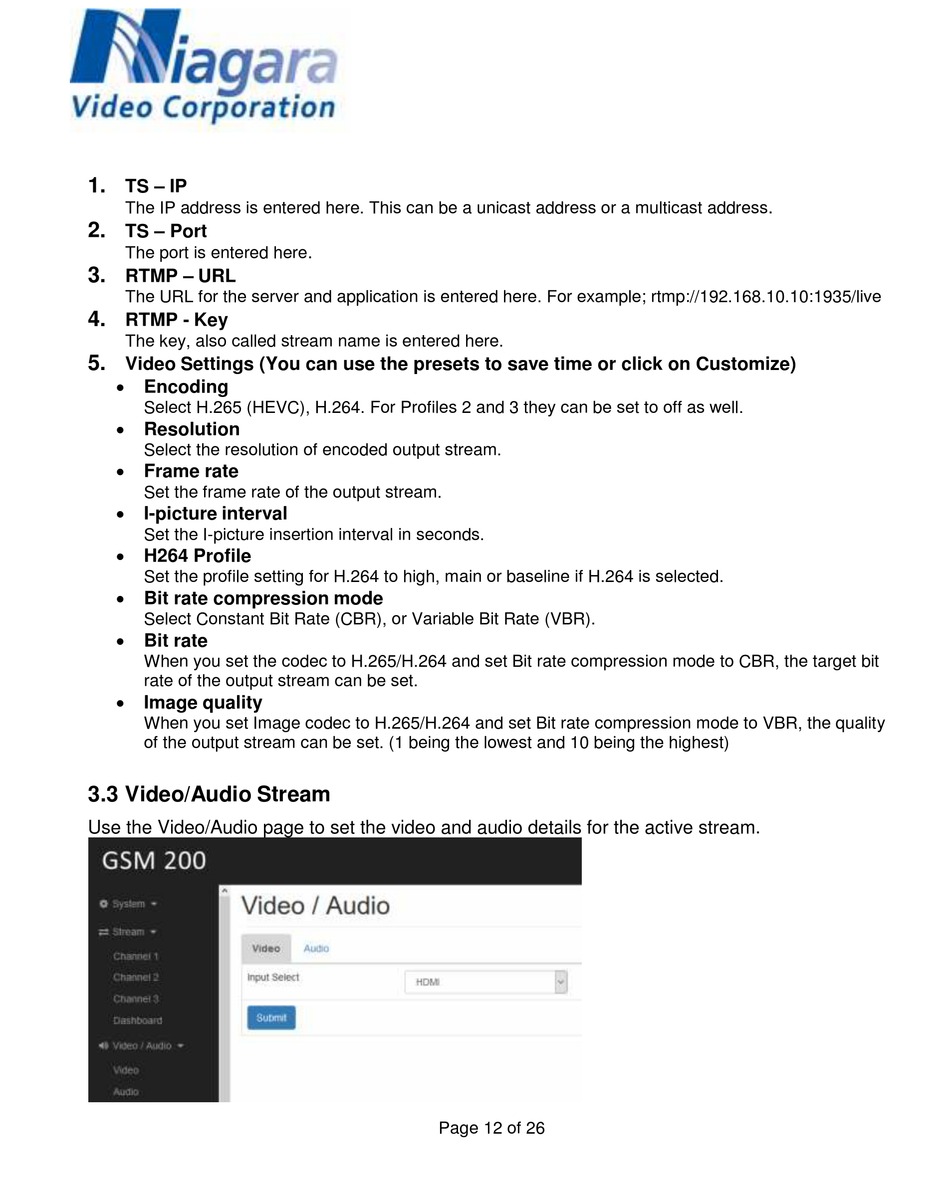

Page 12 of 26
