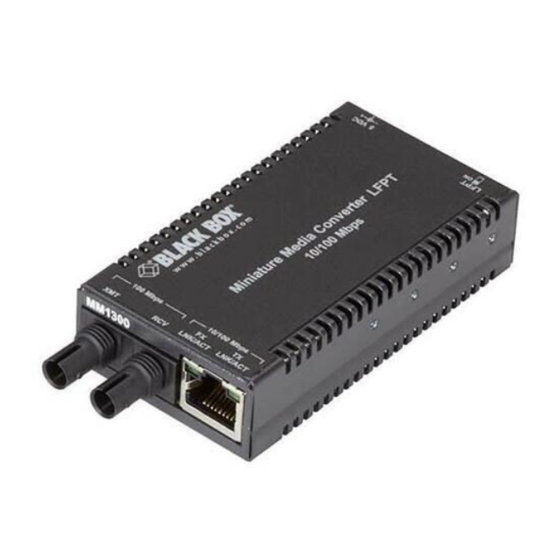

Miniature Media Converter 10/100 Switching and Miniature Media
Converter w/SFP
These tiny media converters
are perfect for bringing
fiber to the desktop.
LHC013A-R3
LHC029A-R3
LHC014A-R3
LHC036A-R3
LHC015A-R3
LHC040A-R3
LHC028A-R3
LHC041A-R3
LHC042A-R3
LHC301A-R3
LHC043A-R3
FEMR347948

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHC013A-R3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Box LHC013A-R3

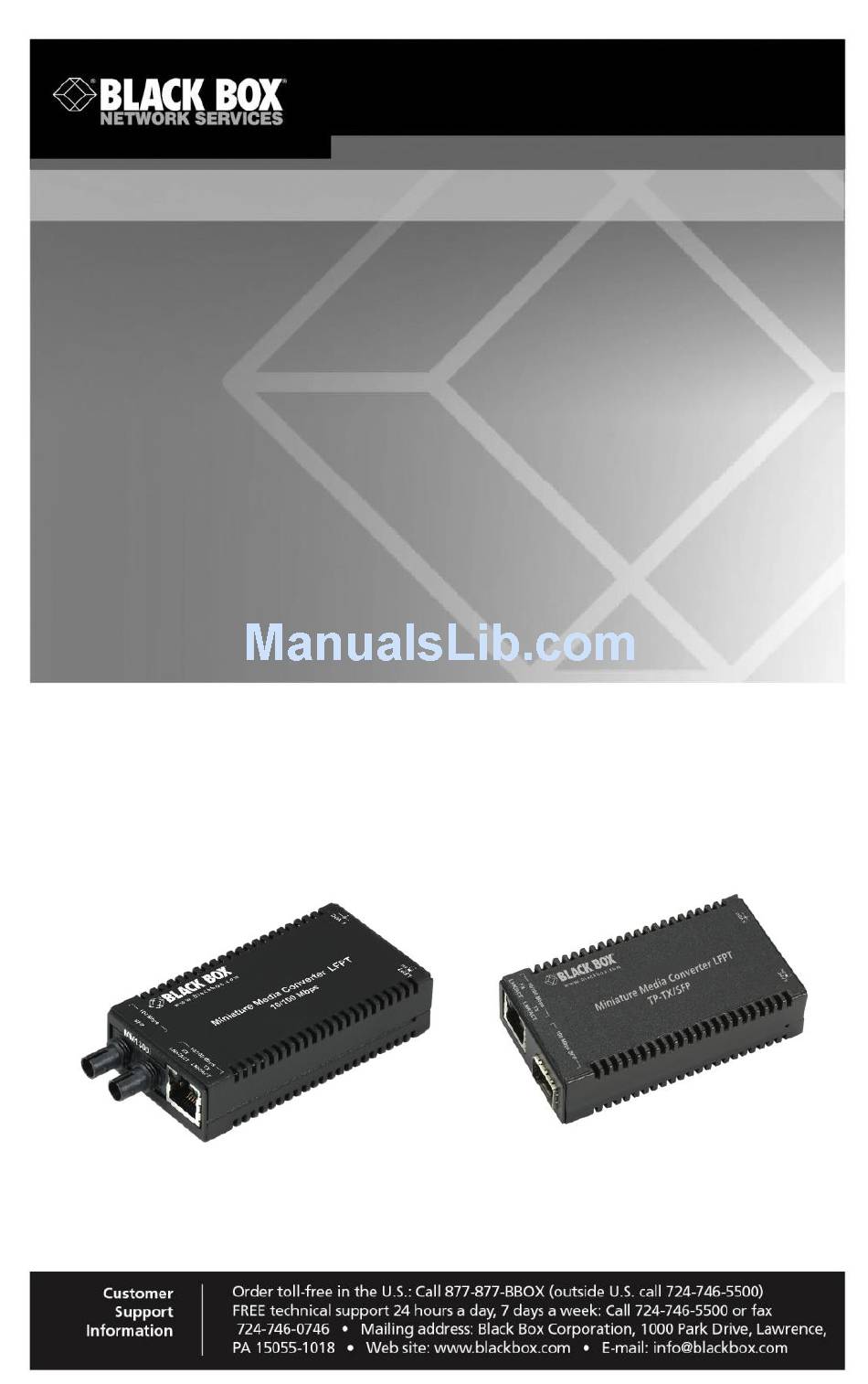

  • Page 1 LHC013A-R3 LHC029A-R3 LHC042A-R3 LHC301A-R3 LHC014A-R3 LHC036A-R3 LHC043A-R3 FEMR347948 LHC015A-R3 LHC040A-R3 LHC028A-R3 LHC041A-R3 Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP These tiny media converters are perfect for bringing fiber to the desktop.
  • Page 2 TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. 877-877-2269 | blackbox.com Page 2...
  • Page 3 Class B certified device. This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada. 877-877-2269 | blackbox.com LHC013A-R3 Page 3...
  • Page 4 Following these steps through proper disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about proper disposal, please contact local authorities, waste disposal services, or the point of purchase for this equipment. 877-877-2269 | blackbox.com Page 4 LHC013A-R3...
  • Page 5: Table Of Contents

    Powering the Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP ............9 Operation ....................10 LED Operation ..................10 Contacting Black Box ................12 Fiber Optic Cleaning Guidelines............13 Electrostatic Discharge Precautions ............ 14 877-877-2269 | blackbox.com LHC013A-R3...
  • Page 6: Part Numbers

    Part Numbers Part Numbers Part Number Description LHC013A-R3 TP-TX/FX-MM1300-ST LHC014A-R3 TP-TX/FX-MM1300-SC LHC015A-R3 TP-TX/FX-SM1310/PLUS-SC LHC028A-R3 TP-TX/SSFX-SM1310-SC (1310xmt/1550rcv - with AC adapter) LHC029A-R3 TP-TX/SSFX-SM1550-SC (1550xmt/1310rcv - with AC adapter) LHC036A-R3 TP-TX/FX-SM1310/PLUS-ST LHC040A-R3 TP-TX/FX-MM850-ST LHC041A-R3 TP-TX/FX-MM850-SC LHC042A-R3 TP-TX/SSFX-MM1300-SC (1300xmt/1550rcv - with AC adapter)
  • Page 7: Specifications

    Dimensions 0.83"H x 1.80"W x 3.35"D (2.11cm x 4.57cm x 8.51cm) NOTE Use only the supplied Black Box wall adapter or USB cable with this product. Using a non-Black Box power source will void the warranty. 877-877-2269 | blackbox.com LHC013A-R3...
  • Page 8: Overview: About The Miniature Media Converter 10/100 Switching And Miniature Media Converter W/Sfp

    The Miniature Media Converter w/SFP is an SFP port-based model, includes one 10/100/1000Mbps RJ-45 connector and one SFP port, which was designed to support MSA-compliant 100Mbps SFPs. The model will detect the SFP and run at the speed for which the SFP was designed. 877-877-2269 | blackbox.com Page 8 LHC013A-R3...
  • Page 9: Install The Miniature Media Converter 10/100 Switching And Miniature Media Converter W/Sfp

    The Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP include multiple powering options:  A country-specific, high-reliability AC power adapter (included)  IE PowerTray 18-Slot AC for Rack Mounting  USB power cable 877-877-2269 | blackbox.com LHC013A-R3 Page 9...
  • Page 10: Operation

    Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port. TX LNK/ACT Glows green when a link is established on the copper port; blinks green when activity is detected on the copper port. 877-877-2269 | blackbox.com Page 10 LHC013A-R3...
  • Page 11 Regardless if there is a break in segment 1, 2 or 3, the link will drop on the switches at both ends. The link fault is passed through the media conversion and is observed at each end. It acts just like it would if the devices were directly connected. 877-877-2269 | blackbox.com LHC013A-R3 Page 11...
  • Page 12: Contacting Black Box

    Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 724-746-5500 or Fax: 724-746-0746...
  • Page 13: Fiber Optic Cleaning Guidelines

    2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. If you need to disconnect the fiber device, reinstall the protective dust caps.
  • Page 14: Electrostatic Discharge Precautions

    Chapter 7: Electrostatic Discharge Precautions 7. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1.
  • Page 15 LHC013A-R3 Rev. 2 55-80632BB-00 Rev. C2...
