Summary of Contents for Black Box LHC042A-R4
- Page 1 LHC013A-R3 LHC029A-R3 LHC042A-R4 LHC301A-R3 LHC014A-R3 LHC036A-R3 LHC043A-R4 FEMR347948 LHC015A-R3 LHC040A-R3 LHC028A-R3 LHC041A-R3 Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP These tiny media converters are perfect for bringing fiber to the desktop.
- Page 2 TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. 877-877-2269 | blackbox.com Page 2...
- Page 3 FCC and IC RFI Statements FCC and Industry Canada RF Interference Statements Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Certifications Certifications Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equipment should be disposed of separately from regular household waste.
-
Page 5: Table Of Contents
Powering the Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP ............9 Operation ....................10 LED Operation ..................10 Contacting Black Box ................12 Fiber Optic Cleaning Guidelines............13 Electrostatic Discharge Precautions ............ 14 877-877-2269 | blackbox.com LHC013A-R3... -
Page 6: Part Numbers
(1310xmt/1550rcv - with AC adapter) LHC029A-R3 TP-TX/SSFX-SM1550-SC (1550xmt/1310rcv - with AC adapter) LHC036A-R3 TP-TX/FX-SM1310/PLUS-ST LHC040A-R3 TP-TX/FX-MM850-ST LHC041A-R3 TP-TX/FX-MM850-SC LHC042A-R4 TP-TX/SSFX-SM1310-SC (1310xmt/1550rcv - with AC adapter) LHC043A-R4 TP-TX/SSFX-SM1550-SC (1550xmt/1310rcv - with AC adapter) LHC301A-R3* TP-TX/SFP *FEMR347948 TP-TX/FX-MM1300-ST with Custom Cable NOTE Single Strand (SS) versions display the transmit channel wavelength. -
Page 7: Specifications
0.83"H x 1.80"W x 3.35"D (2.11cm x 4.57cm x 8.51cm) NOTE Use only the supplied Black Box wall adapter or USB cable with this product. Using a non-Black Box power source will void the warranty. NOTE: The media converters are now compliant to EN62368. -
Page 8: Overview: About The Miniature Media Converter 10/100 Switching And Miniature Media Converter W/Sfp

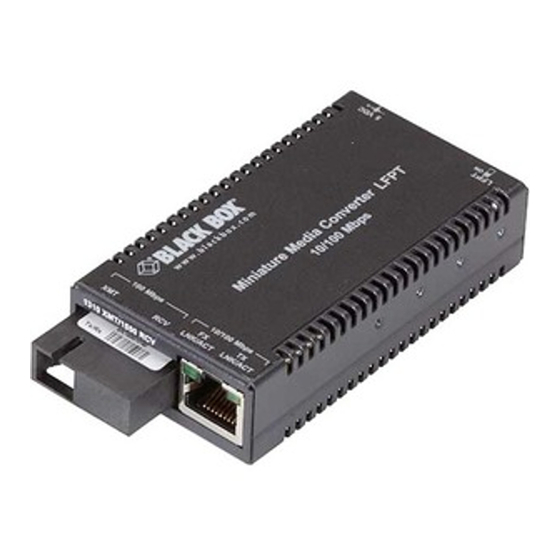

Chapter 2: Overview 2. Overview: About the Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP The Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP provide a single conversion between 10/100 Base-T twisted pair and 100 Base-SX/FX fiber. This device Auto Negotiates speed and duplex on the copper port and the fiber is fixed at 100Mbps. -
Page 9: Install The Miniature Media Converter 10/100 Switching And Miniature Media Converter W/Sfp
Chapter 3: Install the Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP 3. Install the Miniature Media Converter 10/100 Switching and Miniature Media Converter w/SFP The Miniature Media Converters install virtually anywhere as a standalone device in locations with extremely limited space. Installation options include: ... -
Page 10: Operation
Chapter 4: Operation 4. Operation 4.1 LED Operation Each Miniature Media Converter includes two LEDs, located on the RJ-45 connector. LED functions are as follows: FX TX FX LNK/ACT Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port. - Page 11 Chapter 4: Operation LFPT The Miniature Media Converter with LFPT includes a DIP Switch, located on the back of the unit. DIP Switch functions are as follows: Switch Up LFPT ON Switch LFPT OFF Down Link Fault Pass-Through (LFPT) is a troubleshooting feature that combines TX and FX LinkLoss from both the local and remote MiniMc, TX-FX/SFP modules.
-
Page 12: Contacting Black Box
Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 724-746-5500 or Fax: 724-746-0746... -
Page 13: Fiber Optic Cleaning Guidelines
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. If you need to disconnect the fiber device, reinstall the protective dust caps. -
Page 14: Electrostatic Discharge Precautions
Chapter 7: Electrostatic Discharge Precautions 7. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1. - Page 15 LHC013A-R3 Rev. 4 55-80632BB-00 Rev. C2...
