Ieee 802.3 single-conversion media converter

Advertisement

Quick Links

F
C
C
E D E R A L
O M M U N I C A T I O N S
O M M I S S I O N
S
T A T E M E N T
This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which the user
will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the
equipment.
The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits.
This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the
Radio Interference Regulation of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des
Communications du Canada.
1000 Park Drive • Lawrence, PA 15055-1018 USA
TEL: (724) 746-5500 • FAX: (724) 746-0746
© 2001-2004 Black Box Corporation. All rights reserved.
The information in this document is subject to change without notice. Black Box Corporation assumes no responsibility for
any errors that may appear in this document. Specific brands and product names may be trademarks and are the property
of their respective companies.
Document Number 55-80128BB-00 A1
R
F
I
A D I O
R E Q U E N C Y
N T E R F E R E N C E
E-MAIL: info@blackbox.com
WEB: http://www.blackbox.com
July 2004
8
100 Mbps Compact Media Converter

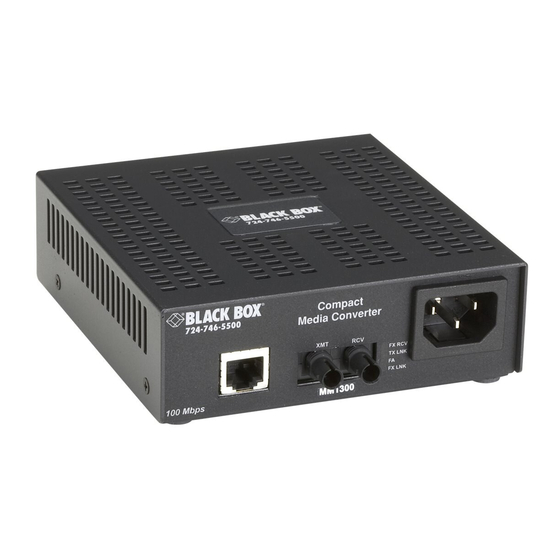

About Compact Media Converter

C C o o m m p p a a c c t t M M e e d d i i a a C C o o n n v v e e r r t t e e r r is a low-cost, IEEE 802.3
single-conversion media converter that converts
between 100 Mbps twisted pair and 100 Mbps
multi-mode or single-mode fiber. It is available
with one RJ-45 connector for the twisted pair port
and several types of fiber connectors, including
ST, SC and MT, for the fiber port. Single-strand
fiber versions are also available. Compact Media
Converter is a 1U high, standalone unit that
includes diagnostic LEDs for each port and a
universal (100/240 VAC) power supply.
100Base-TX twisted pair/
100B TX - 100B FX MM —
100Base-FX 1300 nm multi-mode fiber; includes
one RJ-45 connector and one pair ST (LHC001A-R4)
or SC (LHC002A-R4) connectors or one MT
(LHC007A-MT-R3) connector.
100Base-TX twisted pair/
100B TX - 100B SX MM —
100Base-SX 1850 nm multi-mode fiber; includes
one RJ-45 connector and one pair ST (LHC008A-R3)
or SC (LHC009A-R3) connectors
100Base-TX twisted pair/100Base-FX 1310 nm single-
100B TX - 100B FX SM/PLUS —
mode fiber; includes one pair ST (LHC005A-R4) or SC (LHC006A-R4) connectors
100B TX - 100B SSFX SM —
100Base-TX twisted pair/100Base-FX single-strand, single-
mode fiber; includes one RJ-45 connector and one SC connector; 1310xmt/1550rcv
module (LHC5129-R3); 1550xmt/1310rcv module (LHC5130A-R3)
100Base-TX twisted pair/100Base-FX single-strand,
100B TX - 100B SSFX SM/PLUS —
single-mode fiber with higher power budget; includes one RJ-45 connector and one
SC connector; 1310xmt/1550rcv module (LHC5132-R3); 1550xmt/1310rcv module
(LHC5133A-R3)

Installing Compact Media Converter

Compact Media Converter comes ready to install; make all configurations after
installation. To install Compact Media Converter, first make sure that the unit is
placed on a suitable flat surface. Attach the cables between the Compact Media
Converter and each device that will be interconnected, then plug the unit into a
reliable, filtered power source.
NOTE
Since single-strand fiber products use optics that transmit and receive on two different
wavelengths, you must deploy single-strand fiber products in pairs, or connect two com-
patible Black Box single-strand fiber products.

Installation Guide

LHC001A-R4 - LHC002A-R4 - LHC005A-R4 - LHC006A-R4
LHC007A-MT-R3 - LHC008A-R3 - LHC009A-R3
LHC5129-R3 - LHC5130A-R3 - LHC5132A-R3 - LHC5133A-R3
Q U I C K
S T A R T
Installation
Configuration
Crossover/Pass-Through
LinkLoss & FiberAlert
Auto-Negotiation
LED Operation
Technical Support
Safety Certifications
NOTE
All versions of the 100 Mbps Fast
Ethernet Compact Media Converter,
including 1300 nm multi-mode, 1310
nm and 1550 nm single-mode (TX/FX),
850 nm multi-mode fiber (TX/SX) and
single-strand versions (TX/SSFX), will be
referred to as Compact Media Converter
throughout this installation guide except
where differences need to be indicated.
1
1
2
2
2
4
5
6
7
