NEO Sion User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5.2
MAINTENANCE
10
6
5
3
2
1
ITEM
No
1
Cleart front plate
Completed lens set
2
LED PCB A
3
LED PCB B
4
5
Heat sink board
Power supply
6
Display PCB
7
11
12
13
14
9
10
8
7
4
ITEM
No
8
LED driver PCB
Fan
9
Side cover
10
Power output socket(white)
11
12
Power output socket(blue)
Fuse
13
Supporting bracket
14

USER MANUAL

SION
www.neo-professional.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sion and is the answer not in the manual?

Questions and answers

Related Manuals for NEO Sion

Summary of Contents for NEO Sion

  • Page 1: User Manual

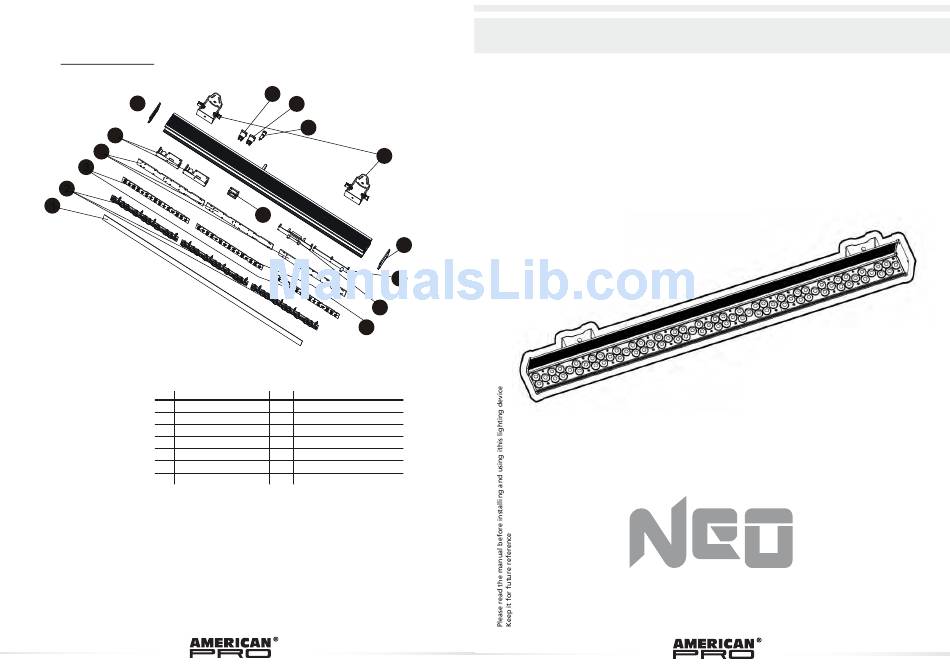

    USER MANUAL MAINTENANCE SION ITEM ITEM Cleart front plate LED driver PCB Completed lens set LED PCB A Side cover LED PCB B Power output socket(white) Heat sink board Power output socket(blue) Fuse Power supply Supporting bracket Display PCB www.neo-professional.com...

  • Page 2: Table Of Contents

    APPENDIX TROUBLE SHOOTING ABLE OF CONTENTS PART 1 PRODUCT (GENERAL)..............1. 1.1--PRODUCT INTRODUCTION................1. 1.2--PRODUCT FEATURES................1. SITUATION CAUSE ACTION PART ORDER NUMBER 1.3--TECHNICAL SPECIFICATIONS..............2. 1) Power connection error 1) Check all power connections 1.4--PHOTOMETRIC DATA.................3. No display 2) Power supply error 2) Replace power supply 1.5--SAFETY WARNING..................4.

  • Page 3: Part 1 Product (General)

    1 PRODUCT (GENERAL) BASIC INSTRUCTIONS FOR DMX512 OPERATION (TOUR) PRODUCT INTRODUCTION MASTER DIMMER This product is designed for indoor use. Suitable applications CH1 controls the intensity of the currently projected color include wash or effect lighting for stage, nightclub or touring When the slider is at the highest position (255) the intensity of the output is the applications.

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS ARC 2+S VALUE FUNCTION CHANNEL LED MODULE MASTER D IMMER LED MODULE: Voltage 100~240V...50/60Hz Rated Power G REEN LED/Unit 18 x 1W RED / 18 x 1W GREEN / 18 x 1W BLUE/ 9 x1W WHITE / 9 x AMBER BLUE Environment Temperature -20 ~40...

  • Page 5: Photometric Data

    ARC 1+D PHOTOMETRIC DATA VALUE FUNCTION CHANNEL 1316 53 LUX MASTER DIMMER 10Distance(m) GREEN 52 LUX 1300 BLUE 10Distance(m) ARC 2 14 LUX FUNCTION CHANNEL VALUE 10Distance(m) GREEN 23 LUX BLUE WHITE 10Distance(m) AMBER 24 LUX 10Distance(m) ARC 2+D 2795 112 LUX FUNCTION VALUE...

  • Page 6: Safety Warning

    SAFETY WARNING BLOCK1 CHANNEL VALUE FUNCTION IMPORTANT BLOCK1 RED BLOCK1 GREEN ALWAYS READ THE USER MANUAL BEFORE OPERATION. BLOCK1 BLUE PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE BLOCK2 RED PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA.

  • Page 7: Mounting

    2 INSTALLATION CHANNEL VALUE FUNCTION ID ADDRESS ID1~ID66 MOUNTING UPRIGHT The LED MODULE can be mounted in an upright or sitting position using the supporting brackets. HANGING ID10 The LED MODULE can be mounted in a hanging position using ID11 the support frame.

  • Page 8: Setting Up With A Dmx512 Controller

    SETTING UP WITH A DMX512 CONTROLLER CHANNEL VALUE FUNCTION 2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING (TOUR MODE) Connect the DMX512 controller to the units in series. Each unit has 13 DMX channels so the DMX Addresses should increase by STROBE increments of 13 (e.g.

  • Page 9: Dmx512 Addressing With Id Address

    4 USING A DMX512 CONTROLLER 2.3-2 DMX512 ADDRESSING WITH ID ADDRESS (TOUR MODE) Connect the DMX512 controller to the units in series BASIC ADDRESSING Each unit has 10 DMX channels so the DMX Addresses should increase by Connect all of the units in series using standard DMX512 signal cable or increments of 13 (e.g.

  • Page 10: Basic

    3 DISPLAY PANEL OPERATION 3.13 FAN SETTING MENU FANS BASIC NORMAL HIGH AUTO MENU scroll through the main menu or return to the main menu ENTER enter the currently selected menu or confirm the current function value MENU FAN SETTING scroll 'UP' through the menu list or increase the value of the current function FAN SETTING to select the fan speed mode OFF ,...

  • Page 11: Static

    3.10 FACTORY DEFAULT SETTING EDIT CUSTOM 01 0~255 SCENE 01 CUSTOM 02 SCENE 02 GREN 0~255 CUSTOM 03 SCENE 03 BLUE 0~255 CUSTOM 04 SCENE 04 WHIT 0~255 STATIC =000 DIMMER = DIM4 CUSTOM 05 SCENE 05 AMBER 0~255 CUSTOM 06 STRB 0~020 DMX address = 001...

  • Page 12: Auto Play Mode

    3.4 AUTO PLAY MODE ID ADDRESS MENU 0~255 AUTO AUTO 01 MENU 1~66 AUTO 10 ID ADDRESS CUSTOM 01 CUSTOM 02 Enter the ID ADDRESS mode to set the ID ADDRESS. CUSTOM 03 CUSTOM 04 CUSTOM 05 SPECIAL SETTINGS CUSTOM 06 CUSTOM 07 CUSTOM 08 CUSTOM 09...
