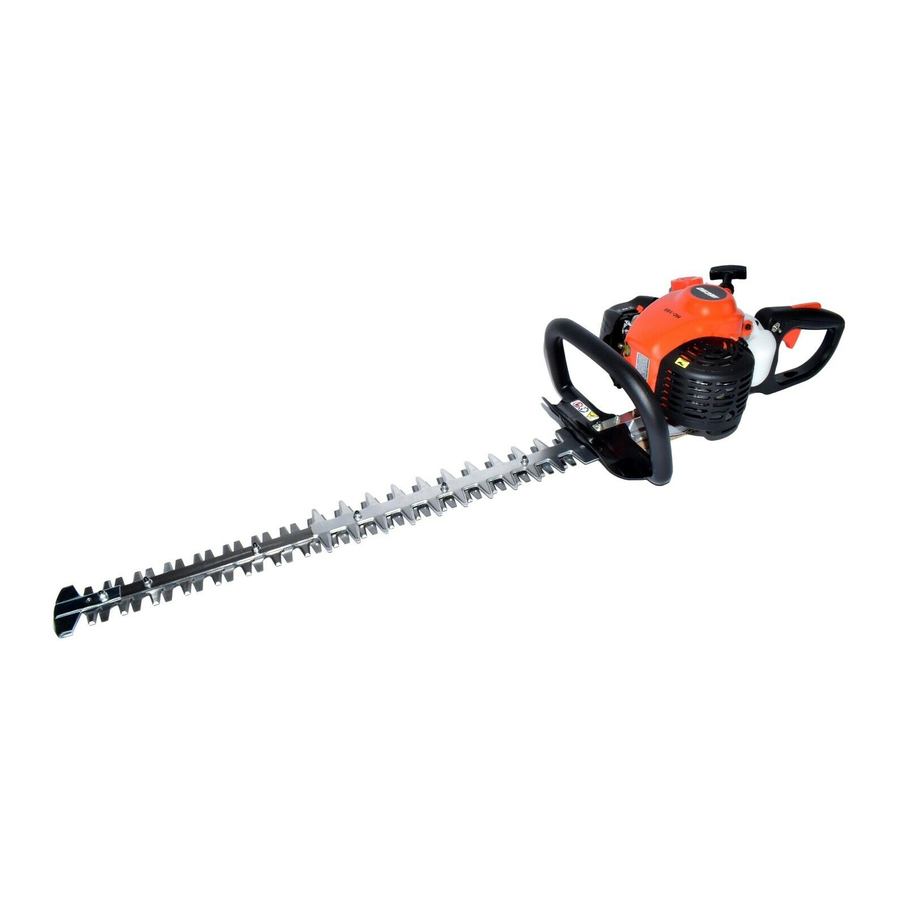

HEDGE TRIMMER

Operator's Manual
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand operator's manual (and safety
manual if included) before use. Failure to read the
manuals could result in serious injury.
This product complies with CAN ICES-2/NMB-2.
Specifications, descriptions and illustrative material in this literature are
as accurate as known at the time of publication, but are subject to
change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
X7502259500
© 11/2017 ECHO Inc.
HC-155

Advertisement

Table of Contents
loading

Related Manuals for Echo HC-155

Summary of Contents for Echo HC-155

  • Page 1: Hedge Trimmer

    Specifications, descriptions and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment. X7502259500 © 11/2017 ECHO Inc.

  • Page 2: Table Of Contents

    Introduction ....................3 Servicing Information .................. 3 Parts/Serial Number ................3 Service....................3 Echo Consumer Product Support ............3 Product Registration ................4 Additional or Replacement Manuals ............ 4 Safety ......................4 Manual Safety Symbols and Important Information ......4 International Symbols ................

  • Page 3: Introduction

    Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. For future reference write them in the space provided below.

  • Page 4: Service

    Register your ECHO equipment on-line at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you.

  • Page 5: International Symbols

    This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. International Symbols Symbol Description Symbol Description Read and understand Fuel and oil mixture Owners Manual Wear eye, ear and Finger severing head protection X7502259500 © 11/2017 ECHO Inc.
  • Page 6 Plan retreat path Primer Bulb from falling objects DO NOT allow Wear slip resistant flames or sparks footwear near fuel Keep bystanders at least 4.5 meters (15 ft.) away. X7502259500 © 11/2017 ECHO Inc.

  • Page 7: Personal Condition And Safety Equipment

    Your judgment and physical dexterity may not be good: • If you are tired or sick • If you are taking medication • If you have taken alcohol or drugs Operate unit only if you are physically and mentally well. X7502259500 © 11/2017 ECHO Inc.
  • Page 8 Hearing/Ear Protection ECHO recommends wearing hearing protection whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
  • Page 9 To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such information, ECHO does not recommend the use of this machine by anyone who has a pacemaker.
  • Page 10 All over head electrical conductors and communications wires can have electricity flow with high voltages. This unit is not insulated against electrical current. Never touch wires directly or indirectly, otherwise serious injury or death may result. X7502259500 © 11/2017 ECHO Inc.
  • Page 11 Do not over reach. Avoid Hot Surfaces • Keep exhaust area clear of flammable debris. Avoid contact during and immediately after operation. Never perform blade maintenance procedures while engine is running. X7502259500 © 11/2017 ECHO Inc.

  • Page 12: Equipment

    SAFETY HC-155 Equipment Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO, INC.

  • Page 13: Emission Control (Exhaust & Evaporative)

    Maintenance Section of this manual. X7502259500 © 11/2017 ECHO Inc.

  • Page 14: Description

    Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. The safety decal is for example only. Your label may appear slightly different.
  • Page 15 Fuel Tank Cap 10. Throttle Handle - For Left Hand 11. Throttle Trigger Lockout 12. Throttle Trigger 13. Stop Switch 14. Recoil Starter Handle 15. Spark Arrestor Muffler Or Spark Arrestor Muffler With Catalyst 16. Blade Cover X7502259500 © 11/2017 ECHO Inc.

  • Page 16: Contents

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. Hedge Trimmer Assembly Operator’s Manual...

  • Page 17: Assembly

    Metal cutters can also create sparks if the cutter strikes rocks, metal, or other hard objects. Contact local fire authorities for laws or regulations regarding fire prevention requirements. X7502259500 © 11/2017 ECHO Inc.

  • Page 18: Fuel

    Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345-FD certified oil, such as Echo brand 2-stroke oils, will void the two- stroke engine warranty. ECHO brand 2-stroke oils may be mixed at 50:1 ratio for application in all ECHO engines sold in the past regardless of ratio specified in those manuals.
  • Page 19 Store in a well-ventilated, unoccupied building, away from sparks and flames. Stored fuel ages. Do not mix more fuel than you expect to use in thirty (30) days, ninety (90) days when a fuel stabilizer is added. X7502259500 © 11/2017 ECHO Inc.

  • Page 20: Starting Cold Engine

    4 or 5 times. Recoil Starter Lay the unit on a flat, clear area. Grip the support handle securely with one hand, and pull the recoil starter handle (D) until engine fires (or 5 pulls maximum). X7502259500 © 11/2017 ECHO Inc.

  • Page 21: Starting Warm Engine

    Periodic carburetor adjustment may be necessary to assure blades do not move at idle. If blades move, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. Throttle Trigger After engine warm-up, grip the throttle handle and support handle.

  • Page 22: Stopping Engine

    (D) until engine starts. Note: If engine does not start after 5 pulls, use Cold Start Procedure. Stopping Engine Throttle Release throttle trigger (F) and allow engine to return to idle before shutting off engine. X7502259500 © 11/2017 ECHO Inc.

  • Page 23: Hedge Trimming

    If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again. Hedge Trimming Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury.

  • Page 24: Maintenance

    Wear gloves to protect hands from sharp edges and hot surfaces. Your ECHO unit is designed to provide many hours of trouble free service. Regular scheduled maintenance will help your unit achieve that goal. If you are unsure or are not equipped with the necessary tools, we recommend that you take your unit to an ECHO Servicing Dealer for maintenance.

  • Page 25: Maintenance Intervals

    2 Inspect blade, and clean and sharpen as needed. Lubricate blades periodically during use. 3 Low evaporative fuel tanks DO NOT require regular maintenance to maintain emission integrity. *Replacement is recommended based on the finding of damage or wear during inspection. X7502259500 © 11/2017 ECHO Inc.

  • Page 26: Air Filter

    Install air filter in air filter case. Install air filter cover. Fuel Filter Level 1. Parts Required: Tune-Up Kit Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. X7502259500 © 11/2017 ECHO Inc.

  • Page 27: Spark Plug

    DO NOT sand blast to clean. Remaining sand will damage engine. 0.65 mm (0.026 in.) Adjust spark plug gap by bending outer electrode. Tighten spark plug to 150-170 kgf • cm (130-150 in • lbf). X7502259500 © 11/2017 ECHO Inc.

  • Page 28: Cooling System

    DO NOT use a metal scraper to remove dirt from the cylinder fins. Assemble components in reverse order. Exhaust System Spark Arrestor Screen Level 2. Parts Required: Spark Arrestor Screen, Gasket X7502259500 © 11/2017 ECHO Inc.
  • Page 29 (B), and eye plate (C). Never use a metal tool to scrape carbon from the exhaust port. Do not scratch the cylinder or piston when cleaning the exhaust port. Do not allow carbon particles to enter the cylinder. X7502259500 © 11/2017 ECHO Inc.

  • Page 30: Carburetor Adjustment

    Periodic carburetor adjustment may be necessary to assure blades do not move at idle. If blades move, readjust carburetor according to these instructions, or see your ECHO Dealer. Engine Break-In New engines must be operated a minimum duration of two tanks of fuel break-in before carburetor adjustments can be made.

  • Page 31: Lubrication

    Parts Required: 20W Engine Oil (blade lubrication), 50-50 mixture of kerosene and 20W oil (blade cleaning) Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands. X7502259500 © 11/2017 ECHO Inc.

  • Page 32: Blades

    Hedge trimmer blades are very sharp, touching them may lead to severe personal injury. Use long hex wrenches and sockets with extensions when tightening blade screws and blade lock nuts to keep hands at a safe distance from sharp blades. X7502259500 © 11/2017 ECHO Inc.
  • Page 33 Lubricate blades (see “Lubrication”). Connect spark plug wire. Adjustment Level 2. Locking ability of hedge trimmer blade lock nuts will diminish each time they are removed. Replace if turning resistance is not felt when installing lock nuts. X7502259500 © 11/2017 ECHO Inc.

  • Page 34: Troubleshooting

    ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy Engine Fuel strainer or Clean or replace starts fuel line See your Echo hard Fuel at No fuel at obstructed dealer or Engine carburetor carburetor does not start X7502259500 © 11/2017 ECHO Inc.
  • Page 35 Clean system properly or plugged dusty locations Spark arres- Spark arres- tor screen Normal wear Replace tor screen plugged Engine Internal engine See your Echo does not problem dealer crank X7502259500 © 11/2017 ECHO Inc.

  • Page 36: Storage

    Perform all periodic lubrication and services that are required. Apply clean oil to the entire length of the blade. Be certain the blade bolts are lubricated. Install blade cover on blades. Tighten all the screws and nuts. X7502259500 © 11/2017 ECHO Inc.
  • Page 37 Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there. 10. Install the spark plug. Connect the spark plug lead to the spark plug. X7502259500 © 11/2017 ECHO Inc.

  • Page 38: Specifications

    Fuel Mixed (Gasoline and Two-stroke Oil) Fuel/Oil Ratio ® 50:1 Power Blend X or ECHO Red Armor ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345- FD, two-stroke, air-cooled engine oil. Gasoline Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more than 10% ethyl alcohol or 15% MTBE.
  • Page 39 HC-155 SPECIFICATIONS MODEL HC-155 Idle Speed 3,300 RPM Clutch Engagement Speed 4,900 RPM Wide Open Throttle Speed 11,250 RPM (W.O.T.) X7502259500 © 11/2017 ECHO Inc.

  • Page 40: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 41 HC-155 PRODUCT REGISTRATION X7502259500 © 11/2017 ECHO Inc.

  • Page 42: Notes

    NOTES HC-155 NOTES X7502259500 © 11/2017 ECHO Inc.
  • Page 43 HC-155 NOTES X7502259500 © 11/2017 ECHO Inc.
  • Page 44 U07915001001 - U07915999999 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
