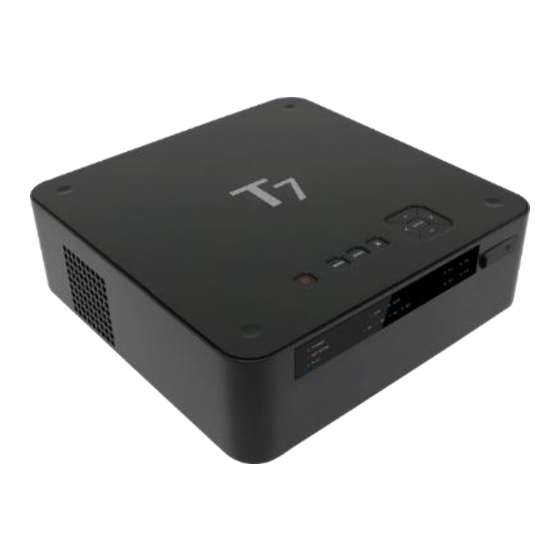

DigitalZone T7 HVP-7004N How To Set Up

Multi uhd player/uhd stream generator
Hide thumbs

Advertisement

Table of Contents

2 sets of T7
(Multi UHD Player)
How to set Sync Play Mode
DigitalZone co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T7 HVP-7004N and is the answer not in the manual?

Questions and answers

Related Manuals for DigitalZone T7 HVP-7004N

Summary of Contents for DigitalZone T7 HVP-7004N

  • Page 1 2 sets of T7 (Multi UHD Player) How to set Sync Play Mode DigitalZone co., Ltd.

  • Page 2: Components Description

    Components Description...
  • Page 3 What kind of materials do you need for installation? 2 sets of Multi UHD Player (HVP-7004N) Network Cable (Cross Cable) Remote IR Extension receiver User Manual Adaptor & Power cord HDMI cable(Option)
  • Page 4 Package Package Weight: 5.3 KG 270mm 290mm 430mm Adapter, Accessories Adapter, Accessories User and HDMI Cables and HDMI Cables Manual...
  • Page 5 How to Use T7 as a Multi UHD Player...

  • Page 6: How To Update Firmware

    How to update firmware Connect USB 1. Connect USB in the Front. 2. Save the firmware file in the root folder and do not copy more than 2 firmware files. 1. Press Set-up in RCU and you can see Settings menu. 2.
  • Page 7 How to update new contents Connect USB Select Play List Select USB 1. Connect USB in the Front. 2. USB media menu will only appear when USB storage is connected. CHECK UPDATE Select Files and press “Enter” 1. Press UPDATE on remote control to open Update menu. 2.
  • Page 8 How to make Contents for Sync Play...
  • Page 9 Video format (CODEC, Container) 1. CODEC 2. Container • VIDEO : HEVC, H.264 • MPEG TS(Transport stream) • AUDIO : AAC, AC3 3. Limitation • Necessary for the same Play List - The file order in the same Play List should be the same. Slave 2 Master Slave 1...
  • Page 10 The policy & rules for making HEVC file Start Time : Fade-in for 0.5 second (Video, Audio) Ending Time : Fade-out for 0.2 seconds (Video, Audio) Classification Setting HEVC (H.265) Format Maximum Profile & Level Main10_HighTier@L5.1 (8 or 10bit) Maximum Resolution ~3840x2160, ~60Hz(4:2:0), and Refresh rate Bit-rate mode...
  • Page 11 The policy & rules for making H.264 file Classification Setting Maximum Profile & Level Main@L5.1 (8 bit) Maximum Resolution and Refresh rate ~3840x2160, ~29.97Hz Bit-rate mode Maximum Bit-rate ~40Mbps Container MPEG TS MPEG 1 layer I, II & III MPEG 4 AAC-LC Stereo & 5.1 Audio DTS &...
  • Page 12 How to Set T7 as a Multi UHD Player...
  • Page 13 How to set the players Slave Master Settings Firmware : firmware version must be 1.20 or above to set synchronize mode Interface Menu: Configure : Manual – Set IP : Master : 101 / Slave : 102 – TimeZone : Necessary of modification/Reservation has to be ON Select Master or Slave and Seamless Off in admin menu...

  • Page 14: Hardware Installation

    Hardware Installation...
  • Page 15 How to connect network cable with switching hub 1. Network Cable A. Connect Network cables between T7 and Switching Hub. If you are using only 2 sets of T7, then you need Cross Cable without a switching hub. Master : T7 HVP-7004N Slave: T7 HVP-7004N Cross Cable...
  • Page 16 How to HDMI cables 2. HDMI Cable You have to check TV Layout and T7 HDMI cables have to be connected to right TV from right T7. It will be convenient for monitoring if the Master set is connected separately. It will be better to use name tag each end of cables for distinguish the cables.
  • Page 17 How to connect power code 3. Adaptors & Power Code A. Connect Power code into Adaptor B. Connect Powers into T7 C. Power code has to be connected in one place for easy turn on / off at once. D. So prepare power board with multi outlet. For example, 1 set of 4 outlet power board for 2 x T7 & 1 Switching Hub.
  • Page 18 Check Points after Hardware Installation...
  • Page 19 What kind of things do I have to check after installation 1. Network Cable Connection Check LED lights in the front of T7. LEDs for Power, Network, Play have to be ON. Also check LEDs for resolution if it is UHD resolution or FHD resolution with refresh rate.

  • Page 20: Hdmi Cable Connection

    What kind of things do I have to check after installation 2. HDMI Cable connection A. If you cannot see the display in TV, please check HDMI cable first if it is connected firmly in TV side and T7 side. B.
  • Page 21 What kind of things do I have to check after installation 3. IP setting 1. Press Set-up in RCU and you can see Settings menu.  Master unit: network setting must follow below 2. Press Left or Right button to see the Network page. ★...

  • Page 22: Admin Menu

    What kind of things do I have to check after installation 4. Admin Menu 3. Move to Sync Play menu and select “Master or Slave or None” 1. Press Set-up in RCU and you can see Settings menu. 2. Press 6330 to enter Administrator menu. ** ‘None’...
  • Page 23 What kind of things do I have to check after installation 5. T7 Sync mode : File update with Master unit  System file update with Master unit - When T7 Sync mode system is all connected, whole system can be controlled by Master unit. ★...

  • Page 24: Contact Address

    Contact Address...
  • Page 25 No.1001 55, Digital-ro 33-gil, Guro-Gu, Seoul, Korea 152-719 [Inquiry for product & order]  Person in charge: Ms. Anna Lee (Chief Manager)  E-mail: jylee@digitalzone.co.kr , jeong0207@gmail.com  Telephone: +82 2 6330 2339 / + 82 10 3407 4485 [inquiry for shipment] ...
