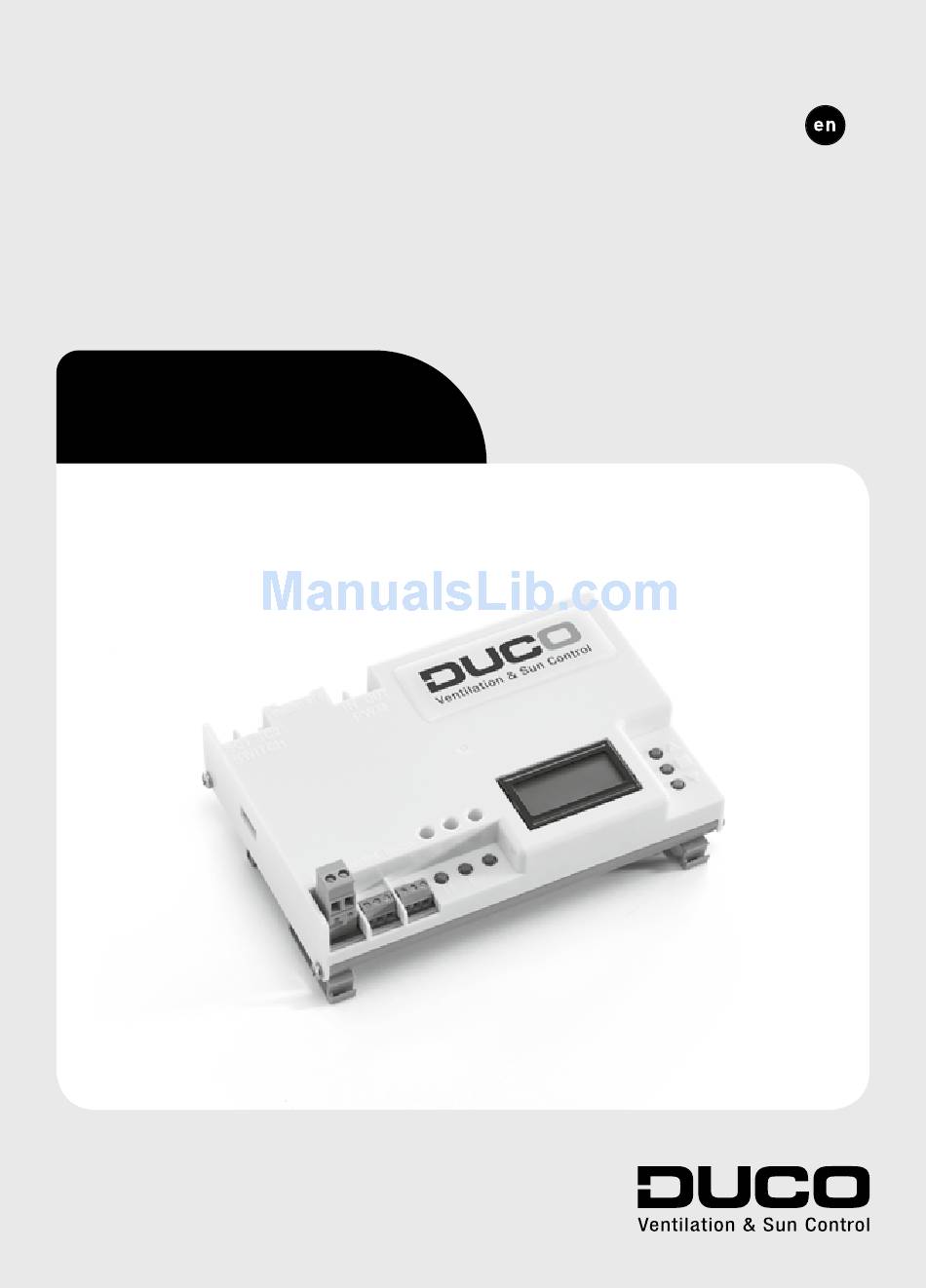

- Page 1 IQ-unit ENGLISH Quick Start L1020200-D 21.06.2017...
- Page 2 De elektronische onderdelen van dit product kunnen onder spanning staan. Vermijd contact met water. Naviguez vers www.duco.eu pour plus d’informations sur la garantie, l’entretien, des fiches techniques etc. L’installation, le raccordement, l’entretien et les réparations doivent être effectués par un installateur agréé.
-
Page 3: Table Of Contents
ENGLISH Table of contents Application ..............................Centrally controlled exhaust ....................Zonally controlled exhaust ....................Connectors and buttons ........................ Cabling ................................Cabling diagram ..........................RF (wireless communication) .................... Wired (cabled communication) ..................Various cabling options ......................Installation ..............................Mounting ..............................Air duct connections ........................ -
Page 4: Application
The IQ-unit controls the DucoBox WTW via the WTW connection. Pressure-controlled fan With this the IQ-unit is not connected to the central extract unit. In this case, the IQ-unit is only required to utilise functions such as ModBus, NightBoost and ventilative cooling. -
Page 5: Centrally Controlled Exhaust
ENGLISH Centrally controlled exhaust With centrally (= not locally) controlled exhaust, air is exhausted in every air duct connected. Master Slave * Connection between IQ-unit and fan (via PWM) is only applicable when using a non-pressure- controlled fan. -
Page 6: Zonally Controlled Exhaust
Intelli Air Valve is insufficient, such as a DucoGrille Close. Master Slave * Connection between IQ-unit and fan (via PWM) is only applicable when using a non-pressure- controlled fan. -
Page 7: Connectors And Buttons
ENGLISH Connectors and buttons... - Page 8 DucoBus (A, B, GND) ModBus (A/-, INST B/+, GND) (installer mode) Switch contact 1 - onboard (n132) ENTER Switch contact 2 - DOWN onboard (n133) DucoBox WTW DIVERS PWM IN Display PWM OUT SD card (software update) Duco Network Tool...
-
Page 9: Cabling
ENGLISH Cabling The IQ-unit is able to communicate with slave components via a wire- less (RF) or wired link. Both types of communication can be combined in one system. Wired connections are to be recommended in all cases of non-residential and other projects where large distances or various walls and/or building levels need to be spanned. -
Page 10: Cabling Diagram
ENGLISH Cabling diagram POWER SUPPLY 24 VDC Wired Not with DucoBox WTW 24 VDC A B GND 24 VDC A B GND 24 VDC A B GND User controller Tronic window ventilator Max. of 99 Wired User controller Tronic window ventilator User controller Tronic window ventilator... - Page 11 ENGLISH DUCOBOX External central extract unit 230 VAC 230 VAC User controller Tronic window ventilator Max. of 30 RF User controller Tronic window ventilator User controller Tronic window ventilator...
-
Page 12: Rf (Wireless Communication)
(strong) connection with the master component are for- warded automatically via no more than one other non-battery-pow- ered component (= hop point). Please refer to information sheet RF communication (L8000001) at www.duco.eu for further information. DUCO RF Power supply... -
Page 13: Wired (Cabled Communication)
The cable required is a 0.8 mm data cable. We strongly advise using a shielded cable to prevent any interference that may affect the data communication. DUCO WIRED Power supply 24 VDC Cabling 3-cores of 0,8 mm communication (A, B, GND) -
Page 14: Various Cabling Options
Variable Air Volume (VAV) valve. Its operating mode (PWM or 0-10 V) can be changed using the display menu or the Duco Network Tool. It is set to PWM as standard. PWM-IN enables the IQ-unit to be controlled like an actuator. - Page 15 Please refer to information sheet Display menu (L8000015) at www.duco.eu for more information about its operation. The contact needs to be closed once in order to pair the component.
-
Page 16: Installation
ENGLISH Installation Mounting Click the IQ-unit onto the DIN rail underneath the DucoBox WTW or another DIN rail. Use a screwdriver to “prise” the IQ-unit off the rail. DucoBox WTW Din Rail... -
Page 17: Air Duct Connections
ENGLISH Air duct connections Keep resistance down (especially in the bypass duct). Avoid excessive use of bends. A non-return flap is required when discharging into a manifold. -
Page 18: Zonal Control Options
In order to enable zonal control, a control valve capable of controlling the air exhaust from the zone must be utilised in each zone. This can be done using an Intelli Air Valve or an actuator via Duco’s Actuatorprint. Intelli Air Valve This intelligent control valve uses a wired connection with the IQ-unit and a wireless (RF) connection with the underlying control components. - Page 19 Actuator via Duco's Actuatorprint Actuators can be controlled via Duco’s Actuatorprint. This PCB enables the IQ-unit to control different actuators separately via a Duco Wired connection. The Actuatorprint supports PWM, 0-10 V, 2 and 3-point control. The Actuatorprint is available as an external component or is...
-
Page 20: Installation
‘Installer mode’. The LED on each component indicates the active mode of the component (see table below). ‘Installer mode’ can be activated by pressing the IQ-unit ‘INST’ button. Once the LED on the master unit starts flashing, it means that ‘Installer mode’... - Page 21 ENGLISH LED INDICATION RED (flashing slowly) Not in network RED (flashing rapidly) Pairing in progress GREEN (flashing slowly) In network GREEN (flashing rapidly) In network, waiting for associated components YELLOW (flashing slowly) Transfer phase (please wait) YELLOW (on) Initialising (system configuration in progress) WHITE or OFF Normal...
-
Page 22: Installing Components
For zonally controlled systems only: Tap once on the feed-through component to pair it with the IQ-unit so the LED flashes green slowly. Tap again so the LED starts to flash rapidly. Underlying components can now be added in this zone. - Page 23 ENGLISH...
- Page 24 ENGLISH EXAMPLE OF A PAIRING SEQUENCE indicates the order in which a button of the component must be pressed. indicates the assigned node number, required for settings in NODE the display menu (see page 107) and Modbus (see page 110). centrally controlled exhaust NODE NODE NODE...
- Page 25 ENGLISH zonally controlled exhaust NODE NODE NODE NODE NODE NODE NODE NODE NODE NODE NODE...
-
Page 26: Other Operations
In order to remove all components from the network (e.g. in the event of problems) you can press and hold ‘INST’ until the LED starts flash- ing red. The IQ-unit will then reboot (around 15 seconds) and the LED will stop flashing. -
Page 27: Configuration
The system needs to be configured for it to work correctly. This will ensure its operation is as quiet and as energy-efficient as possible. See under the Tools heading at www.duco.eu for info about determining ventilation flow rates. Configuration takes place in two stages: setting exhaust vents and actual configuration. - Page 28 ENGLISH DUCOVENT DUCOVENT BASIC DESIGN AND OTHER VENTS 100% 75 m3/h open 50 m3/h open 25 m3/h open Foam...
- Page 29 ENGLISH SITUATION 1: one exhaust vent per zone Set all exhaust vents to the fully open position, regardless of the desired flow rate. When using DucoVent Design exhaust vents, leave the outer ring in place for acoustic effect. SITUATION 2: Multiple exhaust vents per zone with equal flow rates Set all exhaust vents to the fully open position, regardless of the...
- Page 30 ENGLISH SITUATION 3: Multiple exhaust vents per zone with different flow rates Set the exhaust vents so they match the desired flow rate in line with the table on page 100. Configuration The configuration procedure covers the use of multiple (stand-alone) iAV Control valves.
- Page 31 ENGLISH Zone 2 150 m³/h 25 m³/h 50 m³/h 75 m³/h Zone 1 150 m³/h 25 m³/h 50 m³/h 75 m³/h Constant volume control...
- Page 32 This can be done using the arrow keys on the IQ-unit if it has been connected to it (via PWM or WTW). If the zone is fitted with a constant volume control, the point must be found at which the fan runs as slow as possible while attaining the desired flow rate.
- Page 33 Measure any remaining vents within the current zone and fine- tune them using the exhaust vent. Work from highest to lowest flow rate. Exit configuration mode by pressing ‘HIGH’ on the iAV Control valve or on the IQ-unit.
-
Page 34: Settings
The Duco Network Tool is issued to every installer after attending a free training course at the Duco Academy. Please refer to our website or your Duco dealer for further information. * Only in Belgium and the Netherlands... - Page 35 The display will switch off automatically after 2 minutes of inactivity. Press a button ( ) to reactivate the display. Please refer to information sheet Display menu (L8000015) at www.duco.eu for a complete overview of the display menu. DISPLAY MENU...
-
Page 36: Setting The Time
ENGLISH Setting the time The time needs to be set on the IQ-unit for functions including Night- Boost to work correctly. Navigate to the parameters listed below and set them correctly: >Config >Box >Time >Time 20:05 >Day >Month March >Year 2015 >Timezon... -
Page 37: Nightboost
When using ‘Tronic’ window ventilators, outdoor temperature is also measured for even greater operating efficiency in the NightBoost function. NightBoost is not activated as standard in the IQ-unit. Ensure the time of day has been set (see section 8A) and complete the following steps to activate NightBoost: >Config... -
Page 38: Modbus
ENGLISH ModBus A ModBus link can be used to read out and alter ventilation system parameters from connected equipment (e.g. a building management system). Please refer to information sheet ModBus (L8000009) at www.duco.eu for comprehensive information about ModBus. - Page 40 Geïnstalleerd door: Installé par: Installed by:...
