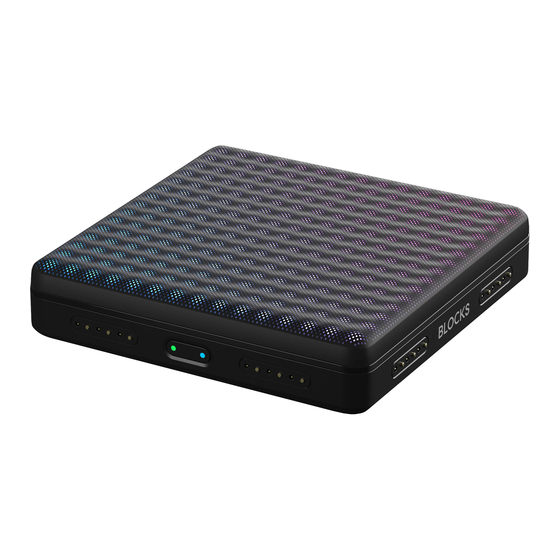

Lightpad Block Creator Manual
1 Introduction - Lightpad Block
Welcome to the Creator Manual for the Lightpad Block. We think of the people who buy and use
ROLI's products as creators more than customers. Our products are designed to extend the joy of
music creation to everyone — and thereby empower people as the creators they are. Everyone
who buys and uses BLOCKS is investing in this vision of creativity and therefore is also a co-
creator of ROLI.
BLOCKS is the most accessible and versatile music creation system ever made. It is a modular
music studio that lets anyone make music whether they're a professional musician or a total
beginner. Each individual Block is powerful and intuitive, offering unique capabilities that let
people make music in simple but far-reaching ways. The Blocks connect together to create
customizable kits that suit any budget, skill level, and musical style. With a click of magnetic
connectors, music-makers can build their own instruments as they go.
You're starting with the Lightpad Block, the center of the BLOCKS system. You may already be
shaping music on its tactile, glowing surface. This comprehensive Creator Manual explains the
details of your Lightpad Block to ensure that you get the most out of it.
We have included a short list of terms specific to BLOCKS at the beginning of this manual. We
will refer to these terms throughout this Creator Manual.
