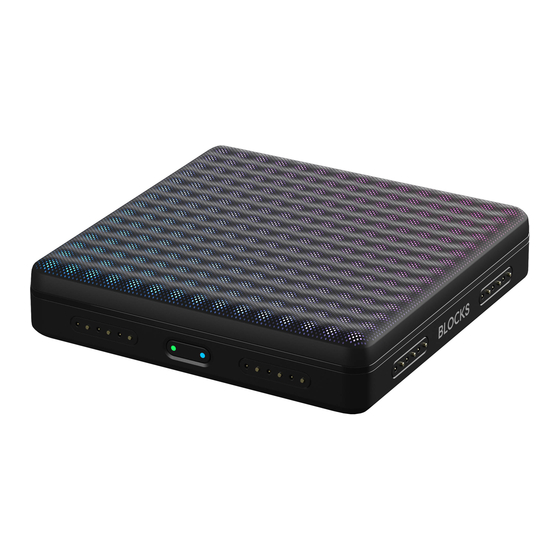

ROLI Lightpad Block
Creator Manual
September 2016
Introduction
Hello creator, and welcome to the Creator Manual for the Lightpad Block. We think of the
people who buy and use ROLI's products as creators more than customers.
Our products
are designed to expand the bandwidth of creative expression and thereby empower people
as the creators they are. Everyone who buys and uses BLOCKS is investing in this vision of
creativity and therefore is also a co-creator of ROLI.
You may already be playing your BLOCKS and discovering its creative possibilities. This
comprehensive Creator Manual explains all of the details about your Lightpad Block to
ensure that you get the most out of it.
BLOCKS is a modular, digital music making platform which open new possibilities for
musical expression and is the world's first truly mobile music studio. The individual Blocks
are user-configurable and connect to each other magnetically in countless ways to suite your
specific musical needs or style. There are currently 3 different Blocks to choose from: The
Lightpad Block, the Loop Block, and the Live Block.
On the next page we have included a short list of terms specific to BLOCKS. We will refer to
these terms throughout this Creator Manual.
Please note that this is a digital manual updated regularly to reflect software updates and
other improvements. Be sure to check for updates on noise.fm. This Manual is current up to
NOISE v1.1.57.
Support and Feedback
We want you to have the best experience possible with our products and would love to hear
your feedback. Should you have any questions, are experiencing any problems, or just want
to say hello, please don't hesitate to get in touch.
The easiest way to reach us is to send a support enquiry from: noise.fm or
www.support.roli.com. We will respond as quickly as possible.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lightpad Block and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roli Lightpad Block

Summary of Contents for Roli Lightpad Block

  • Page 1 Creator Manual September 2016 Introduction Hello creator, and welcome to the Creator Manual for the Lightpad Block. We think of the people who buy and use ROLI’s products as creators more than customers. Our products are designed to expand the bandwidth of creative expression and thereby empower people as the creators they are.

  • Page 2: Table Of Contents

    System Requirements 1.3. The NOISE App 1.4. Register on noise.fm The Lightpad Block 2.1. Connections and Specifications 2.2. Charging the Lightpad Block 2.3. Connecting to the NOISE App 2.4. The Lightpad Surface 2.5. Make Music Now Playing the Lightpad Block 3.1.
  • Page 3 1x1: Controlling FX Lightpad Surface: the 15 x 15 LED matrix made up of individual cells (225) and covered with laser etched silicone which makes up the surface of the Lightpad Block and enables users to input multidimensional or 5D Touch performances.
  • Page 4 Lightpad Block: the 5D Touch sensitive 15 x 15 LED matrix made up of 225 individual cells covered with laser etched silicon which enable the input of 5D Touch performances. Live Block: the Control Block which features 10 buttons and enables performers to change octave, arpeggiated, play chords or individual notes, sustain notes, change scales, and adjust volume.

  • Page 5: Getting Started

    BLOCKS is a modular, digital music making platform which opens new possibilities for musical expression through the use of 5D Touch. BLOCKS starts with the Lightpad Block and can be made up of one or more individual Blocks such as the Loop Block and Live Block and can be connected to each other magnetically in multiple configurations.
  • Page 6 1.4 Product Registration In order to fully unlock the potential of BLOCKS and the NOISE app, please register BLOCKS. BLOCKS can be registered either through the NOISE Application or by visiting www.noise.fm. Launch the NOISE app on your compatible iOS device. Upon launching the BLOCKS app for the first time, you will be asked to sign in or register with noise.fm.

  • Page 7: The Lightpad Block

    The 5D Touch-sensitive control surface features 15 x 15 RGB LED Matrix that make up a total of 225 cells. The Lightpad Block measures 94mm x 94mm x 20mm (3.7in x 3.7in x 0.78 in) / and weighs 250g (0.5lbs)

  • Page 8: Charging The Lightpad Block

    Adding one or two Control Blocks such as the Loop Block and Live Block (which get charged by connecting to a Lightpad Block that is plugged into either a computer or a USB charger) will increase the overall charge time.

  • Page 9: The Lightpad Surface

    2.4 The Lightpad Surface The Lightpad surface features a 15 x 15 LED matrix comprised of individual cells (225) and covered with laser etched silicone which enables users to input multidimensional or 5D Touch performances. The Lightpad Surface is made of silicone which is purposely engineered to withstand repetitive pressure inputs from fingers and hands while providing passive haptic feedback to the input gestures.

  • Page 10: Playing The Lightpad Block

    3. Playing the Lightpad Block 3.1 Five Dimensional Touch or 5D Touch The Lightpad Block is a multidimensional instrument that lets you modulate sound through five dimensions of touch. NOISE is optimised to respond to these dimensions of touch. Through simple movements and gestures, you can shape sound easily and discover new modes of expression.

  • Page 11: Playing Techniques

    3.2 Playing Techniques Media: Diagram or wireframe of hands doing gestures (vibrato, chromatic bend, glide bend, press) with descriptions under each illustration. (To be created) You can apply playing techniques associated with keyboard, string, and electronic instruments to the Seaboard GRAND. Playing techniques include: Strike and hold: Strike the Lightpad Surface and hold for a duration without adding any additional movement.

  • Page 12: Incorporating Other Blocks

    4. Care and Maintenance 4.1 Cleaning the Lightpad Block Basic care and attention will protect your Lightpad Block and help it stay in optimal condition. Keep it away from direct sunlight, sharp objects or edges,corrosive solvents, liquids, and especially oils - including greasy fingers after eating food. The lightpad surface is designed for finger and hand pressure/impact, but NOT for hard objects, such as drum sticks.
  • Page 13 Login to noise.fm to access the BLOCKS Creator Manuals and other helpful information. 5.2 ROLI Support Contact the ROLI support team directly on www.roli.com/support for any questions. You will receive an answer within 24 hours. Our support team is here to help you.
