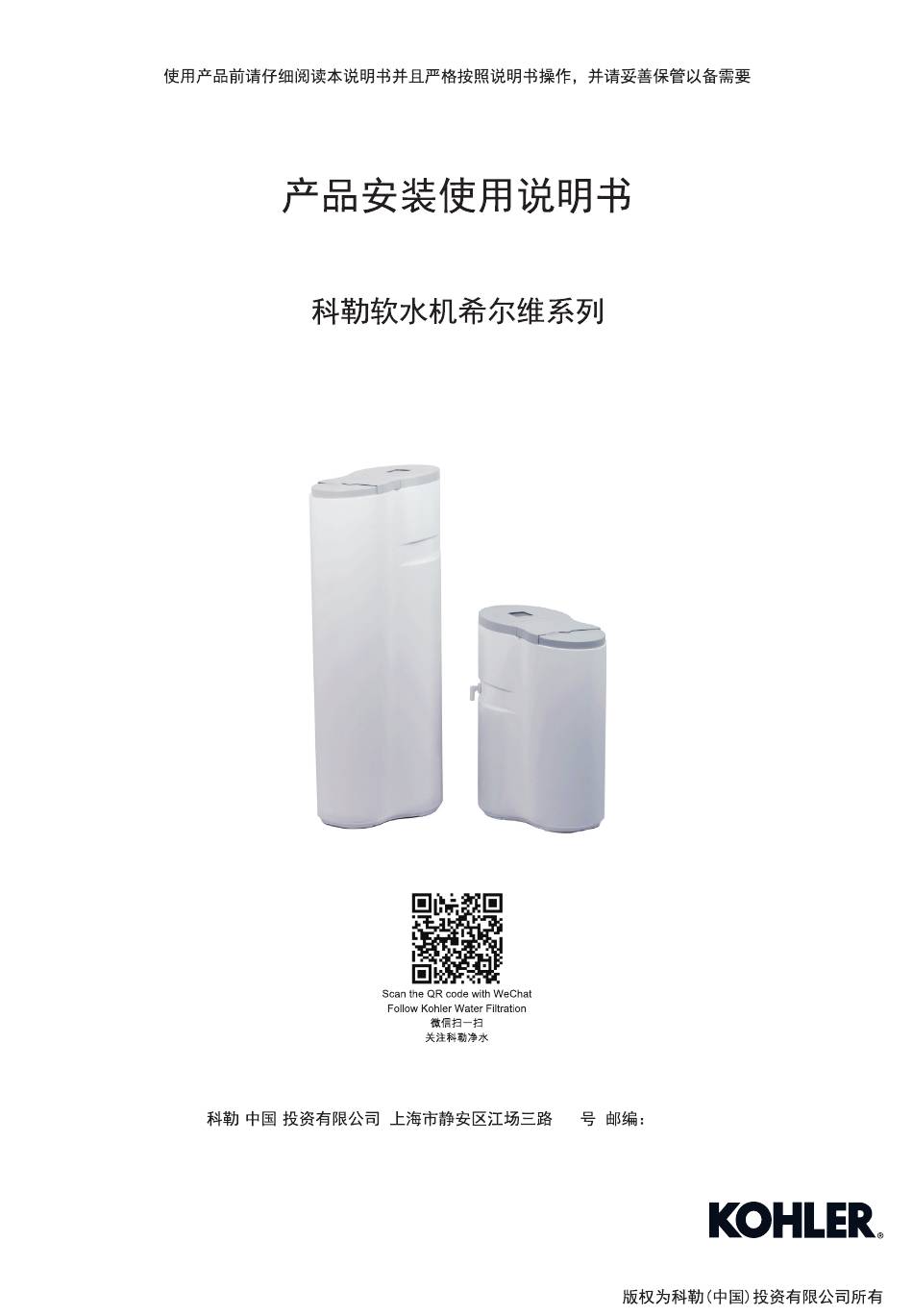

Installation Guide
TM
Aleutian Water Softener Series
K-96025T-PS515-01R/K-96025T-PS528-01R
K-96025T-PS511-01R/K-96025T-PS522-01R
KOHLER CHINA INVESTMENT CO., LTD
NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC
POST CODE: 200436
(
)
158
200436
©
Copyright Kohler China Investment Co., Ltd.
1271693-T01-F
©
Advertisement
Table of Contents
Related Manuals for Kohler Aleutian Series
Summary of Contents for Kohler Aleutian Series
- Page 1 Installation Guide Aleutian Water Softener Series K-96025T-PS515-01R/K-96025T-PS528-01R K-96025T-PS511-01R/K-96025T-PS522-01R KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 © Copyright Kohler China Investment Co., Ltd. 1271693-T01-F ©...
-
Page 2: Before You Begin
Welcome To Your New World Of Elegant Living With KOHLER Kitchen And Bath Water System. Product Function: Kohler Aleutian Water Softener can be repeatedly regenerated to effectively reduce water hardness . 800 820 2628 Free service hot line: 800 820 2628... -
Page 3: Performance Data Sheet
50.8 Refer to Service Parts Page K-96025T-PS528-01R for the Exploded Diagram. 1052 1110 K-96025T-PS522-01R K-96025T-PS515-01R K-96025T-PS511-01R Kohler reserves the right to change marked dimensions without prior notice. PERFORMANCE DATA SHEET PERFORMANCE DATA SHEET Model PS511 PS515 PS522 PS528 Product Name PS511 "... -
Page 4: Getting Started
GETTING STARTED GETTING STARTED Accessories List Installation Guide & Service Parts Page & Drain Line (1/2") 6m Male Thread Adapter Kit Compliance Certification Softener System Power Adapter Drain Line Clamp Lubricating Grease TOOLS AND MATERIALS TOOLS AND MATERIALS All Installations Tools (Not Include) Safety Glasses Assorted Screwdrivers Pipe Wrench... -
Page 5: Serial Numbers
Note: Do not recommend using high impurity halite, Harden salt, Granular salt, Sheet salt, etc. Note: Sodium Information: Water softeners using sodium chloride for regeneration add sodium to the water. Persons who are on sodium restricted diets should consider the added sodium as part of their overall sodium intake. - Page 6 Drain Facilities Choose a nearby drain that can handle the rated drain flow (floor drain, sink or stand pipe). NOTE: Waste connections or drain outlets shall be designed and constructed to provide for connection to (25mm) the sanitary waste system through an air gap of two pipe diameters or 1 inch (25mm), whichever is larger.
- Page 7 Refer to Figure 3 and the instructions below to connect the bypass valve, and male thread adapter kit. 1. All softener are equipped with a bypass valve. The bypass valve is installed on the outlet side of the control valve. 2.
-
Page 8: Plumbing Connections
Plumbing Connections Refer to Figure 2 to connect the softener to the plumbing system. WARNING! Electrical shock hazard! Unplug the Water Meter Hard Water Bypass Valve unit before removing the cover or accessing any internal control parts. Electrical Outlet Soft Water CAUTION! The filter must be installed with the Power Adapter inlet, outlet and ports as labeled. -
Page 9: Test System
First Time Setup Procedure Plug the transformer into a 220 Volt, 50 Hz, Electrical Outlet. The screen take up to 2 minutes to initialize,then show standby display. Set current date and time. Set the language and region. Set raw water hardness and people number. Advanced settings (If Necessary). -
Page 10: Troubleshooting Guide
Check the Power adapter is damaged or not, and call regeneration cycle. service to replace it . C. Control Valve failure. Contact Kohler service. Add the salt and start a manual regeneration A. Salt be used up. immediately. B. By-pass valve is opened or Internal Turn off the by-pass valve or replace the seal. -
Page 11: Button Definition
PROGRAMMING Note: The interface may change due to design upgrade, please refer to the actual interface. 1. Button Definition " " button: Enter or exit the system menu. Press and hold the button for 3 seconds to unlock the screen. "... -
Page 12: System Initialization
3. System Initialization When power is first supplied, the valve may take up to two minutes to initialize. During this time, the valve will show: Do not touch any buttons at this time. When the valve reaches the service position, it will show service display. 4. -
Page 13: Manual Regeneration
5. Manual Regeneration Press and hold the " " button for 3 seconds to enter the manual regeneration interface. Screen will display: (1) If you choose "DELAY", the valve will start regeneration in next REGEN. TIME (default is 02:00); 02:00) (2) If you choose "IMMEDIATE", the valve will regeneration immediately. - Page 14 When the valve reaches " BACKWASH " position, screen will display: When Backwash Remaining time reaches zero or any button is operated, valve will be advanced to the rest of 00:00 cycle position: " RINSE " and " REFILL ", just like the above cycles.
- Page 15 You can only change the flashing parameters. Region and Language setting Unit format and language can be selected in "Region&Language" setting item. Setting method: Press the " " " " button to move the cursor to the desired parameter. Press the "...
- Page 16 Holiday Mode setting Holiday Mode can be selected in "Holiday Mode" setting item. You should input the end of date of holiday to let the valve clean the media during your holiday. Once you turn on the "Holiday Mode", the valve's regeneration only has two cycles: Backwash and Rinse.
- Page 17 Automatic Calculate mode's page under different regeneration mode is as follows: Calendar Clock Meter Immediate Meter Delayed Meter Override Manual Settings mode's page under different regeneration mode is as follows: Calendar Clock Meter Immediate Meter Delayed Meter Override Regen. Mode Four Regeneration modes can be selected to meet different installation environment.
- Page 18 Calendar Clock: the unit will initiate regeneration at the next pre-set regeneration time based on the interval of days between regeneration days. Meter Immediate: the unit will initiate regeneration immediately after the volume remaining reaches zero. Meter Delayed: this is the most common setting. When the volume remaining reaches zero, the system will initiate regeneration at the next preset regeneration time.
- Page 19 Water Usage This setting is used to calculate the interval days between regenerations. Monthly Water Usage is the water usage of average of months Data Entry This setting is used to calculate the key regeneration parameters (Capacity, Salt Amount, Refill Time, etc.). These data should be input correctly, wrong data will cause the unit doesn't work properly.
- Page 20 Restore Defaults This setting allows the current settings to be erased and changed back to the default settings. System Information Press the " " " " button to inquire some information of valve by entering "System Information" item. In "Total Regenerations" and "Peak Flow Rate" page, press and hold "...
- Page 21 X: Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current requirements in GB/T 26572. The product "service life for environment protection" is 10 years; Kohler Company will specify product service life based on product characteristics. The product "service life for environment protection" is only effective when the product is used as described in the product specification.
- Page 22 2021/3/31 1271693-T01-F...
