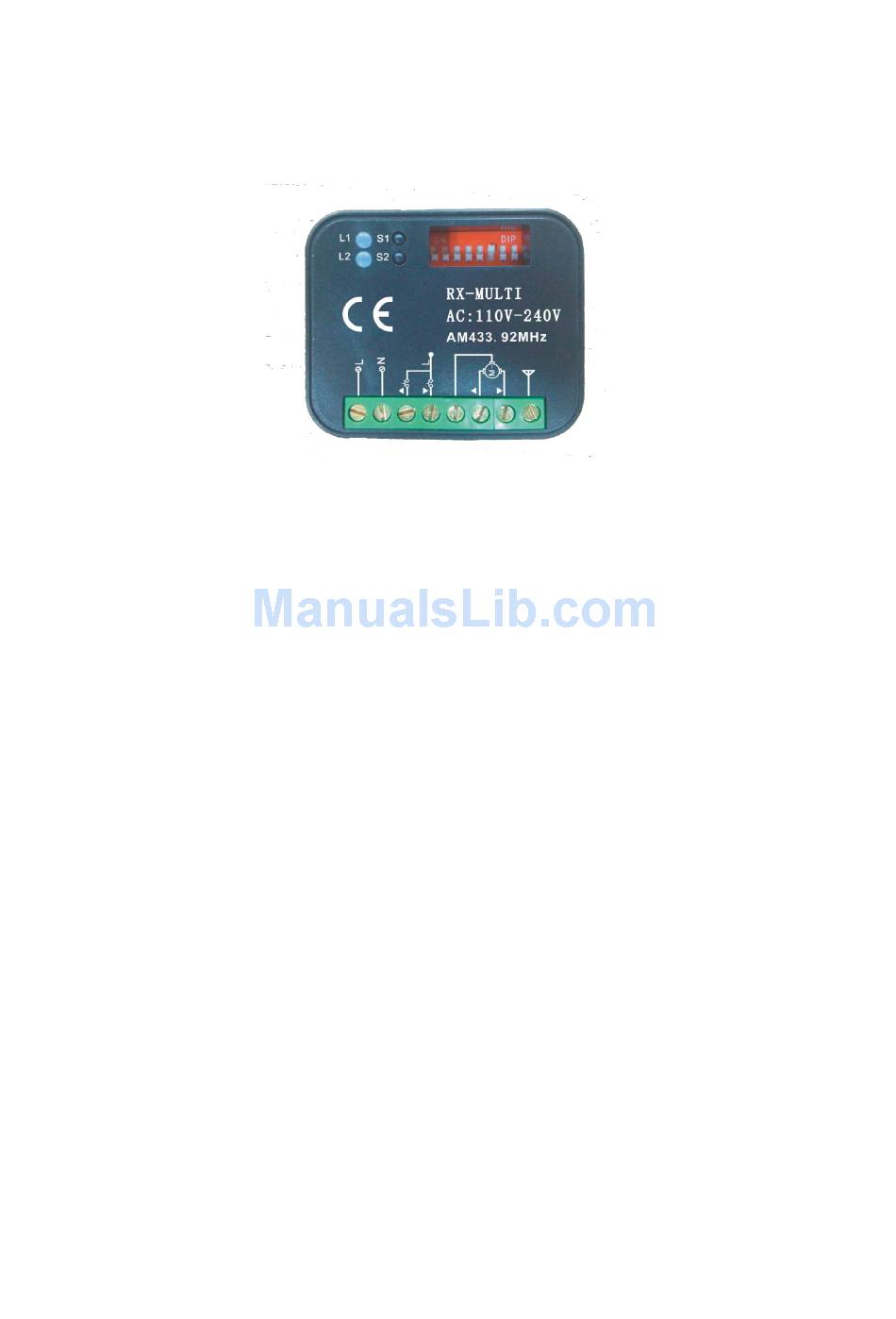

RX MULTI 240v: CONTROL BOARD FOR ROLLER SHUTTER
MANUAL OF CONTROL BOARD FOR
ROLLER SHUTTER
ATTENTION: IT NEEDS TO USE AN ANTENNA
TO WORK PROPERLY

1. Brand selection

With 8 bits DIP switches, the user can make different combination for different
brands. Select the brand before the roller box will be used.
The brands selection is showed in table 1.

2. Learn button S2 (TEST) and LED L2

Before the remote can work, it must be entry into the roller box.
Button S2 can work as OPEN/STOP/CLOSE.

3. Open/Stop/Close button S1 and working LED L1

Another button S1 on the roller box works as OPEN/STOP/CLOSE function.

4. Open/Close input

Also, roller box can work by external input, OP/STOP/CL. The inputs are connected
via switch with the AC power. OP input for openning and stop, CL for close.

5. The motor output

3 outputs, U, V, W are for motor connection. The capacitor should be wired
between the output V and W.

6. Antenna

The last connector is for antenna. The antenna must be connected.
For different working frequency, the lenght is different. The antenna supplied by
Factory works for 433.92 Mhz.
