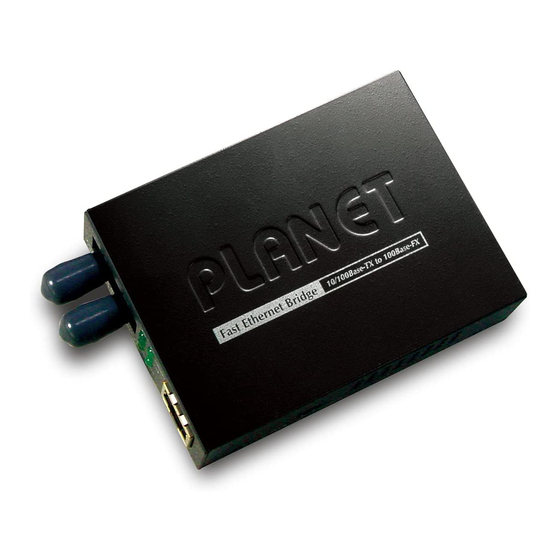

- Page 1 10/100Base-TX to 100Base-FX TP to Fiber Ethernet Bridge Converter...
- Page 2 Copyright © PLANET Technology Corp. 2000. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. The information in this manual is subject to change without notice. elong to their respective owners. All other trademarks b...
- Page 3 1. Overview Thank you for purchasing PLANET FT-80X family 10/100Mbps Ethernet Twisted pair to 100Base-FX Fiber-optic Bridge Converter. This converter is used to convert one type media signal to other type equivalent that allows two type segments connect easily, efficiently and inexpensively. This converter can be used as a standalone unit or as a slide-in module to the 19”...
- Page 4 4. Product Outlook Right View One RJ-45 Twisted-Pair jack, one fiber-optic connector and six LED indicators. Left View One DC jack for DC power input. One DIP switch for Fiber-optic mode selection, FDX for full-duplex, and HDX for falf-duplex. Side View One DIP Switch for TP Device selection.
- Page 5 • Turn off the power of the device/station in a network to which the FT-80X will be attached • Ensure that there is no activity in the network • Attach fiber cable from the FT-80X to the fiber network. TX, RX must be paired at both ends •...
- Page 6 6. Duplex Mode setting The TP port of FT-80X support duplex mode detection by auto-negotiation (A-N). The following is the duplex mode parameters: Fast Ethernet Device FT-80X Duplex Mode support Ethernet / Fast Ethernet Hub Half-Duplex Ethernet / Fast Ethernet Switch (without A-N) Half-Duplex Fast Ethernet Devices * Full-Duplex /...
- Page 7 the port runs in 10Mbps Green Lit when +5VDC power detected Note: Fiber-optic Partner should be set to the correct mode according to this FDX indicator for optimal network performance. 8. Cable Connection Parameter The limitations are as below: Duplex Connection Limitation (max.) Twisted Pair...
- Page 8 The power jack of FT-80X is with 2.5mm in the central post and required +5VDC power input. It will conform to the bundled AC-DC adapter and Planet’s Media Chassis. Should you have the problem to make the power connection, please contact your local sales representative.
