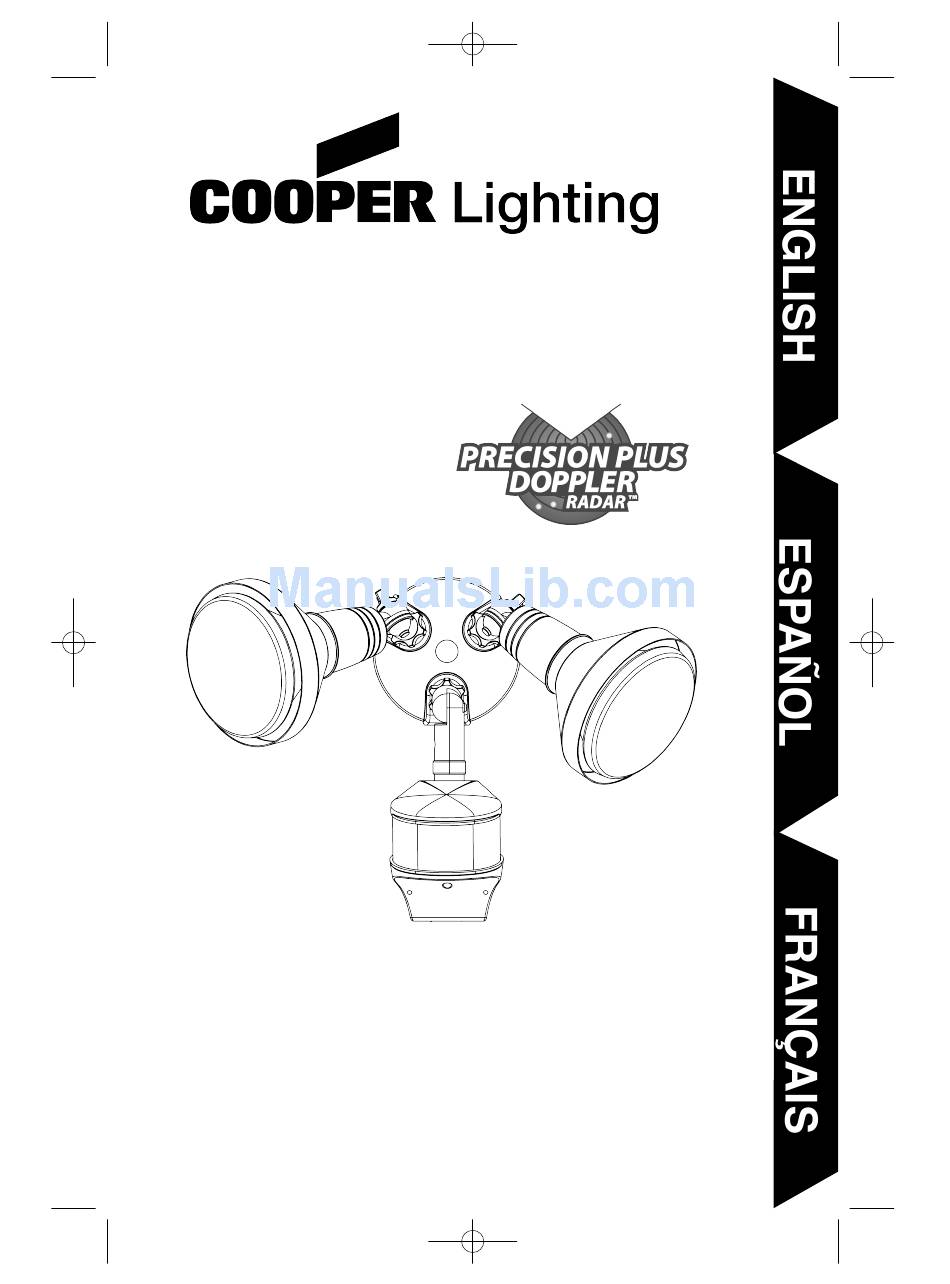

- Page 1 MS275RD_RDW 825-0133.qxd:RFM181 I.S. 325-1384.qxd 8/28/08 11:18 AM Page 1 Instruction Manual Instrucciones Directives MS275RD MS275RDW...
- Page 2 Page 2 MS275RD (Bronze) MS275RDW (White) Congratulations. You have just purchased a Cooper Lighting, LLC motion- activated floodlight that combines both Precision Plus Doppler Radar™ and PIR (Passive Infrared) technology. This combination provides the maximum accuracy and protection for your home and family.
- Page 3 Under Part 15 of the FCC Rules, any changes or modifications to the motion detector described in this instruction sheet that are not expressly approved by Cooper Lighting, LLC could void the user’s authority to operate the equipment.
- Page 4 MS275RD_RDW 825-0133.qxd:RFM181 I.S. 325-1384.qxd 8/28/08 11:19 AM Page 4 • Locate motion sensor so motion moves laterally or towards the detection zone (Fig. 1). • Locate sensor away from heat producing sources to prevent false triggering. Also, be very careful not to include objects such as windows, white walls and water in the detection zone whenever possible.
- Page 5 MS275RD_RDW 825-0133.qxd:RFM181 I.S. 325-1384.qxd 8/28/08 11:19 AM Page 5 Aiming the light Loosen the knob on the side of the lamp holder. Tilt lamp holder up or down to desired position then retighten knob. WARNING: Deviation from the assembly instructions may result in a risk of electric shock.
- Page 6 MS275RD_RDW 825-0133.qxd:RFM181 I.S. 325-1384.qxd 8/28/08 11:19 AM Page 6 Selecting your mode of operation Mode of MODE Knob How to Set Operation: Adjustment: Power Switch: Test Setting MODE knob arrow Wall Switch Setting points to TEST (connected to fixture) Light should turn ON with motion both day and Keep wall switch night.
- Page 7 MS275RD_RDW 825-0133.qxd:RFM181 I.S. 325-1384.qxd 8/28/08 11:19 AM Page 7 What to do if . . . OUTDOOR LIGHTS DO NOT Is there power to the fixture? COME ON WITH MOTION AT • Check to see that the circuit breaker has not been tripped. NIGHT •...
- Page 8 To obtain warranty service, please write to Cooper Lighting, LLC, 1121 Highway 74 South, Peachtree City, GA 30269. Enclose product model number and problems you are experiencing, along with your address and telephone number.
- Page 9 1121 Highway 74 South, Peachtree City, GA 30269 www.cooperlighting.com © 2008 Cooper Lighting, LLC Reproductions of this document without prior written approval of Cooper Lighting, LLC are strictly prohibited. Call for customer service and/or missing or damaged parts (800-334-6871) Printed in China...
