8. Screw the video capture card firmly into
place using the screw you removed in step
6.
9. Replace the computer's cover. Fasten it
with the screws you removed in step 3.
10. Plug the computer's power cord back into
the computer and reattach your peripherals
to the computer.
Connecting Your NTSC Camera
to Your Video Capture Card
You can use the NTSC video camera
included in your Bigpicture package, a
camcorder (not included), or a VCR (not
included) to channel video signals into your
capture card. If you wish to use a camcorder
or VCR, go to "Connecting a Camcorder or
8
I
NSTALLATION
Other NTSC Device to the Video Capture
Card" on page 10.

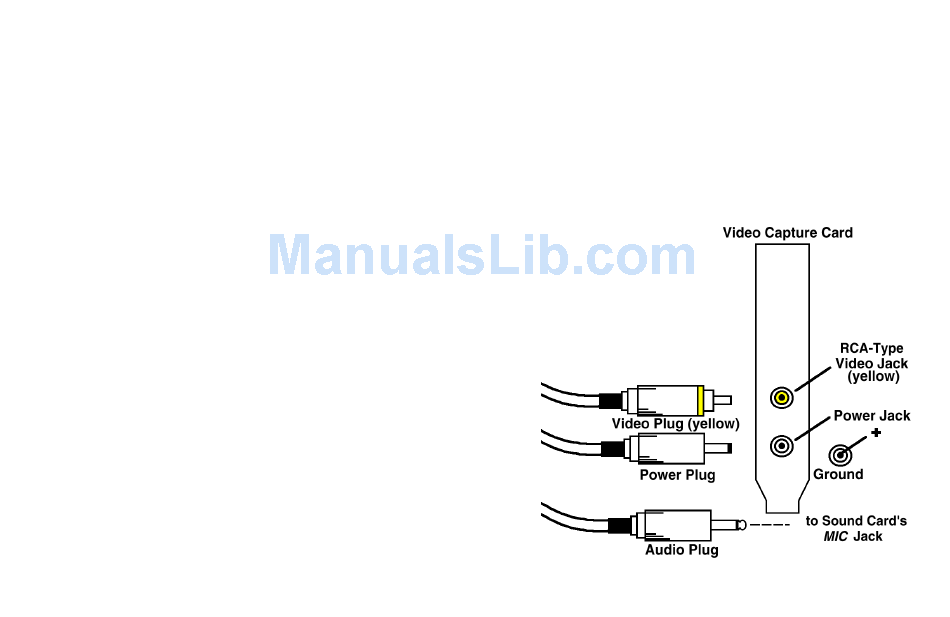

Make the following connections to hook up
your Bigpicture NTSC camera while referring
to the diagram below.
