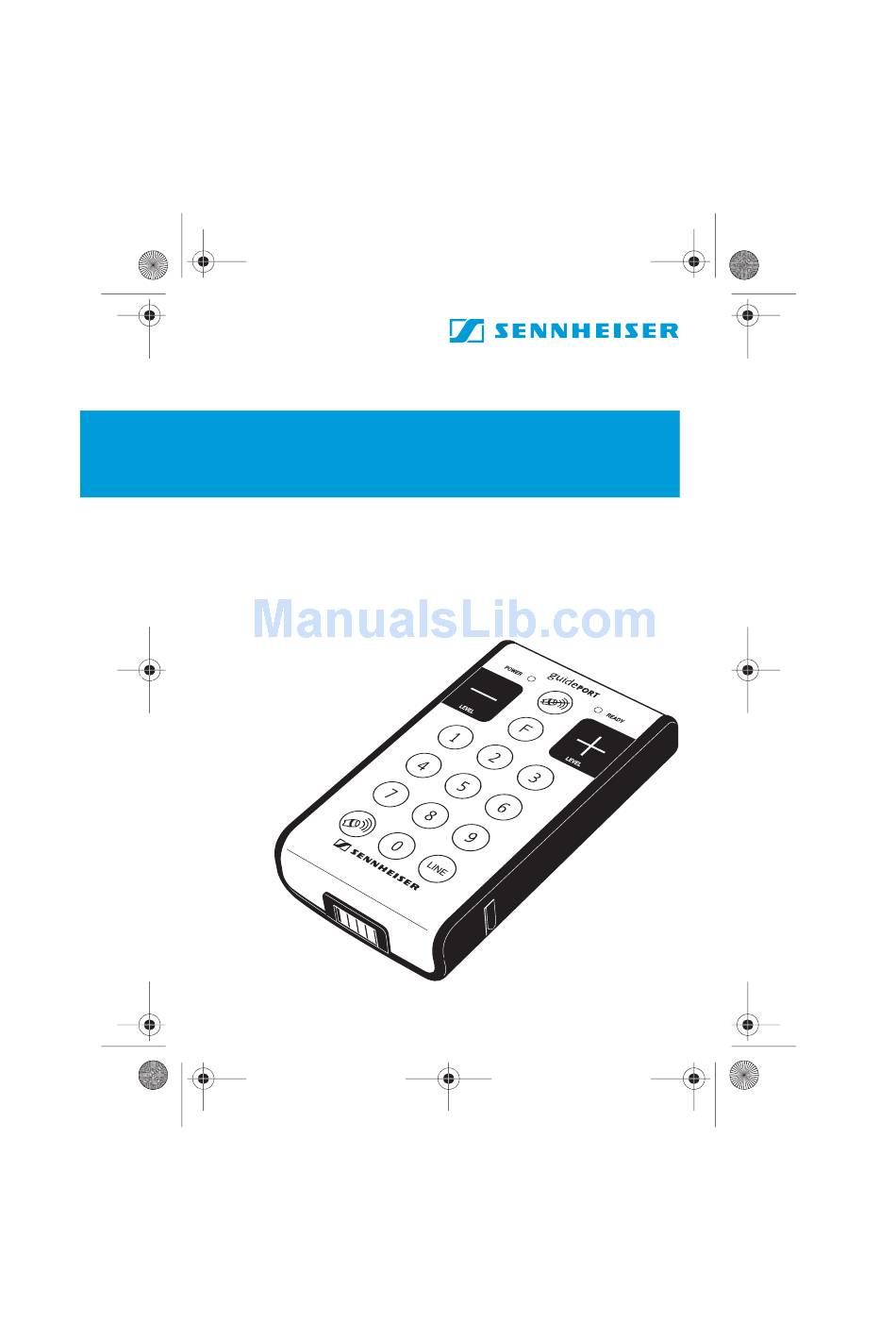

- Page 1 SK3200_516571_0507_SP5.book Seite 1 Dienstag, 25. März 2008 12:00 12 GP SK 3202 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso...
-
Page 2: Table Of Contents
Over 60 years of accumulated expertise in the design and manufac- ture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser products quickly and to the fullest. -
Page 3: Important Safety Instructions
SK3200_516571_0507_SP5.book Seite 2 Dienstag, 25. März 2008 12:00 12 Important safety instructions These instructions contain important safety information. y Please read these instructions carefully and completely before using the portable transmitter. y Heed all warnings. y Follow all instructions. y Make these instructions easily accessible to all users at all times. - Page 4 SK3200_516571_0507_SP5.book Seite 3 Dienstag, 25. März 2008 12:00 12 y Only use attachments/accessories specified by Sennhe- iser. y Refer all servicing to qualified service personnel. Servic- ing is required if the portable transmitter has been dam- aged in any way, such as liquid has been spilled, objects have fallen inside, the portable transmitter has been exposed to rain or moisture, does not operate properly or has been dropped.
-
Page 5: Delivery Includes
SK3200_516571_0507_SP5.book Seite 4 Dienstag, 25. März 2008 12:00 12 Delivery includes 1 SK 3202 portable transmitter 1 neck strap 1 antenna Quick Start Guide (a detailed instruction manual can be found in PDF format on the CD (see chapter 5) and in the line help) In order to be able to configure and use the portable trans- mitter, you also require the following equipment and soft-... -
Page 6: The Sk 3202 Portable Transmitter
SK3200_516571_0507_SP5.book Seite 5 Dienstag, 25. März 2008 12:00 12 The SK 3202 portable transmitter The SK 3202 is a portable stereo transmitter, allowing you to offer personal guided tours using your system. The SK 3202 ensures excellent speech intelligibility even over longer distances. - Page 7 SK3200_516571_0507_SP5.book Seite 6 Dienstag, 25. März 2008 12:00 12 Suitable microphones You can connect one of the following Sennheiser micro- phones (not included) to the portable transmitter: y Clip-on microphones with 3-pin screw locking LEMO plug: MKE 2-4 Gold C,...
-
Page 8: Operating Elements
SK3200_516571_0507_SP5.book Seite 7 Dienstag, 25. März 2008 12:00 12 Operating elements ¹ ¸ ³ · µ » ¿ ¾ º ´ ² ¶ ³ ¸ POWER LED ANT antenna socket · ¹ FUNCTION key LINE LED » MUTE key LINE socket (3.5 mm stereo) ¿... - Page 9 SK3200_516571_0507_SP5.book Seite 8 Dienstag, 25. März 2008 12:00 12 Meanings of the four LEDs Status Meaning ³ both lit Portable transmitter is switched POWER LED ¿ on. Capacity of the built-in re- READY LED chargeable battery is sufficient. both off Portable transmitter is turned off.
- Page 10 SK3200_516571_0507_SP5.book Seite 9 Dienstag, 25. März 2008 12:00 12 Status Meaning lit green Microphone input is switched on. MIC LED lit yellow Mic input sensitivity is correctly adjusted. lit red Mic input is overmodulated (clipping). Thus, the audio signal in the receivers is distorted. flashes red Mic input is muted or tour inter- rapidly...
-
Page 11: Putting The Sk 3202 Into Operation
SK3200_516571_0507_SP5.book Seite 10 Dienstag, 25. März 2008 12:00 12 Putting the SK 3202 into operation Connecting the microphone Connect the plug from the micro- phone cable to the MIC socket Lock the plug by screwing down the coupling ring. Connecting a line source You can connect an external audio source such as a CD play- er (or other audio device) to the portable transmitter. - Page 12 SK3200_516571_0507_SP5.book Seite 11 Dienstag, 25. März 2008 12:00 12 ule. Note: Charging takes approx. 4 hours. With a fully charged rechargeable battery, the portable transmitter’s operat- ing time is approx. 8 hours. Adjusting the sensitivity of the microphone input Make sure that the microphone is connected and then speak in a normal voice.
-
Page 13: Using The Sk 3202 Portable Transmitter
SK3200_516571_0507_SP5.book Seite 12 Dienstag, 25. März 2008 12:00 12 Using the SK 3202 portable transmitter Intended What to do LED indications/Result operation Configuring See “Visitor Profiler” software module. the portable transmitter ³ Automatic Remove the portable The POWER LED ¿ turn-on transmitter from the the READY LED... - Page 14 SK3200_516571_0507_SP5.book Seite 13 Dienstag, 25. März 2008 12:00 12 Intended What to do LED indications/Result operation ¿ Temporarily Briefly press the FUNC- The READY LED · interrupting a TION key , then enter flashes green. The re- tour, manual- the three-figure Event ceivers start reproduc- triggering number via the numeric...
- Page 15 SK3200_516571_0507_SP5.book Seite 14 Dienstag, 25. März 2008 12:00 12 Attaching the portable transmitter to clothing ATTENTION! Danger of short-circuit! If you put the portable transmitter into a pocket with small parts which conduct electricity such as coins, etc., these can short out the 4-pin connector strip ¶.
-
Page 16: Care And Maintenance
SK3200_516571_0507_SP5.book Seite 15 Dienstag, 25. März 2008 12:00 12 Care and maintenance ATTENTION! Water can damage the electronics of the portable transmitter! Water or other liquid entering the housing of the portable transmitter can cause a short-circuit and damage the electronics. Only use a clean dry cloth to clean the portable transmitter. -
Page 17: If A Problem Occurs
Recharge the rechargeable battery is flat battery (see page 10) If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser agent for assistance. -
Page 18: Specifications
SK3200_516571_0507_SP5.book Seite 17 Dienstag, 25. März 2008 12:00 12 Specifications General Temperature range –10 °C to +50 °C Dimensions 113 x 65 x 30 mm (incl. belt clip) Weight (incl. re- approx. 180 g chargeable batter- ies) Firmware update via “Charger Manager” software module Electrical characteristics Power supply built-in NiMH rechargeable battery pack... - Page 19 SK3200_516571_0507_SP5.book Seite 18 Dienstag, 25. März 2008 12:00 12 RF characteristics Frequency deviation ±350 kHz Data rate 1024 kbit/s Radiated RF power USA: 1 mW, Europa 10 mW Microphone connection 1 x 3-pin Lemo Frequency response 80–14,000 Hz, –3 dB cut-off frequency Max.
-
Page 20: Type Appovals
SK3200_516571_0507_SP5.book Seite 19 Dienstag, 25. März 2008 12:00 12 Charger connection 4-pin connector Charging the rechargeable batteries strip For communication with the “Charger Manager” and “Visitor Profiler” software modules via the charger Antenna connection 1 x 1-pin coaxial Lemo Type appovals Area Conformity USA:... -
Page 21: Manufacturer Declarations
SK3200_516571_0507_SP5.book Seite 20 Dienstag, 25. März 2008 12:00 12 Manufacturer Declarations Warranty regulations The guarantee period for this Sennheiser product is 24 months from the date of purchase. Excluded are accessory items, rechargeable or disposable batteries that are delivered with the product; due to their characteristics these products have a shorter service life that is principally dependent on the individual frequency of use. - Page 22 4. Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus complies with the Canadian ICES-003. Warning: Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.
- Page 23 SK3200_516571_0507_SP5.book Seite 22 Dienstag, 25. März 2008 12:00 12...
