Plate Compactors
Operator's Manual
MODEL NUMBER
YC0850
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label (see Page 2, Figure 1a
& Figure 1b). You should record
both of them in a safe place for
future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
Tame the Great Outdoors
TM

Advertisement

Table of Contents
loading

Summary of Contents for YARDMAX YC0850

  • Page 1 Save This Manual for Future Reference Plate Compactors Operator’s Manual MODEL NUMBER YC0850 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label (see Page 2, Figure 1a & Figure 1b). You should record both of them in a safe place for future use.

  • Page 2: Table Of Contents

    Up for the job? YARDMAX is. When looking for outdoor power equipment (OPE) to get the job done right, at the right price, YARDMAX delivers the perfect combination of performance and practicality. YARDMAX has a solution that’s right for you.

  • Page 3: Introduction

    Figure 1b ENVIRONMENTAL DISCLAIMER YARDMAX reserves the right to discontinue, change, and improve its products at any time without notice Recycle unwanted materials instead of disposing of them as waste. All tools, hoses, and packaging should or obligation to the purchaser.

  • Page 4: Specifications

    SUPPORT Have questions about your YARDMAX equipment? Call us at 844-YARDMAX, email us at support@yardmax.com, or contact us via your favorite social media site. SPECIFICATIONS Model number YC0850 Engine YARDMAX Displacement 79 cc Start Type Recoil Compaction Force 1850 lbs...

  • Page 5: Symbols

    Plate Compactor Operator’s Manual » SyMBOLS The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use. Read these instructions carefully. No smoking, sparks, or flames. Wear eye protection. Keep your hands clear from all rotating parts.
  • Page 6 Regularly check to see that keys and adjusting wrenches are PERSONAL SAFETY removed from the machine area before starting it. A wrench or Do not permit children to operate this machine at any time. a key that is left attached to a rotating part of the machine may result in personal injury.
  • Page 7 Plate Compactor Operator’s Manual » loosen the fuel tank cap slowly to relieve any pressure in the tank. When fuel is spilled on yourself or your clothes, wash your skin and change clothes immediately. never overfill the fuel tank. Fill the tank to no more than 1/2” below the bottom of the filler neck to provide space for expansion Store fuel in containers specifically designed and approved for as the heat of the engine can cause fuel to expand.

  • Page 8: Contents Supplied

    COnTEnTS SUPPlIED Your YARDMAX plate compactor comes partially assembled and contains the following: OPTIONAL-SOLD SEPARATELY HARDWARE KIT 1. Main Machine M10 × 30 × 2 2. Handle 3. Folding Wheels Kit 4. Paving Pad (Optional-sold separately) TOUCH-UP PAINT 5. Clamp Plate (Optional-sold separately) Orange 6.

  • Page 9: Assembly

    Plate Compactor Operator’s Manual » ASSEMblY This plate compactor was partially assembled at the factory. To assemble your machine follow the below instructions. AIR FILTER HANDLE 1. Put the filter sponge element and filter core element into the 1. Unfold the handle. (See Figure 3a) filter cover in order.
  • Page 10 Hardware Kit Packet #3. (See Figure 5) M10 × 30 (×2) Base Plate Mounting Holes Paving Pad M10 × 30 Clamp Plate (×2) Figure 5 Figure 4a YC0850 M10 × 30 × 2 M10 × 30 × 2 Assembly...

  • Page 11: Know Your Machine

    Plate Compactor Operator’s Manual » KnOW YOUR MACHInE FEATURES AND CONTROLS Throttle Control Lever Upper Handle Lower Handle Muffler Oil Drain Hose Fuel Tank Belt Guard Engine ON/OFF Switch Exciter Base Plate Recoil Starter Choke lever Know your Machine...
  • Page 12 OIL DRAIN HOSE ENGINE ON/OFF SWITCH Running the engine with dirty oil can cause premature The engine switch has two positions. OFF - engine will engine wear and failure. Changing oil regularly is not start or run. On - engine will start and run. extremely important.

  • Page 13: Operation

    Plate Compactor Operator’s Manual » OPERATION ADD OIL TO ENGINE IMPORTANT: DO NOT OVERFILL! The engine is shipped without oil. Do not start the This equipment and/or its engine may include engine before adding oil. evaporative emissions control system components, required to meet EPA and/or CARB regulations, that will only function properly when the fuel tank has been filled to the recommended level.
  • Page 14 While a certain amount of moisture in the soil is 4. Pull the recoil starter until engine compression has become necessary, excessive moisture may cause soil particles difficult to pull. Let the recoil return to the home position, to stick together and prevent good compaction. If then pull quickly to start the engine.

  • Page 15: Maintenance

    Plate Compactor Operator’s Manual » MAInTEnAnCE Maintaining your compactor will insure long life to the machine 3. Check the condition of the V-belt(s). If any V-belt is cracked, and its components. frayed, or glazed, it should be replaced as soon as convenient. 4.
  • Page 16 Engine Mount Bolt (×2) LOOSEN TIGHTEN Engine Connecting Plate Jam Nut Figure 8c Figure 8a Exciter Pulley V-Belt Clutch Pulley Figure 8d 3. Tighten the engine mount bolts. Engine Mount Bolt (×2) 4. Attach the belt guard. If the engine can't be moved to the back of plate any more, the belt may have to be replaced.
  • Page 17 7. Fill the exciter housing with exciter oil. (See Figure 9c) 4. lift entire deck with engine from housing. Do not overfill - overfilling can result in excessive temperatures in the exciter. YC0850 60 ml Exciter Exciter Shaft Figure 9c 8.

  • Page 18: Storage

    STORAGE Refer to the Engine Manual for information on Remove the spark plug and drain all of the oil from storing your engine. the cylinder before attempting to start the unit after storage. At the end of the season (or if the plate compactor will not be used 5.

  • Page 19: Lifting / Transporting

    Plate Compactor Operator’s Manual » lIFTInG / TRAnSPORTInG See technical data for the weight of the machine. The unit must be transported in the upright position to prevent fuel from spilling. Do not allow the machine to rest on its side or To avoid burns or fire hazards, let engine cool before lifting / its top.

  • Page 20: Troubleshooting

    TROUblESHOOTInG Problem Cause Remedy 1. Attach spark plug wire securely to 1. Spark plug wire disconnected spark plug 2. Out of fuel or stale fuel 2. Fill with clean, fresh gasoline. 3. Throttle control lever not in 3. Move throttle control lever to start position correct starting position 4.

  • Page 21: Parts Diagram

    Plate Compactor Operator’s Manual » PARTS DIAGRAM Parts Diagram...

  • Page 22: Handle

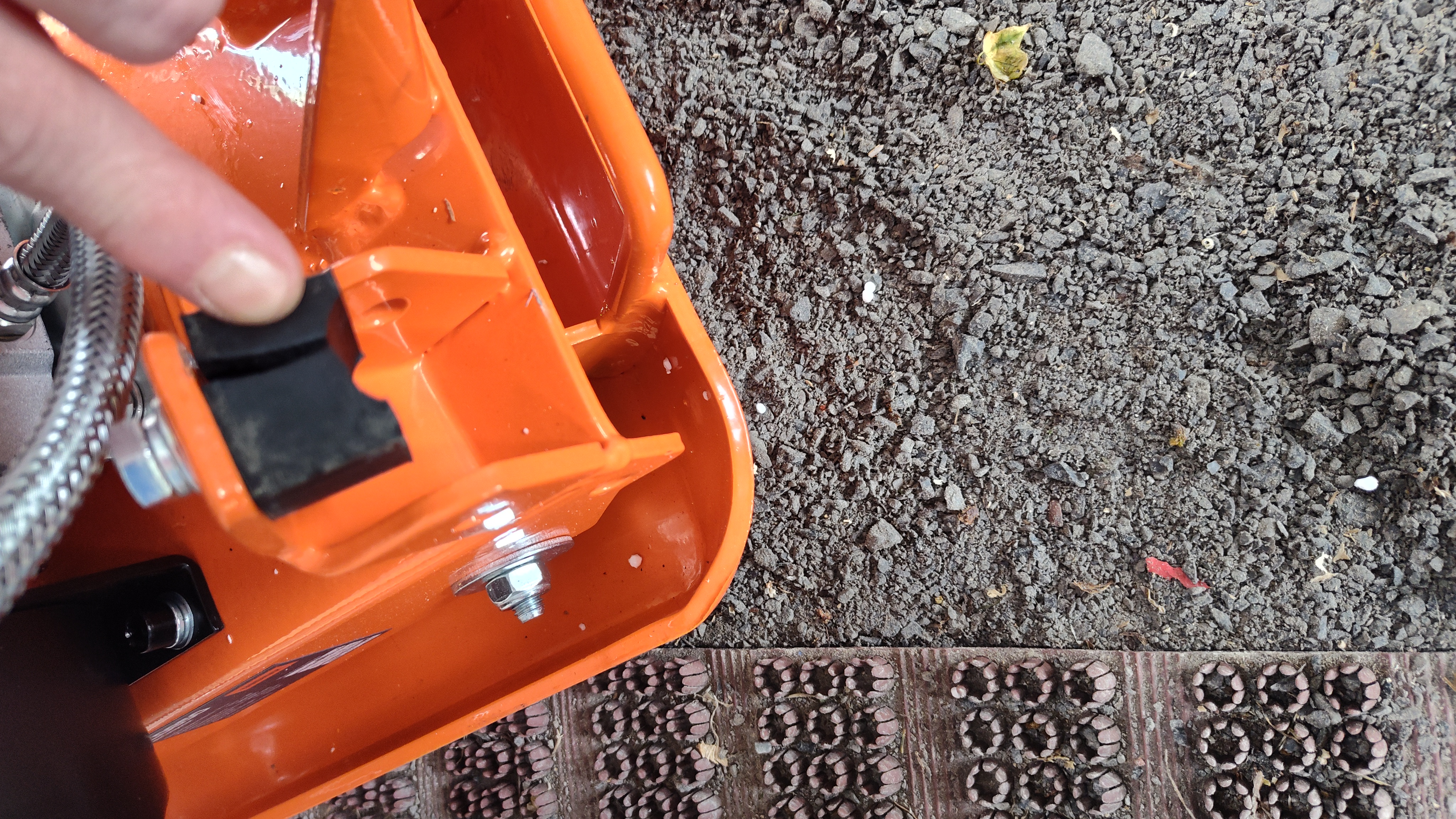

    PARTS LIST Description QTY. Description QTY. Grip bolt M8×20 w/glue Upper Handle nut M8 Throttle Control Flat Washer 8 Screw M5×35 bolt M8×16 Flat Washer 5 limited block Spring Handle Shock Absorber lock nut M6 Engine base bolt M6×40 Washer 38×11×3...
  • Page 23 Plate Compactor Operator’s Manual » Optional Paving Pad Kit - YCP320 Description QTY. Paving Pad Clamp Plate lock Washer 10 bolt M10×30 nut M10 Parts List...
  • Page 24 Tame the Great Outdoors 1850 W Winchester Rd, Suite 106 Libertyville, IL 60048 844-YARDMAX (844-927-3629) info@yardmax.com...
