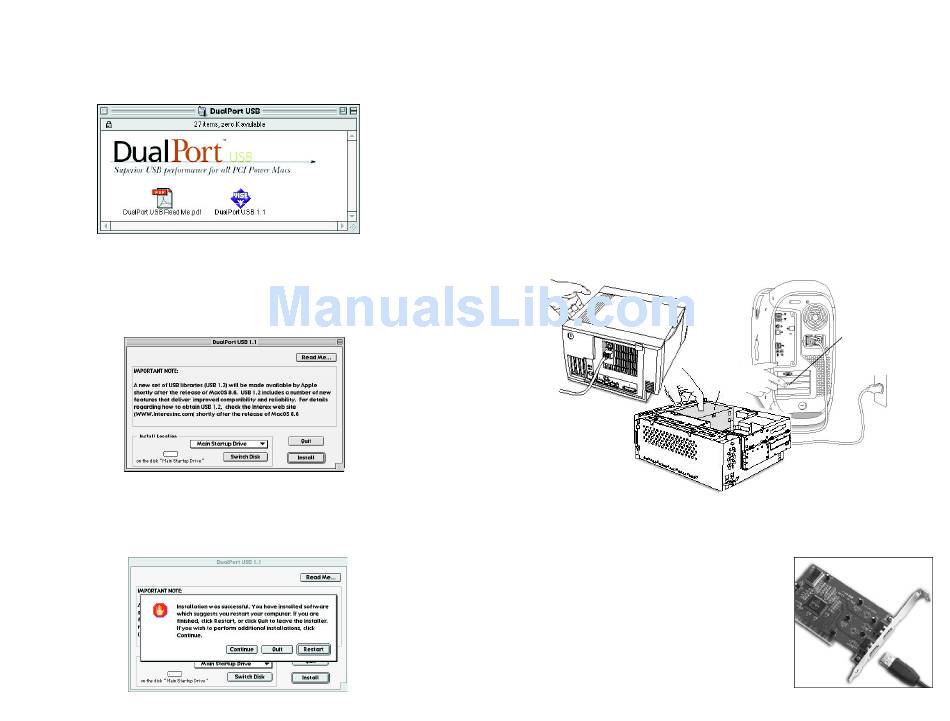

Installing The DualPort USB software

1. Insert the XLR8 Universal Installer CD-ROM.
2. Locate and open the DualPort folder.
3. Launch the DualPort USB 1.1 Installer to begin installa-
tion. Read the Read Me for any late-breaking information on
the DualPort USB. You can get the latest updates via:
http://www.xlr8.com/dualport
4. Select "Install". When installation is complete, you will be
prompted to restart your machine. Instead, select "Quit".
Shut down your machine to install the DualPort in
your system.
Chapter 2 - DualPort USB

Installing The DualPort USB hardware

Prepare your work area by ensuring that you have a well-light-
ed space, preferably not on carpet (static), and away from all
magnetic devices.
1. Turn off the computer and disconnect all cables.
2. Touch the metal PCI access covers on the back of the
computer. This helps protect the computer from damage
caused by electrostatic discharge.
Important: Always do this before you touch any parts, or
install any components, inside the computer. To avoid gener-
ating static electricity, do not walk around the room until you
have completed the installation of the expansion card, mem-
ory, or internal storage device and closed the computer.
Touch bottom
of case
3. Locate an unused PCI slot. If the slot has a rear expansion
cover plate, remove it with a Philips head screwdriver and put
the cover and screw aside.
4. Remove the DualPort USB™ from its
anti-static bag and insert it into the PCI slot.
Secure the card with the Philips head screw
removed in step two, or a similar screw.
5. Replace the cover and all cables on
the PowerMac.
6. Power-up the system.
Touch the
metal portion
of the PCI
metal covers
Touch power
supply
Touch bottom
of case
