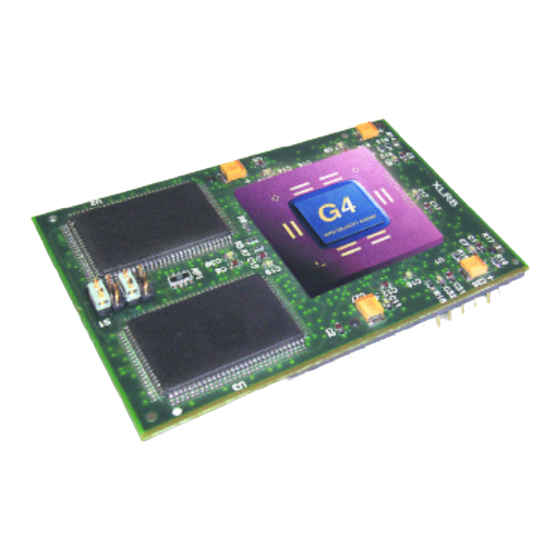

- Page 1 Installation and User Manual Speed MACh ™ G3 and G4 ZIF Daughtercard upgrades for the PowerMac G3 and the 400 MHz PowerMac G4 Speed MACh ™ Speed MACh ™ Installation and User Manual...
- Page 2 XLR8 Standard ZIF Settings 1. Install the latest version of XLR8 MACh Speed Control. 2. Locate CPU base settings. 3. Remove and adjust card switches jumpers and/or dials (all available) to the relat- ed settings of THE DESIRED SPEED. 4. Remove motherboard cache from motherboard if possible.
-
Page 3: Installing And Using The Software
Software This manual contains the following sections: Installing the software - Detailed information on the installation and use of XLR8’s exclusive XLR8 MACh Speed Control software. Installing the MACh Speed Card - Detailed information on the installation of the ZIF daughtercard in various systems Technical Support - This section includes support information and troubleshooting techniques. - Page 4 Checking the status of your card In the Control Panels folder of your start-up disk, open XLR8 MACh Speed Control by selecting it in the Control Panels hierarchical menu in the Apple Menu. In addition to controlling the backside...
- Page 5 The jumpers are adjusted on the card itself, you do not need to changer the jumpers on the motherboard of your PowerMac. The jumpers are set from the left to the right, when the XLR8 logo is at the top left corner and the jumper block at the right side of the card.
-
Page 6: General Installation Instructions
The default settings are the following: G3 (B &W OWER HITE G3 ( OWER BEIGE G4/PCI Installing the OWER Default Jumper Settings Setting Default Jumper Settings Setting MACh Speed ZIF Upgrade Card Applying the thermal grease This chapter provides information for installing the MACh Speed ZIF card into individual systems. The MACh Speed ZIF upgrade card ships with a box containing thermal grease. - Page 7 G4. Updating the firmware version 1.0 to version 1.1 The XLR8 Firmware updater works only with version 1.1 of the original Apple firmware. If 2. Locate the heat-sink and CPU on the motherboard. you have not updated your firmware to version 1.1, it will be necessary to update your firmware.
- Page 8 5. Install the MACh Speed ZIF into your system. Installation in a Power Macintosh G3 Beige • The MACh Speed ZIF Upgrade will face the same direction as the older card that you Desktop or Mini-Tower just removed (note the missing pin.) •...
- Page 9 Desktop Mini-Tower 7. Install the MACh Speed ZIF into your system. • The MACh Speed ZIF Upgrade will face the same direction as the older card that Locate the processor and heatsink Locate the processor and heatsink you just removed (note the missing pin.) •...
-
Page 10: Technical Support
To disable the cache during normal operation: Support • Select “Disable” in the Manual settings of the Advanced tab in XLR8 MACh Speed Control To retest the cache on boot-up: (the cache is tested on the first boot after changing the CPU speed) •... - Page 11 The jumpers are adjusted on the card itself, you do not need to changer the jumpers on the motherboard of your PowerMac. The jumpers are set from the left to the right, when the XLR8 logo is at the top left corner and the jumper block at the right side of the card.
