Summary of Contents for thomann Millenium R1

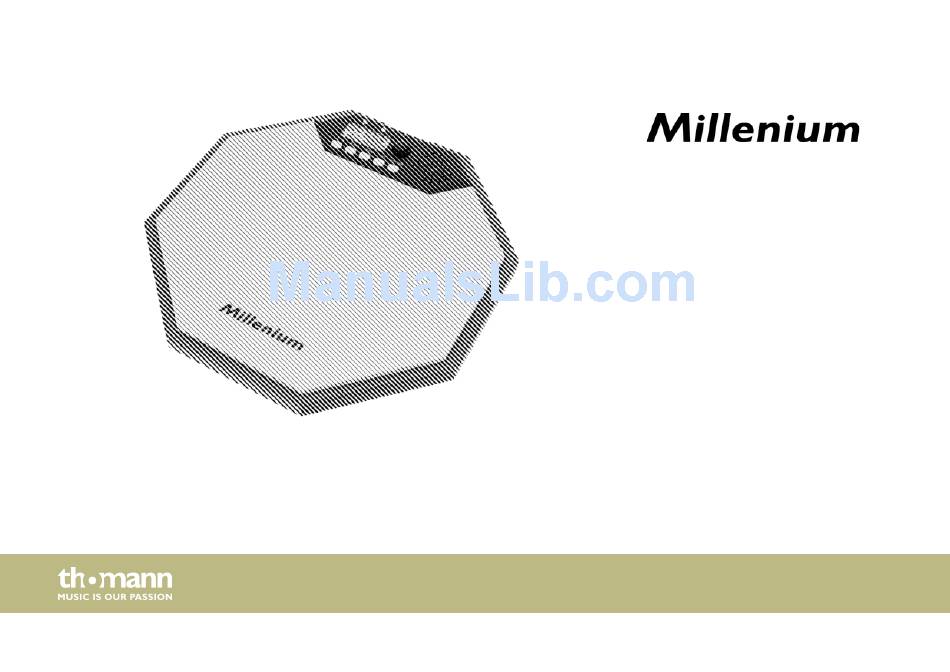

- Page 1 R1 12" Metronome Practice Pad drum pad user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 24.03.2017, ID: 400714...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 11 Operating elements..........................12 Device functions............................15 Operating the device..........................18 Technical specifications........................19 Plug and connection assignment.................... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use Mobile Drums are used to convert digital trigger signals from drum pads into various drum sounds. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or prop‐ erty damage. - Page 9 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. drum pad...
-
Page 11: Features
Features Features Built-in metronome (30…250 BPM, all note values) Headphones output (3.5 mm stereo phone socket) Display Beat counter (10…60 seconds) Adjustable rhythm (1…8 counting units) Speaker Micro USB charging socket USB cable (included) R1 12" Metronome Practice Pad... -
Page 12: Operating Elements
Operating elements Operating elements drum pad... - Page 13 Operating elements 1 Six-digit display 2 Rhythm display Shows the current rhythm figure 3 Multi-function button To adjust Beat, Tempo, Rhythm, Sound and Volume 4 Speaker 5 Strike area 6 [VOLUME] Button to set the overall volume of the practise pad. 7 [SET] Button for specify the settings.
- Page 14 Operating elements 9 [TAP] Tap Tempo function ► ] 10 [O/ On off button / Start / Stop 11 Output socket [OUTPUT] To connect a headphones (with 3.5 mm stereo phone plug) 12 Rotary control [VOLUME] Volume control for headphone output. Turning this control clockwise increases the volume. You reduce the volume by turning counterclockwise.
-
Page 15: Device Functions
Device functions Device functions ► ] for several seconds. Switching on Press the On / Off button to turn the device on. [O/ Now the configuration menu appears on the display. With [SET] and turning the multifunction knob you can adjust the settings for ‘BEAT’ , ‘TEMPO’ , ‘RHYTHM’ , ‘SOUND’ and ‘VOLUME’ . Select the desired function with [SET] and change it by turning the multifunction knob. - Page 16 Device functions Setting the Rhythm You can choose from the following rhythm styles: Setting the Sound You can select three different sounds, which can be adjusted with the rotary control. In addi‐ tion to a human voice, two electronic sounds are also available. Charge status of the recharge‐...
- Page 17 Device functions ► ] and restart the In the event of a malfunction, switch off the metronome with [O/ device after 30 seconds. R1 12" Metronome Practice Pad...
-
Page 18: Operating The Device
Operating the device Operating the device Training mode The device offers a training mode. Use [TRAIN] to see the desired menu. Here, the number of beats in a defined time interval are captured. The time interval can be set between 10…60 using the multifunction knob and is counted to 0 during the exercise. -
Page 19: Technical Specifications
Technical specifications Technical specifications Display Six-digit LED display Dimensions (W × H × D) 27.8 cm × 2.8 cm × 27.8 cm Connections Headphones output (3.5 mm stereo phone socket) Micro USB Voltage supply via micro USB socket via battery: rechargeable Lithium battery (600 mAh) Weight 1.6 kg R1 12"... -
Page 20: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 21 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding...
-
Page 22: Cleaning
Cleaning Cleaning Components Clean the accessible parts of the device regularly. The frequency of cleaning depends on the operating environment: moist, smoky or particularly dirty environments may cause a higher accumulation of dirt on the components of the device. Use a dry soft cloth for cleaning. Remove stubborn stains with a slightly damp cloth. -
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose of this device through an approved waste disposal firm or through your local waste facility.
- Page 25 Notes R1 12" Metronome Practice Pad...
- Page 26 Notes drum pad...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
