Redline Communications AN-80i Installation Manuallines

Advanced broadband wireless infrastructure solutions
Hide thumbs Also See for AN-80i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

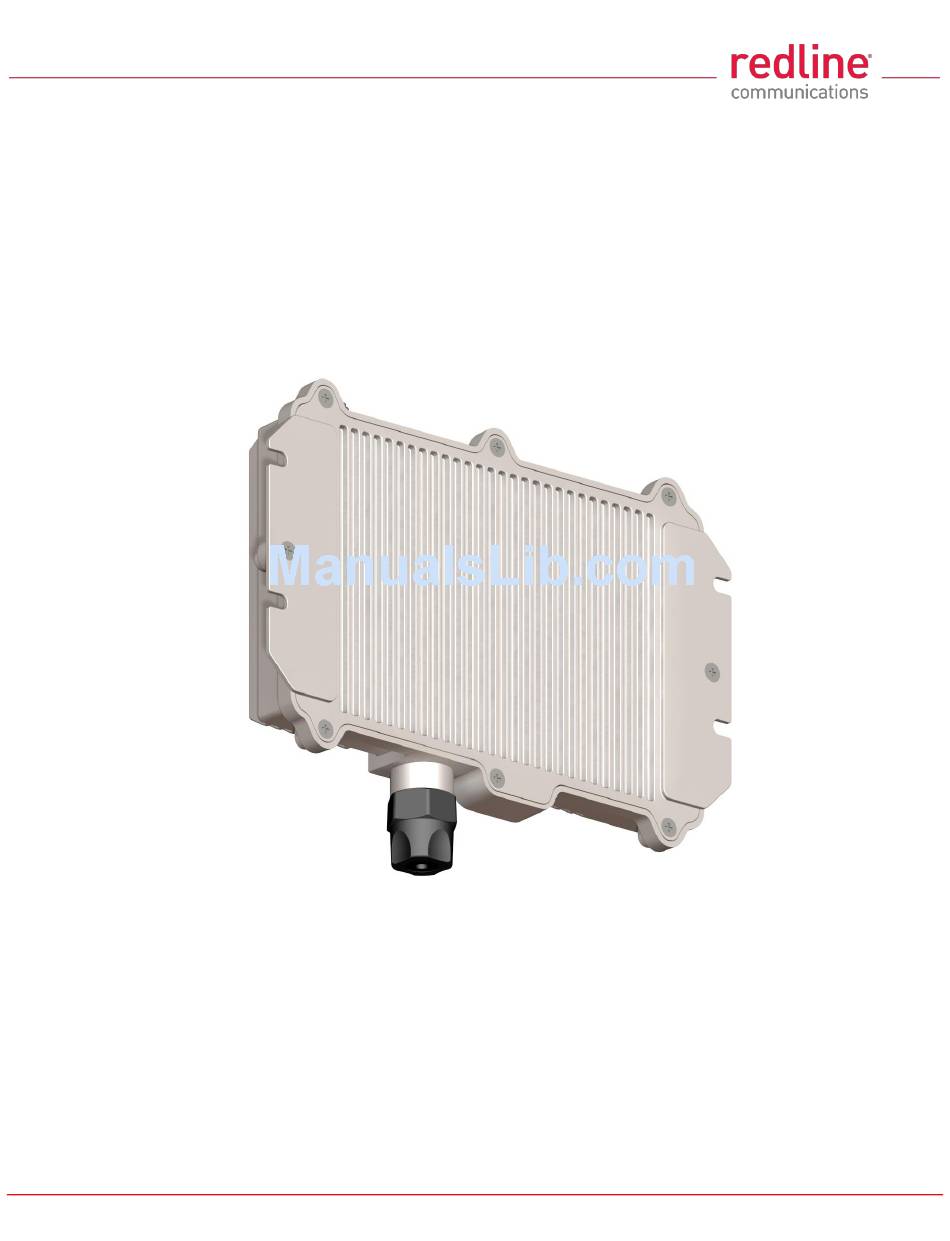

AN-80i
Advanced Broadband Wireless
Infrastructure Solutions
Installation Guidelines
70-00073-01-08-b
Proprietary Redline Communications © 2011
Page
1
of 58
May 27, 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-80i and is the answer not in the manual?

Questions and answers

Related Manuals for Redline Communications AN-80i

Summary of Contents for Redline Communications AN-80i

  • Page 1 AN-80i Advanced Broadband Wireless Infrastructure Solutions Installation Guidelines 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...
  • Page 2 All rights reserved May 27, 2011. The information in this document is proprietary to Redline Communications Inc. This document may not in whole or in part be copied, reproduced, or reduced to any medium without prior consent, in writing, from Redline Communications Incorporated.
  • Page 3 Step 1: Mounting Kits ..................21 Step 2: RF Connections ................... 31 Step 3: Ethernet Connections ................. 34 Step 4: Installing the AN-80i ................39 Step 5: Install Indoor PoE Power Block............48 Step 6: Configure AN-80i ................. 49 70-00073-01-08-b Proprietary Redline Communications ©...

  • Page 4: Table Of Contents

    Step 2: RF Connections ................... 31 3.2.1 RF Cable Connections ..................31 3.2.2 Weatherproof the RF Connectors..............32 Step 3: Ethernet Connections ................. 34 3.3.1 Ethernet Cable and Connections..............34 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...
  • Page 5 3.3.3 Disconnecting the Ethernet Cable ..............35 3.3.4 Weatherproof Ethernet Port ................37 3.3.5 Protecting Ethernet Cables ................38 Step 4: Installing the AN-80i ................39 3.4.1 Surge Protection Guidelines ................39 3.4.2 Grounding Guidelines ..................39 3.4.3 Installing the AN-80i Equipment ..............40 3.4.4...
  • Page 6 Table 16: Settings for Antenna Alignment (DFS) - Step 2 ..........55 LIST OF FIGURES Figure 1: Notices - WEEE Logo ..................13 Figure 2: AN-80i System Components................14 Figure 3: Site Survey - Fresnel Zone Radius ..............15 Figure 4: Site Survey - Non-Line of Sight Deployment ........... 16 Figure 5: Installation - Redline Supplied Components ...........
  • Page 7 Figure 43: Configuration - RSSI Statistics ..............52 Figure 44: Configuration - Antenna Alignment (DFS) - Step 1 ........55 Figure 45: Configuration - Antenna Alignment (DFS) - Step 2 ........56 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 8: Safety & Service Notices

    70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 9: Warning Symbols

    If you have determined that it is appropriate to install surge protection for your system, the following general industry practices are provided as a guideline only: 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 10: Deployment In The Usa And Canada

    Deployment in the USA and Canada 1.5.1 FCC & IC Notices The Model AN-80i and its antenna must be professionally installed. WARNING -- FCC & IC RF Exposure Warnings To satisfy FCC and IC RF exposure requirements for RF transmitting devices, the...

  • Page 11: 1.5.2 Installation And Operation

    When the FCC-specific options key is installed, the operator is not able to set an RF frequency that exceeds the allowed range of 3.650-3.675 GHz. 4. The AN-80i transmit power settings must not exceed values stated in the AN-80i User Manual.

  • Page 12: Table 2: Fcc: Tdwr System Locations

    N 35 58 47 5605 MHz HOUSTON INTERCONTL W 095 34 01 N 30 03 54 5605 MHz PEARLAND W 095 14 30 N 29 30 59 5645 MHz 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 13: Ul Information

    AN-80i must be installed in compliance with relevant articles in National Electrical Code-NEC (and equivalent Canadian Code-CEC) including referenced articles 725, 800 and 810 in NEC. RF coaxial cable connecting an antenna to the AN-80i must comply with the local electrical code. 1.5.6 WEEE Product Return Process...

  • Page 14: Site Survey Information

    AN-80i, and to understand the operating characteristics of the AN-80i system during configuration and testing. Introduction The Access Node 80i system is made by Redline Communications -- a world leader in design and production of Broadband Fixed Wireless (BFW) systems. Figure 2: AN-80i System Components The AN-80i is a high-performance, high-speed wireless Ethernet bridge for use in a commercial, industrial, business, or government environment.

  • Page 15: Rf Interference

    AN-80i supports long-range operations of over 50 miles (80 km) in clear line of sight (LOS) conditions. The AN-80i outdoor unit is housed in a weatherproof aluminum alloy case. An indoor PoE power adapter provides operational power for the AN-80i and connection to the Ethernet network.

  • Page 16: Table 3: Site Path Profile Data

    Use the Link Budget tool to determine the expected receive signal strength indication (RSSI). The expected RSSI value can be determined using the Link Budget Tool from Redline Communications Inc. See the following section for more details. 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 17: Overview

    Figure 5: Installation - Redline Supplied Components Table 4: System Components Available from Redline Description AN-80i radio. Mounting kit for AN-80i. All kits include RF jumper cable. 2,3,4,5 Lightweight mount includes mounting bracket with assembly hardware. Adjusts for 44.5 to 76.2 mm (1.75 to 3.00 in) mast.

  • Page 18: Customer Supplied Materials

    Installation Guidelines Customer Supplied Materials Installation of the AN-80i equipment requires additional equipment and materials supplied by the customer. The following list is provided as a guideline only, and additional materials may be required based on local conditions at each installation site.

  • Page 19: Network Information

    AN-80i Installation Guidelines Network Information Following installation, each AN-80i must be configured for operation with a local Ethernet network. Contact your network system administrator for details. Table 6: Network Parameters Setting Description IP Address IP address for the AN-80i management.

  • Page 20: Link Budget Tool

    RF channel, power gain, antenna height, etc. This is useful to determine if a proposed location is suitable for the intended application. Figure 6: Site Survey - Sample Link Budget Calculation 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 21: Installation Procedures

    Important: Antenna Polarization The same antenna polarization must be used for both AN-80i units in a PTP link and all units in a PMP deployment. The arrows on the rear of the antenna indicate the polarization.

  • Page 22: Assembly Instructions

    Assembly Instructions When using the lightweight mounting bracket: Assemble the lightweight mounting bracket Attach the AN-80i directly to the antenna. Use the same polarity for all AN-80i units on the link. Attach the assembled lightweight mounting bracket to the AN-80i.

  • Page 23: Figure 9: Lightweight Mounting Bracket - Assembly Drawing

    AN-80i Installation Guidelines Figure 9: Lightweight Mounting Bracket - Assembly Drawing 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 24: Heavy-Duty Mounting Kit

    Heavy-Duty Mounting Kit Overview The AN-80i heavy-duty system provides a 4-point system for increased reliability. The heavy-duty bracket may be used with 305 mm (1 ft) or 600 mm (2 ft) square antennas where the AN-80i is installed on towers or similar locations.

  • Page 25: Assembly Instructions

    When using the heavy duty mounting bracket: Assemble the heavy duty mounting bracket Attach the antenna directly to mounting bracket. Use the same polarity for all AN-80i units on the link. Attach the AN-80i to the antenna bracket using the adapter bracket (8).

  • Page 26: Figure 12: Heavy Duty Mounting Bracket - Assembly Drawing

    AN-80i Installation Guidelines Figure 12: Heavy Duty Mounting Bracket - Assembly Drawing 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 27: Stand-Alone Mounting Kit

    Stand-Alone Mounting Kit Overview The stand-alone bracket can be used for mounting the AN-80i directly to a mast. The antenna must be mounted separately. The stand alone mounting bracket adjusts for 70 to 120 mm (2.75 to 4.75 in) mast pipe (assembly required).

  • Page 28: Figure 14: Stand-Alone Mounting Bracket - Assembly Drawing

    AN-80i Installation Guidelines Figure 14: Stand-Alone Mounting Bracket - Assembly Drawing 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 29: Parabolic Mounting Kit

    Note: Large parabolic antennas may not allow the radio to be mounted directly on the mast (due to RF cable length). In these cases, use the stand-alone AN-80i mounting bracket (AN-80i-SA-MNT) to mount the radio directly on the parabolic antenna frame or mounting bracket.

  • Page 30: Figure 16: Parabolic Mounting Bracket - Assembly Drawing

    AN-80i Installation Guidelines * AN-80i and PoE cable assembly not included in the mounting bracket kit. Figure 16: Parabolic Mounting Bracket - Assembly Drawing 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 31: Step 2: Rf Connections

    Installation Guidelines Step 2: RF Connections An RF jumper cable is provided to connect AN-80i unit to the antenna. Both ends of the RF cable must be weatherproofed. This section describes how to connect the RF cable and recommendations to assist weatherproofing the connections.

  • Page 32: Weatherproof The Rf Connectors

    Figure 18: Weatherproofing - RF Cable Pt-1 Continue to wrap the tape tightly along the cable. Figure 19: Weatherproofing - RF Cable Pt-2 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 33: Figure 20: Weatherproofing - Rf Cable Pt-3

    Continue working the putty to make a watertight seal. Figure 20: Weatherproofing - RF Cable Pt-3 The connection is now weatherproofed. Figure 21: Weatherproofing - RF Cable Pt-4 Repeat this procedure for the antenna RF connector. 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 34: Step 3: Ethernet Connections

    The hooded connector will be extremely difficult to remove and may damage the AN-80i equipment. The maximum total length of the Ethernet cable is 100 m (328 ft). For example, 98 m from the AN-80i to the PoE and 2 m from the PoE to the network equipment.

  • Page 35: Disconnecting The Ethernet Cable

    Ethernet cable (1) to the mating connector on the AN-80i. The RJ-45 connector is located inside the Ethernet port opening. Fit the split washer (2) over the Ethernet cable (1) and slide tightly against the AN-80i chassis.

  • Page 36: Figure 24: Weatherproof Ethernet Port - Ethernet Cable Locking Tab

    A plastic removal tool is available from Redline to safely and easily disconnect the Ethernet cable from the AN-80i. Simply align the tool on the Ethernet cable and apply light pressure to release the locking tab. When the tab has been properly released, the cable should be able to be removed using only a very light pull (two fingers).

  • Page 37: Weatherproof Ethernet Port

    Figure 26: Weatherproofing - Ethernet Cable Pt-1 Wrap the splicing tape over the connector and cable. Start as close as possible to the AN-80i body. Stretch and wind the tape back along the Ethernet port nut, ensuring there are no gaps in the tape.

  • Page 38: Protecting Ethernet Cables

    Cable ties can be used in the normal way to secure the cable. 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 39: Step 4: Installing The An-80I

    Ground rods must be 8 feet long (minimum) and 5/8-inch in diameter. Rods must extend 3 feet below any adjacent basement/vault. A grounding block should be installed where cables enter the building. This section describes mounting of the AN-80i, recommendations for grounding and line protection equipment, and rough alignment of the antenna. 70-00073-01-08-b Proprietary Redline Communications ©...

  • Page 40: Installing The An-80I Equipment

    Installing the AN-80i Equipment CAUTION: AN-80i Installation Guidelines The following are general guidelines for system installation. The AN-80i must be installed by a qualified professional installer and follow local and national building codes and codes for electrical grounding and safety.

  • Page 41: Figure 31: Mounting - Air Terminal For Tower And Pole Deployments

    80i and the antenna mounting bracket. A surge arrestor should be installed in series with the Ethernet cable as close to the AN-80i unit as practical. The grounding wire should be connected to the same termination point used for the tower or mast.

  • Page 42: Line Protector Unit Wiring

    Rx + White / Orange Rx - Orange Tx + White / Green Tx - Green 48 (+) Blue 48 (+) White/Blue 48 (-) White/Brown 48 (-) Brown 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 43: Figure 32: Ethernet Line Protector - Identifying Terminal Connectors

    Note: Terminal block assignment is identical for both screw-type and 110Connect. For correct operation, it is very important that the line protector is properly connected to a low impedance (low R and low L) ground system. 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 44: Line Protector Mast Mounting Kit

    Description Metal Hose Clamp: 51 to 177 mm (2 to 7 in) 8-32 Hex HD Flange Nut 18-8 SS 8-32 Screw 3/4" Phillips Pan SS Mounting Bracket Al 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 45: Weatherproof Lp Connections

    Continue to work the putty in making a watertight seal. The connection is now well weatherproofed. Figure 36: Weatherproofing LP Ethernet Cable Entry - Pt-3 Repeat this procedure for both cable connections to the LP. 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 46: Ethernet Cable Drip Loop

    It is strongly recommended to install the outdoor Ethernet cable with a drip loop. This procedure reduces mechanical strain on the AN-80i Ethernet port. A drip loop should also be employed when mounting surge protection devices to avoid mechanical stress and excess water flow at the Ethernet wiring portals.

  • Page 47: Basic Antenna Alignment

    Important: Antenna Polarization The same antenna polarization must be used for both AN-80i units in a PTP link and all units in a PMP deployment. The arrows on the rear of the antenna indicate the polarization.

  • Page 48: Step 5: Install Indoor Poe Power Block

    Customer equipment including personal computers, routers, etc., must be connected only to the INPUT (DATA) port on the PoE unit. Only the outdoors Ethernet interface cable connecting to the AN-80i can be safely connected to the OUTPUT (DATA & POWER) connector. Connecting customer premises Ethernet equipment directly to the OUTPUT (DATA &...

  • Page 49: Step 6: Configure An-80I

    Installation Guidelines Step 6: Configure AN-80i This section can be used as a guideline for initial commissioning of an AN-80i PTP links. For PMP links, also refer to the AN-80i PMP Quick Configuration Guide (70-00085-01). Refer to the User Manual for complete operating, troubleshooting and antenna specifications.

  • Page 50: Table 14: Configuration - Default System Ptp Settings

    Diagnostics & Troubleshooting section in the User Manual. You may not be able to establish a link between AN-80i units, or configure all required parameter settings until you have entered the permanent options key.

  • Page 51: Figure 42: Configuration - Spectrum Sweep

    +/- 10 MHz from the channel selection. Repeat steps 3 - 5 as required for the other AN-80i units in this deployment. This step requires sending data traffic over the wireless link while monitoring the system statistics page for errors.

  • Page 52: Antenna Adjustment Using Web Alignment Tool

    Antenna Adjustment Using Audible Tone Following the basic antenna alignment, smaller adjustments can be made using the audible alignment buzzer in the AN-80i. A faster repetition rate of the buzzer indicates a stronger signal being received from the remote-end transmitter. Adjust the AN-80i antenna by small changes first the elevation and then the azimuth adjustments to obtain a maximum reading.

  • Page 53: Enable Audible Tool Using Web Browser

    Enable the audible alignment tool. The audible alignment signal remains active until this field is disabled. set buzzer on save config To disable the audible alignment tool, start a Telnet session to the AN-80i and enter the following commands: set buzzer off save config 3.6.6...

  • Page 54: Installation Procedure For Dfs-Enabled Systems

    Step A -- Align Site A Antenna a) Go to the location where the AN-80i is operating as a PTP Slave -- this is the Site A. b) Login to the remote PTP Master (Site B) and adjust the parameters to match the Site B settings in Table 15: Configuration - Settings for Antenna Alignment (DFS) - Step 1 and save changes.

  • Page 55: Step B -- Align Site B Antenna

    Auto Scan (Enabled) Radio Enable (Enabled) (Disabled) ATPC (Disabled) (Disabled) Go to the Site B location and repeat Step 1 parts c), d) and e) to align the antenna. 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...

  • Page 56: Configure An-80I Ethernet Network Settings

    3.6.8 Configure AN-80i Ethernet Network Settings The last step in deployment is to correctly configure each AN-80i for operation with the local Ethernet network. This requires setting the network address and SNMP parameters to match the network design. Contact your network system administrator for details.
  • Page 57 AN-80i Installation Guidelines 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...
  • Page 58 302 Town Centre  Markham, Ontario  Canada  L3R 0E8 www.rdlcom.com 70-00073-01-08-b Proprietary Redline Communications © 2011 Page of 58 May 27, 2011...
