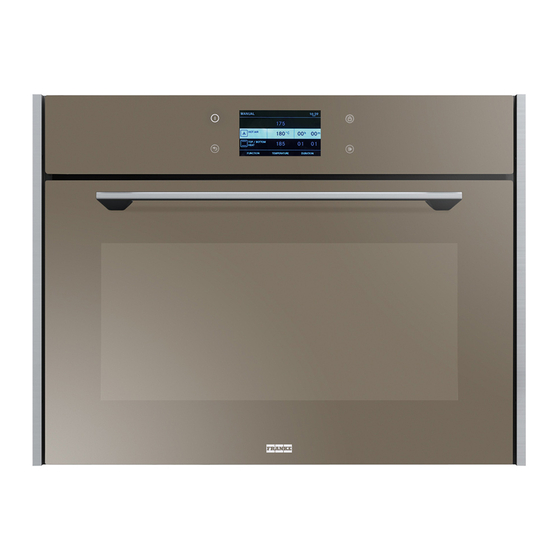

Franke FMW 45 FS User Manual

Compact combi oven with microwave
Hide thumbs Also See for FMW 45 FS:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
FMW 45 FS
Compact Combi Oven with Microwave
EN User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMW 45 FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke FMW 45 FS

Summary of Contents for Franke FMW 45 FS

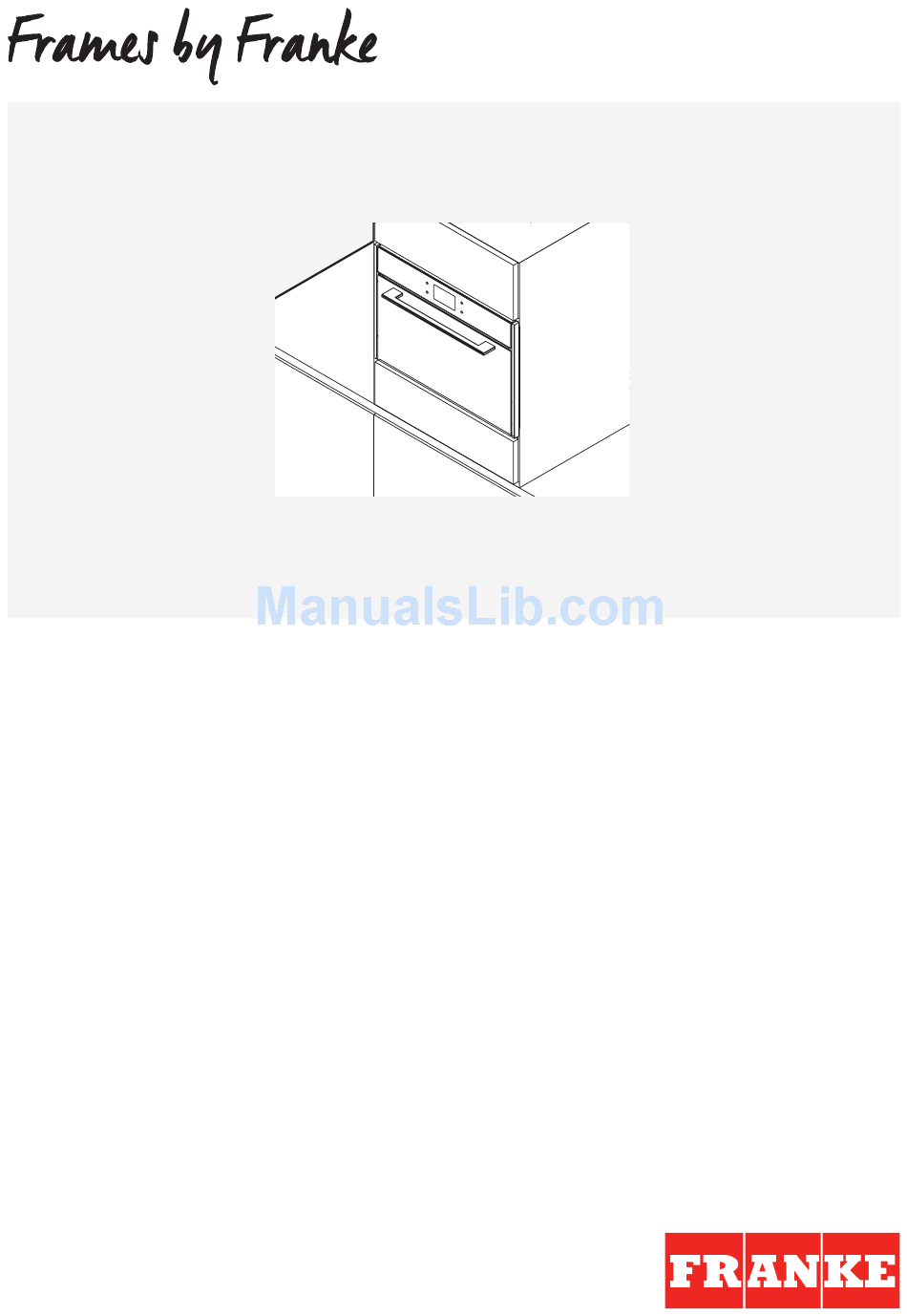

  • Page 1 FMW 45 FS Compact Combi Oven with Microwave EN User manual...

  • Page 3: Table Of Contents

    FMW 45 FS Contents Dear customer! About this manual Combined microwave oven OVEN EQUIPMENT AND ACCESSORIES CONTROL UNIT Important safety instructions BEFORE CONNECTING THE OVEN: Before using the appliance for the first time Steps of the cooking process (1–6) STEP 1: SWITCHING ON THE APPLIANCE FOR THE FIRST TIME...

  • Page 4: Dear Customer

    FMW 45 FS Dear Customer! Thank you for choosing this quality product from Franke. We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.

  • Page 5: Combined Microwave Oven

    FMW 45 FS CombineD miCrowave oven Description of the oven and the equipment (depending on the model) The figure represents one of the built-in appliance models. Since the appliances for which these instructions were drawn up may have different equipment, some functions or equipment may be described in the manual that may not be present in your appliances.

  • Page 6: Oven Equipment And Accessories

    FMW 45 FS WIRE GUIDES The SHALLOW BAKING SHEET is used for baking Wire guides allow preparation of the food on four pastry and cakes. levels (please note that the levels/guides are counted from the bottom up). Guides 3 and 4 are intended for grilling, and guide 1 is used with microwave systems when food is prepared in a glass baking dish.

  • Page 7: Control Unit

    FMW 45 FS CONTROL UNIT BACK KEY DISPLAY ON/OFF KEY START/STOP CHILD LOCK Touch briefly to For selection and display of return to previous settings menu. Touch and hold to return to main menu. NOTE: The keys will respond better if you touch them with a larger area of your fingertip. Each time you press a key, this will be acknowledged by a short acoustic signal.

  • Page 8: Important Safety Instructions

    FMW 45 FS important safety instruCtions CAREFULLY READ THE INSTRUCTIONS AND The appliance may only be connected to the SAVE THEM FOR FUTURE REFERENCE. power mains by an authorized service technician or expert. This appliance may only be used by children aged 8...

  • Page 9: Before Connecting The Oven

    FMW 45 FS WARNING: It is hazardous for anyone other than a Make sure to only use the cookware that is suitable competent person to carry out any service or repair for use in a microwave oven. Do not use cookware operation which involves removal of the cover that made of steel or cookware with golden or sliver rims.

  • Page 10: Before Using The Appliance For The First Time

    FMW 45 FS before using the applianCe for the first time Upon receiving the appliance, remove all parts, including any transport equipment (cardboard and polystyrene inserts), from the oven. Clean all accessories and utensils with warm water and regular detergent. Do not use any abrasive cleaners.

  • Page 11: Steps Of The Cooking Process

    FMW 45 FS steps of the Cooking proCess (1–6) STEP 1: SWITCHING ON THE APPLIANCE FOR THE FIRST TIME SETTING THE CLOCK After connecting your appliance to the power mains or after an extended power outage, CLOCK settings will appear on the display.

  • Page 12: Step 2: Choosing The Basic Cooking Menus And Settings

    FMW 45 FS STEP 2: CHOOSING THE BASIC COOKING MENUS AND SETTINGS The process of preparing food in your oven can be controlled in several ways: Navigate the menu by sliding your finger left and right. Select the desired mode by touching the corresponding image. The name of the selected menu will appear at the top.
  • Page 13 FMW 45 FS Preset values will be displayed: – amount, – doneness level (intensity), – cooking time (cooking end time is displayed in grey). Amount and doneness level can be adjusted. Selected values will appear. EXTRA SETTINGS (EXTRAS) Choose them by touching the upper strip or the corresponding sign.
  • Page 14 FMW 45 FS B) COOKING BY SELECTING THE OPERATING MODE (Professional mode and microwaves) Choose the Professional mode (MANUAL) or cooking with microwaves. Choose your own default settings: – system – oven temperature Selected values will appear. – operating power (in combined systems and systems with microwaves).
  • Page 15 FMW 45 FS COOKING SYSTEMS (depending on the model) SYSTEM DESCRIPTION PRESET TEMPERATURE (°C) COOKING SYSTEMS UPPER AND BOTTOM HEATER The heaters in the bottom and in the ceiling of the oven cavity will radiate heat evenly into the oven interior. Pastry or meat can only be baked/roasted at a single height level.
  • Page 16 FMW 45 FS SYSTEM DESCRIPTION PRESET TEMPERATURE (°C) COOKING SYSTEMS AUTOMATIC COOKING OF MEAT – AUTO ROAST MODE In the Auto Roast mode/system, the upper heater will operate in combination with the grill heater and the round heater. It is used for roasting all types of meat.
  • Page 17 FMW 45 FS TIMER FUNCTIONS – DURATION Timer functions can be selected in the basic Professional mode, the Auto mode, and in the Microwaves mode by choosing the corresponding symbol. Setting the cooking time In this mode, you can define the duration of oven operation (cooking time). Set the desired cooking time and confirm the setting.

  • Page 18: Step 3: Starting The Cooking Process

    FMW 45 FS Touch the START symbol to turn on the oven. The oven starts operating immediately, with the settings defined in Step 1. (Selected step will be highlighted.) After the set cooking time elapses, Step 2 and then Step 3 are activated, if specified.

  • Page 19: Step 5: Selecting Additional Functions/Extras

    FMW 45 FS SAVING USER-DEFINED PROGRAMS (MY RECIPES) Select the symbol and specify the name by touching the corresponding letters. If required, delete a character using the arrow. Touch the START/STOP key to save the settings. Your favourite recipes that you have previously stored in the memory can be retrieved and used at any time.

  • Page 20: Step 6: Choosing The General Settings

    FMW 45 FS Select the symbol and end the cooking process. Main menu will appear on the display. CHILD LOCK Activate it by touching the LOCK key (key symbol). The following message will appear on the display: »Child lock activated.« Touch the key again to deactivate the child lock.

  • Page 21: Description Of Systems (Cooking Modes) And Cooking Tables

    FMW 45 FS Time Set the time of day after the appliance is connected to the power mains for the first time or after being disconnected from the power mains for a longer period of time (more than one week). Set the CLOCK –...

  • Page 22: Cooking Systems

    FMW 45 FS COOKING SYSTEMS UPPER AND BOTTOM HEATER The heaters in the bottom and in the ceiling of the oven cavity will radiate heat evenly into the oven interior. Roasting meat: Use enamel coated, tempered glass, clay, or cast iron pan or tray. Stainless steel trays are not suitable as they strongly reflect the heat.
  • Page 23 FMW 45 FS Baking pastry Only use one level and dark baking sheets or trays. In light-coloured baking sheets or trays, the browning of the pastry will be poorer, as such equipment will reflect the heat.Always place the baking trays on the grid.
  • Page 24 FMW 45 FS LARGE GRILL, GRILL When grilling food with the large grill, the upper heater and the grill heater fitted on the ceiling of the oven cavity will operate. When grilling with normal (not large) grill, only grill heater, a part of the large grill set, will operate.
  • Page 25 FMW 45 FS Grilling table – large grill Type of food Weight Guide level Temperature Cooking time (from the (°C) (min) bottom) meat Beefsteak, rare 180g/piece 220-240 14-16 Beefsteak, well done 180g/piece 220-240 18-21 Pork neck fillet 180g/piece 220-240 19-23...
  • Page 26 FMW 45 FS GRILL WITH FAN In this operating mode, the grill heater and the fan operate simultaneously. Suitable for grilling meat, fish, and vegetables. (See descriptions and tips for GRILL.) Type of food Weight Guide level Temperature Cooking time (from the (°C)
  • Page 27 FMW 45 FS 3D HOT AIR Round heater and the fan will operate. The fan installed in the back wall of the oven cavity makes sure the hot air constantly circulates around the roast or pastry. Roasting meat Use enamel coated, tempered glass, clay, or cast iron pan or tray. Stainless steel trays are not suitable as they strongly reflect the heat.
  • Page 28 FMW 45 FS Baking pastry Preheating is recommended. Biscuits and cookies can be baked in shallow baking sheets on several levels simultaneously (2nd and 3rd). Note that baking time can differ even with if the baking sheets used are the same. The biscuits in the upper baking sheet may be ready sooner than those in the lower one.
  • Page 29 FMW 45 FS ECO COOKING Round heater and the fan will operate. The fan installed in the back wall of the oven cavity makes sure the hot air constantly circulates around the roast or pastry. Type of food Guide level Temperature (°C)
  • Page 30 FMW 45 FS BOTTOM HEATER AND FAN This is used for baking leavened but low-rising pastry and for preserving fruit and vegetables. Use the second guide from the bottom and a rather shallow baking tray to allow the hot air to circulate across the upper side of the dish.

  • Page 31: Combined Systems

    FMW 45 FS AUTOMATIC COOKING OF MEAT – AUTO ROAST MODE In the Auto Roast mode, the upper heater will operate in combination with the grill heater and the round heater. It is used for roasting all types of meat.
  • Page 32 FMW 45 FS GRILL WITH FAN + MICROWAVES This system uses a combination of microwaves and grill with fan to cut the cooking time. Power levels: 90, 180, 360, 600 W. Place the baking tray into the 1st guide. Food...

  • Page 33: Microwave Systems

    FMW 45 FS MICROWAVE SYSTEMS MICROWAVES Microwaves are used for cooking and defrosting. Power levels: 90, 180, 360, 600, 750, 1000 W. Place the glass baking dish into the 1st guide. COOKING FROZEN FOOD Food Weight (g) Power (W) Cooking time (min)
  • Page 34 FMW 45 FS COOKING RICE AND PASTA Type of food Weight (g) Power (W) Cooking time (min) Rice* 1000 14-16 Pasta** 1000 11-13 Whole grain pasta* 1000 11-13 Oatmeal* 1000 Brown rice*** 31-33 Risotto ** 19-21 Couscous *** 1000 Polenta ***...
  • Page 35 FMW 45 FS DESERTS Type of food Cups Power (W) Cooking time (min) Chocolate soufflé Cheese soufflé glass baking dish 600-750 15-20 Fruit purée glass baking dish 750-850 10-15 Custard creams glass baking dish – 35 –...

  • Page 36: Maintenance And Cleaning

    FMW 45 FS maintenanCe anD Cleaning Be sure to unplug the appliance from the power supply and wait for the appliance to cool down. Children should not clean the appliance or perform maintenance tasks without proper supervision. Aluminium finish Clean the aluminium finish with non-abrasive liquid cleaners intended for such surfaces. Apply the cleaner onto a wet cloth and clean the surface.

  • Page 37: Using The Cleaning Function To Clean The Oven

    FMW 45 FS USING THE CLEANING FUNCTION TO CLEAN THE OVEN Pour 0.6 l water into the glass tray and place it into the lower guide. Choose ”Extra/Additional Functions” in the main menu and select the Cleaning symbol. Press the START key.

  • Page 38: Removing And Cleaning The Wire Guides

    FMW 45 FS REMOVING AND CLEANING THE WIRE GUIDES Only use conventional cleaners to clean the guides. 1 Undo the screw. Use a screwdriver. 2 Remove the guides from the holes in the back wall. Take care not to lose the spacers fitted on the wire guides.

  • Page 39: Replacing The Bulb

    FMW 45 FS REPLACING THE BULB The bulb is a consumable and therefore not covered by warranty. Before changing the bulb, remove the trays, the grid, and the guides. Use a Phillips (cross) screwdriver. (Halogen lamp: G9, 230 V, 25 W) 1 Undo the four screws on the cover.

  • Page 40: Troubleshooting Table

    FMW 45 FS troubleshooting table Problem/error Cause There is no response of the Disconnect the appliance from the power mains for a few minutes (undo sensors; the display is frozen. the fuse or switch off the main switch); then, reconnect the appliance and switch it on.

  • Page 41: Cooking Test

    FMW 45 FS Cooking test Food tested in compliance with the EN 60350-1 standard. Conventional baking Dish Equipment Guide level System Tempera- Cooking (from the ture (°C) time (min) bottom) Cookies – single Shallow enamel-coated 20-35 level* baking sheet Shallow enamel-coated Cookies –...
  • Page 42 FMW 45 FS – 42 –...
  • Page 44 Phone +32 54 310 111 Phone +34 93 565 3535 Kazakhstan Brazil Sweden Franke Kazakhstan Ltd. Franke Sistemas de Cozinhas do Brasil Ltda. 040918 Almaty City Franke Futurum AB 89219-512 Joinville, SC Phone +7 727 297 3812 930 47 Byske...
