Making Connections - Quantum Data 802 Series Quick Start Manual

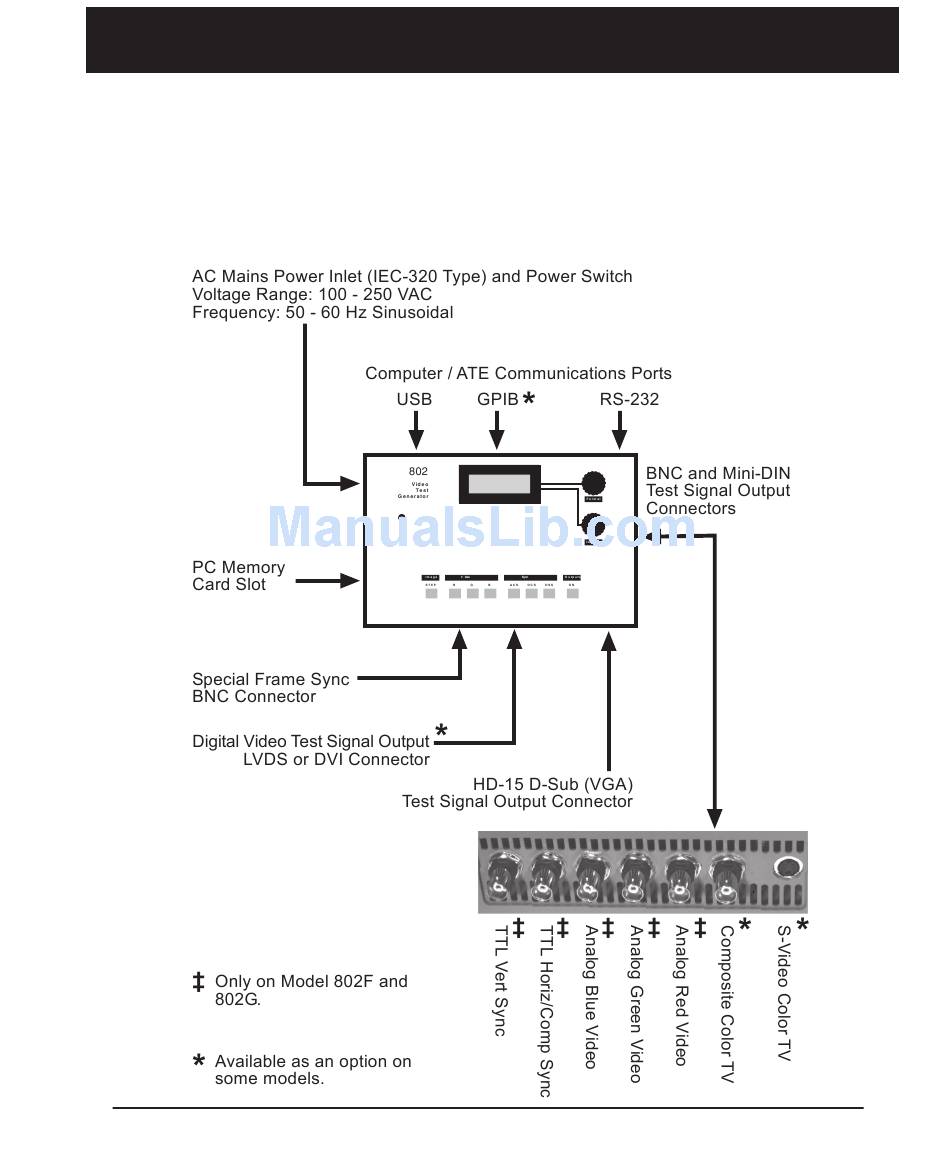

Making Connections

Notes:
Some connectors shown are only available on some models and/or with certain hardware
option configurations.
The current firmware only fully supports use of the RS-232 and optional GPIB
communications ports and has limited USB support. Version 3.00 of our VGM software
supportsusing the USB port for the bit map download function described on page 17 of
this manual.
• 2 • Model 802 Series Quick Start Guide
