Summary of Contents for viveroo Free

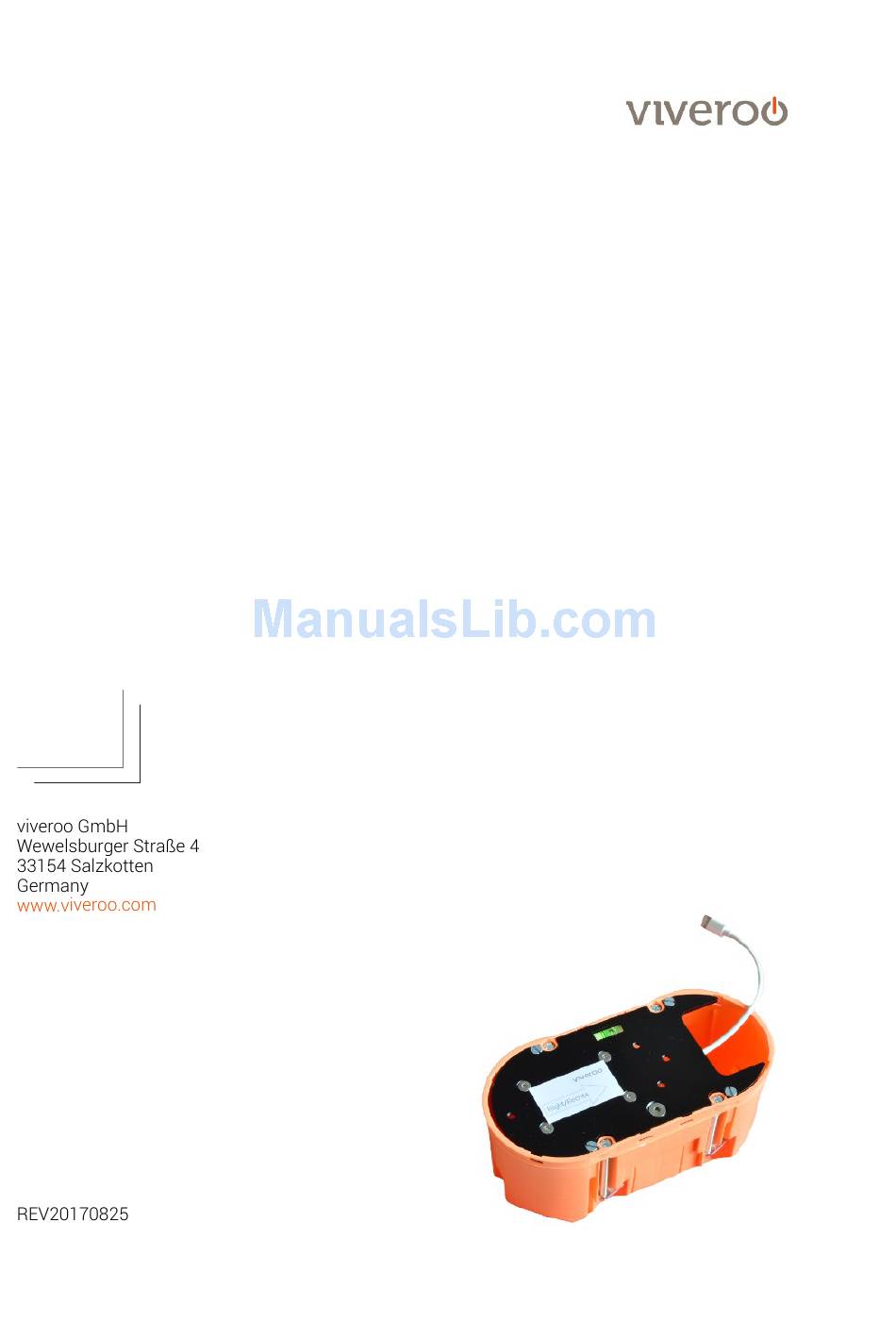

- Page 1 Installation guide MountingSet Inwall, free free...
-
Page 2: Safety Information
Please follow the instructions and recommendations to ensure proper use and maximum enjoyment. Safety free and all free mounting sets are intended for use in enclosed and dry living spaces. information The following conditions must be provided: - Operating temperature between 0°... -
Page 3: Technical Data
Power consumption 12,5 Watt Removal from free may be removed from the power supply via the circuit breaker in the respective rooms. power supply Technical changes and mistakes are excepted. Apple, iPad and Lightning are registered trademarks of Apple Inc. - Page 4 The backside of the flush-mount box can be used as a template. The depth should be approximately 75mm. ! Important: This installation guide shows the installation process for a drywall. Here free is installed in landscape position. Step 2 Cut a hole for the cable in the flush-mount box. Use the diagonal surfaces of the box for the cut.
- Page 5 ! Important: Make sure that no cables are jammed between the flush mounting box and the installation disc. After completing installation, please make sure that the free is solidly secured to the wall. Now you can install free. Please see the corresponding user manual.
- Page 6 Product dimensions, in mm free for … … iPad mini 4 … iPad Air, Air, Pro 9,7“ und … iPad (März 2017) … iPad Pro 10,5“ … iPad Pro 12,9“...
-
Page 7: Technical Drawing
Technical drawing side view back view from left to right: Flush mount The size of free varies depending on the iPad box, mounting plate, free generation. Mounting plate is always the same, it allows you to change iPad generation easily. - Page 8 Installation guide MountingSet Furniture, free free...
- Page 9 Please follow the instructions and recommendations to ensure proper use and maximum enjoyment. Safety free and all free mounting sets are intended for use in enclosed and dry living spaces. information The following conditions must be provided: - Ambient temperature: Usage: between 0°...
- Page 10 Output voltage 5,2 Vdc via Lightning connector connections Removal from free may be removed from the power supply via the circuit breaker in the respective rooms. power supply Technical changes and mistakes are excepted. Apple, iPad and Lightning are registered trademarks of Apple Inc.
- Page 11 Technical drawing The technical drawings and dimensions help you to prepare the furniture/cabinet/display etc. The installation of free is described in the free user manual. side view from left to right: Mounting plate, free. Please note: Use holesaw ∅50mm to put the connector through.
- Page 12 / drilling template, Montageset rnit re pro12,9" air/air2/pro9,7" mini Unterkante "free" / lower edge "free"...
