Wall Mounting

• Installation must be carried out by qualifi ed personnel only. Incorrect assembly can result in severe
personal injury and property damage (if you intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the
installer's responsibility to verify that the wall will safely support the total load of the Soundbar and
wall brackets.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud fi nder to check the wall type before drilling and mounting.

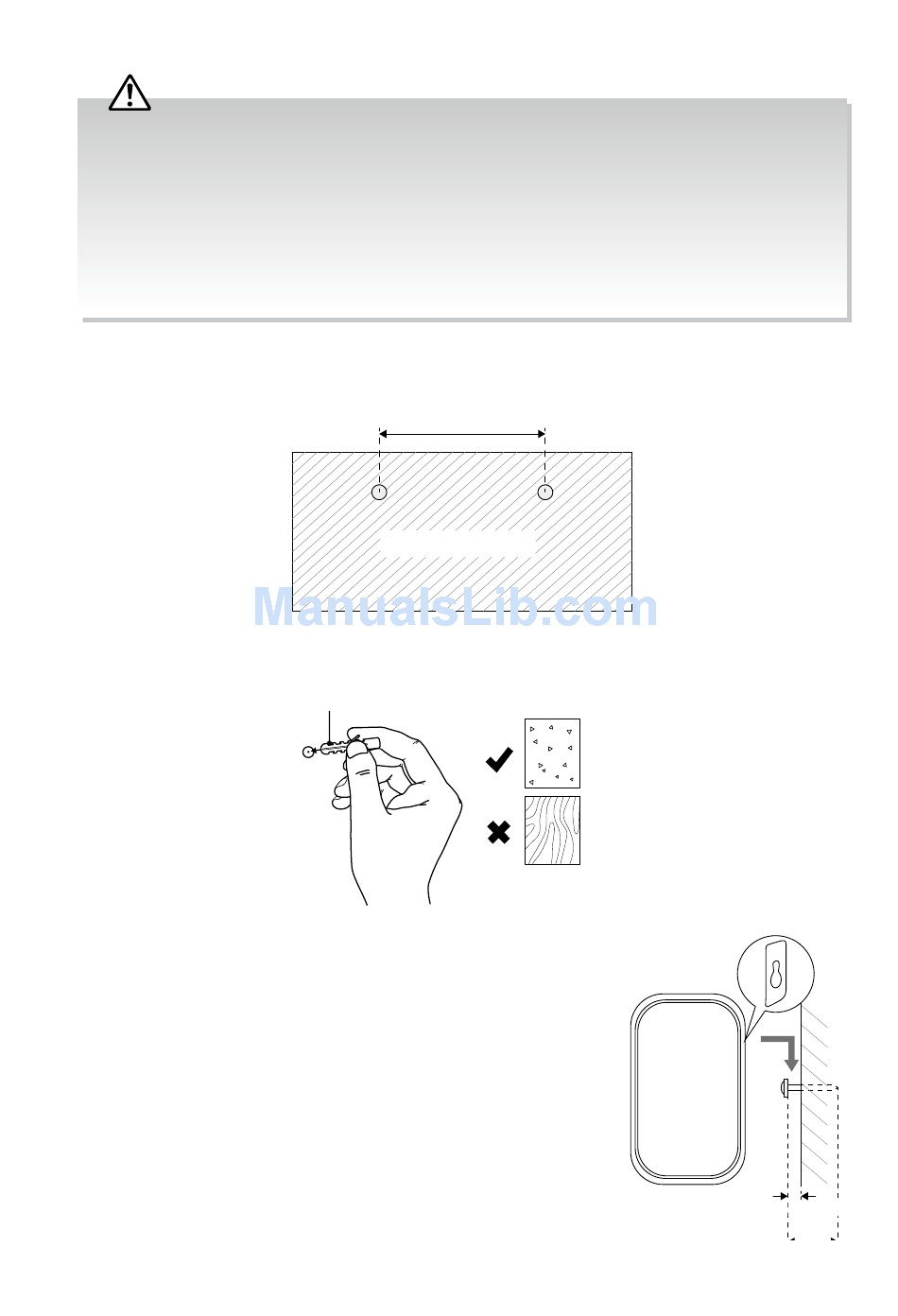

1. Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance
between the holes should be 400 mm.
2. Firmly fi x 1 dowel into each hole in the wall if necessary.
3. Insert 1 screw into each hole or dowel. Leave a 10 mm
gap between the wall and the screw's head. Lift the
unit over the heads of the screws and slot into place.
12
400 mm
Wall (Front view)
Dowel
Solid wall (i.e., Solid brick,
Solid concrete, Solid wood,
Solid wooden battens)
Drywall, Plaster wall,
Lath wall, etc.
10 mm
30-35 mm
